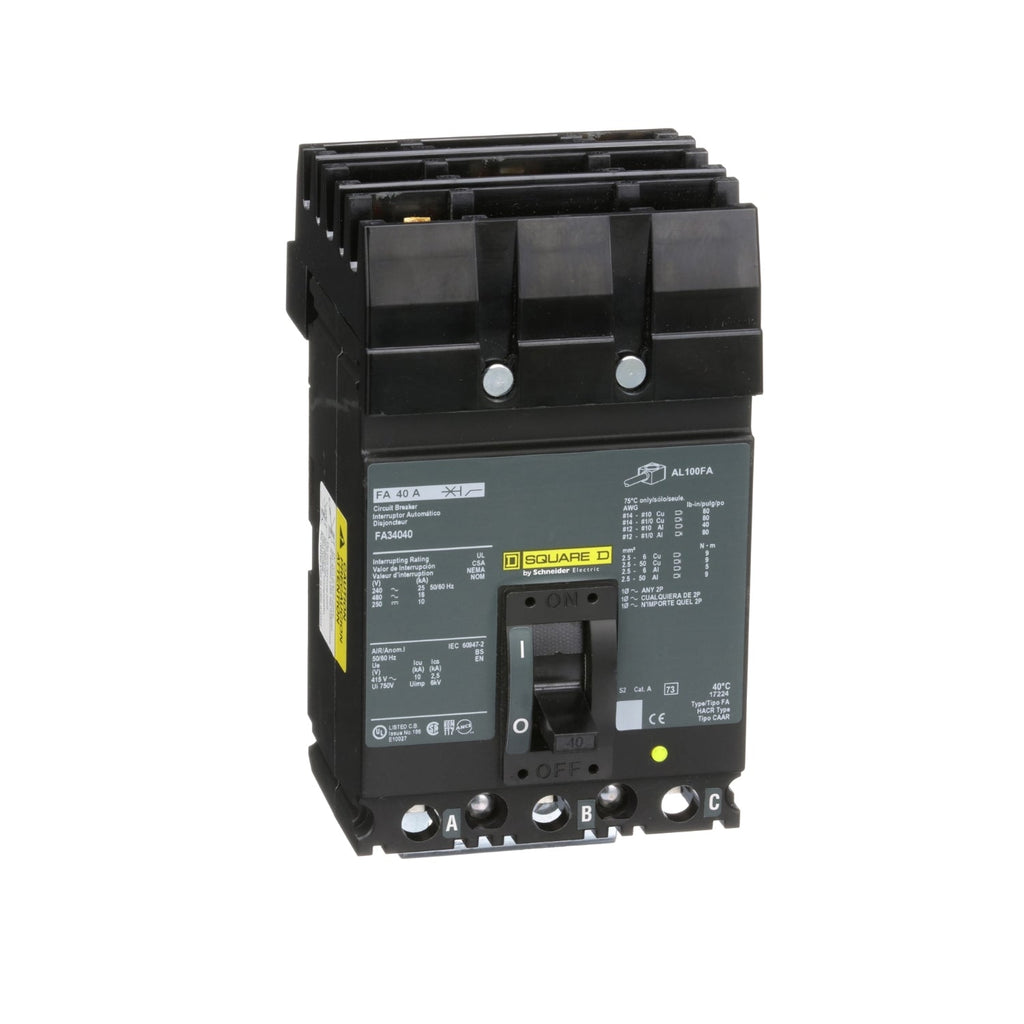

FA34040 - Square D 40A 480V 3 Pole I-Line Molded Case Circuit Breaker

FA34040

FA34040 is a Square D 3 pole molded case circuit breaker rated for 40 amps and 480 volts with I-Line plug-in mounting.This thermal magnetic circuit breaker features an 18kA interrupting rating at 480V, long-time and instantaneous trip functions, and is UL and CSA certified. It is designed for industrial applications requiring reliable overcurrent protection with a compact I-Line frame.

• Amperage: 40 Amps
• Voltage: 480 VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 18kA at 480V
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous) trip
• Certifications: UL, CSA
• Frame Type: FA Series
• Terminal Connection: Load side lug
• Standards: HACR rated
• Temperature Rating: 40 °C
• Dimensions (LxWxH): 4.13 x 4.5 x 6.4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA34040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901422686
• GTIN : 00785901422686
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
