FA14100B - Square D 100 Amp 1 Pole 277V I-Line Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt Rating, UL/CSA Listed

FA14100B

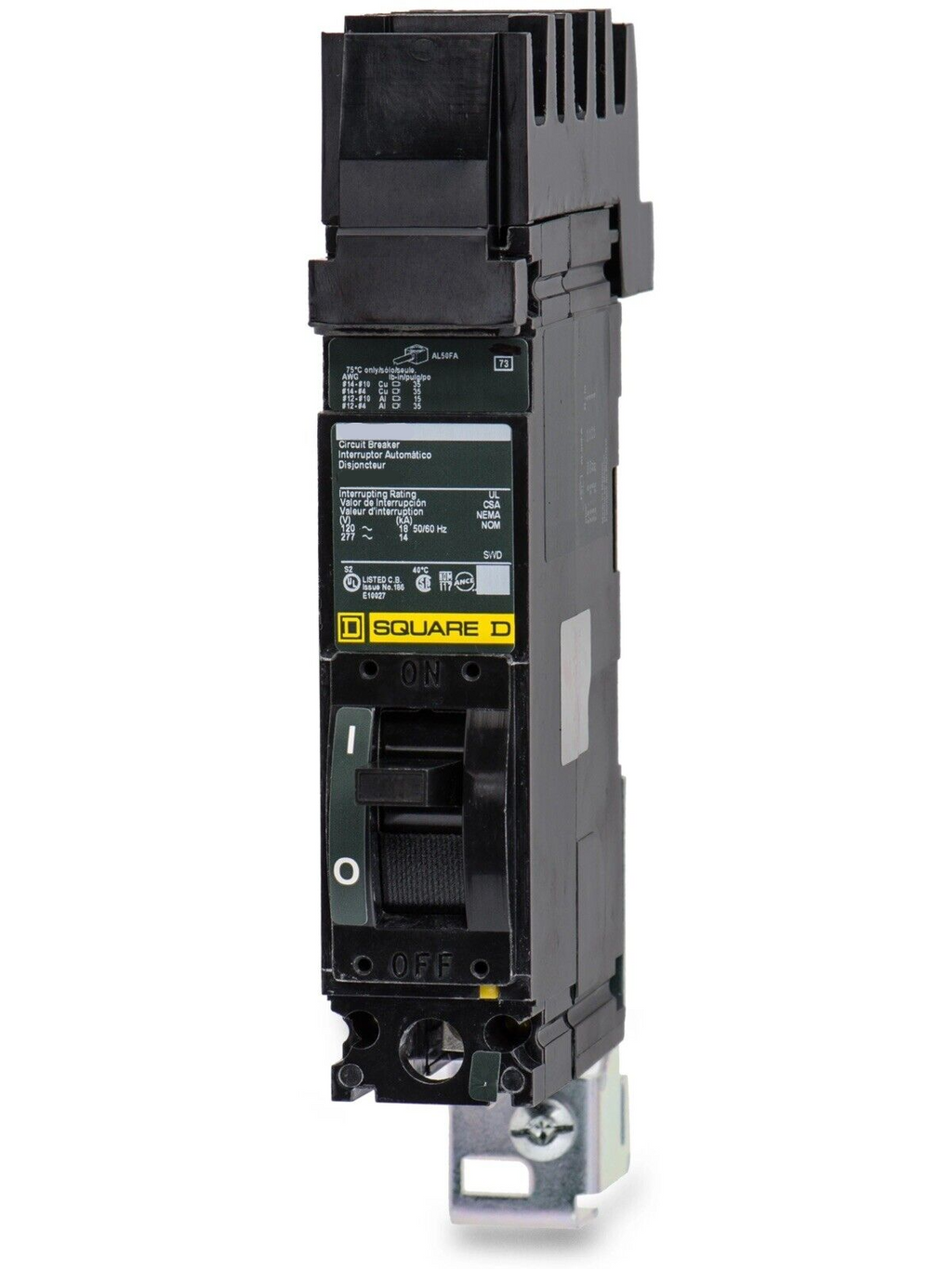

FA14100B is a Square D 100 Amp, 1 Pole, 277 Volt I-Line style plug-in molded case circuit breaker designed for reliable power distribution.

This thermal magnetic trip unit breaker features a long-time and instantaneous (LI) trip characteristic, providing both overload and short-circuit protection. It is rated for 18kA interrupting capacity at 277V and is suitable for use in Class 650/651 I-Line panelboards and switchboards. The FA14100B is UL and CSA approved, ensuring compliance with North American safety standards.

Key Specifications
• Part Number: FA14100B
• Manufacturer: Square D (Schneider Electric)
• Amperage: 100A
• Voltage: 277V
• Poles: 1
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 18kA @ 277V
• Series/Frame: FA
• Trip Unit: Thermal Magnetic, LI (Long-Time & Instantaneous)
• Certifications: UL Listed, CSA Approved
• Application: Power distribution in panelboards and switchboards
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA14100B
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 277
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901540312
• GTIN : 00785901728023
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
