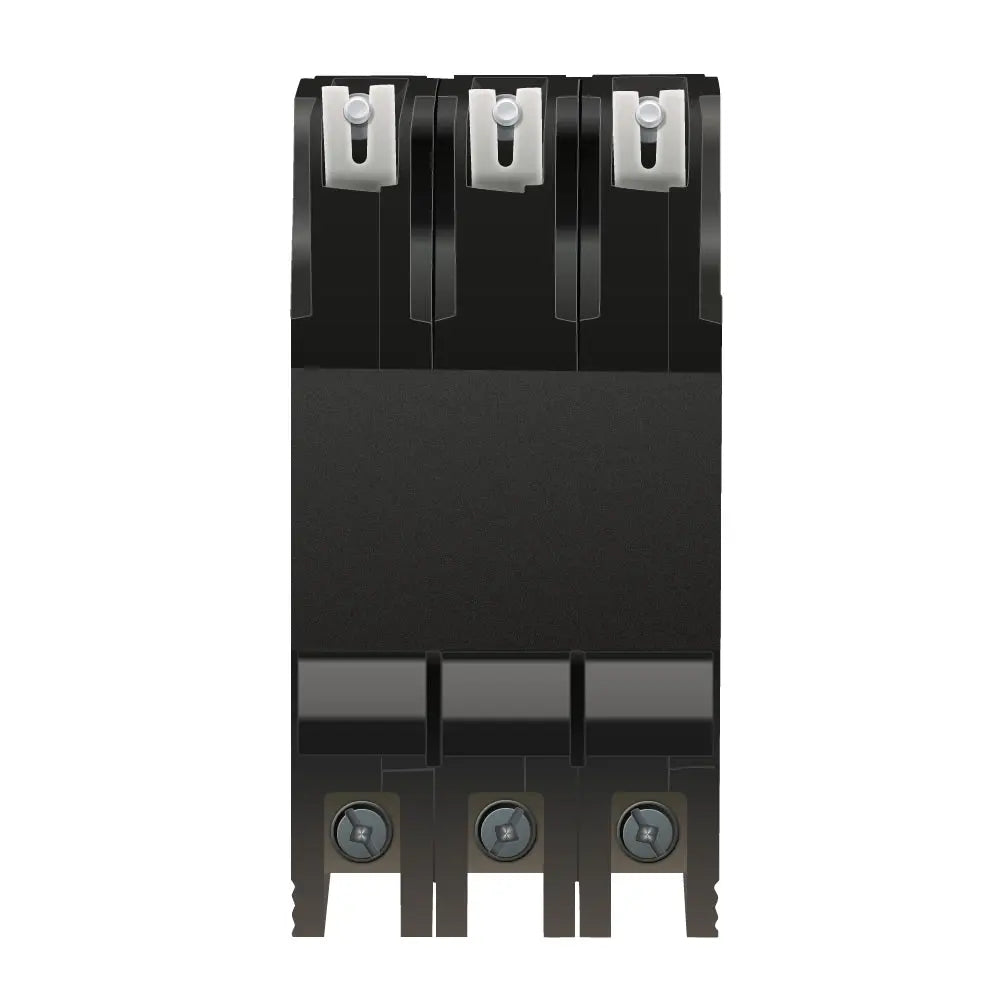

EJB36100 - Square D 100A 3-Pole 600Y/347V Miniature Circuit Breaker

EJB36100

EJB36100 is a miniature circuit breaker designed for lighting panelboard applications with superior overload and short circuit protection.

This Square D molded case circuit breaker features bolt-on mounting for Class 515 NF Series panelboards. The E-Frame module provides reliable protection in three-pole configurations with a 25kA short circuit interrupt capacity at 600V. The breaker is rated for 100 amperes at 600Y/347V and includes both short-circuit and overload protection.

• Amperage Rating: 100A
• Number of Poles: 3
• Voltage Rating: 600Y/347V
• Short Circuit Interrupt Capacity: 25kA at 600V
• Mounting Type: Bolt-On
• Module Type: E-Frame
• Trip Unit Rating: 875 Amp
• Protection Type: Short-Circuit and Overload
• Application: Lighting Panelboards
• Series: Class 515 NF

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EJB36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EJB Series
• Type : EJB
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901411376
• GTIN : 00785901411376
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.62
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
