Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
EJB36020

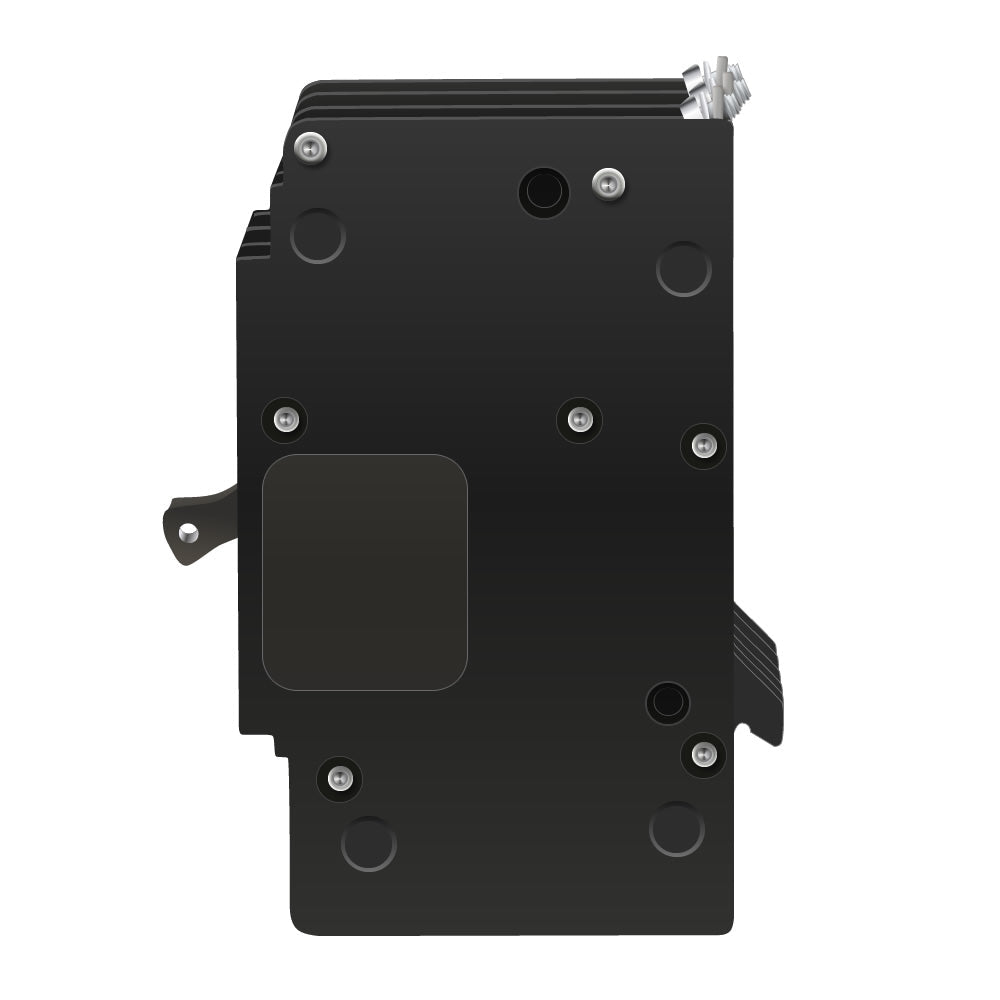

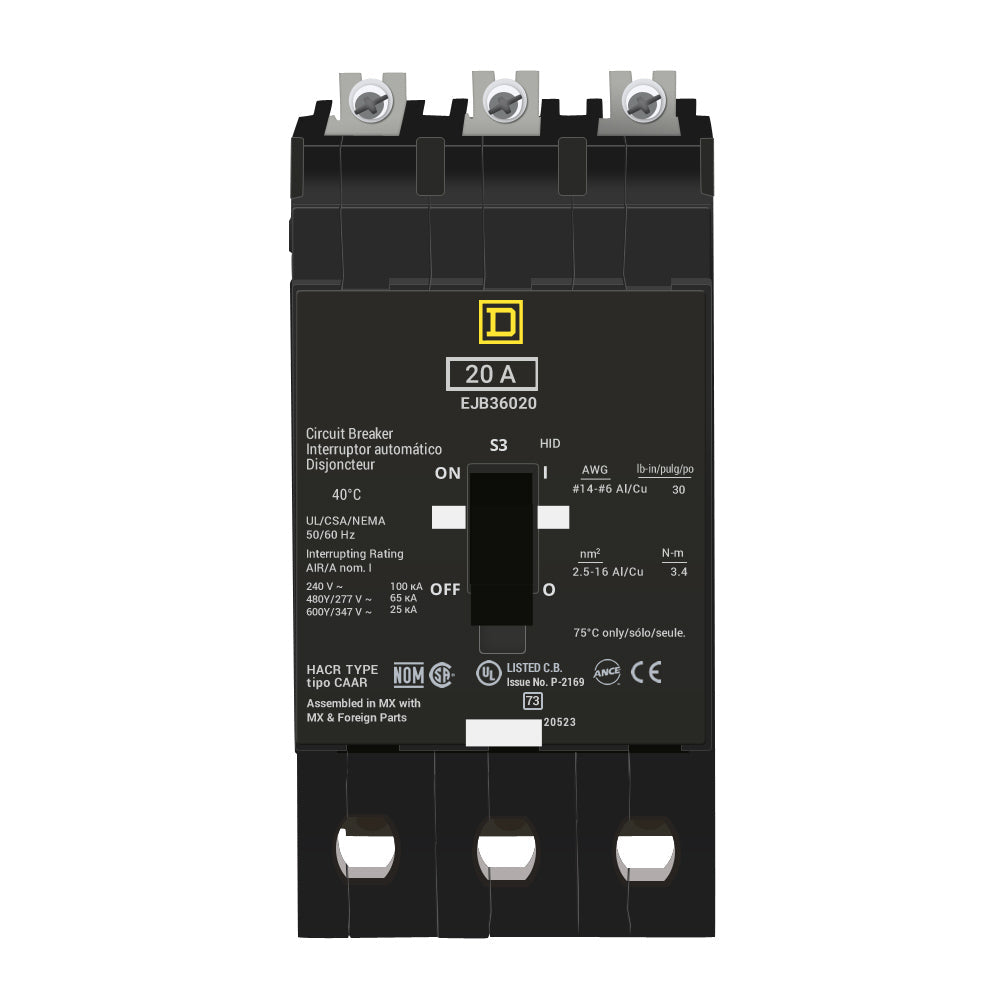

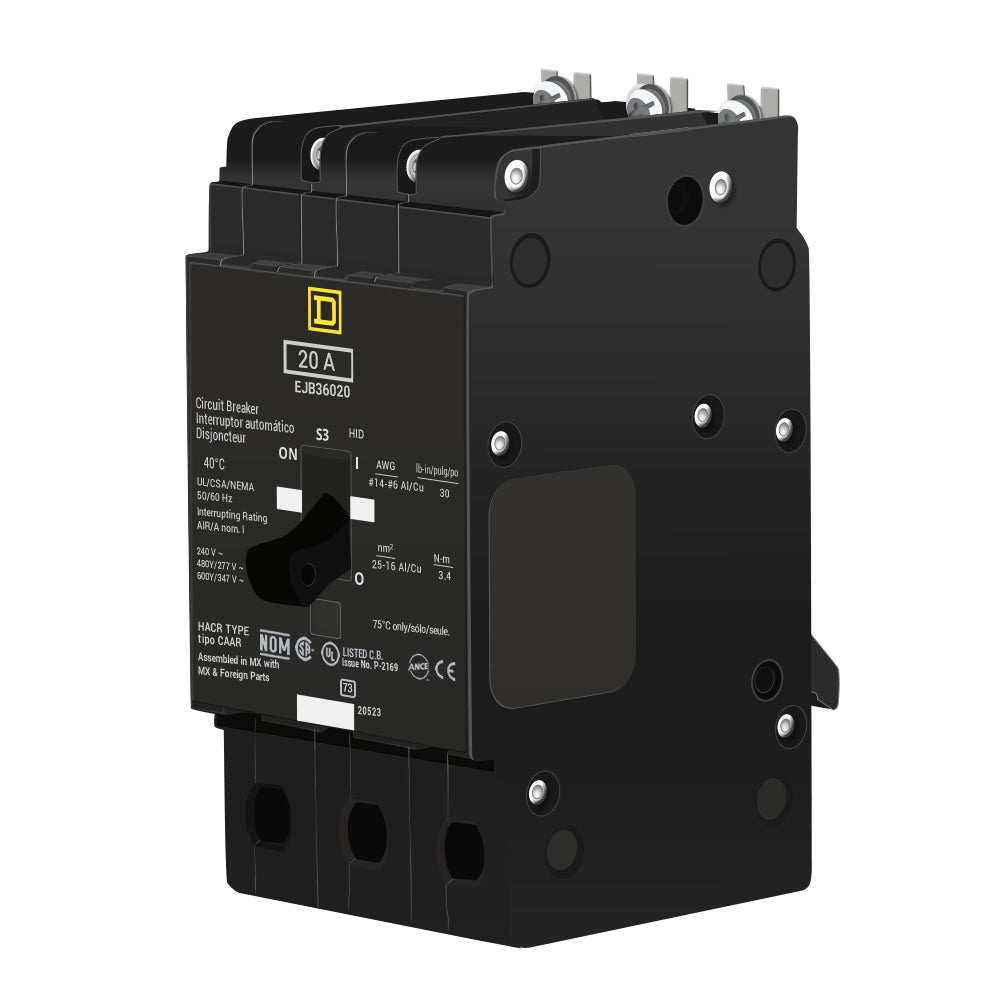

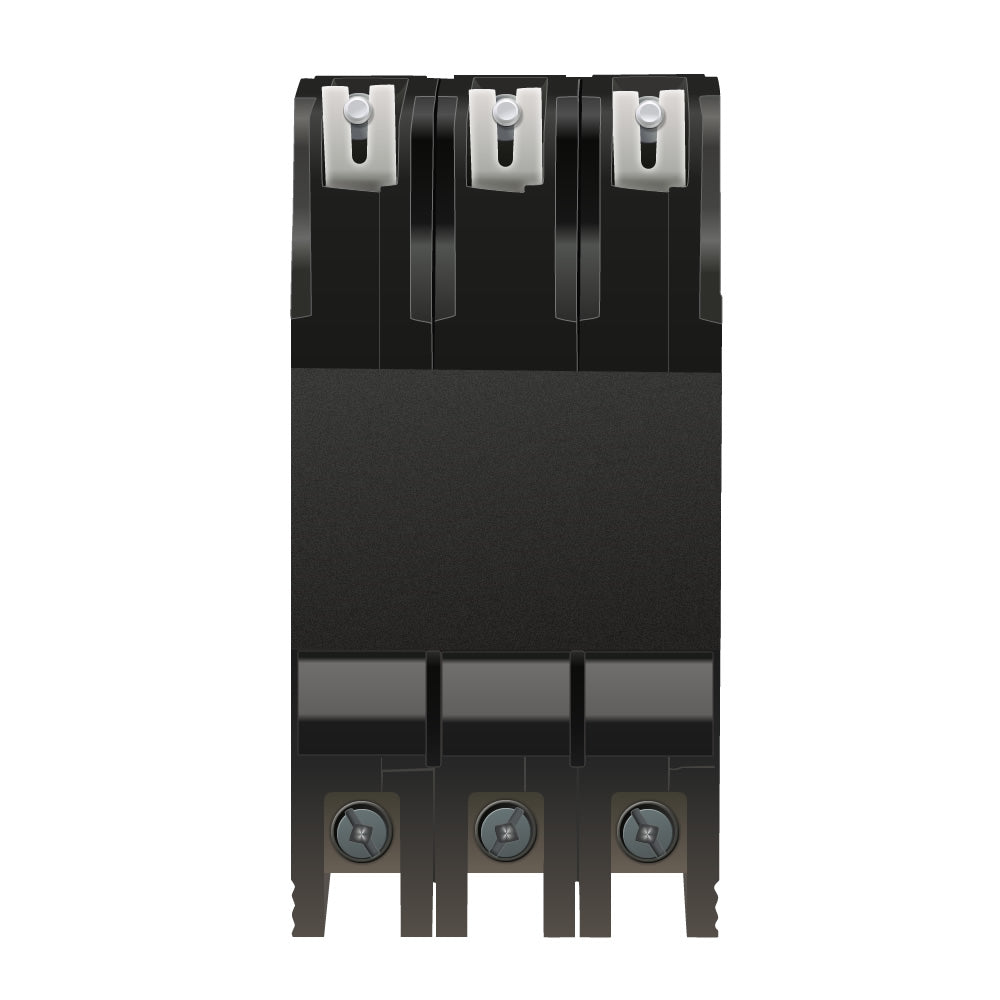

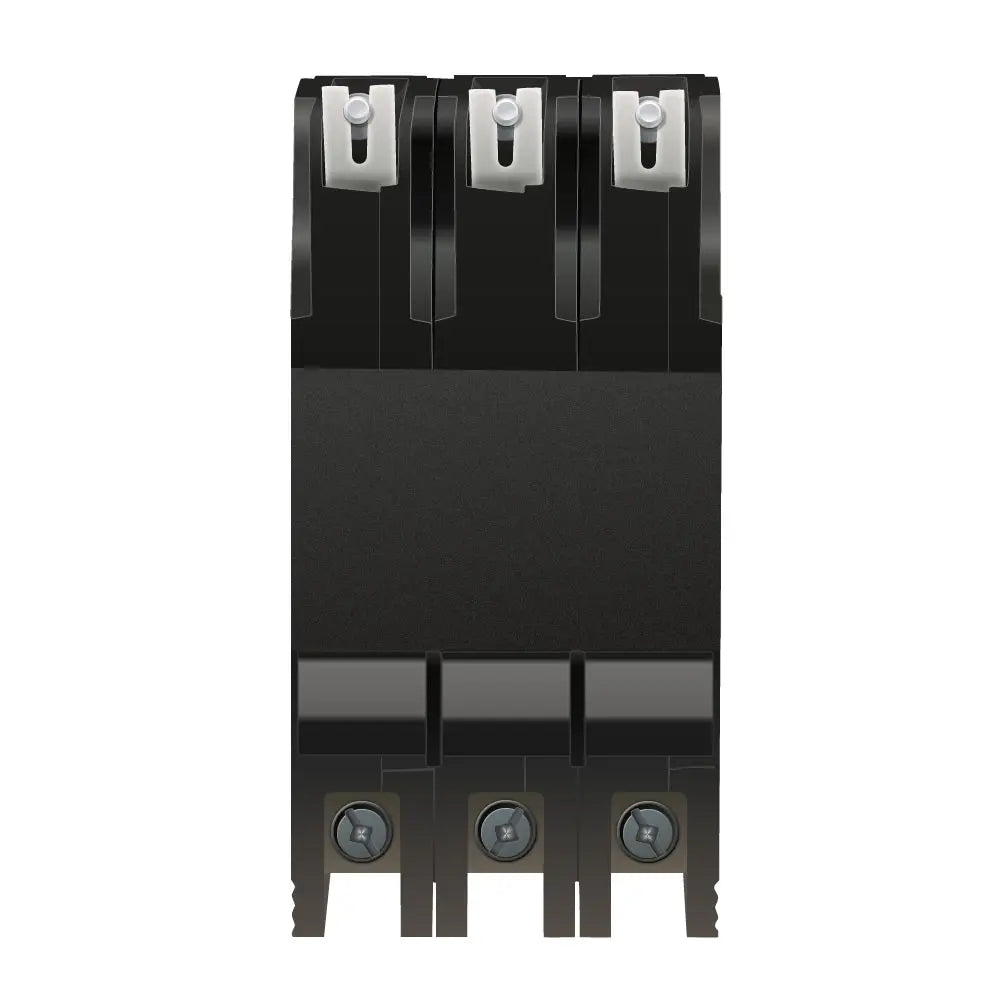

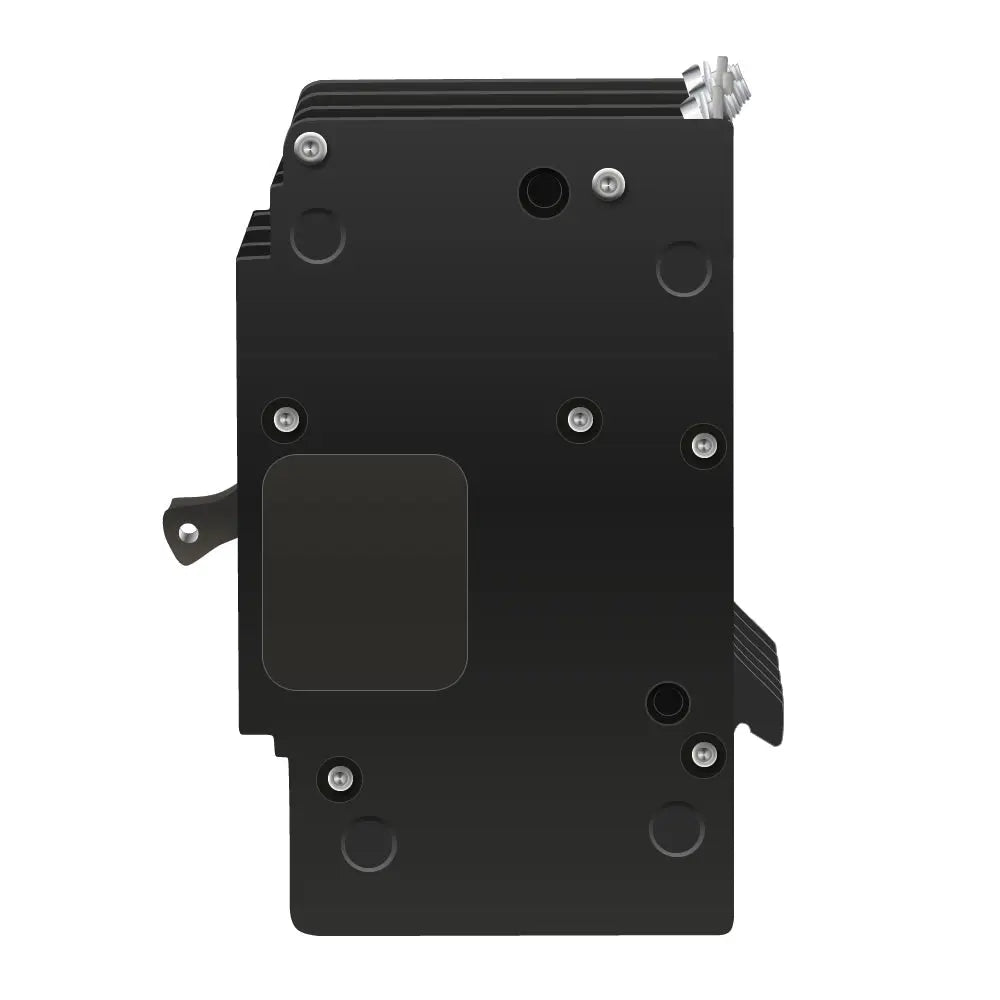

EJB36020 is a Square D 20A 600V 3 Pole Miniature Circuit Breaker designed for reliable branch circuit protection in commercial and industrial applications.This thermal magnetic trip circuit breaker features bolt-on mounting for secure installation and is suitable for use in NF merchandised panelboards. It offers a 25kA interrupting rating at 600V and is UL listed for both US and Canada.
- Part Number: EJB36020
- Manufacturer: Square D
- Amperage: 20A
- Number of Poles: 3
- Voltage Rating: 600V AC
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 600V
- Series/Frame: EJB
- Frame Amps: 110A
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed (US and Canada)
- Application: Branch Circuit Protection
Specifications
- Part Number: EJB36020
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EJB Series
- Type : EJB
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901235712
- GTIN : 00785901235712
- Country of Origin : Mexico
- Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
- Weight : 3.821
- Panel Type : NF panelboard
- Certification : cULus
- Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
