EJB36015 - Square D E-Frame 15A 3-Pole 600Y/347V Miniature Circuit Breaker Bolt-On

EJB36015

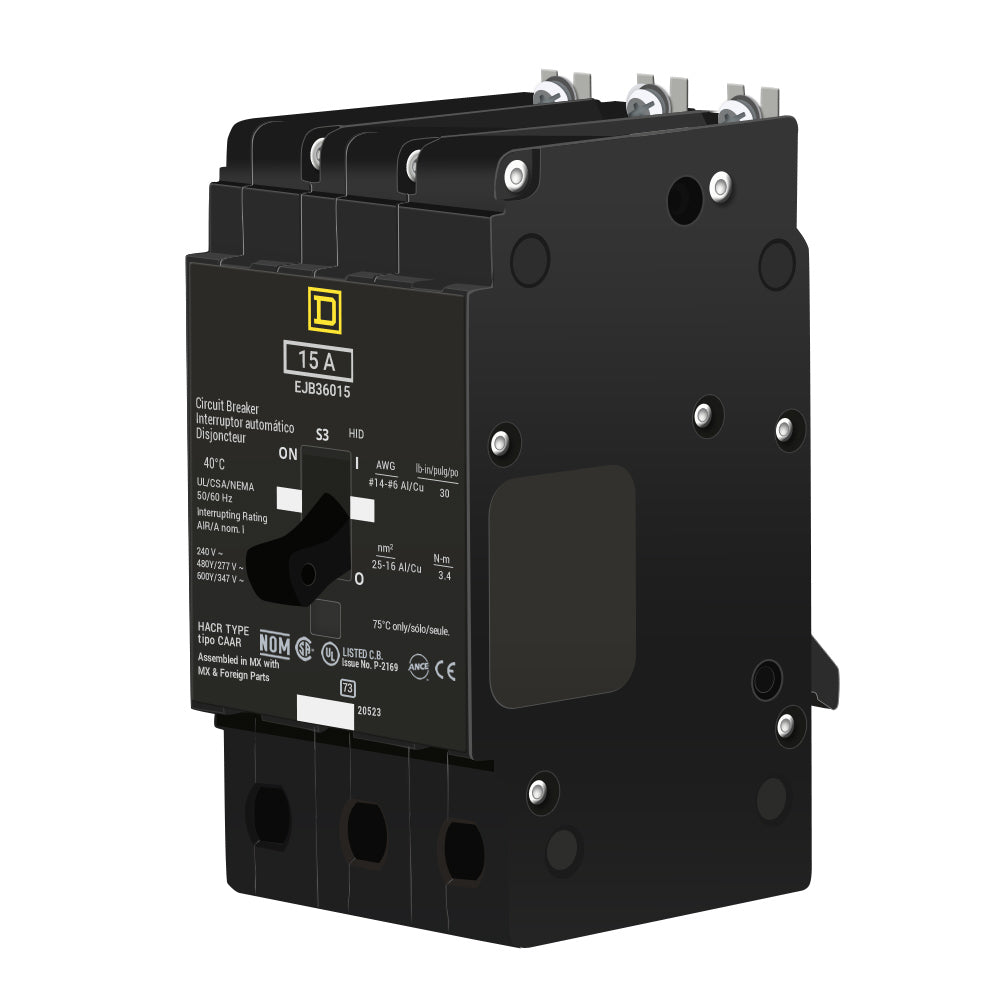

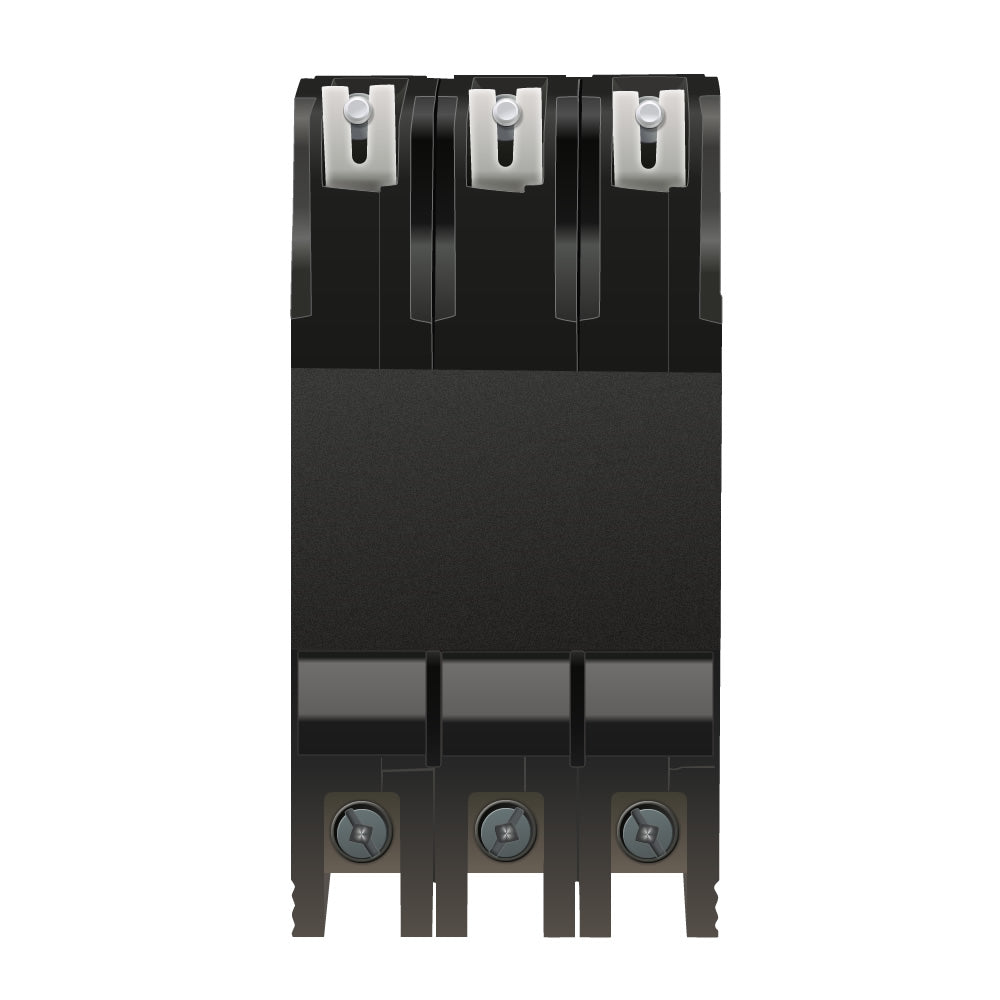

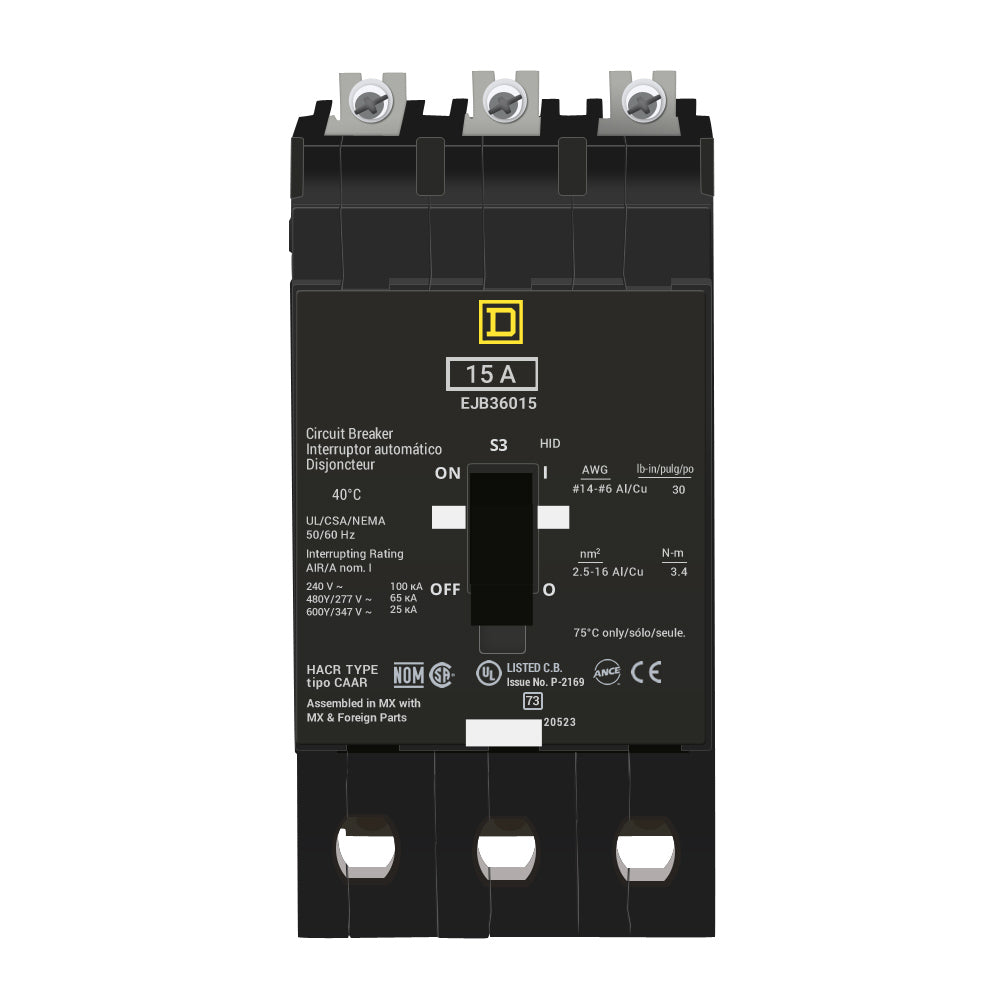

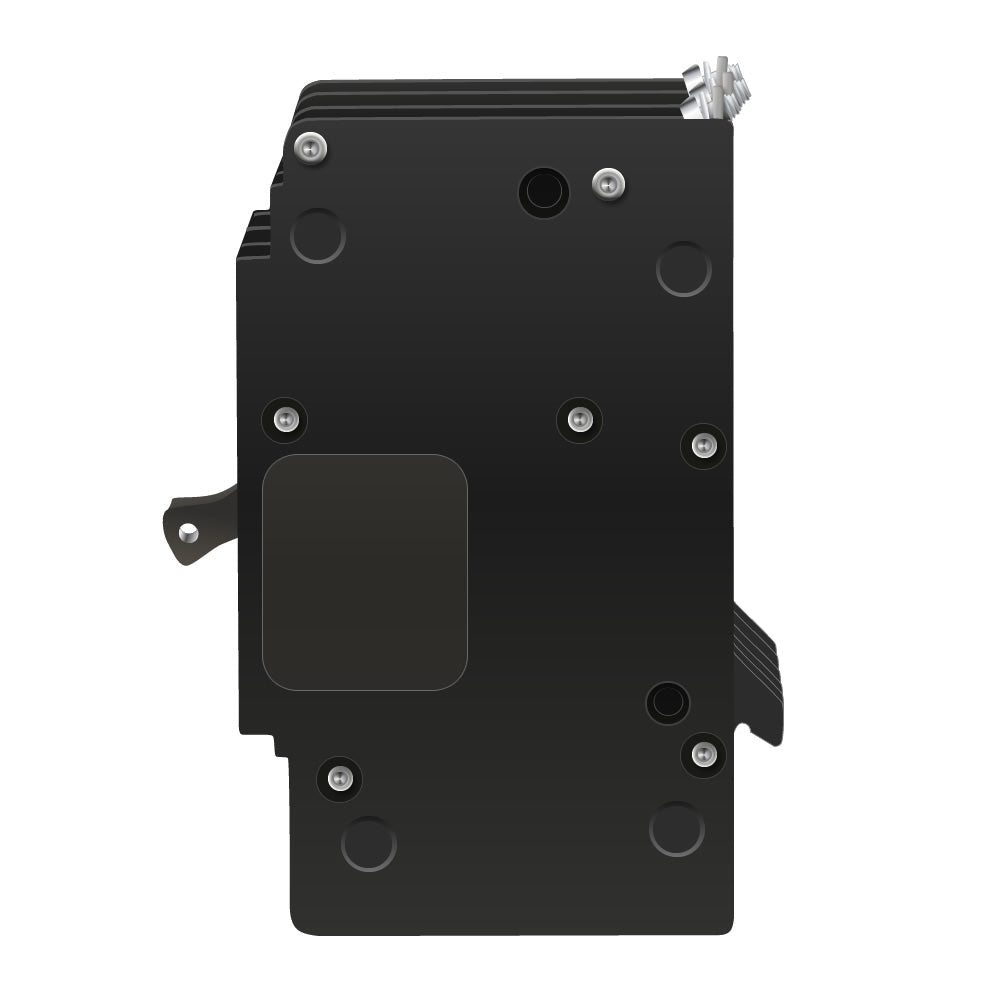

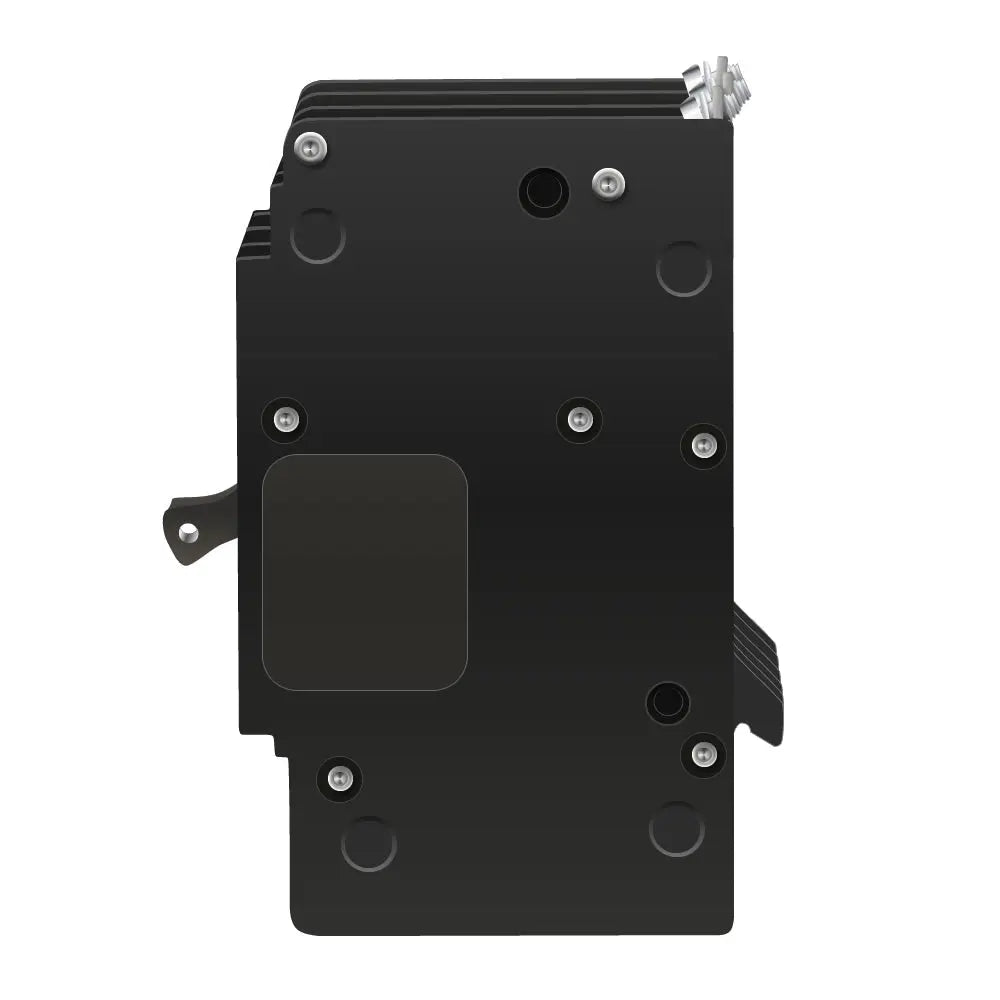

EJB36015 is a 3-pole, 15A miniature circuit breaker designed for reliable protection in commercial and industrial lighting panelboards. This Square D E-Frame breaker features a thermal-magnetic trip unit and bolt-on mounting for secure installation. Engineered for use in 600Y/347V AC systems, the EJB36015 delivers superior overload and short circuit protection. It is UL listed, CSA certified, and HOM certified for safety and compliance. The breaker is ideal for applications requiring fast, dependable circuit interruption and easy troubleshooting with Visi-Trip™ technology.

• Part Number: EJB36015
• Manufacturer: Square D
• Series/Frame: E-Frame
• Amperage: 15A
• Poles: 3
• Voltage: 600Y/347V AC
• Interrupt Rating: 100kA max
• Mounting Type: Bolt-On
• Interrupting Rating: 25kA @ 600V
• Trip Unit: Thermal-Magnetic
• Certifications: UL, CSA, HOM
• Application: Lighting Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EJB36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EJB Series
• Type : EJB
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590140700
• GTIN : 00785901407003
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.6
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 6 aluminum
  AWG 14...AWG 6 copper
