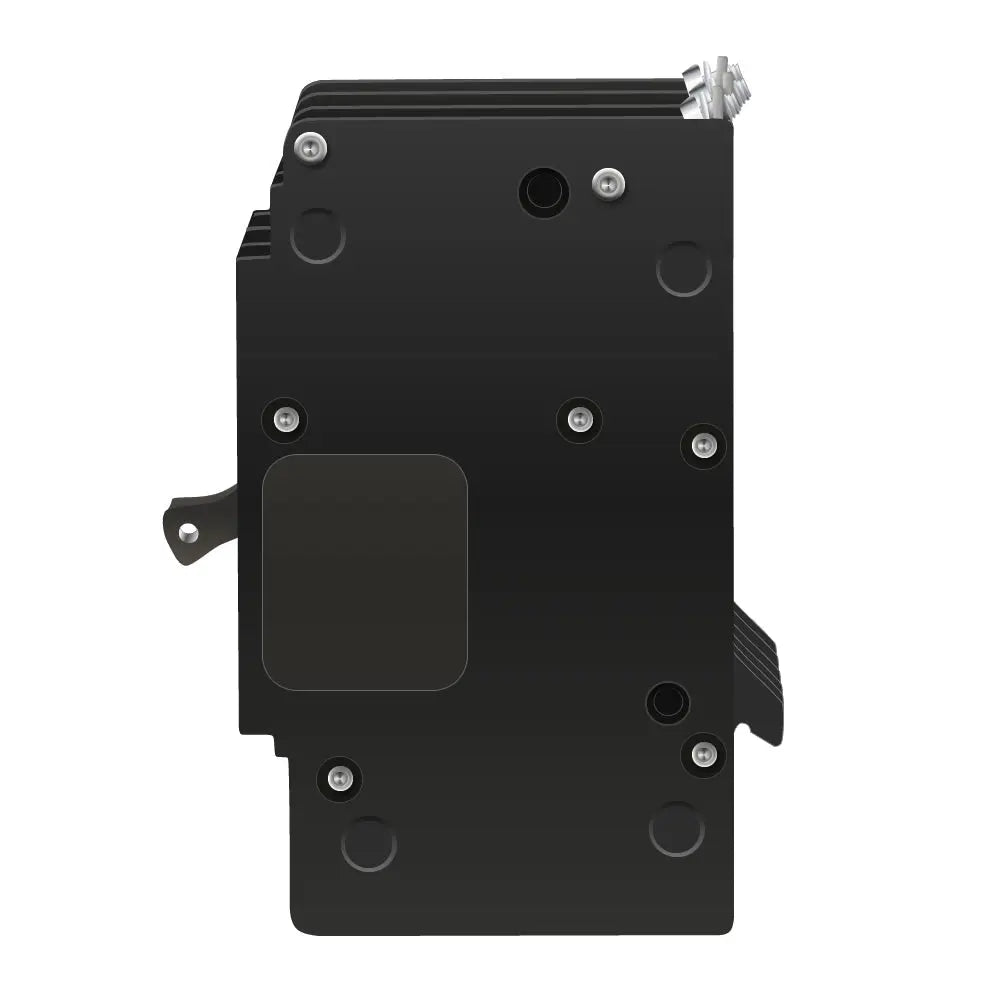

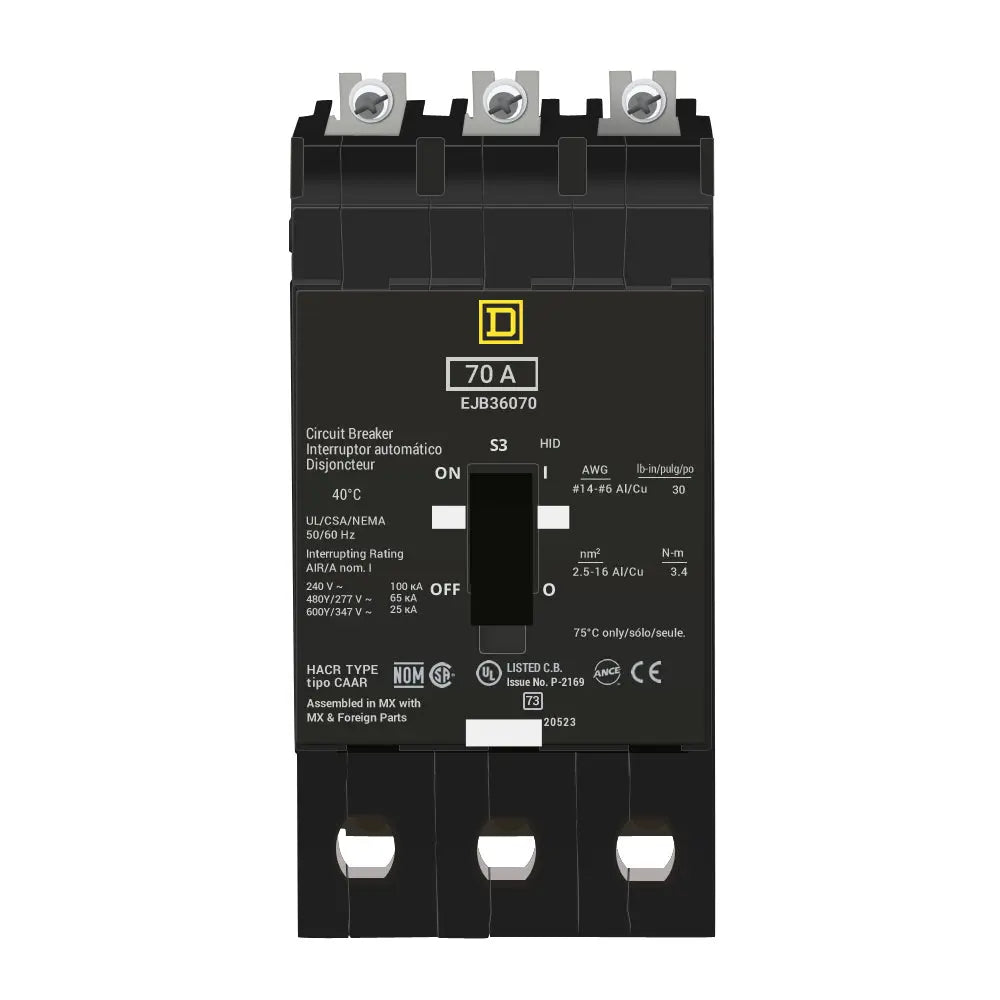

EJB36070 - Square D 70A 3-Pole Molded Case Circuit Breaker 600Y/347V E-Frame Bolt-On

EJB36070

EJB36070 is a 70 amp, 3-pole molded case circuit breaker designed for 600Y/347 volt applications by Square D.This E-Frame series circuit breaker features a thermal magnetic trip unit and is intended for bolt-on mounting. It provides reliable short-circuit and overload protection with a 65kA interrupt rating at 480V. The breaker is UL listed for use in North America and suitable for branch circuit protection in commercial and industrial electrical systems.

• Manufacturer: Square D
• Part Number: EJB36070
• Amperage: 70 A
• Poles: 3
• Voltage Rating: 600Y/347 V AC
• Interrupt Rating: 65 kA at 480 V
• Series/Frame: E-Frame
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed (US and Canada)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EJB36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EJB Series
• Type : EJB
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901407249
• GTIN : 00785901407249
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.45
• Panel Type : NF panelboard
• Certification : cULus
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
