2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EHD3100WBP10

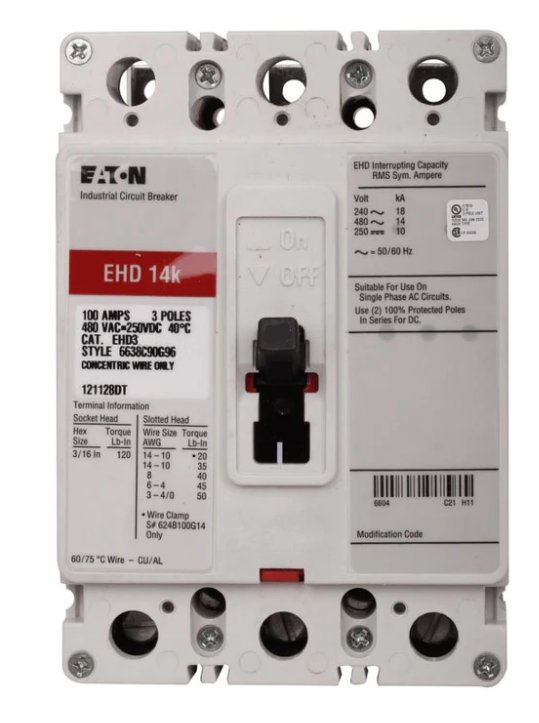

EHD3100WBP10 is a 100 amp, 3-pole molded case circuit breaker from Eaton's Series C, F-frame, EHD type, designed for reliable circuit protection.This complete breaker features fixed thermal and fixed magnetic trip units, suitable for 480 VAC and 250 VDC applications. It offers an interrupt rating of 18 kAIC at 240 VAC and 14 kAIC at 480 VAC, with load-side connection and compatibility for 50/60 Hz frequency. The breaker includes patented high-speed "blow-open" contact design for superior performance and is UL listed for safety.
- Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 480 VAC / 250 VDC
- Number of Poles: 3
- Frame Type: F-Frame
- Series: Series C
- Trip Type: Fixed Thermal / Fixed Magnetic
- Interrupt Rating: 18 kAIC at 240 VAC, 14 kAIC at 480 VAC
- Connection Type: Load Side
- Frequency Rating: 50/60 Hz
- Circuit Breaker Type: Complete Breaker
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: EHD3100WBP10
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EHD
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
