Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EHD3100LBP10

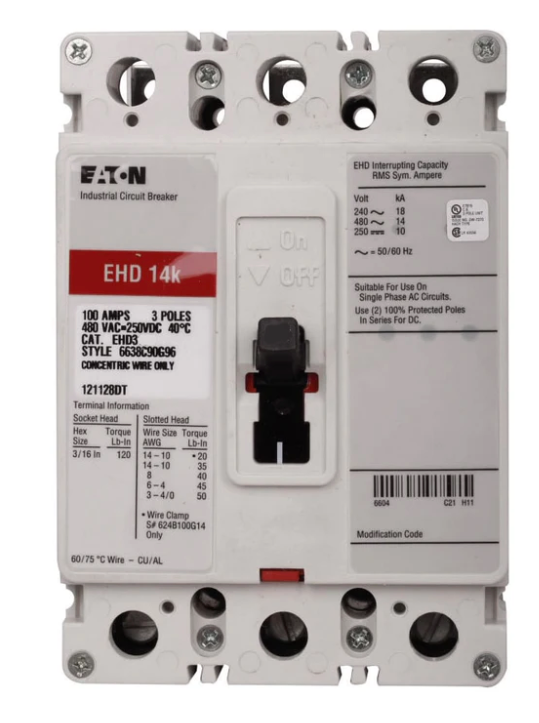

EHD3100LBP10 is a Series C complete molded case circuit breaker manufactured by Eaton, featuring a 100 ampere rating at 480 VAC with three poles and fixed thermal/fixed magnetic trip protection. This F-frame breaker is designed for load-side applications and provides reliable circuit protection in industrial and commercial power distribution systems. The breaker operates at 50/60 Hz frequency and is UL Listed for safety and performance compliance. Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 480 VAC / 250 VDC
- Number of Poles: Three-pole
- Frame: F
- Circuit Breaker Type: EHD
- Trip Type: Fixed Thermal / Fixed Magnetic (T186)
- Interrupt Rating: 14 kAIC at 480 VAC, 18 kAIC at 240 VAC, 10 kA at 250 VDC
- Frequency Rating: 50/60 Hz
- Connection Type: Load side
- Dimensions: 3.38 x 4.13 x 6 inches
- Weight: 4.5 lb
- Certifications: UL Listed
Specifications
- Part Number: EHD3100LBP10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EHD
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
