Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

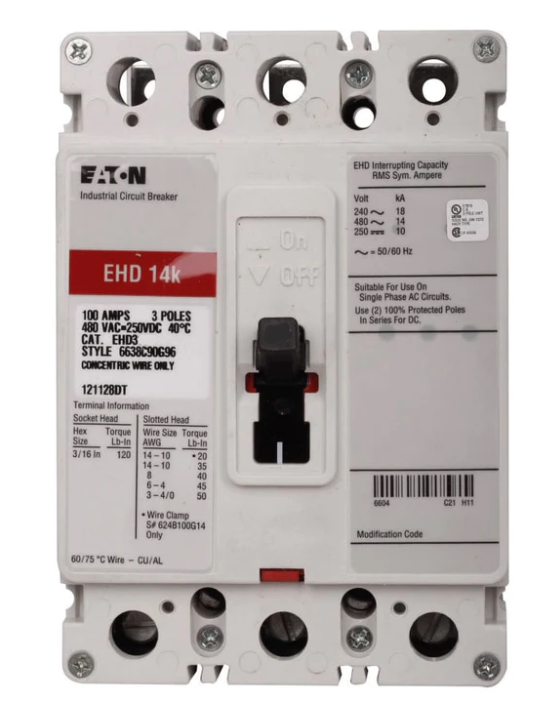

EHD3100W
EHD3100W is a 100 amp, 480 volt, 3-pole molded case circuit breaker from Eaton's Series C, F-frame family.This Eaton EHD3100W circuit breaker features a fixed thermal and fixed magnetic trip unit (T186), providing reliable long-time and instantaneous protection. It is designed for three-phase applications with a 14kA interrupt rating at 480 VAC and 18kA at 240 VAC. The breaker includes load-side lug terminals and a feed-thru connection type, suitable for robust industrial and commercial power distribution.
- Key Specifications
- Amperage: 100 A
- Voltage: 480 VAC
- Poles: 3
- Series/Frame: Series C, F-frame
- Trip Unit: Fixed Thermal Magnetic (T186)
- Interrupt Rating: 14 kAIC at 480 VAC, 18 kAIC at 240 VAC
- Connection Type: Feed-Thru
- Terminal Type: Load side lug terminals
- Phase: 3
- Frequency: 50/60 Hz
- Certifications: UL Listed
- Dimensions (HxWxD): 6" x 4.13" x 3.38"
- Part Number: EHD3100W
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EHD
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- Weight : 4
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
