Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EHD1100L

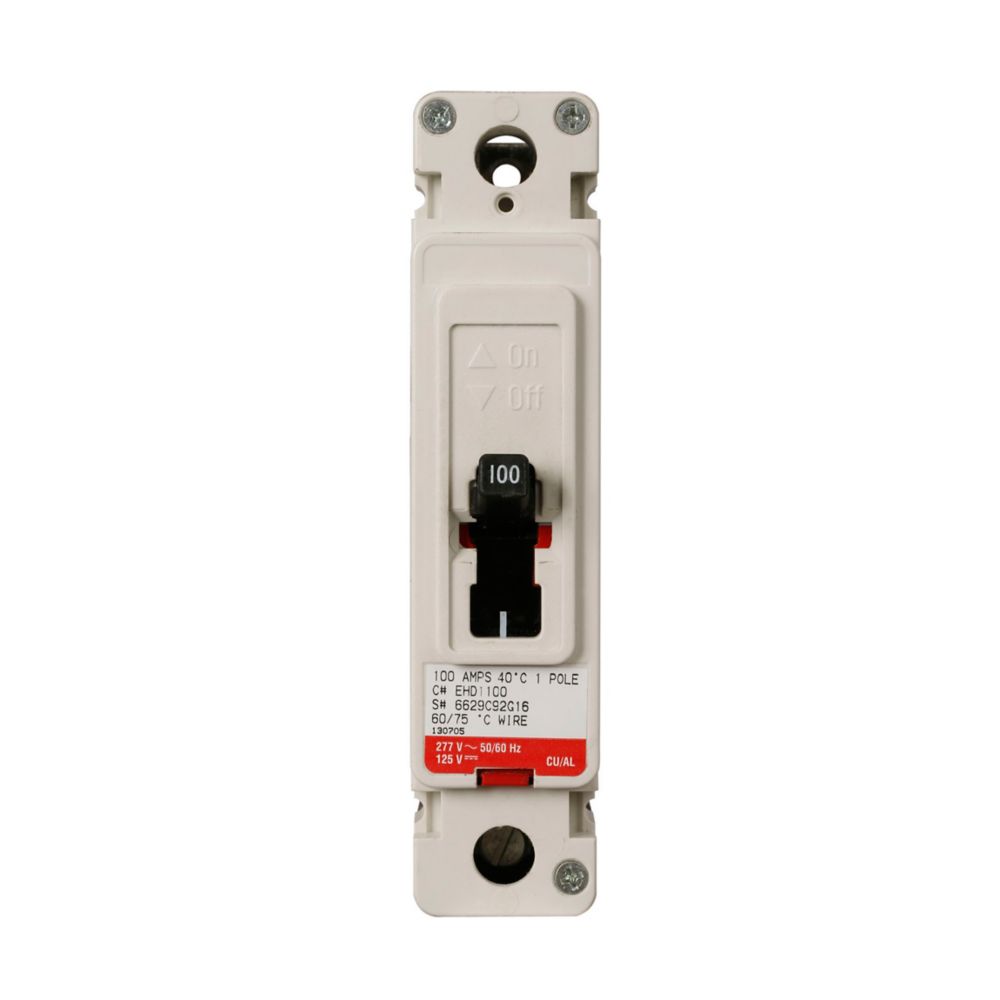

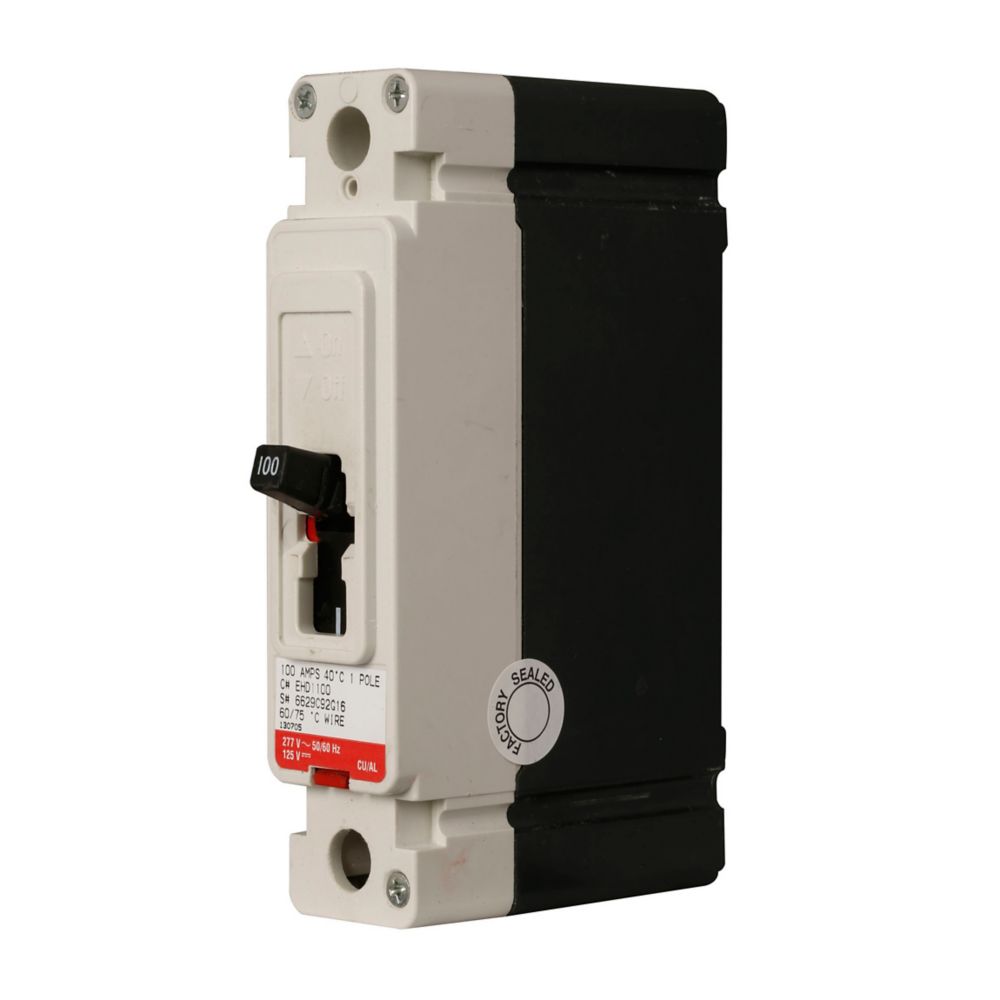

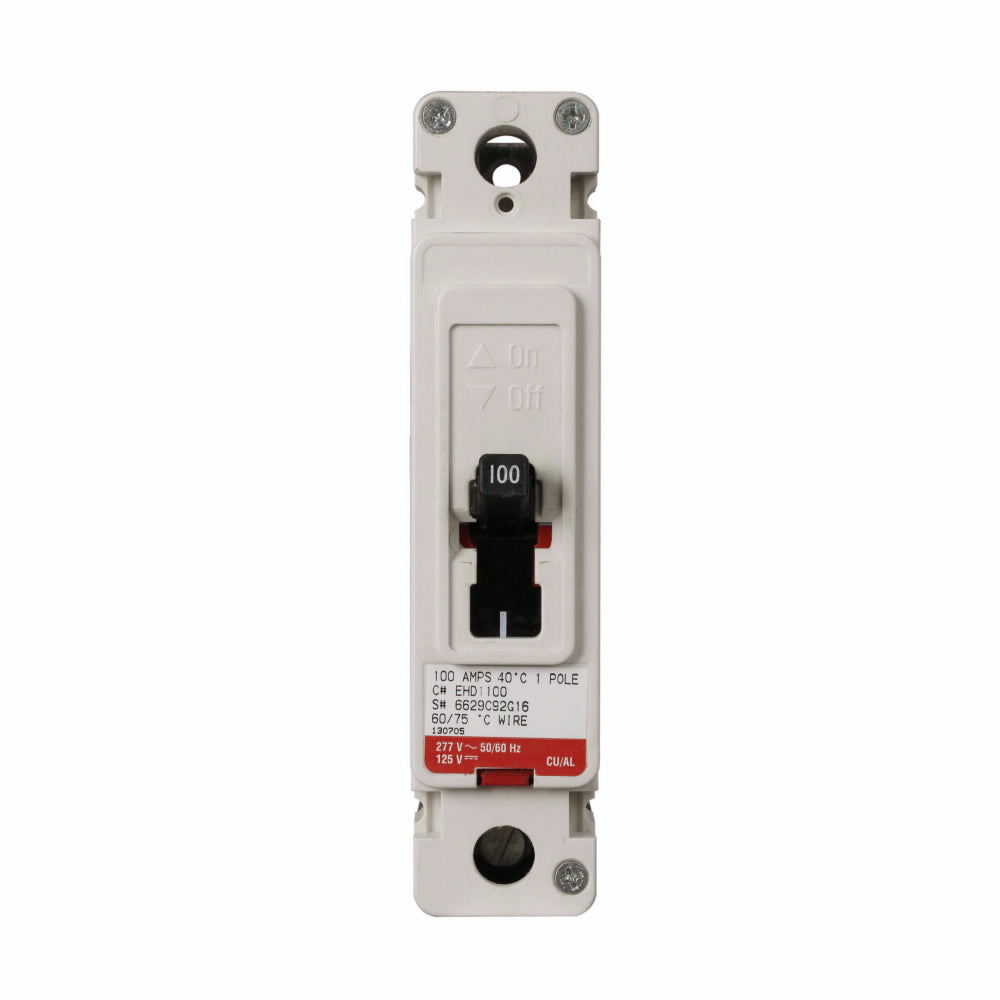

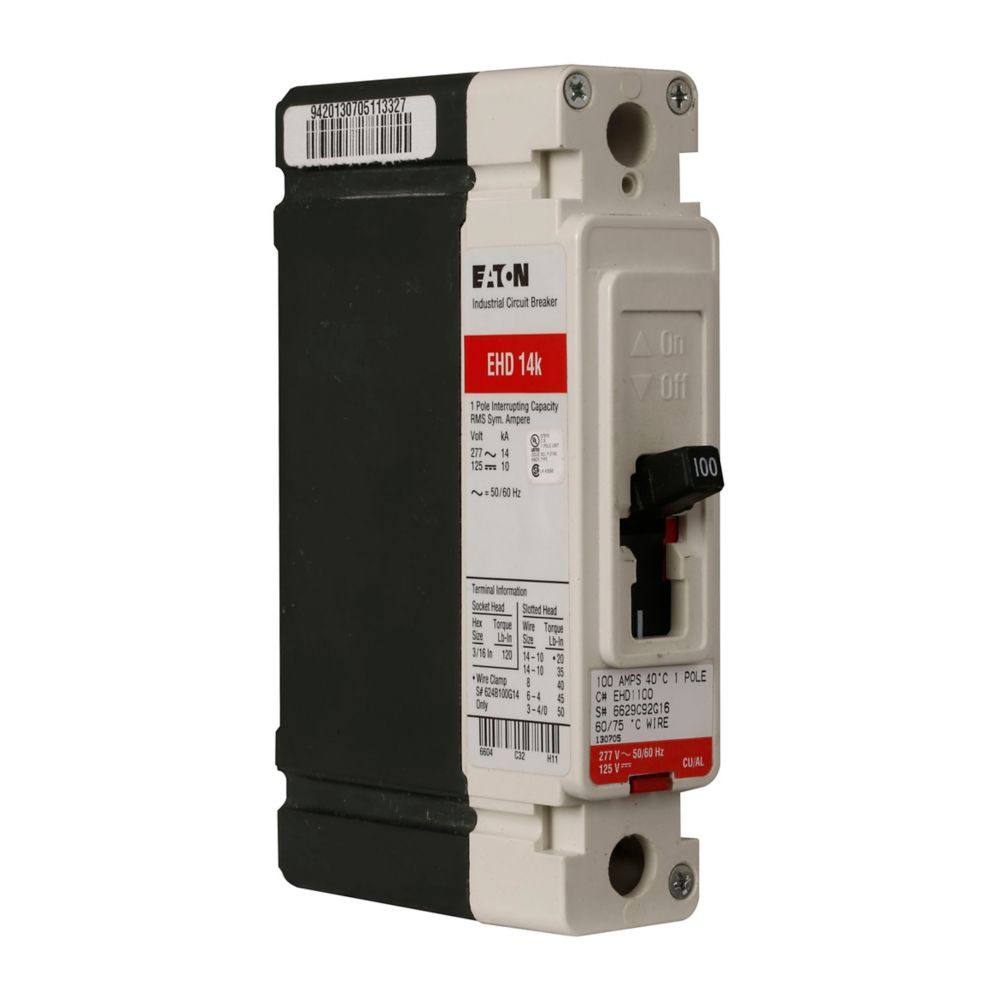

EHD1100L is an Eaton Series C complete molded case circuit breaker designed for reliable power distribution and circuit protection in industrial and commercial applications. This single-pole breaker features fixed thermal and fixed magnetic trip protection, delivering consistent performance across standard frequency ratings. Key Specifications
- Amperage Rating: 100 A
- Frame Size: F-Frame
- Number of Poles: Single-pole
- Series: Series C
- Trip Type: Fixed thermal, fixed magnetic
- Interrupt Rating: 18 kAIC at 240 Vac, 14 kAIC at 480 Vac
- Frequency Rating: 50/60 Hz
- Voltage Rating: 277 Vac, 125 VDC
- Circuit Breaker Type: Complete breaker
- Terminals: Line and load
- Certifications: UL Listed
- Weight: 2 lb
Specifications
- Part Number: EHD1100L
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EHD
- Voltage : 277
- Amperage : 100
- Phase : 1
- Poles : 1
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679398401
- GTIN : 00786679398401
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 2
- Certification : UL Listed
