Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
EDS2225

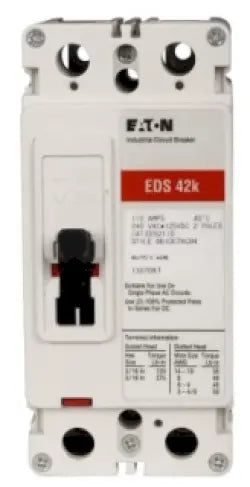

EDS2225 is a 2-pole molded case circuit breaker from Eaton designed for 225 amps and 240 volts AC applications.This Eaton Series C circuit breaker features an F-frame design with fixed thermal and magnetic trip units, suitable for single-phase electrical systems. It offers a 42kA interrupt rating at 240V, bolt-on mounting, and load side lug terminals. The breaker supports long time and instantaneous trip functions and is suitable for reverse fed applications. It is UL listed and designed for reliable protection against electrical faults and overcurrents.
- Amperage: 225A
- Voltage: 240 VAC, 125 VDC
- Poles: 2
- Frame: F-Frame, Series C
- Interrupt Rating: 42kA at 240V
- Mounting Type: Bolt-On
- Trip Unit: Fixed Thermal Magnetic
- Phase: Single Phase
- Load Side Lug Terminals
- Suitable for Reverse Fed Applications
- Frequency Rating: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: EDS2225
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : EDS
- Voltage : 240
- Amperage : 225
- Phase : 2
- Poles : 2
- AIC rating : 42kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782116152599
- GTIN : 00782116152599
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : UL Listed
