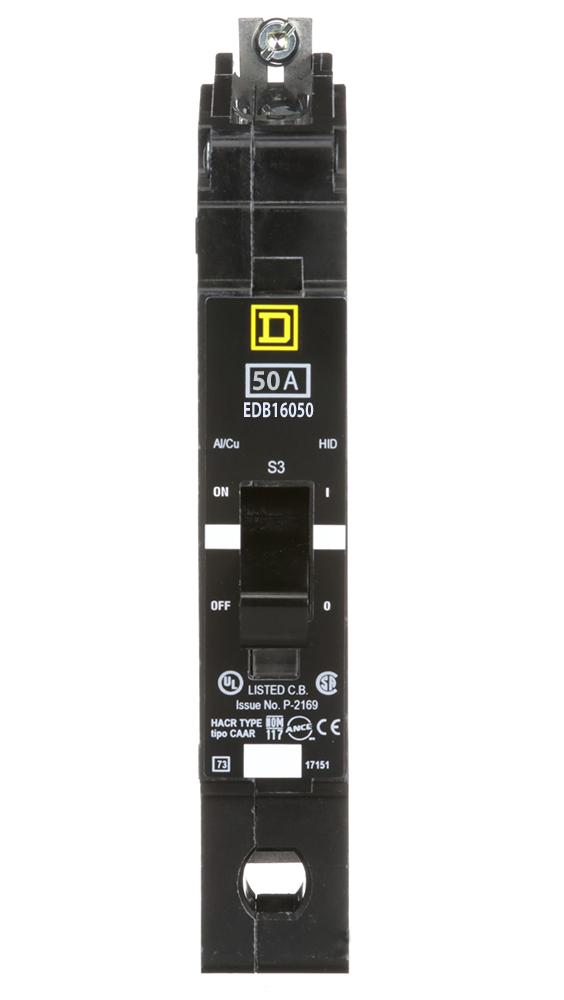

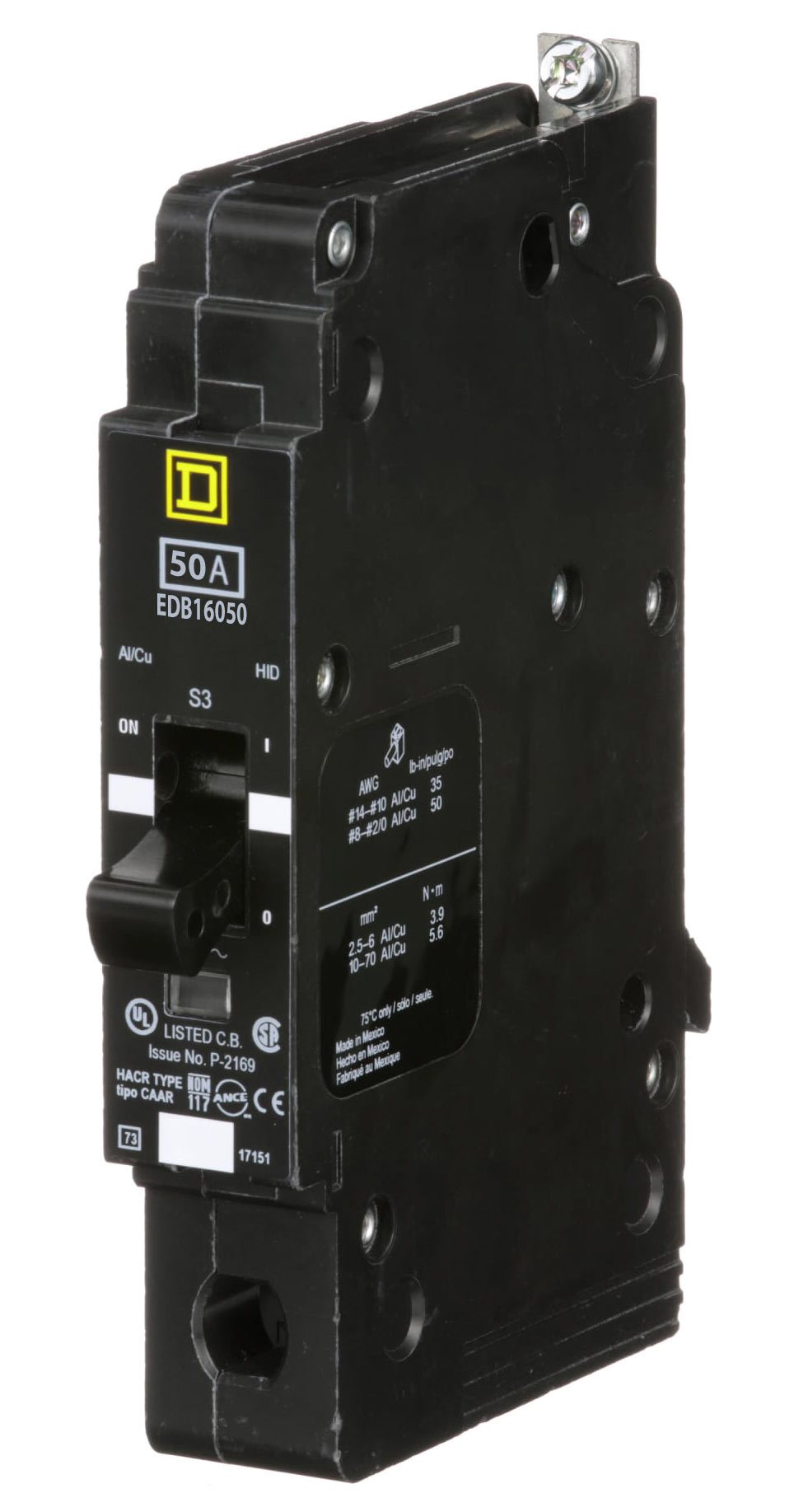

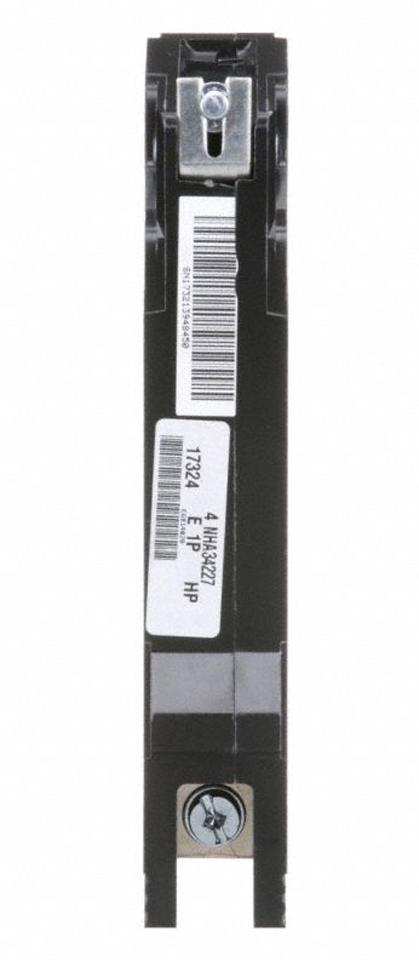

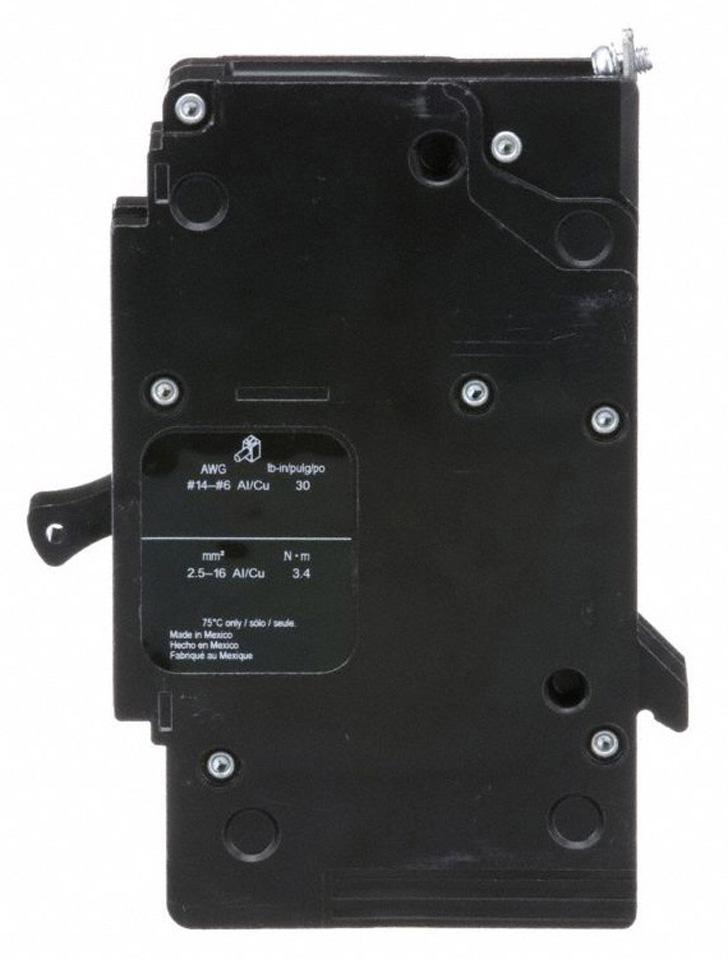

EDB16050 - Square D E-Frame 1-Pole 50 Amp 600V Molded Case Circuit Breaker Bolt-On

EDB16050

EDB16050 is a Square D E-Frame 1-pole 50 amp molded case circuit breaker designed for reliable branch circuit protection in commercial and industrial applications. This breaker features a Bolt-On mounting design for secure installation and offers thermal-magnetic trip protection for both overload and short-circuit conditions. The EDB16050 is compatible with Square D panelboards and is engineered for use in systems up to 600Y/347VAC. It provides a maximum interrupting rating of 25kA and is suitable for a wide range of electrical distribution environments.

• Part Number: EDB16050
• Manufacturer: Square D
• Series/Frame: E-Frame
• Number of Poles: 1
• Amperage Rating: 50A
• Voltage Rating: 600Y/347VAC
• Mounting Type: Bolt-On
• Interrupting Rating: 25kA max
• Protection Type: Thermal-Magnetic
• Standards: cULus, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB16050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648614331
• GTIN : 03606486143315
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.3
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
