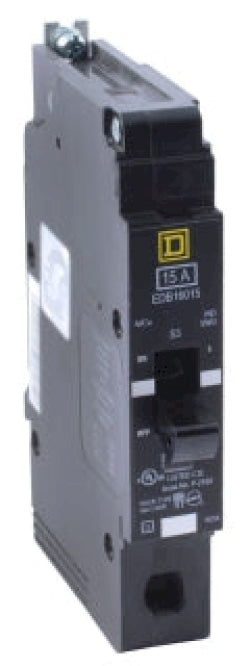

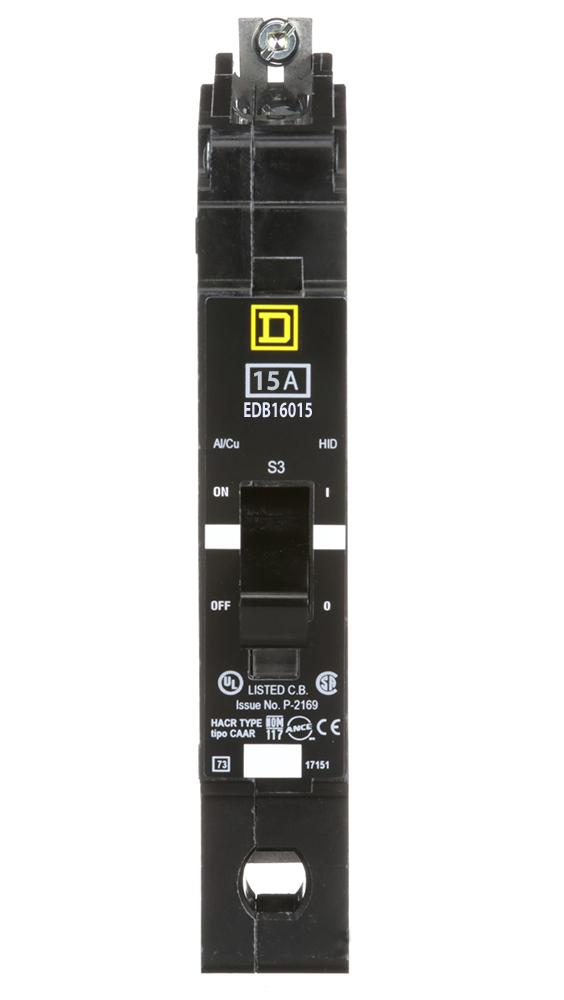

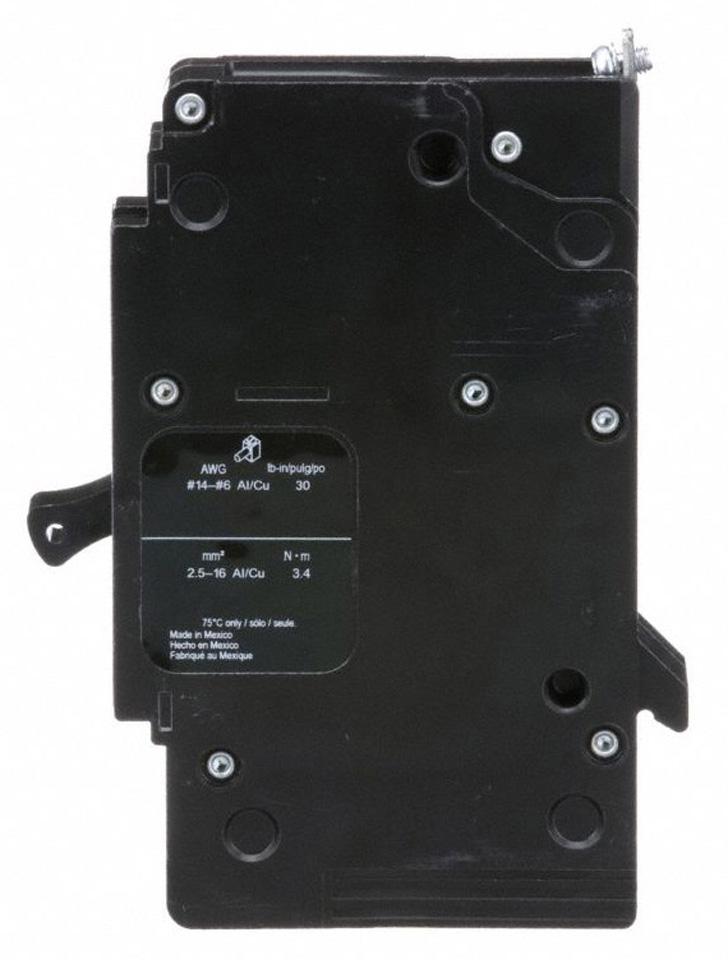

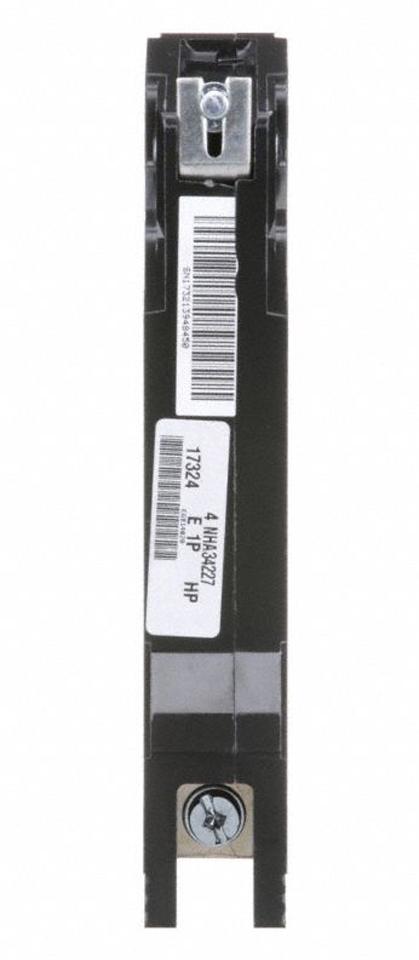

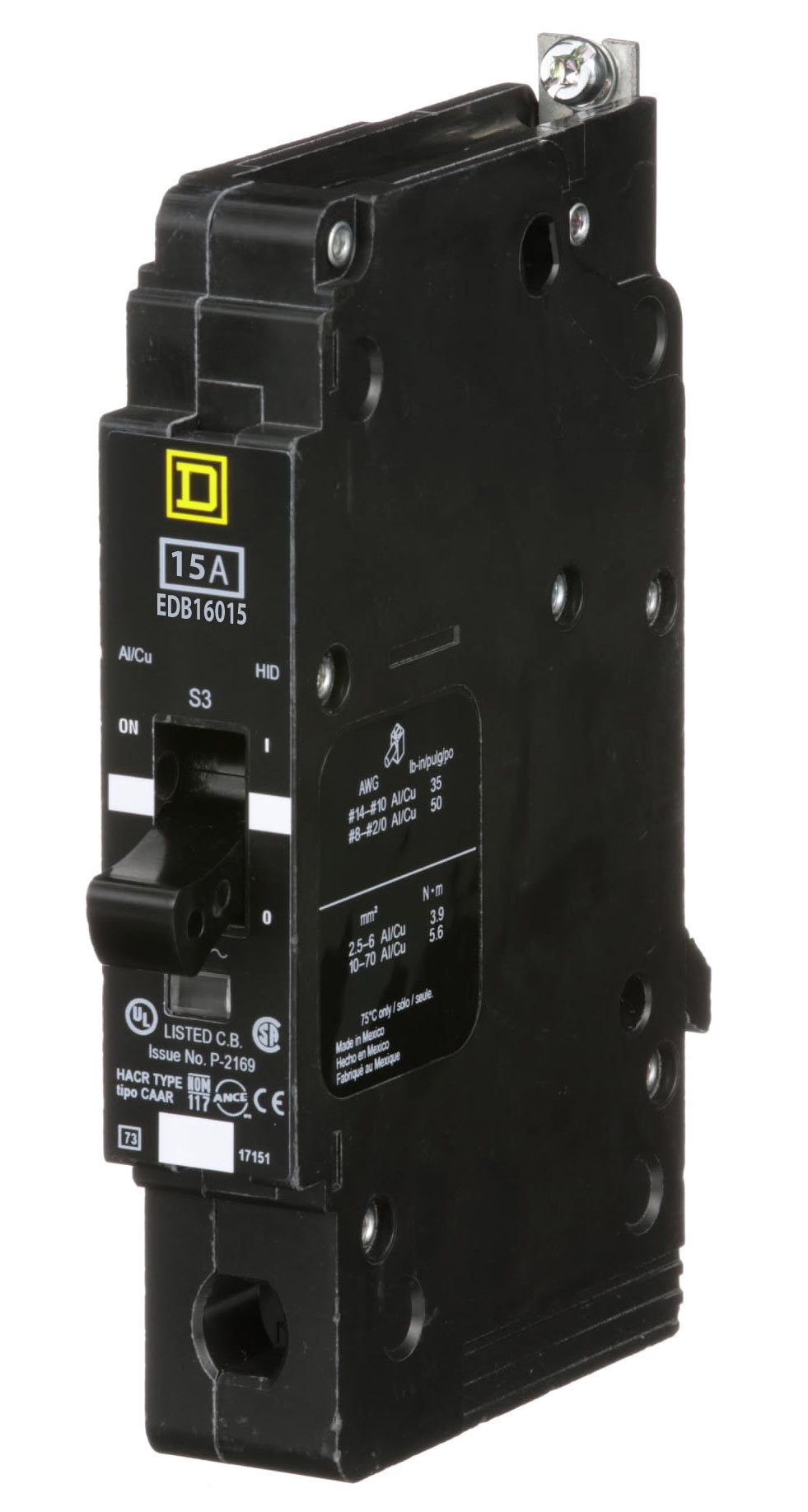

EDB16015 - Square D 15 Amp 1 Pole 600Y/347V Bolt-On Molded Case Circuit Breaker EDB Series

EDB16015

EDB16015 is a Square D 15 Amp 1 Pole molded case circuit breaker designed for reliable circuit protection in electrical systems.This thermal magnetic circuit breaker features a Bolt-On mounting type and is rated for 600Y/347 volts AC. It belongs to the EDB series and provides a short circuit interrupting capacity of 14kA at 600V. The breaker is UL and IEC certified, suitable for use in Square D NF panelboards, and includes aluminum lug electrical connections.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 600Y/347 VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA at 600V
• Series/Frame: EDB
• Trip Unit: Thermal Magnetic
• Certifications: UL (US and Canada), IEC
• Electrical Connection: Aluminum Lugs
• Compatible Panelboard: Square D NF

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB16015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901238232
• GTIN : 00785901238232
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.35
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 14 to AWG 6, AWG 12 to AWG 6, Cu/Al
