EDB16030 - Schneider Electric EDB Series 30A 1 Pole 600V AC Mini Circuit Breaker, E-Frame, 25kA Max, Bolt-On

EDB16030

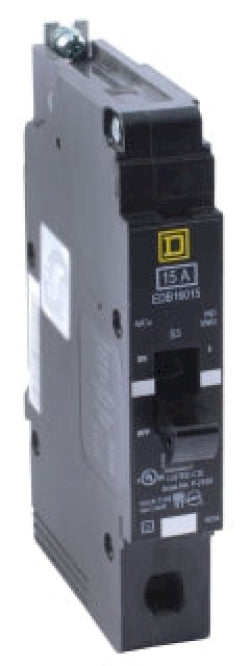

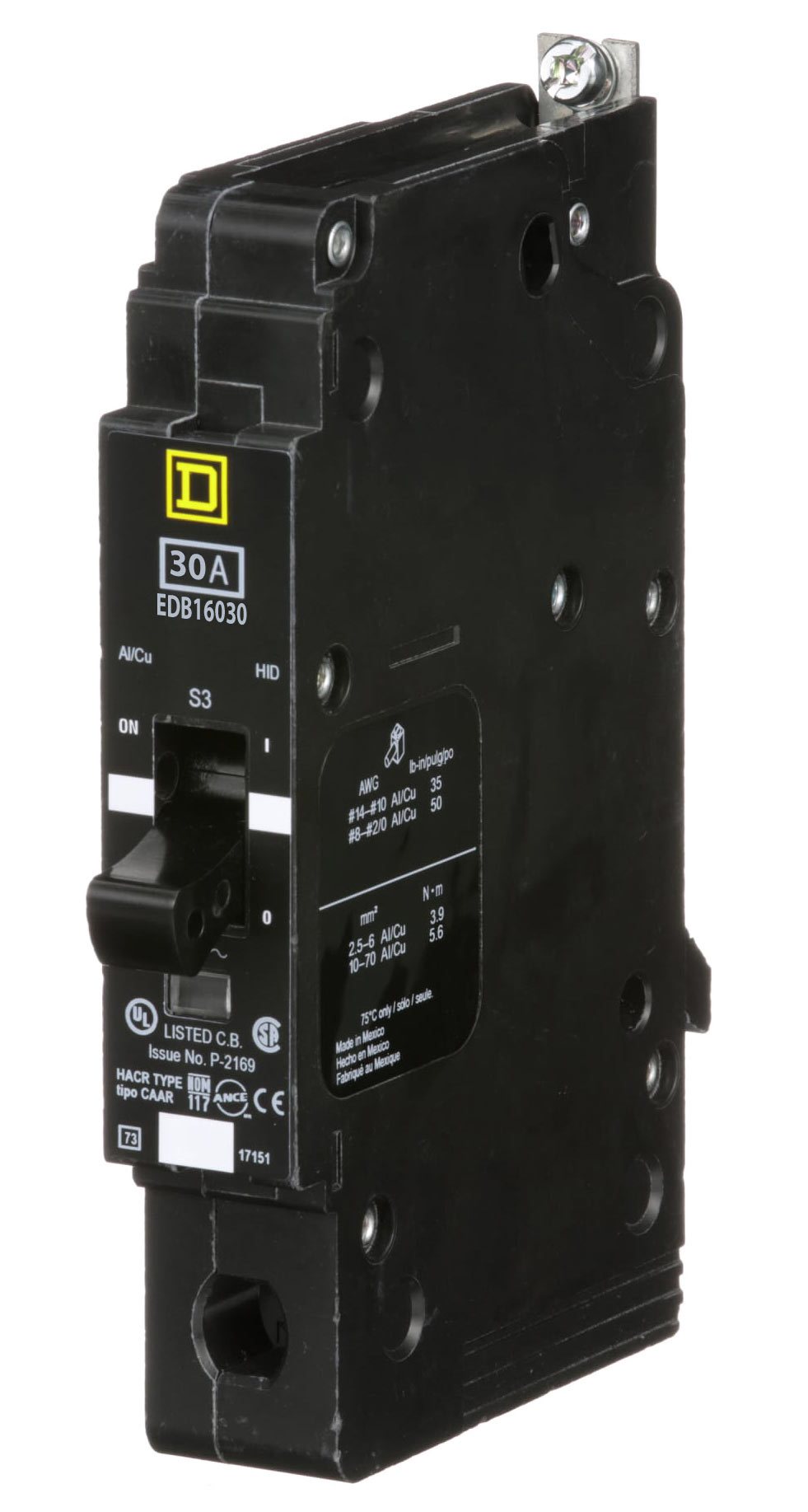

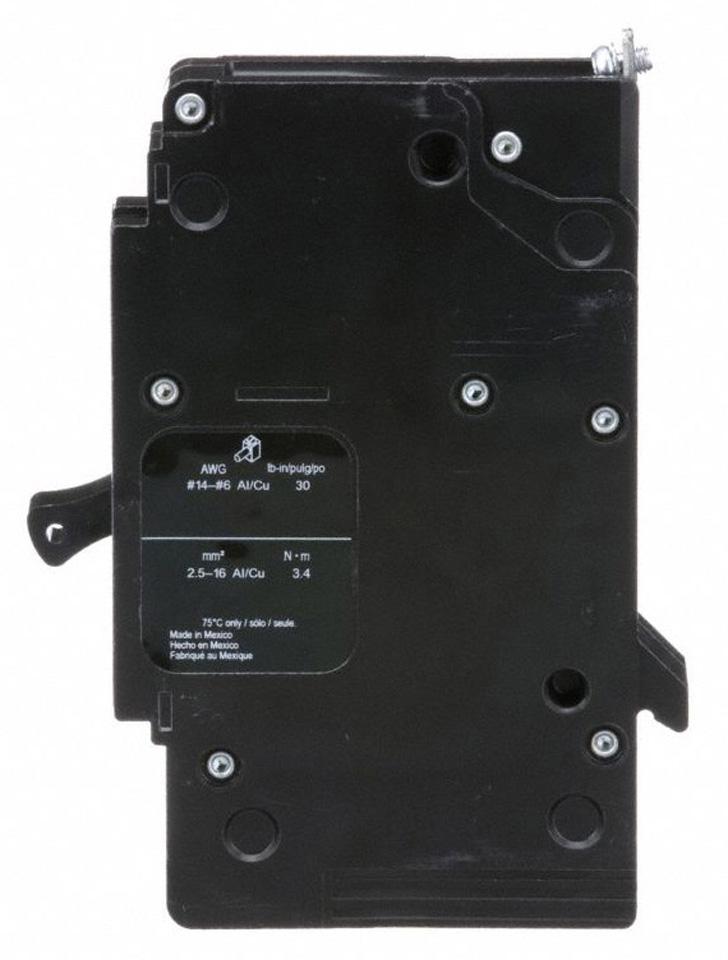

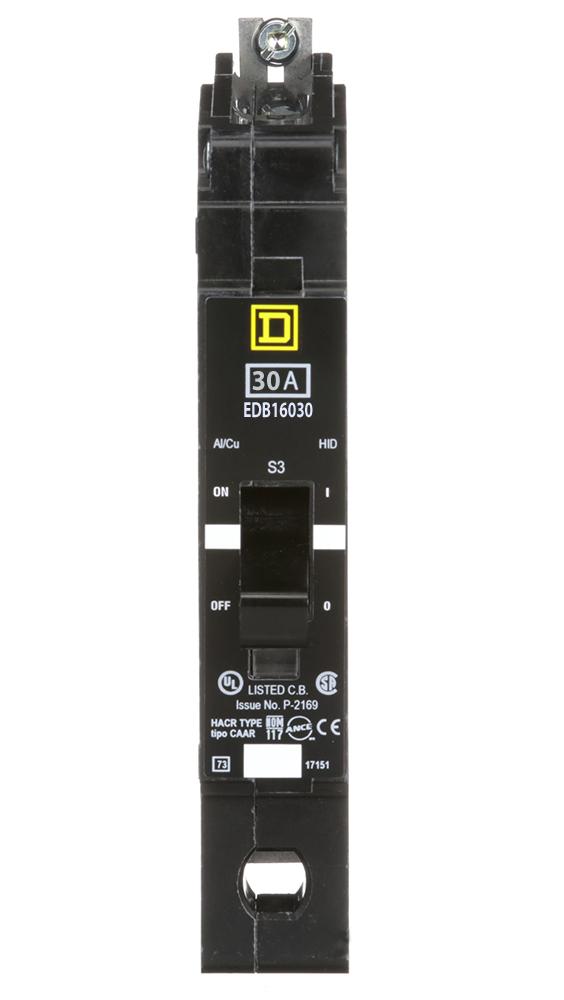

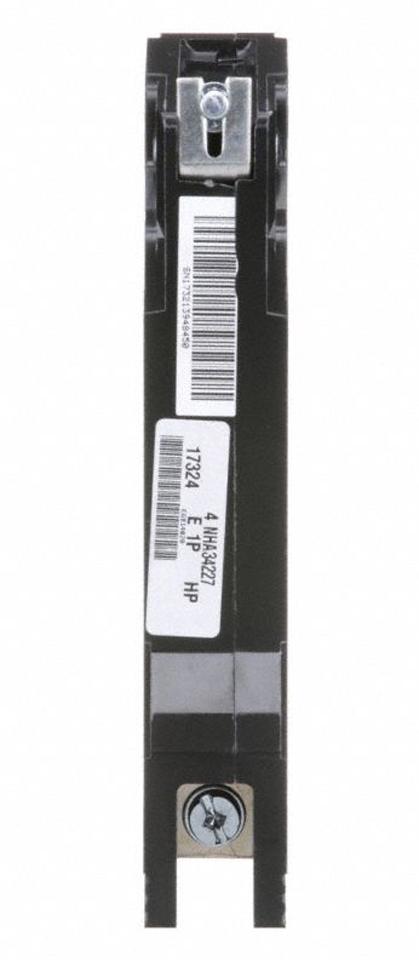

EDB16030 - Schneider Electric E-Frame miniature circuit breaker, 30A, 1 pole, 600Y/347 VAC, bolt-on mounting.This thermal-magnetic circuit breaker provides superior overload and short-circuit protection for lighting panelboards and Square D NF panelboards. It features a trip indicator, aluminum lugs, and is rated for HID and HACR applications with interrupt ratings up to 25 kA at 240 VAC.

• Part Number: EDB16030
• Manufacturer: Schneider Electric
• Amperage: 30A
• Voltage: 600Y/347 VAC
• Poles: 1
• Frame: E-Frame
• Mounting: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14 kA at 600Y/347 VAC
• Applications: HACR, HID rated
• Panelboard: Square D NF

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB16030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901238539
• GTIN : 00785901238539
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.301
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 6 aluminum
  AWG 14...AWG 6 copper
