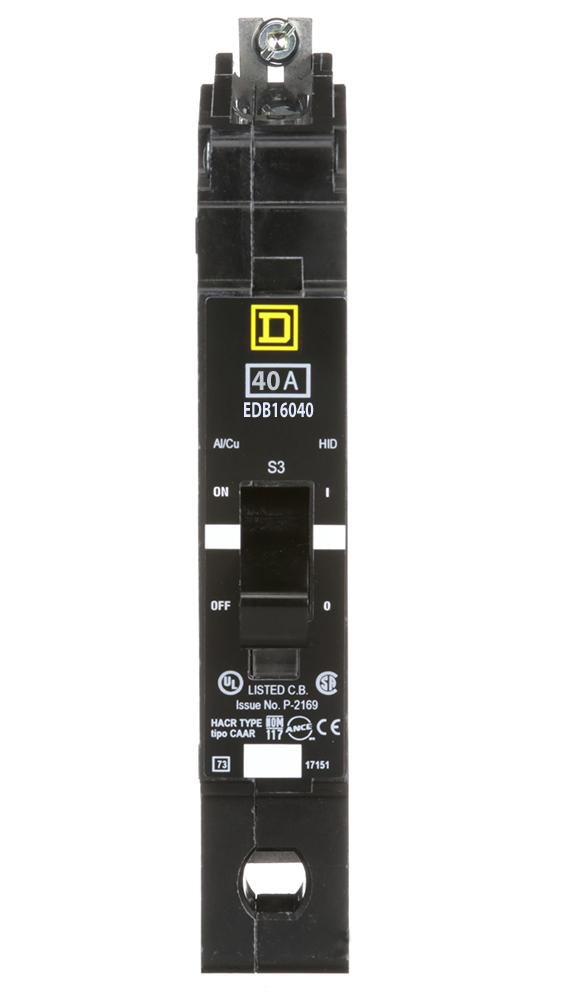

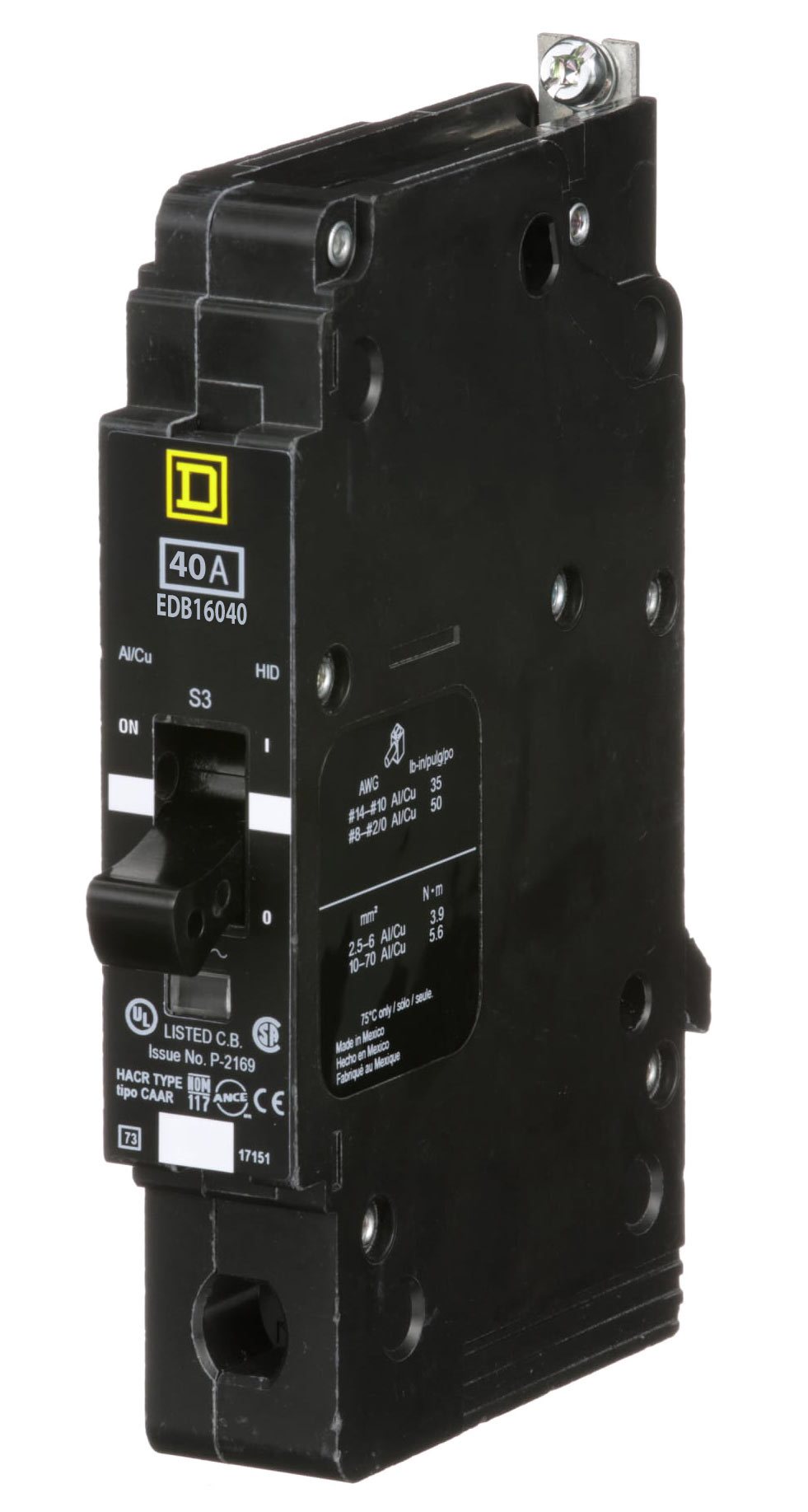

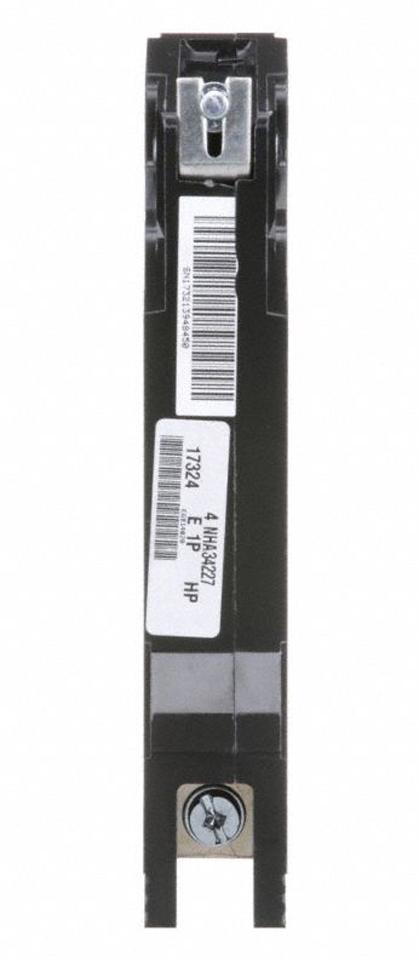

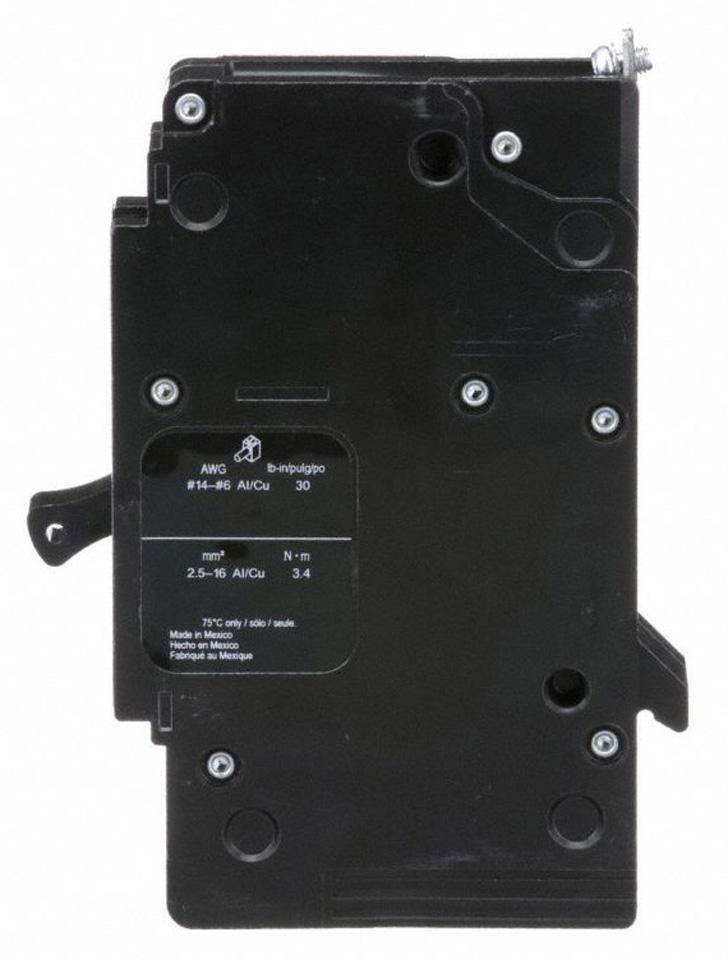

EDB16040 - Square D 40A 1P 600V Bolt-On Molded Case Circuit Breaker

EDB16040

EDB16040 is a single pole, 40 amp molded case circuit breaker designed for reliable branch circuit protection in commercial and industrial applications.This Square D EDB16040 circuit breaker features a bolt-on mounting design for secure installation and is rated for 600V AC. It is part of the E-Frame series and is built for thermal magnetic protection, making it suitable for use in panelboards requiring miniature circuit breakers. The breaker is calibrated for 40 degrees C and includes aluminum lugs with a terminal lug rating of AWG 12 to AWG 6 (aluminum) and AWG 14 to AWG 6 (copper).

• 40 Amp amperage rating
• Single pole configuration
• 600Y/347 VAC voltage rating
• Bolt-on mounting type
• 25 kA maximum interrupt rating
• E-Frame series
• Thermal magnetic trip unit
• UL listed for Canada and US
• IEC approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB16040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648614329
• GTIN : 03606486143292
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 0.98 in (24.89 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 1.3
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
