ED63A100 - Siemens 100A 3-Pole 600V Molded Case Circuit Breaker, ED Frame, Bolt-On, 18kAIC at 600V, 25kAIC at 480V, Instantaneous Trip, UL/IEC

ED63A100

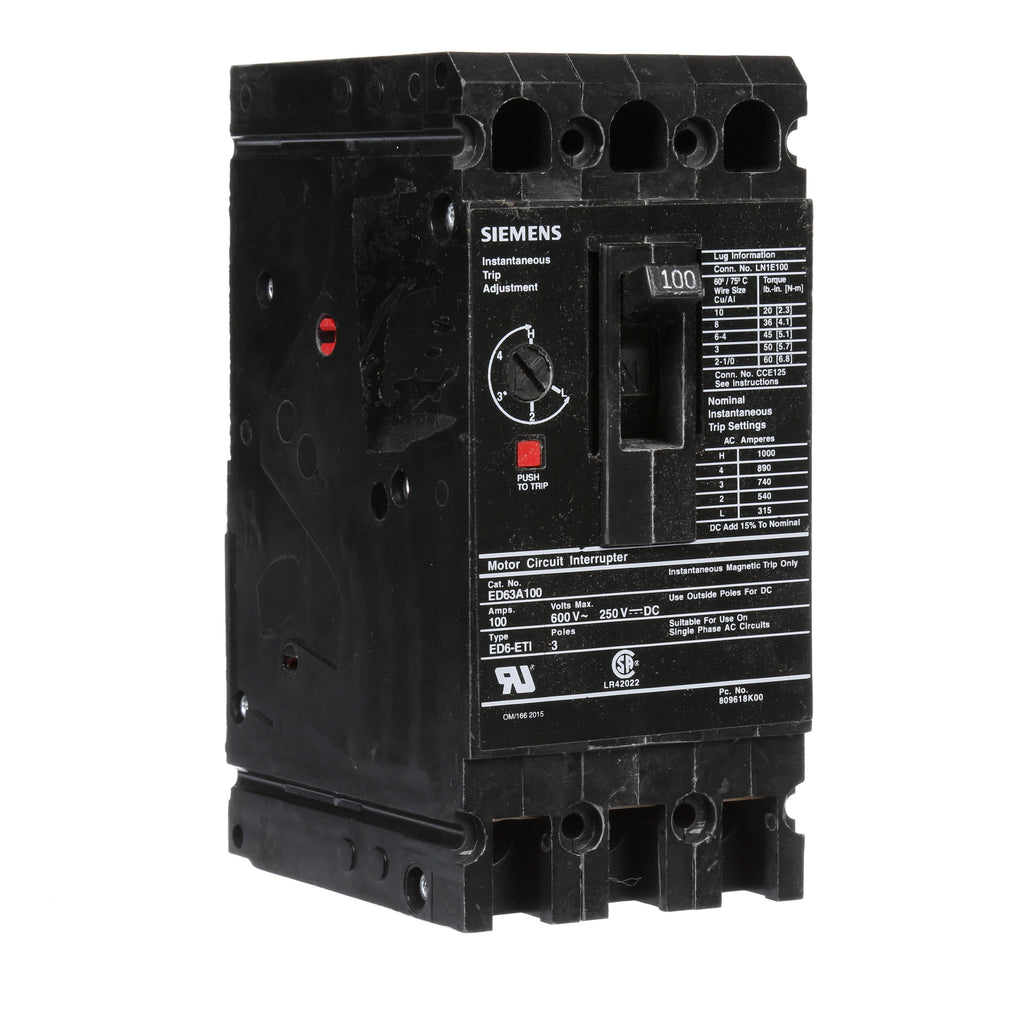

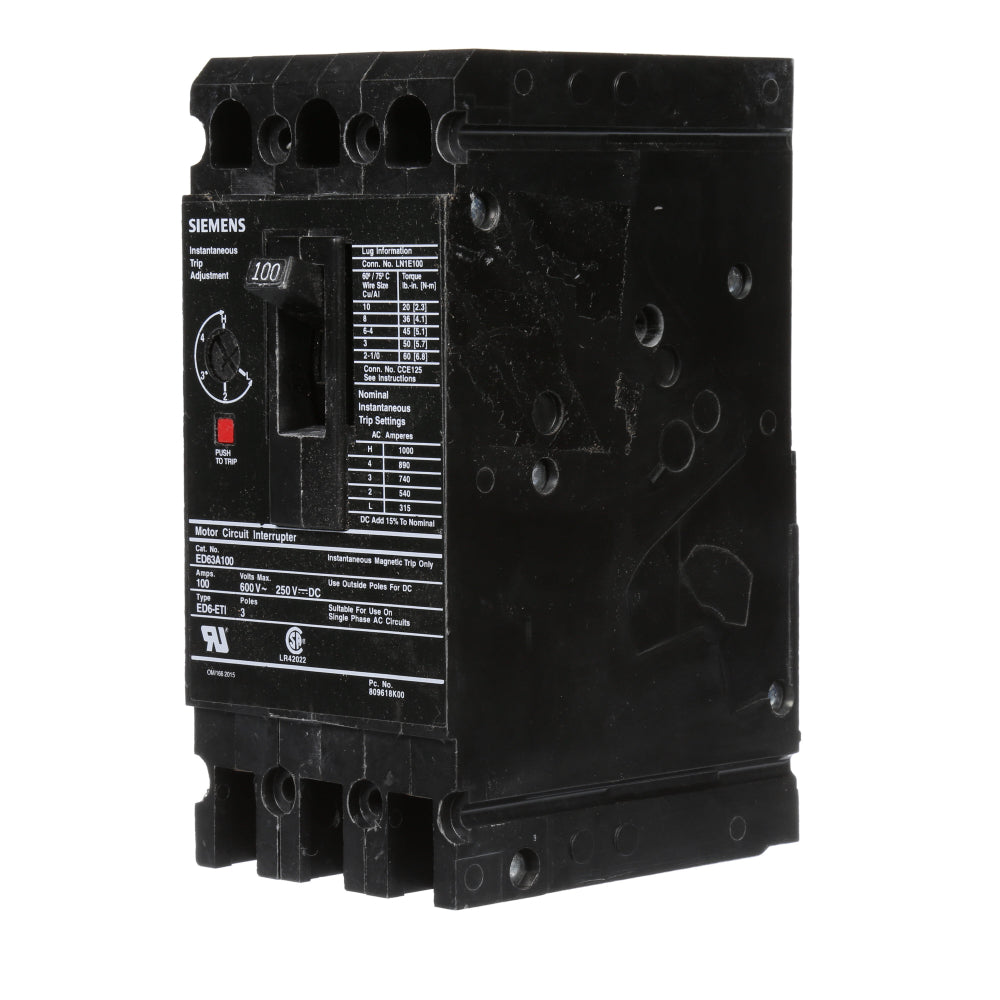

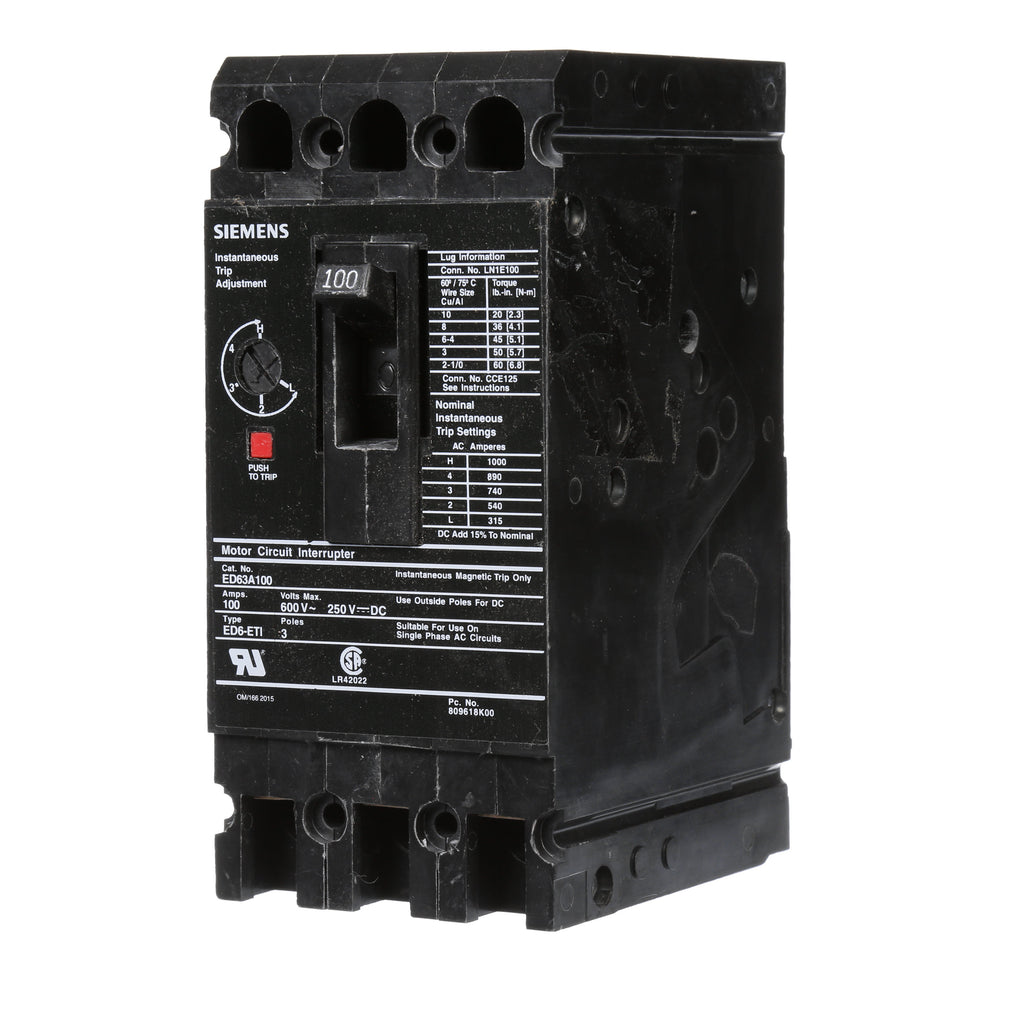

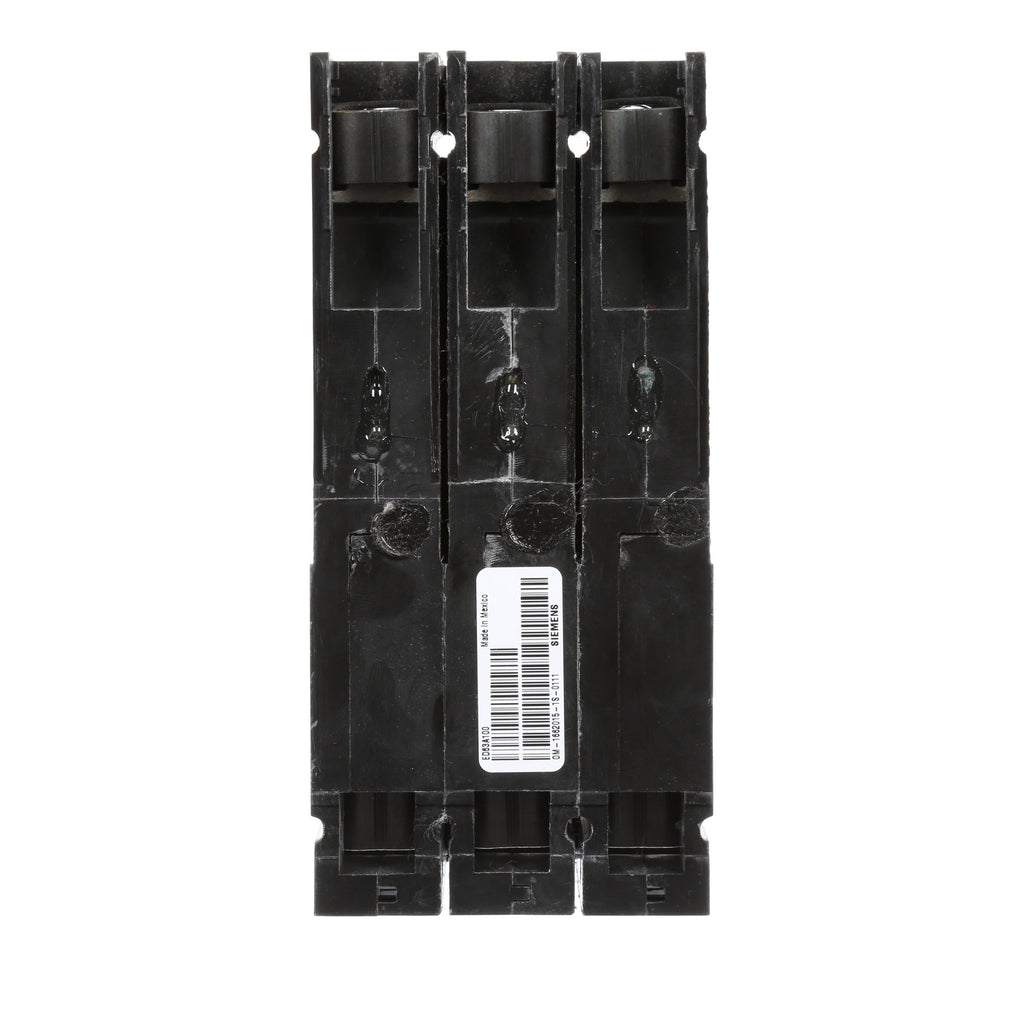

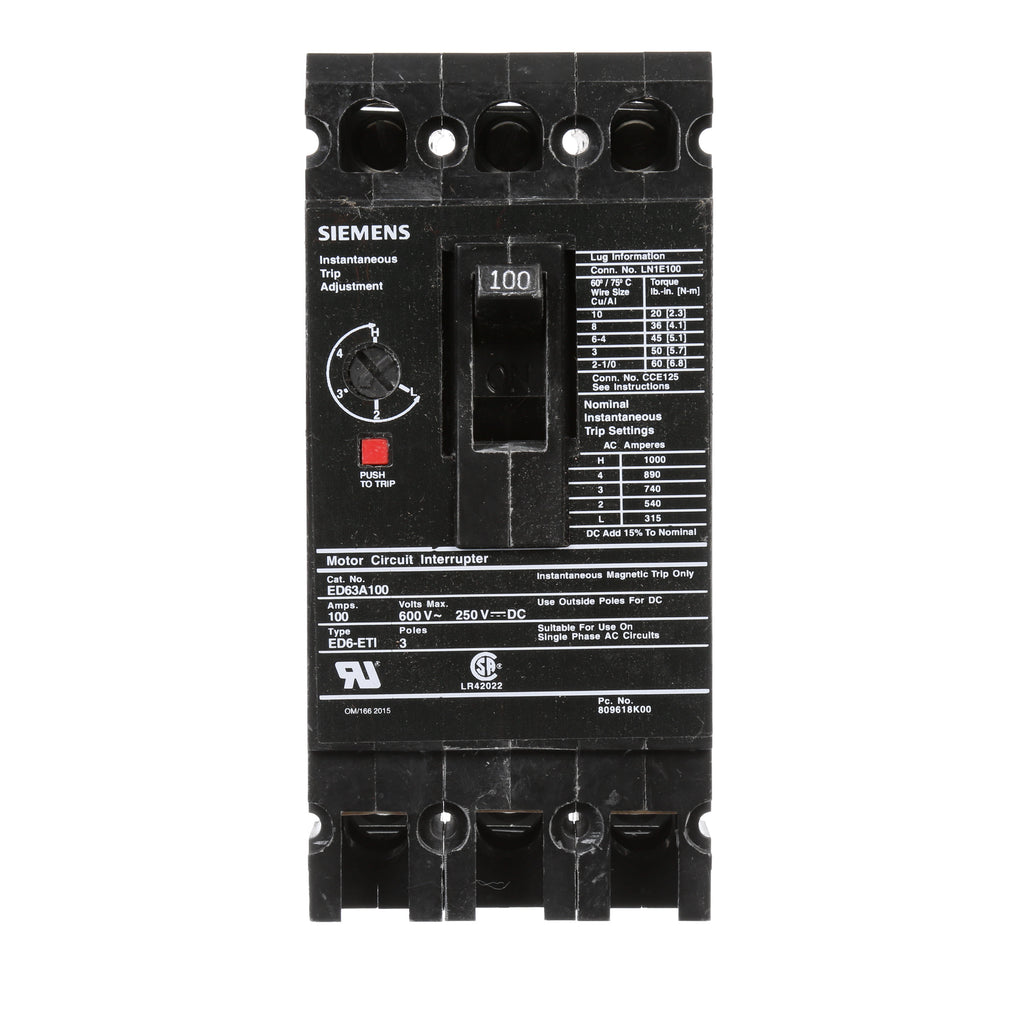

ED63A100 - Siemens Sentron ED frame molded case circuit breaker with 3 poles, 100A rating, and 600VAC voltage.This bolt-on circuit breaker features magnetic instantaneous trip protection for motor circuit applications. It supports 10 to 1/0 AWG Cu/Al wire and offers interrupting ratings of 18kAIC at 600V and 25kAIC at 480V. Designed for low voltage systems with UL and IEC approvals, HACR rated.Key Specifications

• Amperage: 100A
• Voltage: 600VAC/250VDC
• Poles: 3
• Frame: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 18kAIC @ 600V, 25kAIC @ 480V
• Trip Unit: Instantaneous Magnetic
• Connection: Load Side Lug
• Wire Gauge: AWG 10 to 1/0 Cu/Al
• Frequency: 50/60 Hz
• Certifications: UL 489, IEC, RoHS, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: ED63A100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Magnetic Only

Product Data

• UPC : 783643210868
• GTIN : 00783643210868
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.969
• Weight : 3.889
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
