ED63A002 - Siemens 2A 600V 3-Pole ED Frame Molded Case Circuit Breaker, 18kA Interrupt, Thermal Magnetic Trip, Bolt-On Mounting, UL 489

ED63A002

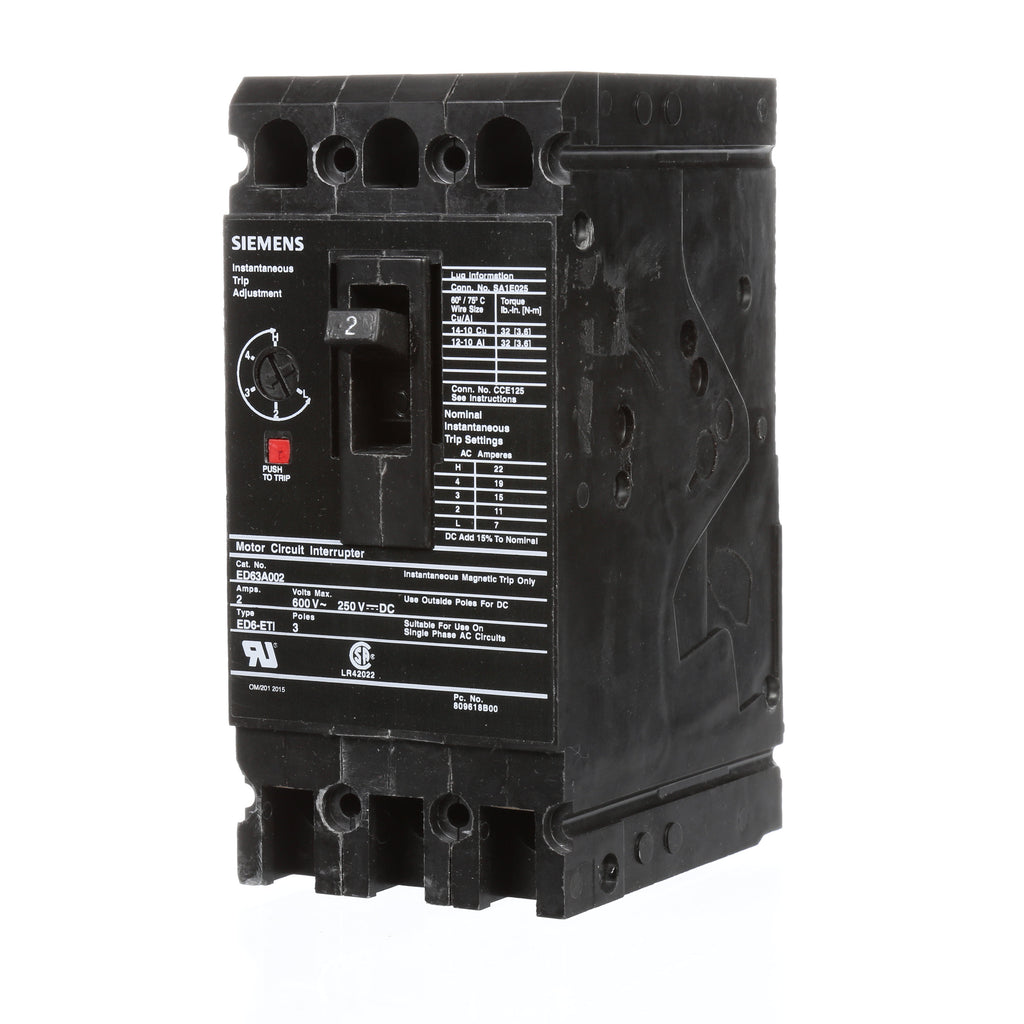

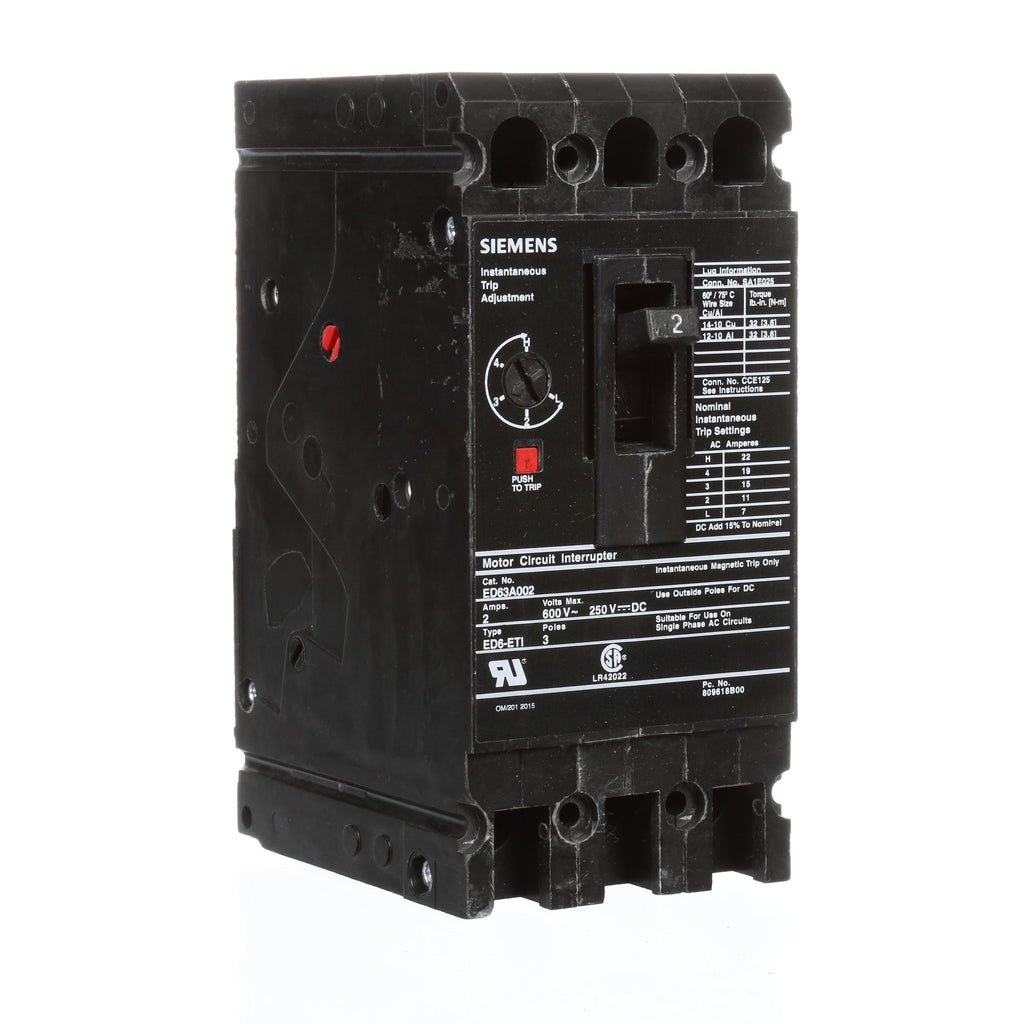

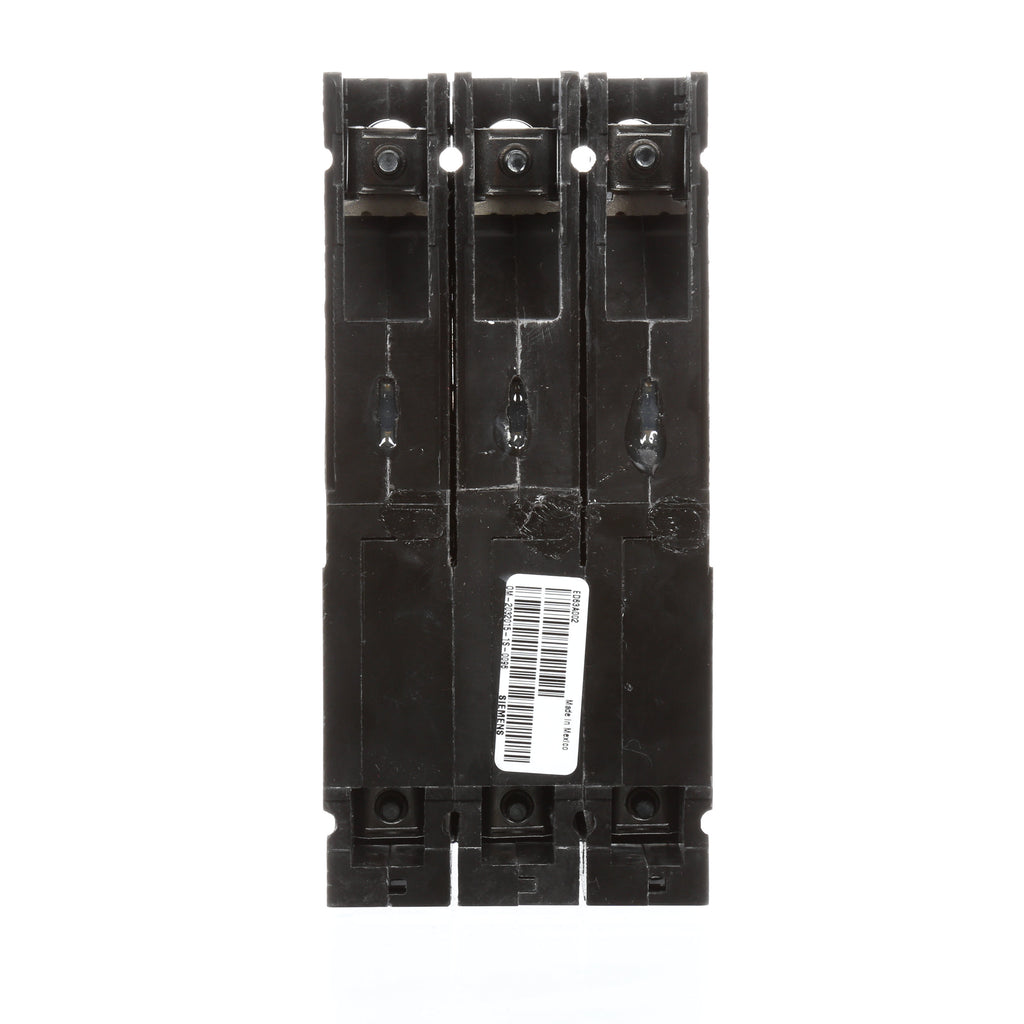

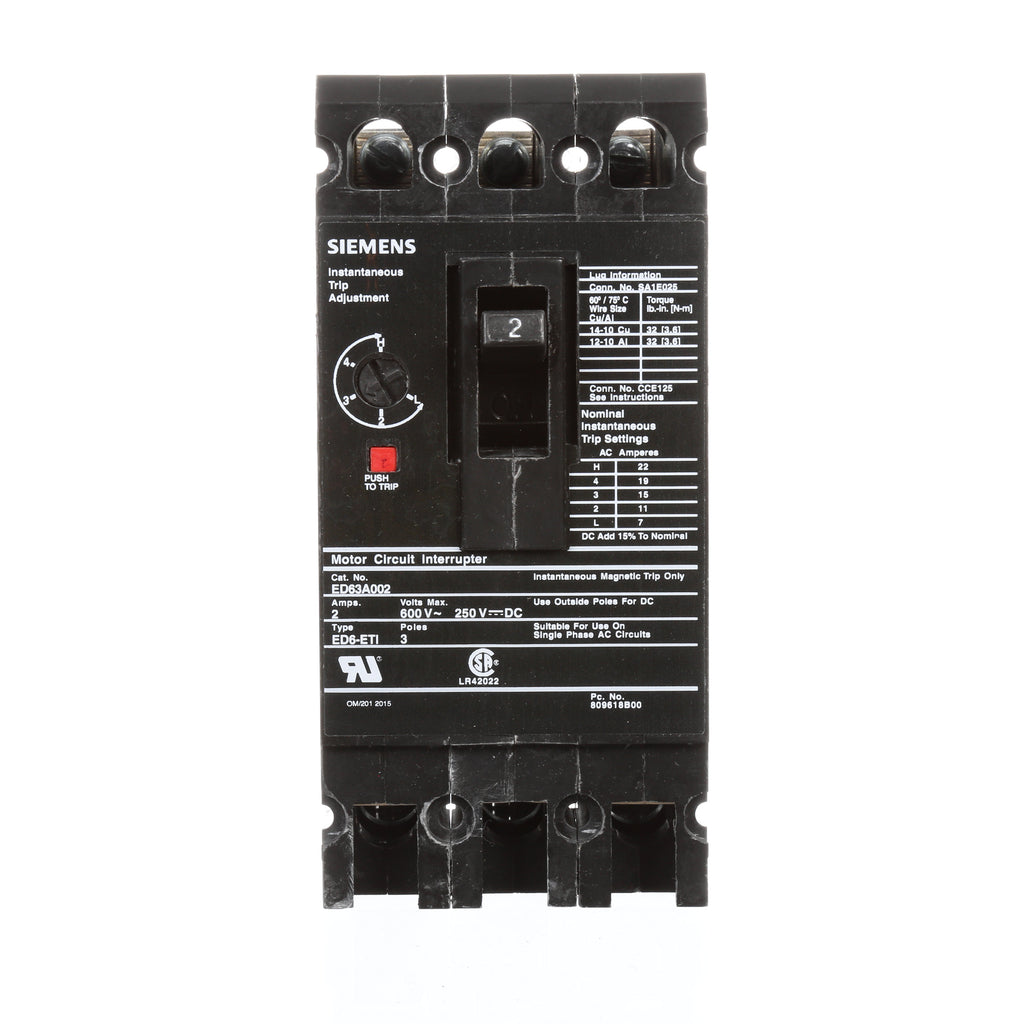

ED63A002 is a Siemens Type ED molded case circuit breaker rated for 2 amperes at 600 volts AC with 3 poles and bolt-on mounting.

This low voltage circuit breaker features an 18 kA interrupt rating at 600V and utilizes instantaneous/thermal magnetic trip technology. The ED63A002 is a non-interchangeable breaker with standard instantaneous range ETI (Electronic Trip Indicator) design, providing reliable protection for industrial and commercial power distribution applications.

• Amperage: 2 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: ED
• Mounting: Bolt-On
• Interrupt Rating: 18 kA @ 600V
• Trip Unit: Instantaneous/Thermal Magnetic
• Trip Range: Standard Instantaneous Range ETI
• Configuration: Non-interchangeable
• Manufacturer: Siemens

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: ED63A002
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 2
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Magnetic Only

Product Data

• UPC : 783643210790
• GTIN : 00783643210790
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.953
• Weight : 3.792
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
