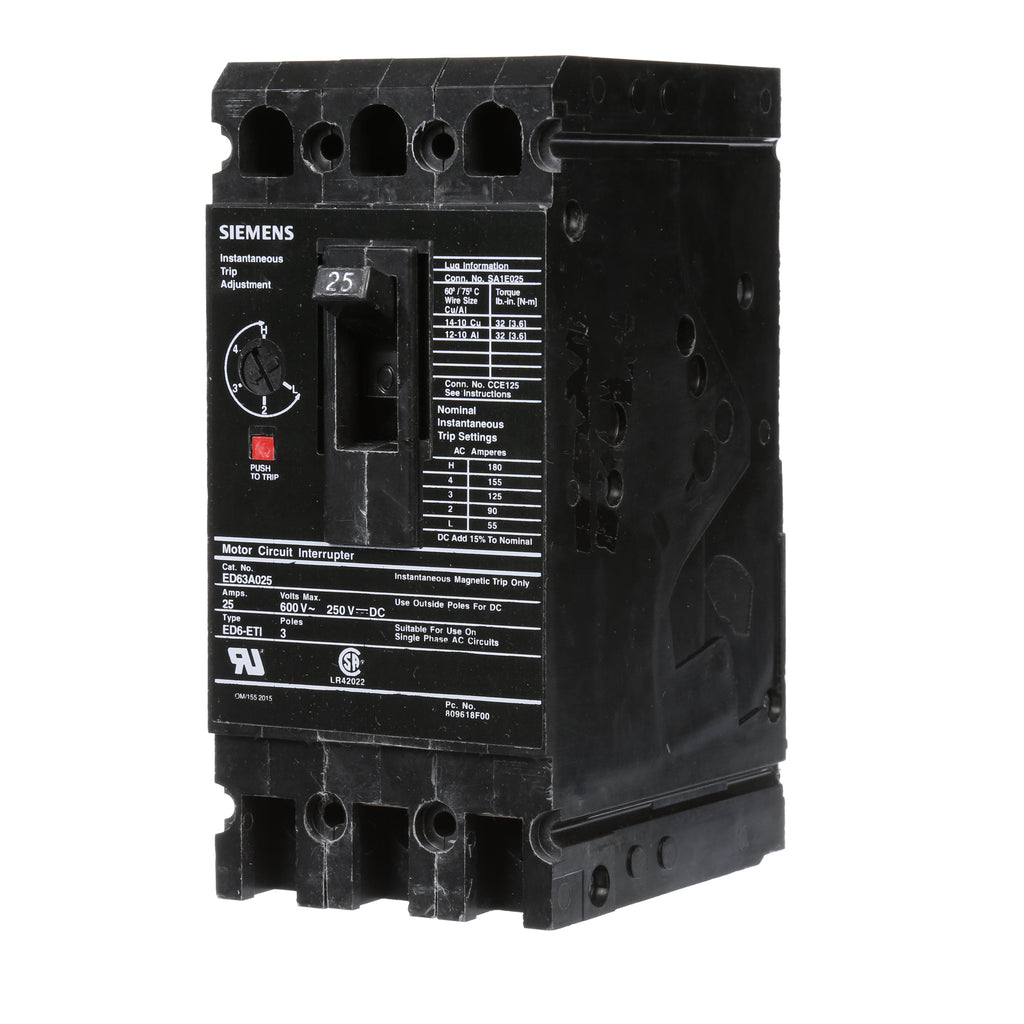

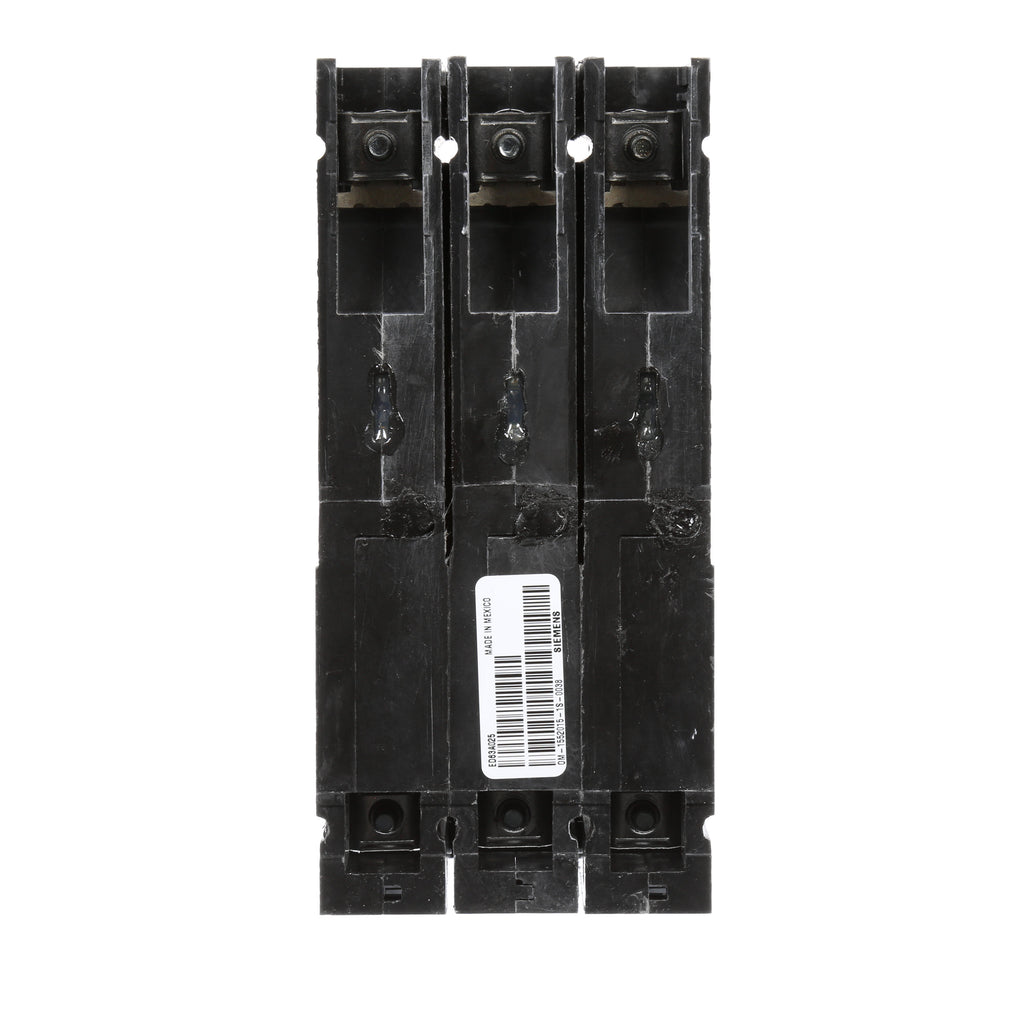

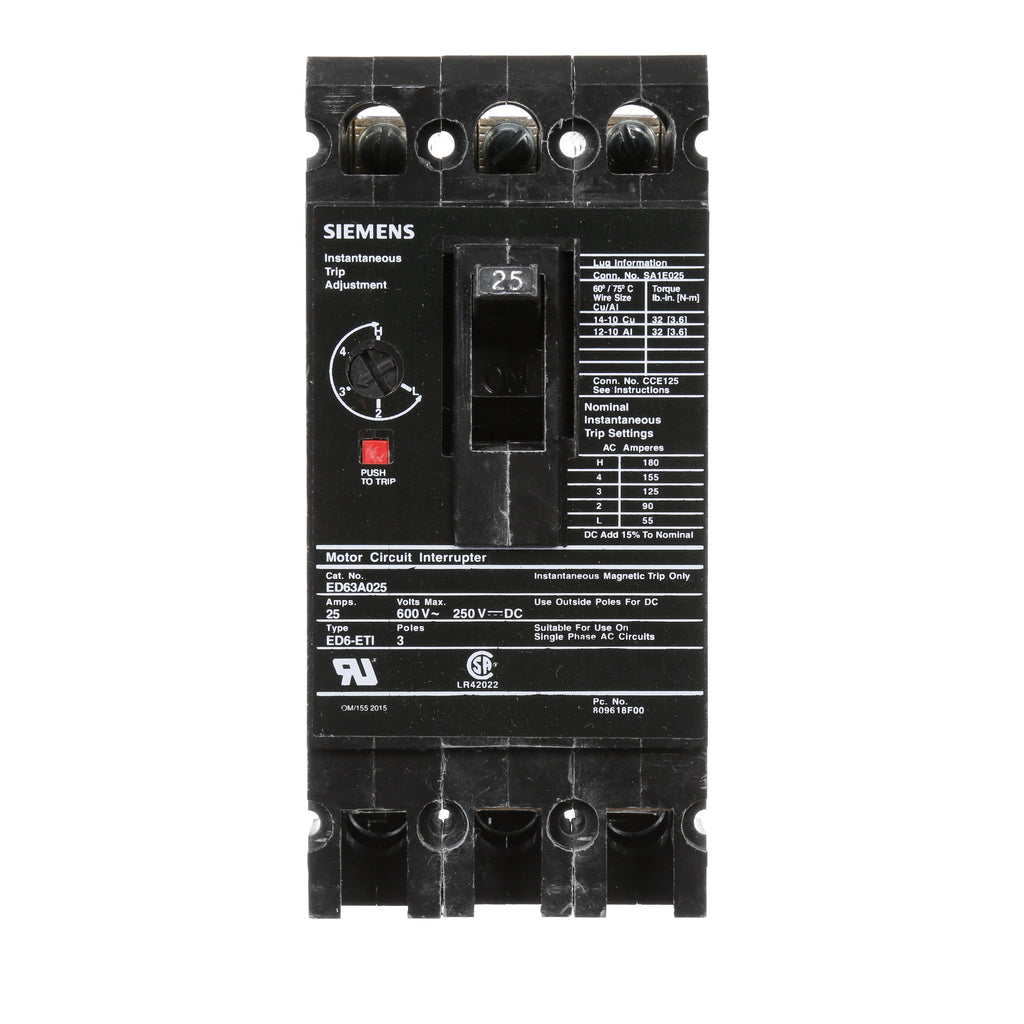

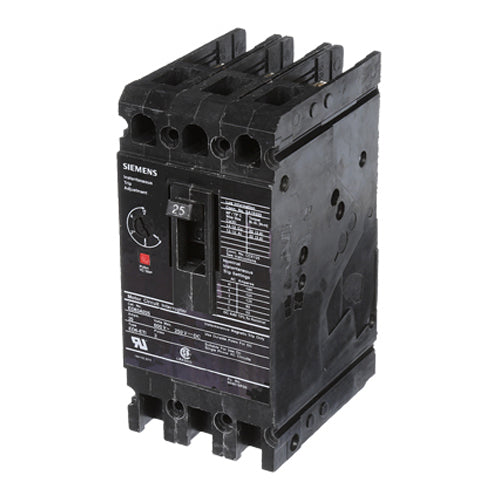

ED63A025 - Siemens 25 Amp 600V 3 Pole Molded Case Circuit Breaker ED Frame Bolt-On

ED63A025

ED63A025 is a Siemens 3 Pole molded case circuit breaker with a 25 Amp rating designed for 600VAC applications.This Siemens Sentron series breaker features a bolt-on mounting type with instantaneous magnetic trip protection. It has an interrupting rating of 18kAIC at 600V and 25kAIC at 480V, meeting UL 489 and IEC 60947-2 standards. The breaker supports load side lug connections and is suitable for use with copper and aluminum conductors. It is RoHS compliant and carries UL and IEC certifications.

• Amperage: 25 Amps
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 18kAIC at 600V, 25kAIC at 480V
• Series/Frame: Sentron ED Frame
• Trip Unit: Instantaneous Magnetic
• Terminal Connection: Load Side Lug
• Certifications: UL, IEC
• Standards: UL 489, IEC 60947-2, RoHS
• Wire Gauge: AWG 14-10 Cu, AWG 12-10 Al

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: ED63A025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Magnetic Only

Product Data

• UPC : 783643210837
• GTIN : 00783643210837
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.961
• Weight : 0.348
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
