ED63A005 - Siemens 5 Amp 600 Volt 3 Pole Molded Case Circuit Breaker ED Frame Bolt-On

ED63A005

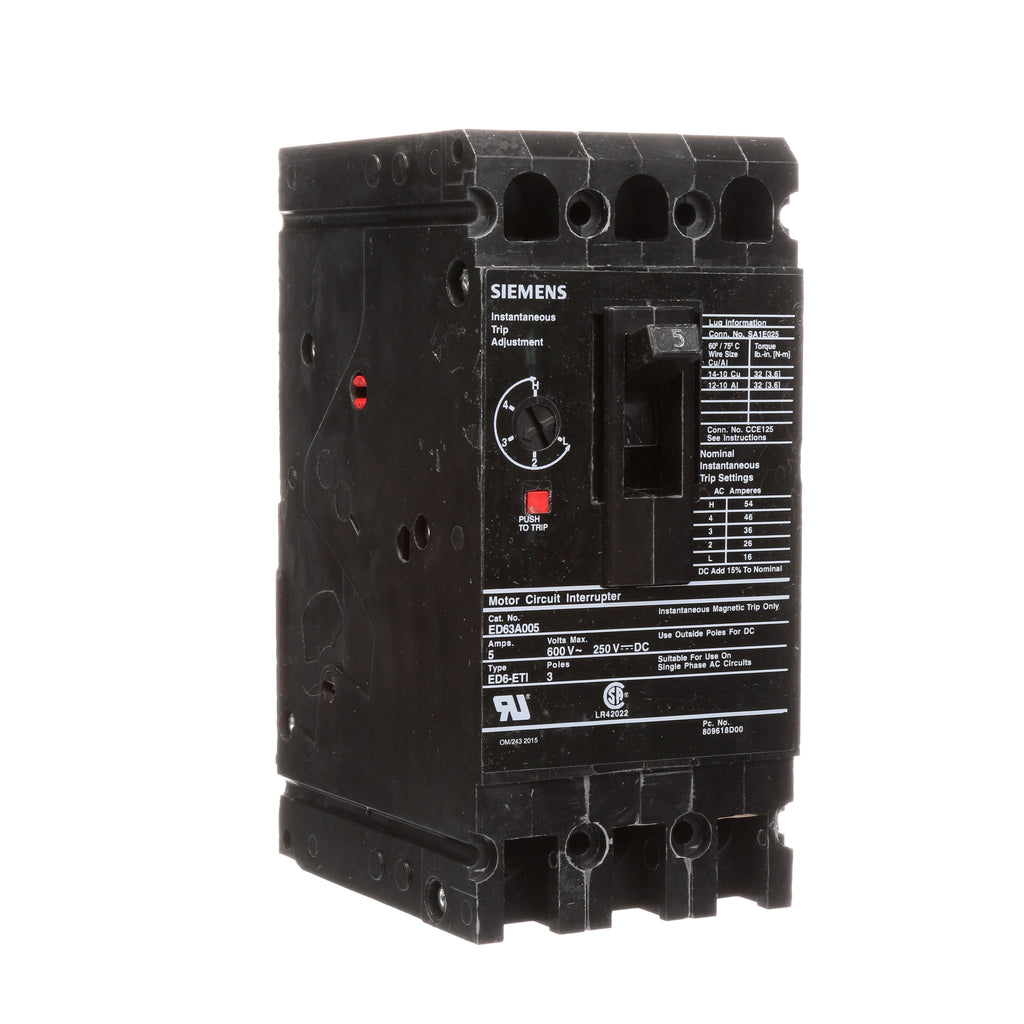

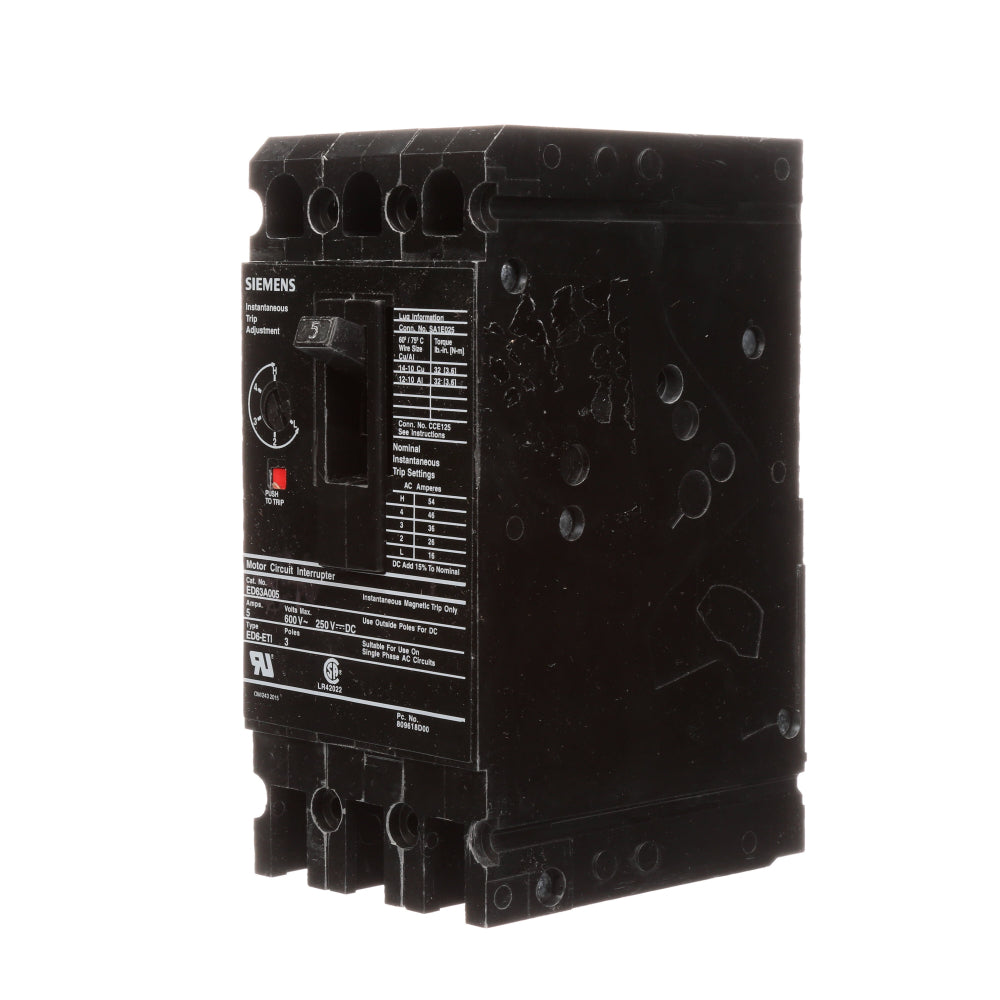

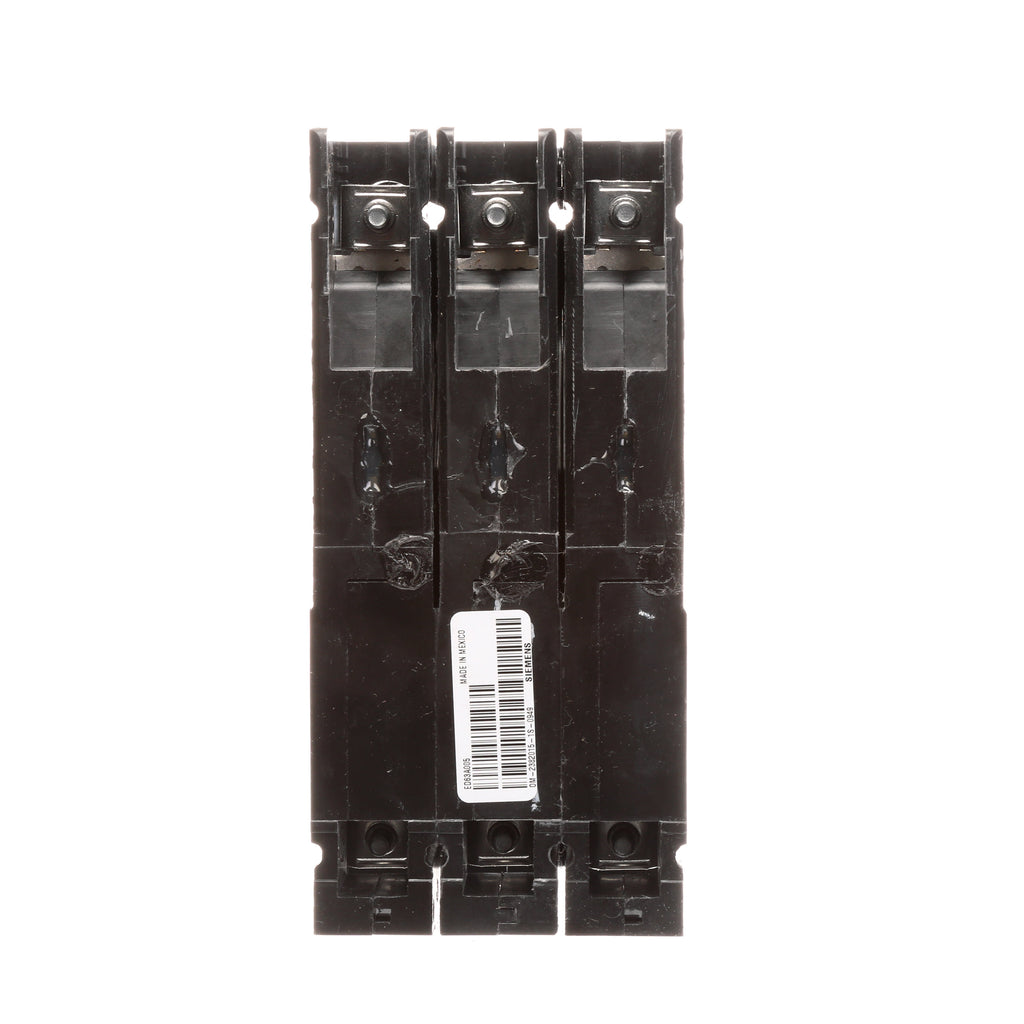

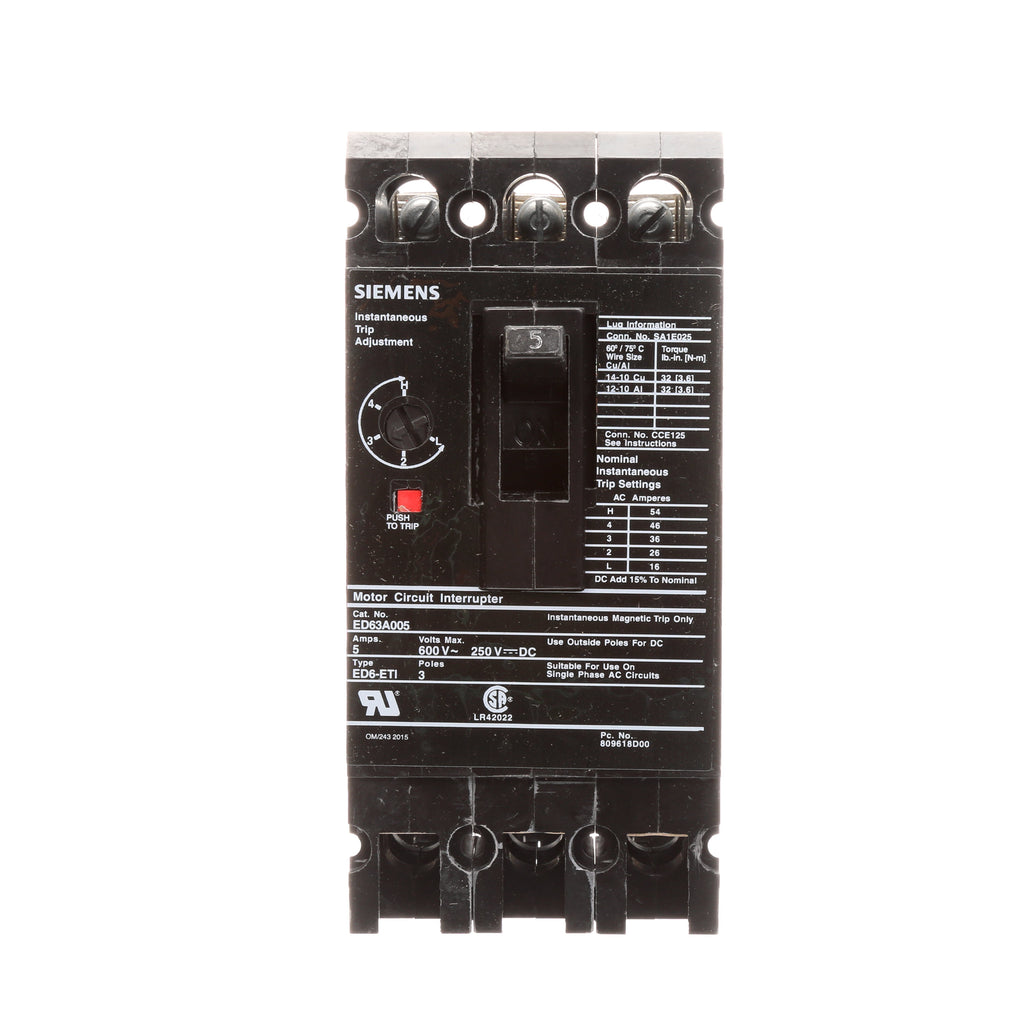

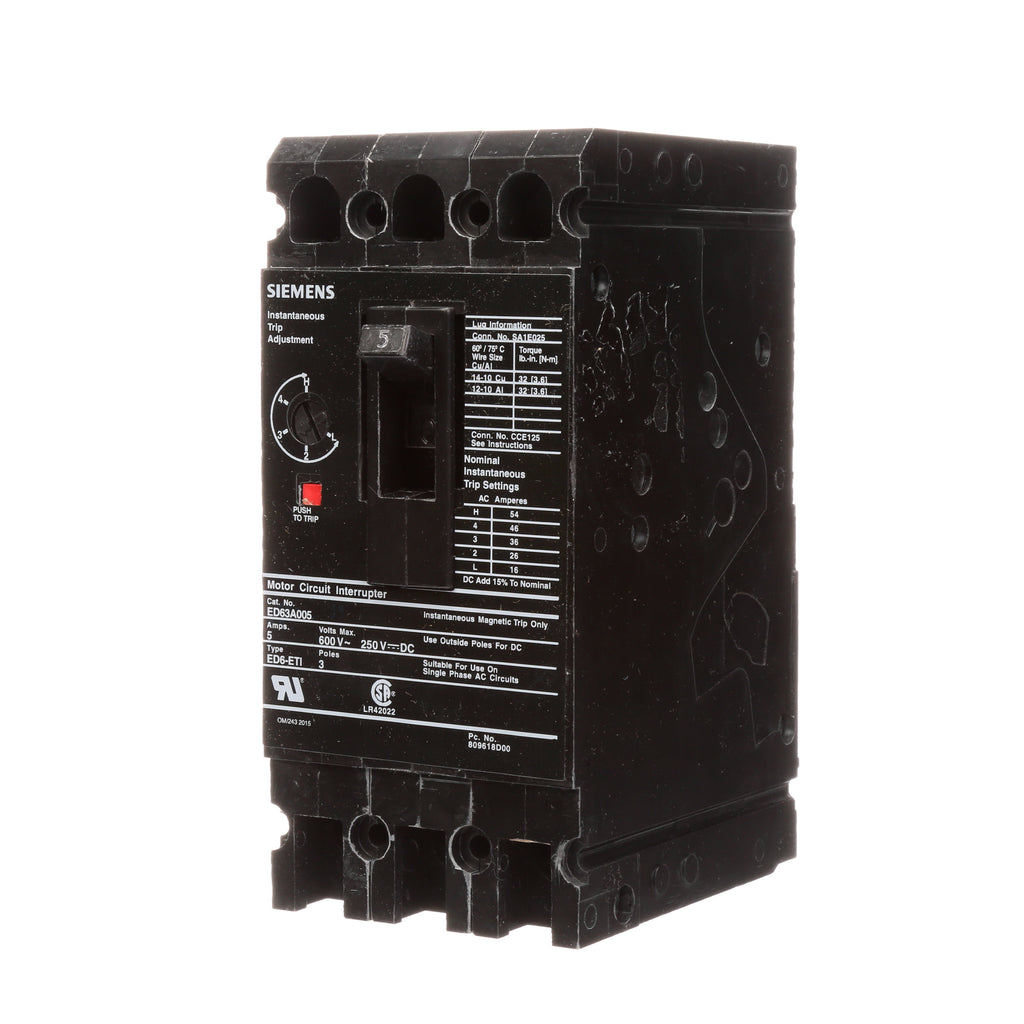

ED63A005 is a Siemens 3 Pole molded case circuit breaker with a 5 Ampere rating and 600 Volt AC voltage designed for bolt-on mounting.This Siemens ED Frame circuit breaker features a thermal magnetic trip unit with instantaneous protection, an 18 kA interrupt rating at 600 VAC, and meets UL 489 and CSA C22.2 certifications. It supports 3-phase applications and is suitable for industrial and commercial power distribution systems.

• Manufacturer: Siemens
• Part Number: ED63A005
• Amperage: 5 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18 kAIC at 600 VAC
• Series/Frame: ED Frame (ED6)
• Trip Unit: Thermal Magnetic, Instantaneous Protection
• Certifications: UL 489, CSA Listed C22.2
• Dimensions: Approx. 3" W x 4" D x 6.34" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: ED63A005
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 5
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Magnetic Only

Product Data

• UPC : 783643210813
• GTIN : 00783643210813
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.957
• Weight : 3.79
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
