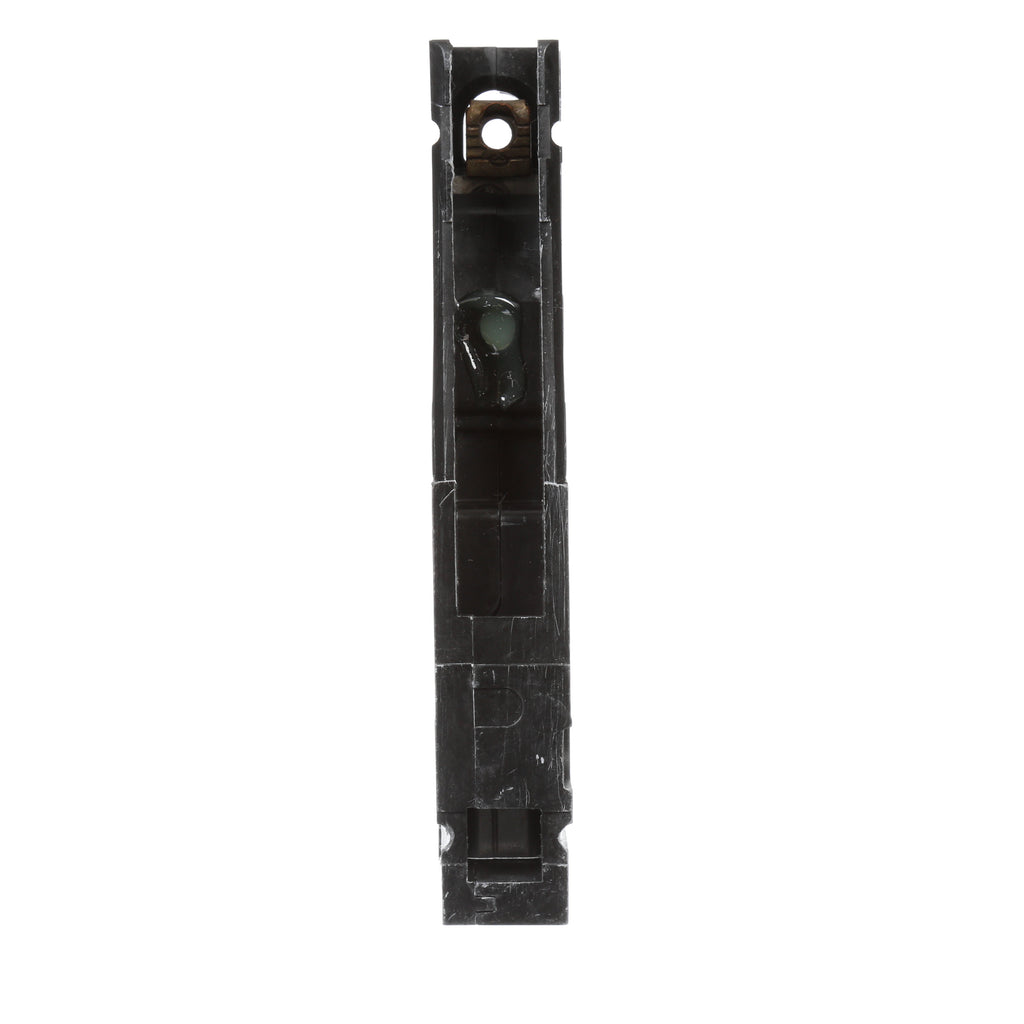

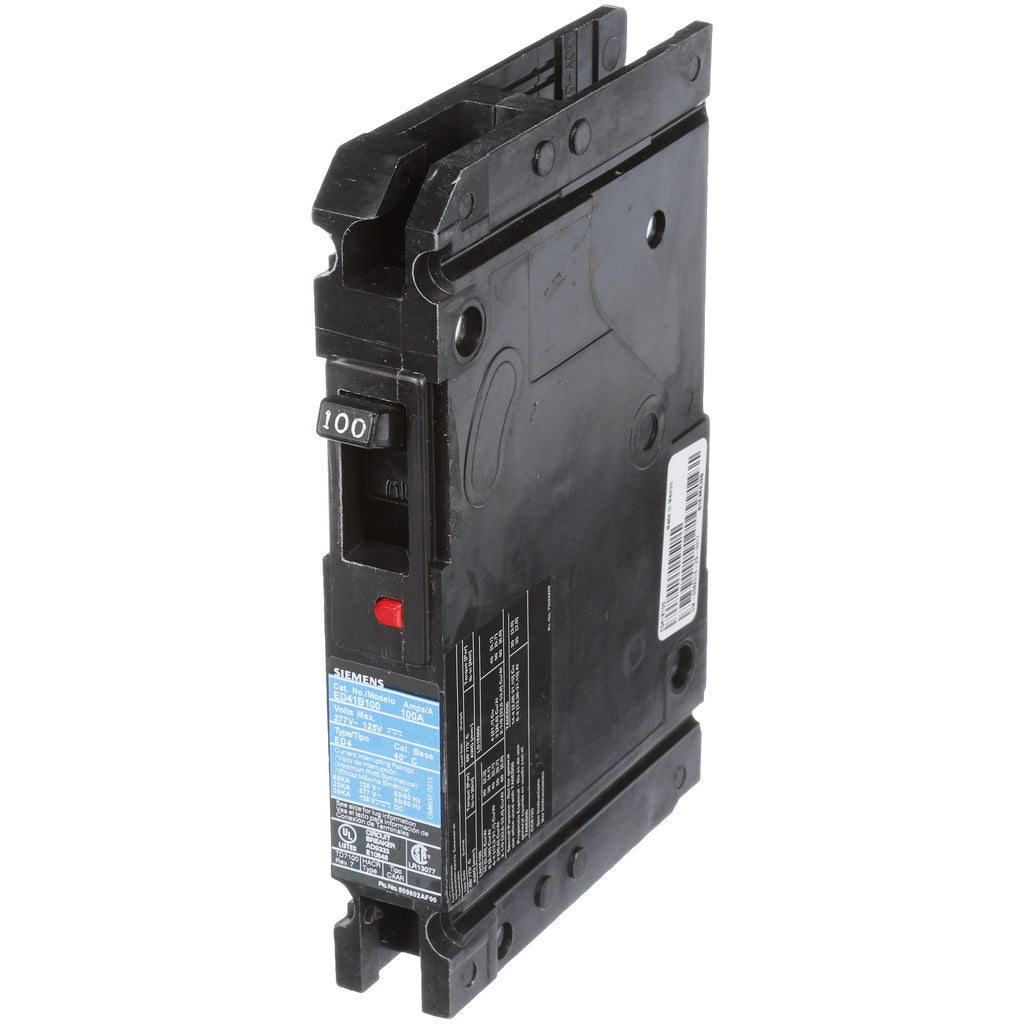

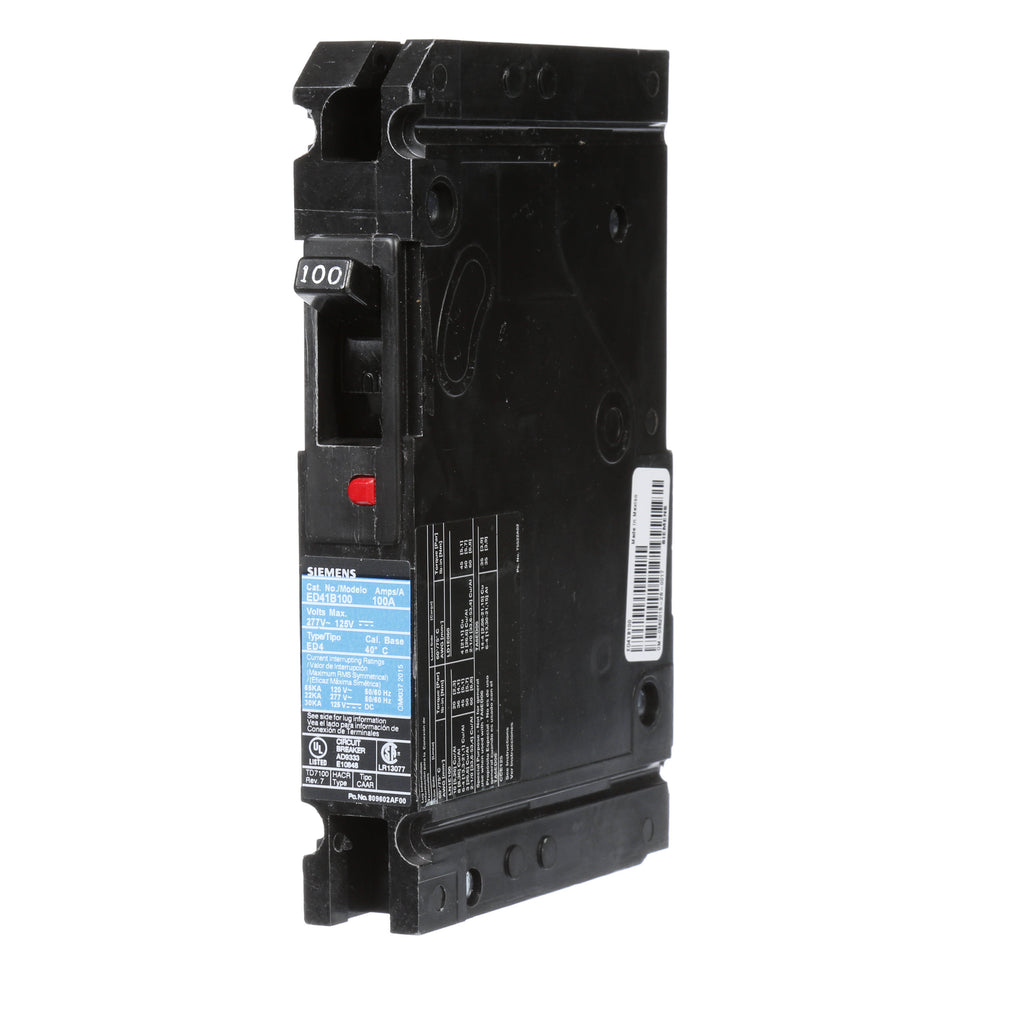

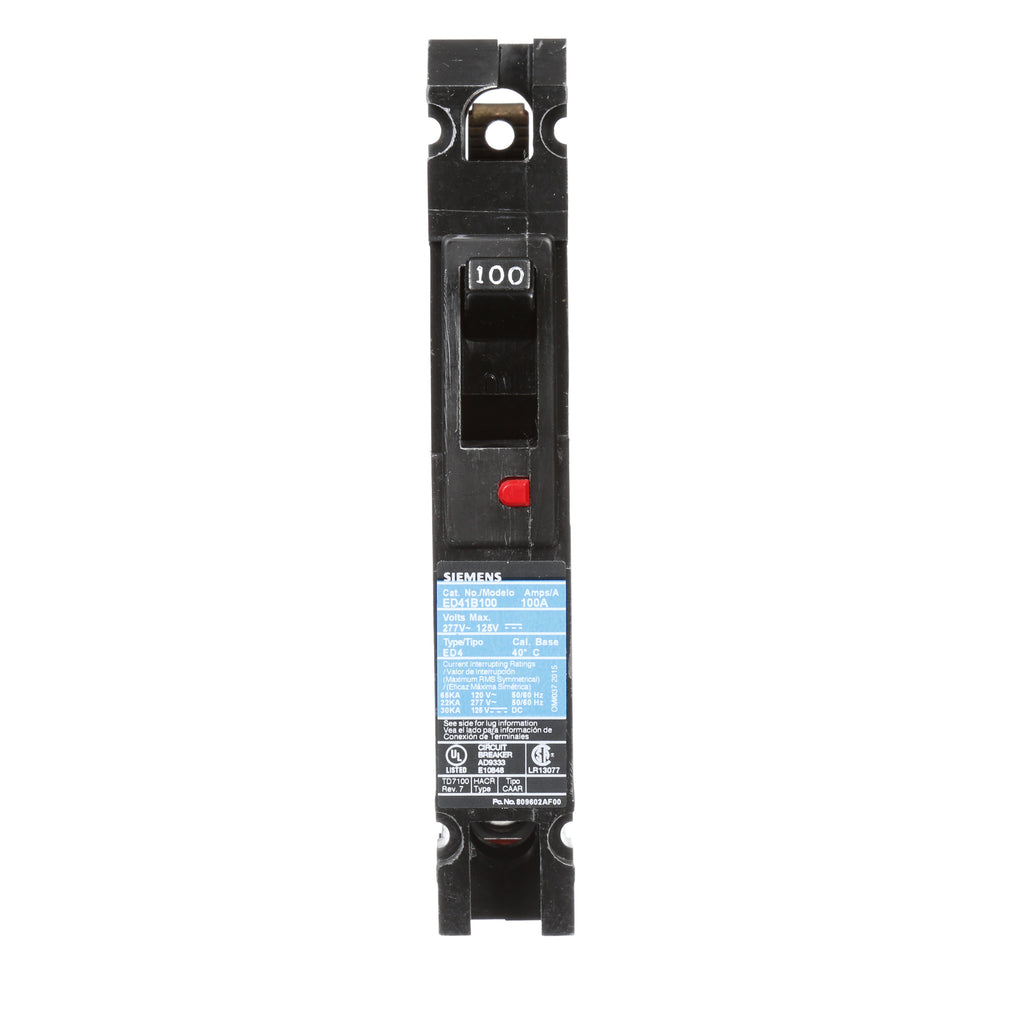

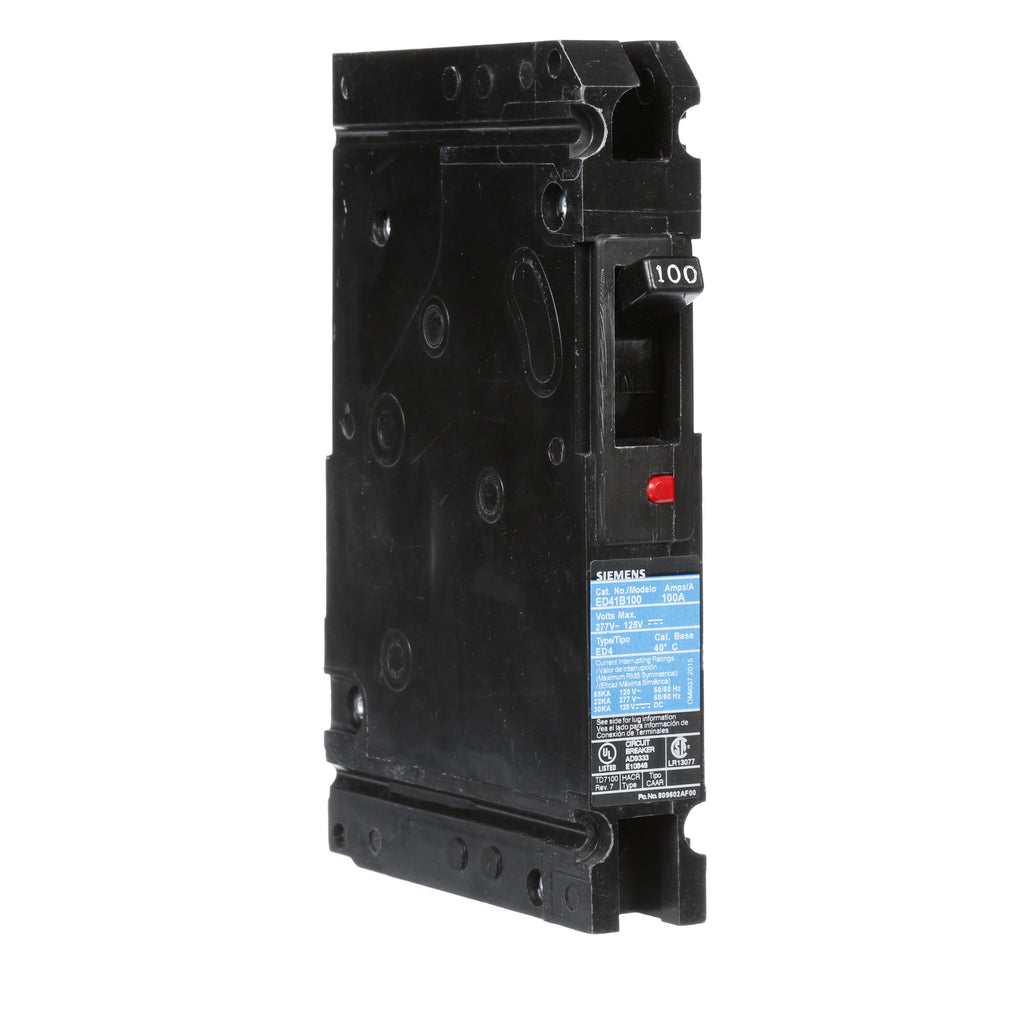

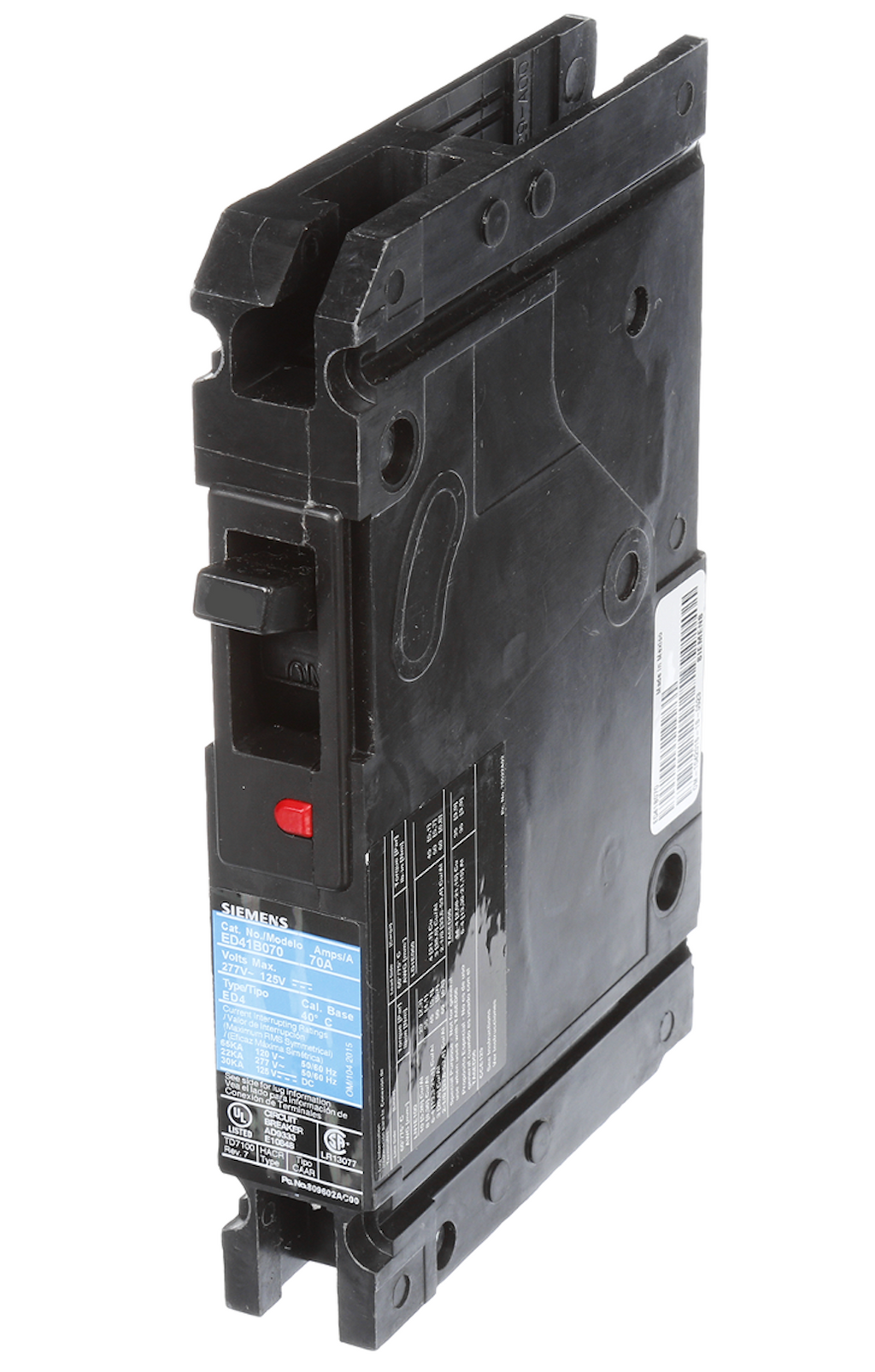

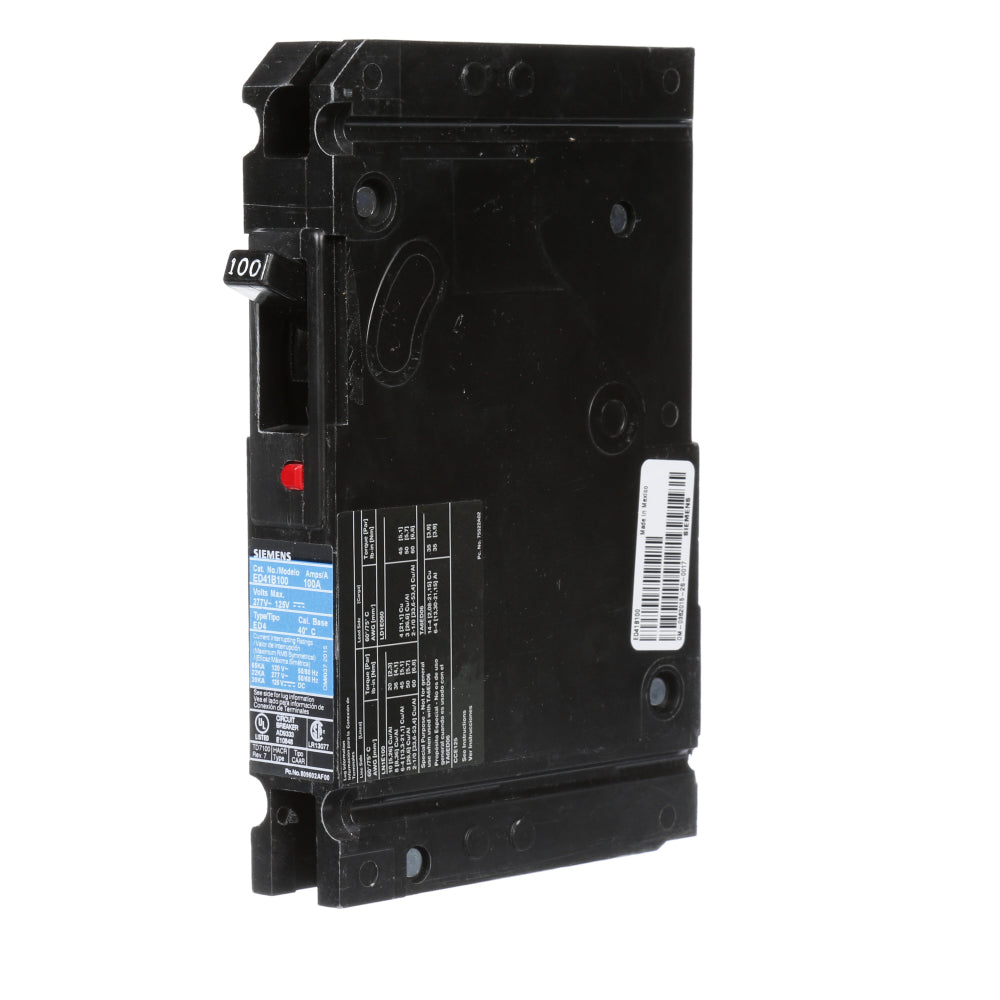

ED41B100 - Siemens Circuit Breaker 100 A 1 Pole 120 V

ED41B100

ED41B100 is a Siemens Sentron Series molded case circuit breaker designed for branch circuit protection in low-voltage power distribution systems.This thermal magnetic breaker is a Type ED, 1-pole, bolt-on device rated 100 A at 120 V AC, with standard interrupting capacity and load-side lug terminals for secure installation in compatible Siemens panelboards and switchboards.Key Specifications

• Part Number: ED41B100
• Manufacturer: Siemens
• Family: Sentron Series Type ED
• Type: Molded Case Circuit Breaker
• Voltage: 120 V
• Amperage: 100 A
• Phase: 1
• Poles: 1
• AIC Rating: 65 kA
• Connection: Bolt-On
• Framesize: ED4
• Breaker Type: Thermal Magnetic
• Trip Type: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic Overcurrent
• NSDEV Item Qty: 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED41B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series Type ED
• Type : Molded Case Circuit Breaker
• Voltage : 120 V
• Amperage : 100 A
• Phase : 1
• Poles : 1
• AIC rating : 65 kA
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : ED4
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 6 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Thermal Magnetic
• Protection : Thermal Magnetic Overcurrent
• Phase Connection : Any
• Item QTY : 1
• Trip Type : LI - Long-Time and Instantaneous

Product Data

• UPC : 783643209206
• GTIN : 00783643209206
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.930
• Weight : 1.1
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC Certified, UL Listed
• Certification : IEC Certified, UL Listed
