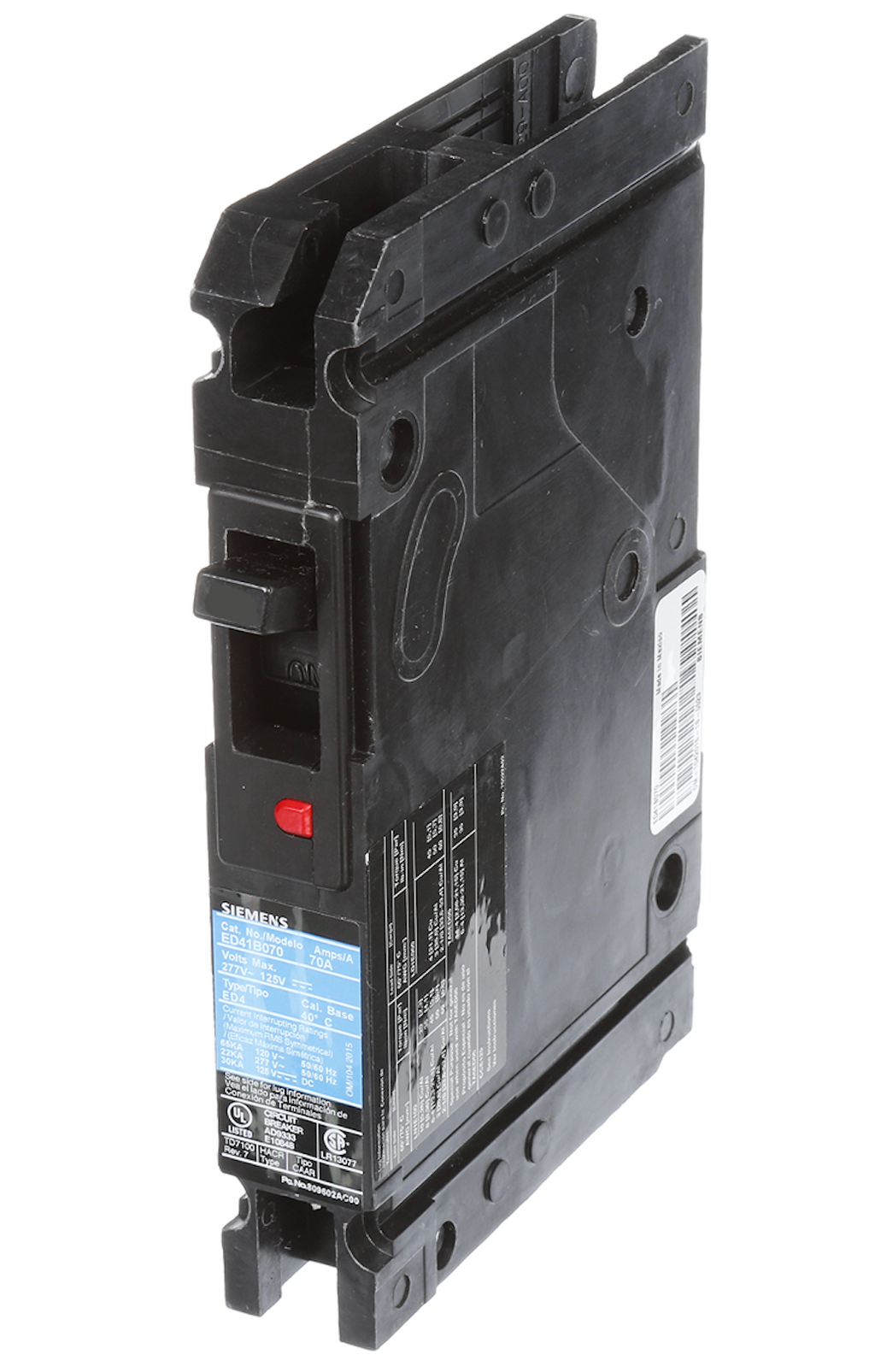

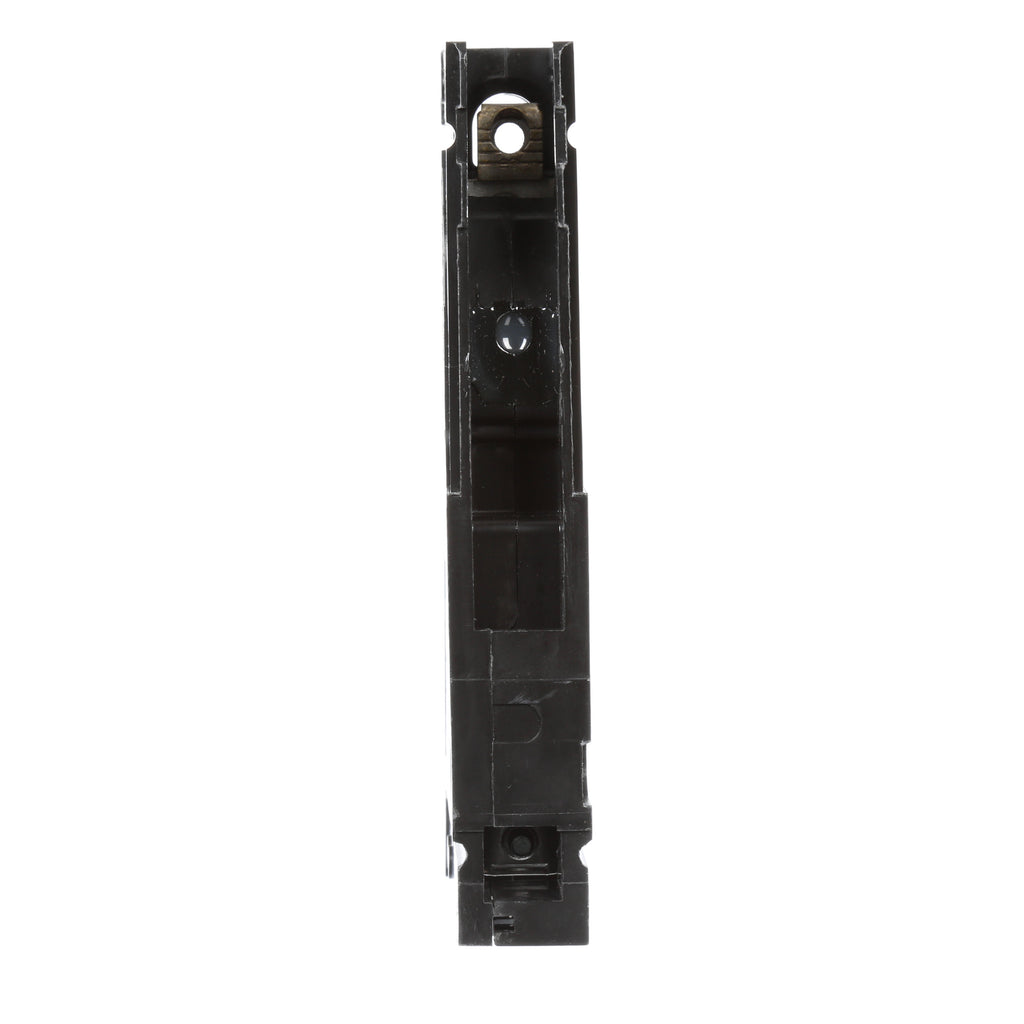

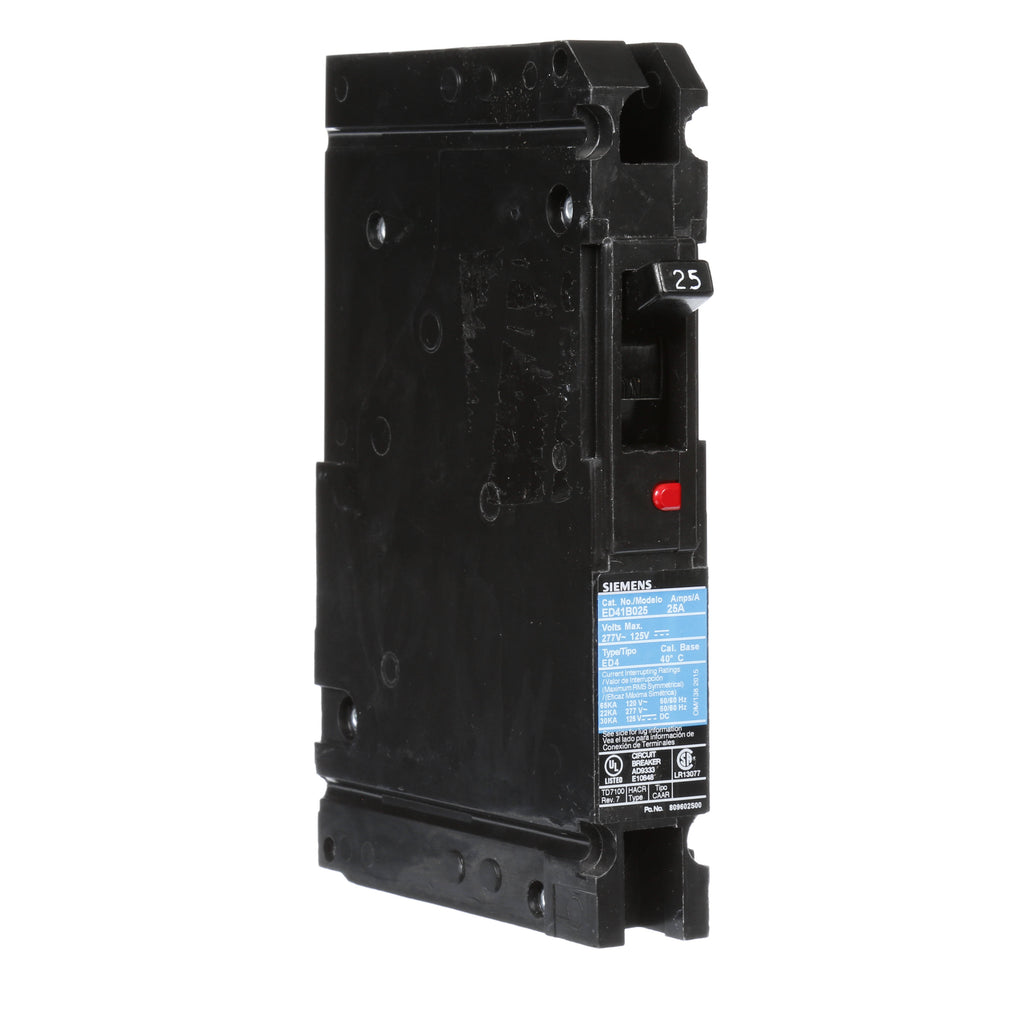

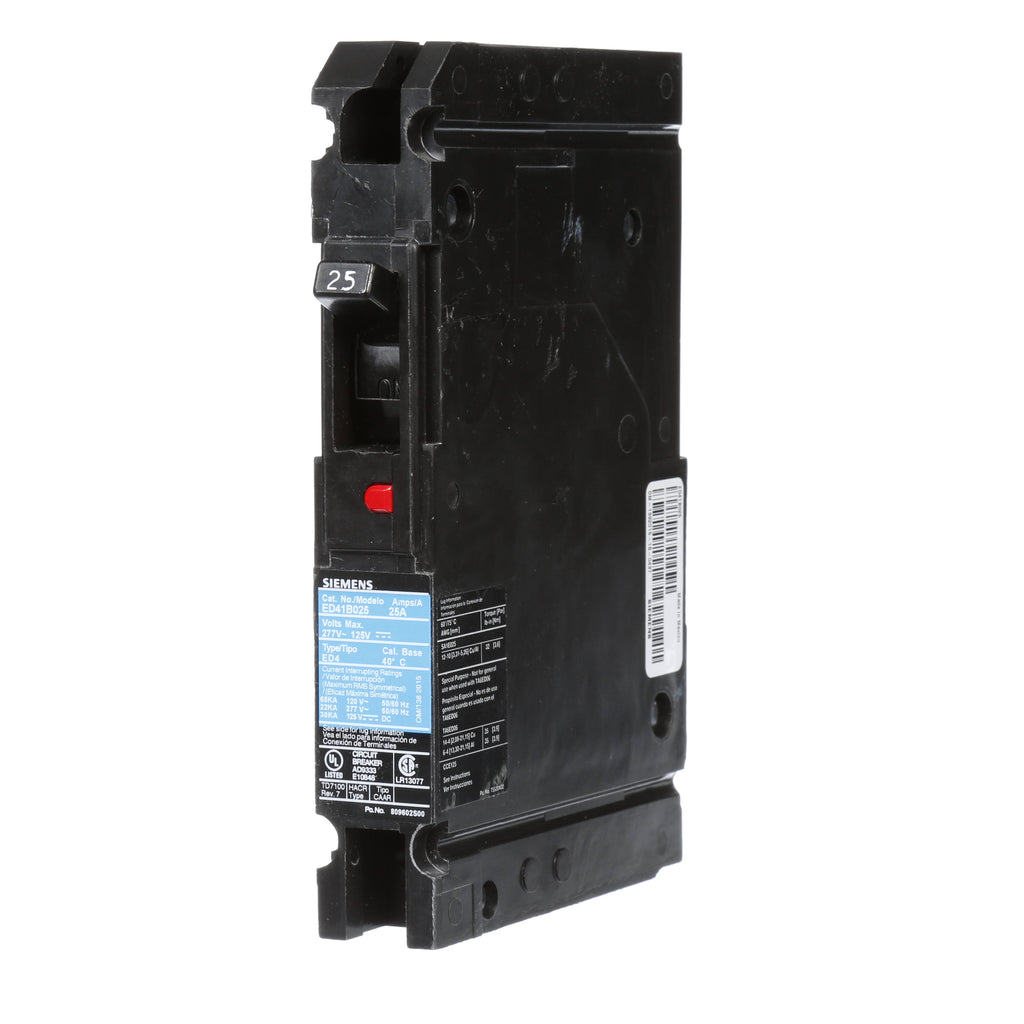

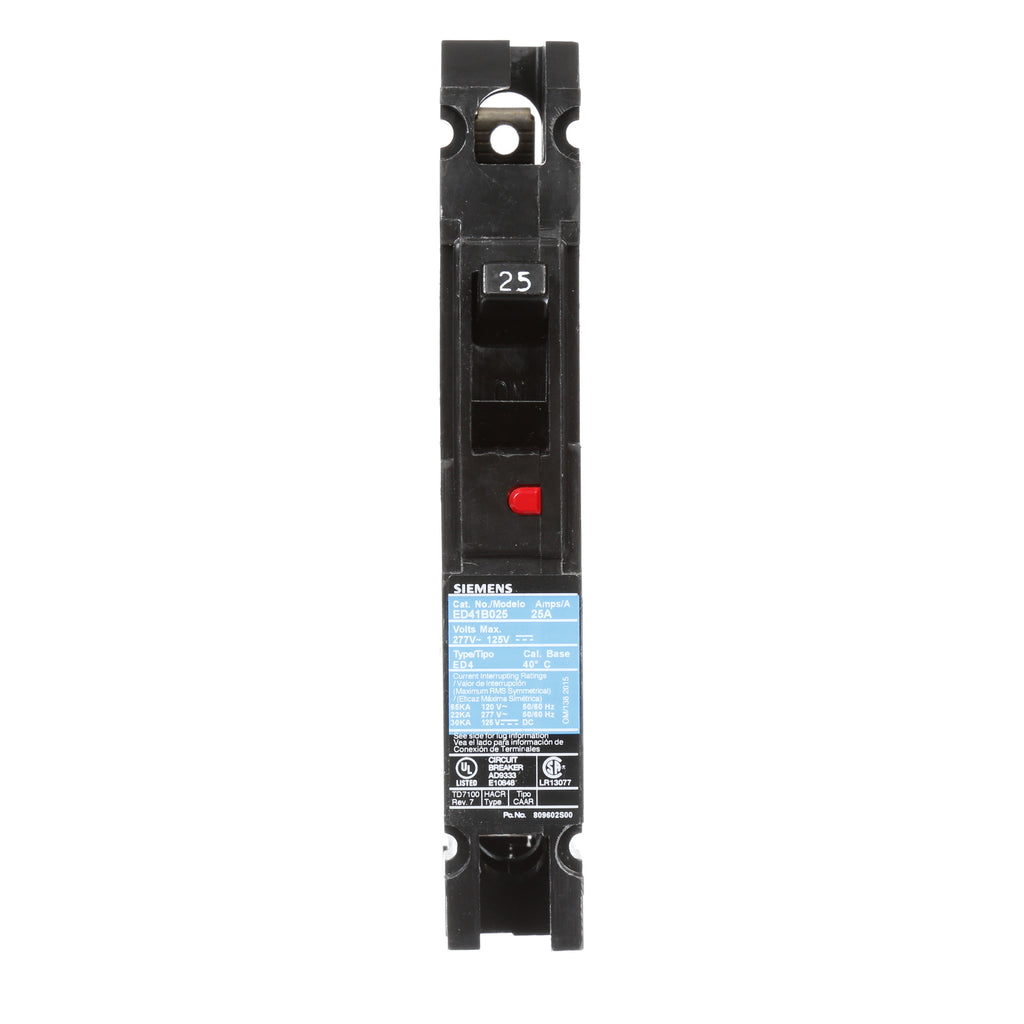

ED41B025 - Siemens 25A 1-Pole 277V Bolt-On Circuit Breaker ED Frame

ED41B025

ED41B025 is a Siemens 25 Ampere, 1-pole bolt-on circuit breaker designed for reliable power distribution protection.This Siemens ED frame circuit breaker features a 25A rating with 277V AC voltage capacity and a bolt-on mounting type. It offers a standard interrupting rating of 22 kAIC at 277V and is UL listed and HACR rated for safety and compliance. The breaker includes a toggle actuator and is suitable for single-phase applications with a non-interchangeable trip unit.

Key Specifications
• Amperage: 25 Amps
• Voltage: 277V AC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kAIC at 277V
• Frame/Series: ED Frame
• Trip Unit: Non-Interchangeable
• Standards: UL Listed, HACR Rated
• Phase: Single Phase
• Actuator Type: Toggle
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED41B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120 AC
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 65kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 2 AWG (Al), 3 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209107
• GTIN : 00783643209107
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.910
• Weight : 1.19
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 14 to AWG 10, AWG 12 to AWG 10, Copper/Aluminum
