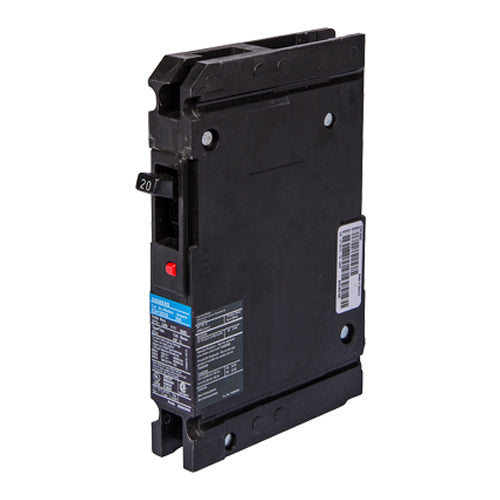

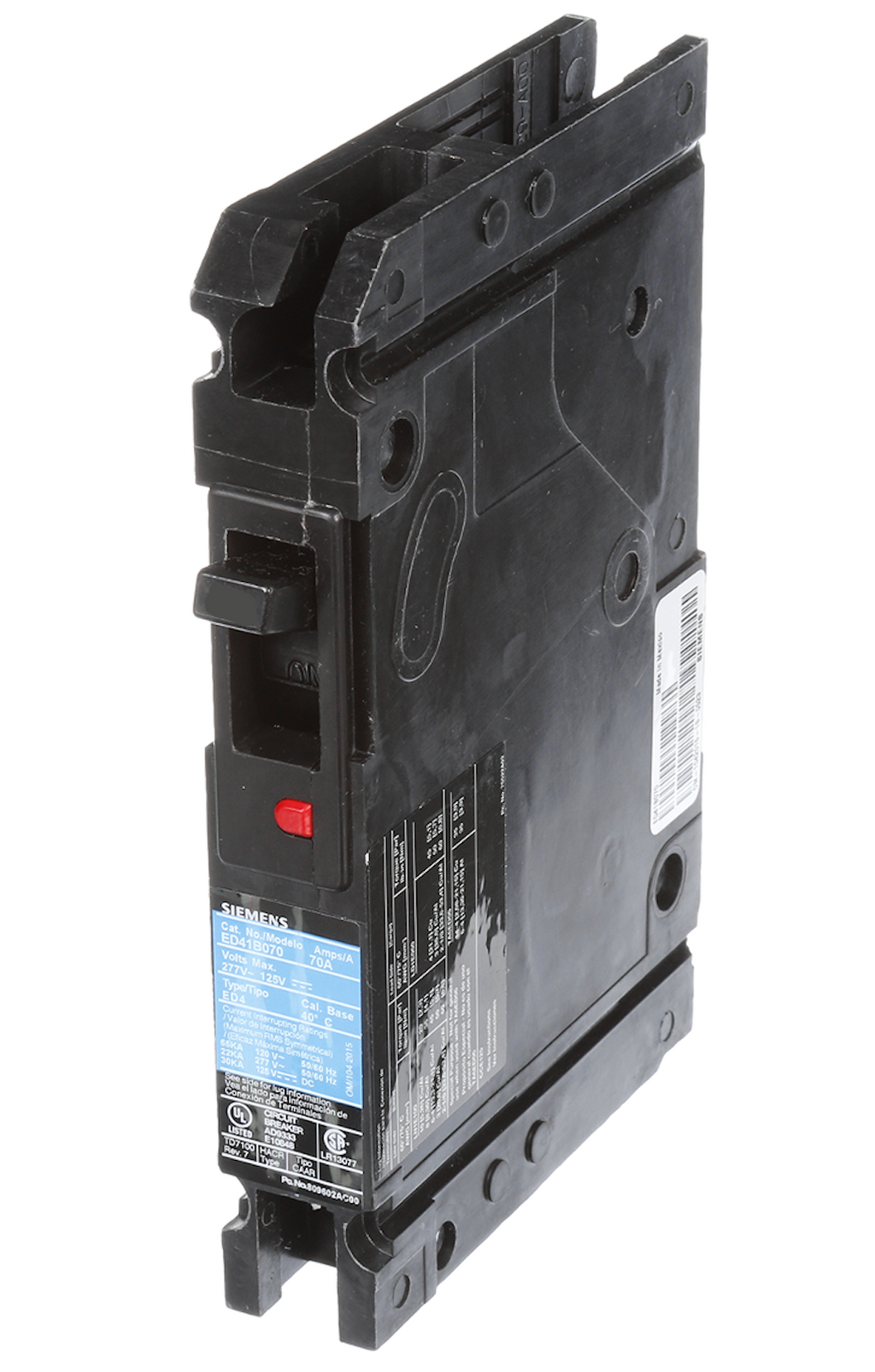

ED41B080 - Siemens 80A 120V 1-Pole ED Frame Circuit Breaker Bolt-On Mount

ED41B080

ED41B080 is a Siemens 80 amp, 120 volt, 1-pole circuit breaker with ED frame and bolt-on mounting designed for reliable circuit protection.This Siemens ED41B080 circuit breaker features a thermal magnetic trip unit, a 65,000 AIC interrupt rating at 120V AC, and 22,000 AIC at 277V AC. It meets UL 489 and IEC 60947-2 standards and is suitable for panelboard applications requiring a compact 2 inch wide by 6.35 inch high form factor. The breaker supports wire sizes from #10 AWG to 1/0 AWG using the LN1E100 lug kit.

Key Specifications
• Amperage: 80 Amps
• Voltage: 120 Volts AC
• Poles: 1 Pole
• Frame Type: ED Frame
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 120V AC, 22kA at 277V AC
• Trip Unit: Thermal Magnetic
• Wire Size Range: #10 AWG to 1/0 AWG (with lug kit)
• Dimensions: 2" W x 6.35" H x 3.92" D
• Certifications: UL 489, IEC 60947-2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ED41B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120 AC
• Amperage : 80
• Phase : 1
• Poles : 1
• AIC rating : 65kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 6 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any



Product Data

• UPC : 783643209183
• GTIN : 00783643209183
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.926
• Weight : 1.1
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC Certified, UL Listed
