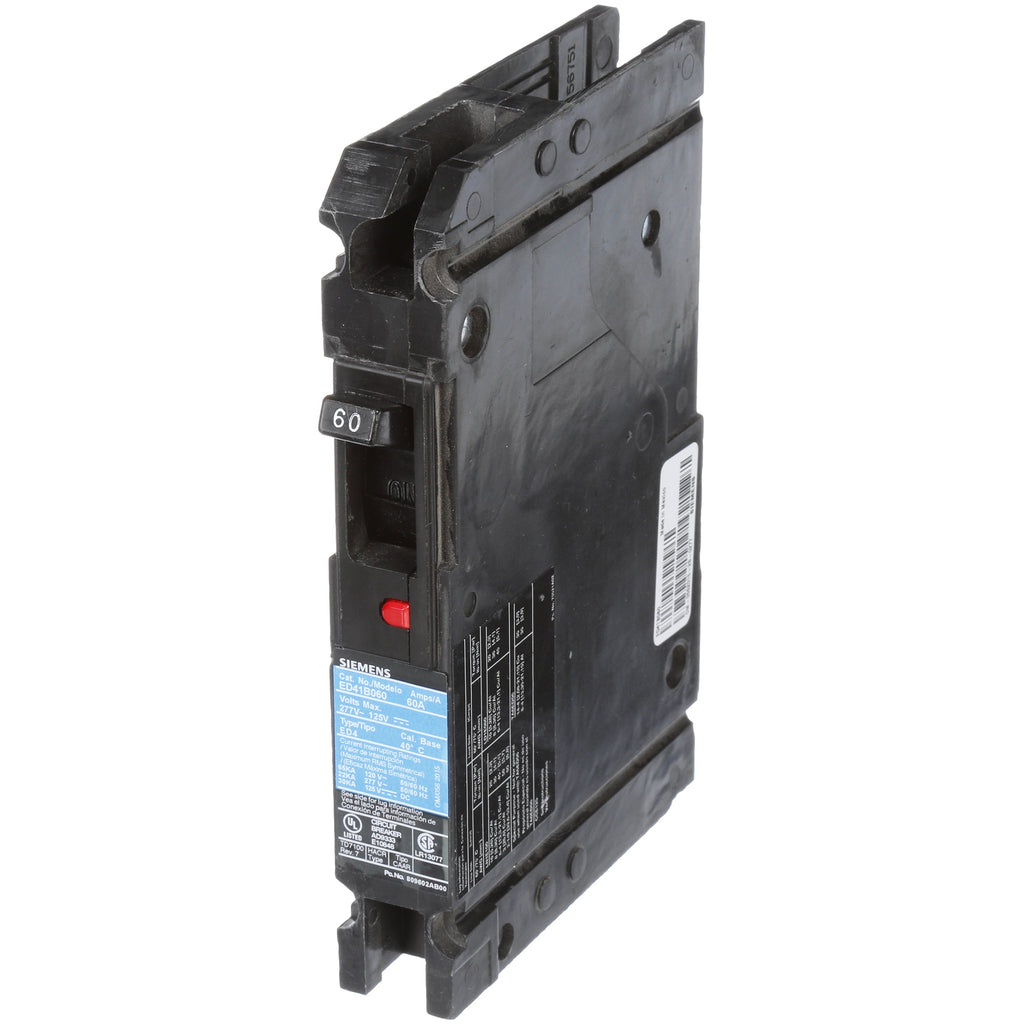

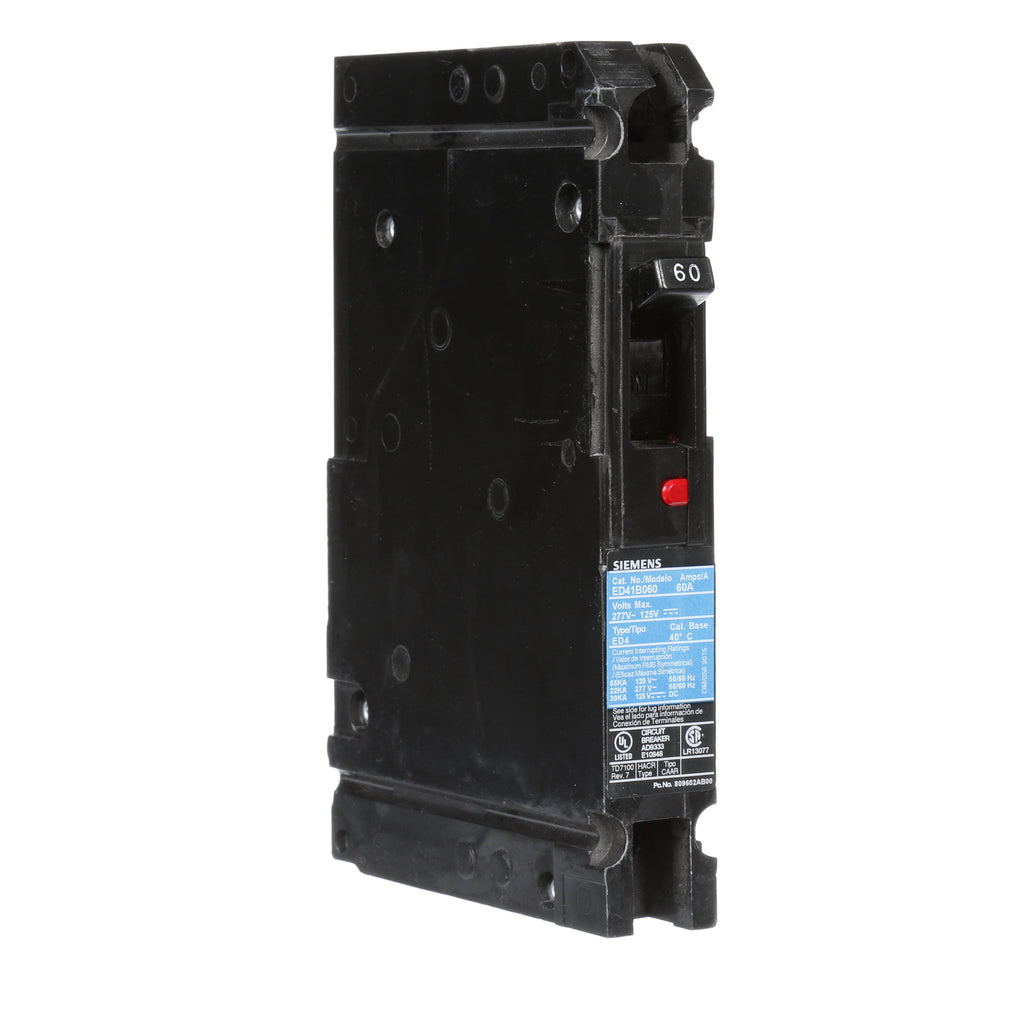

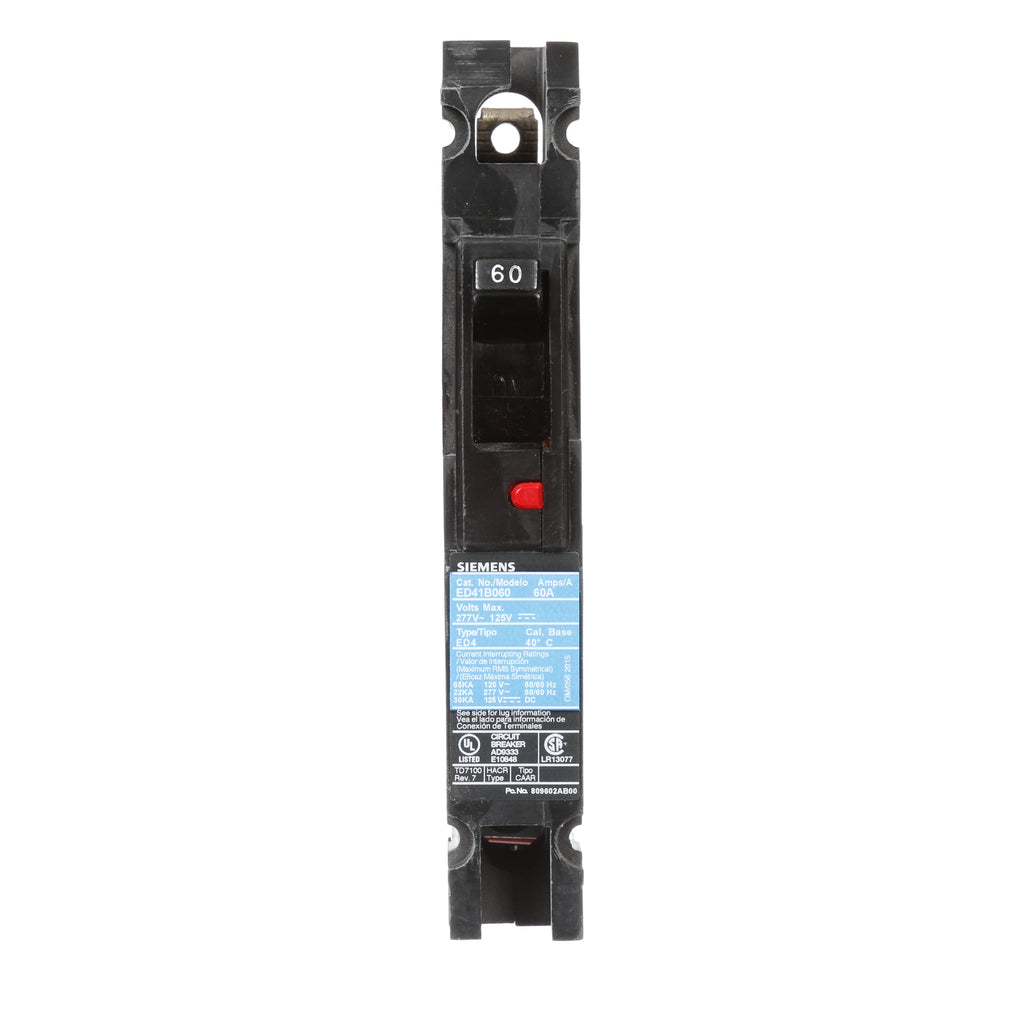

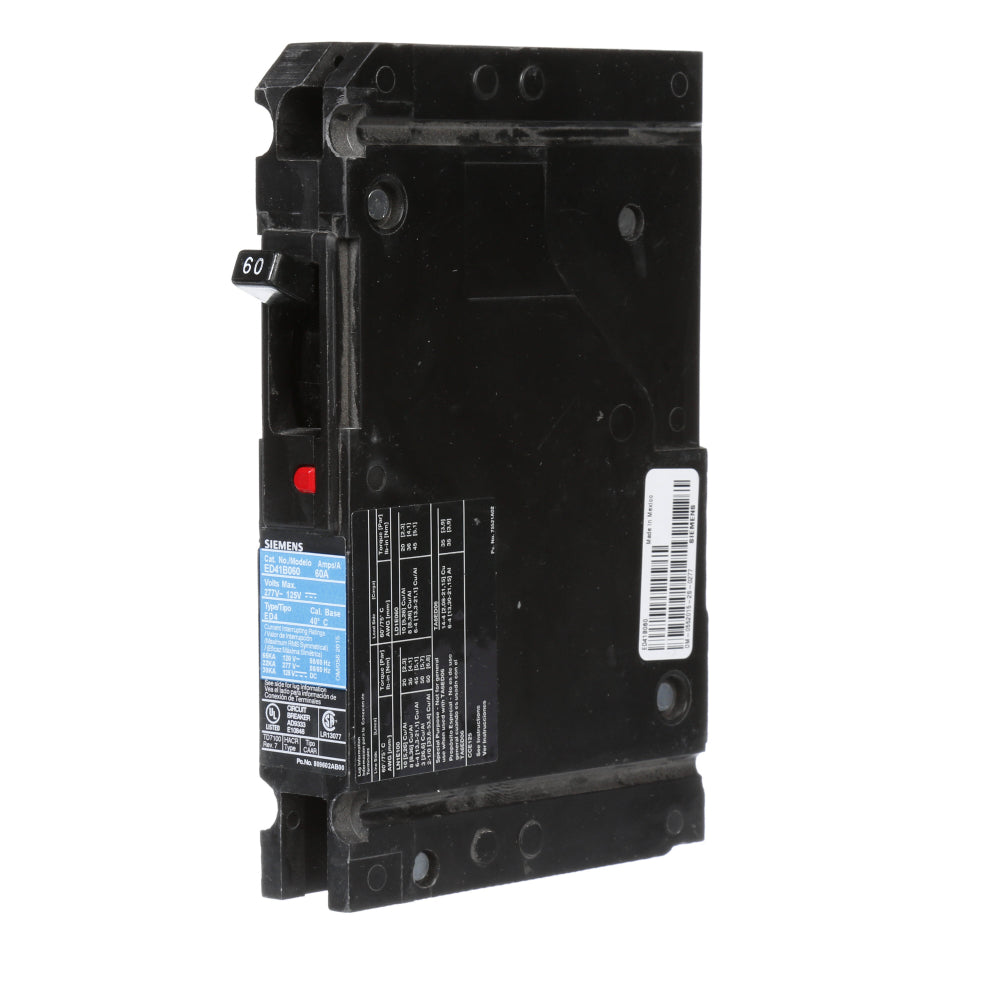

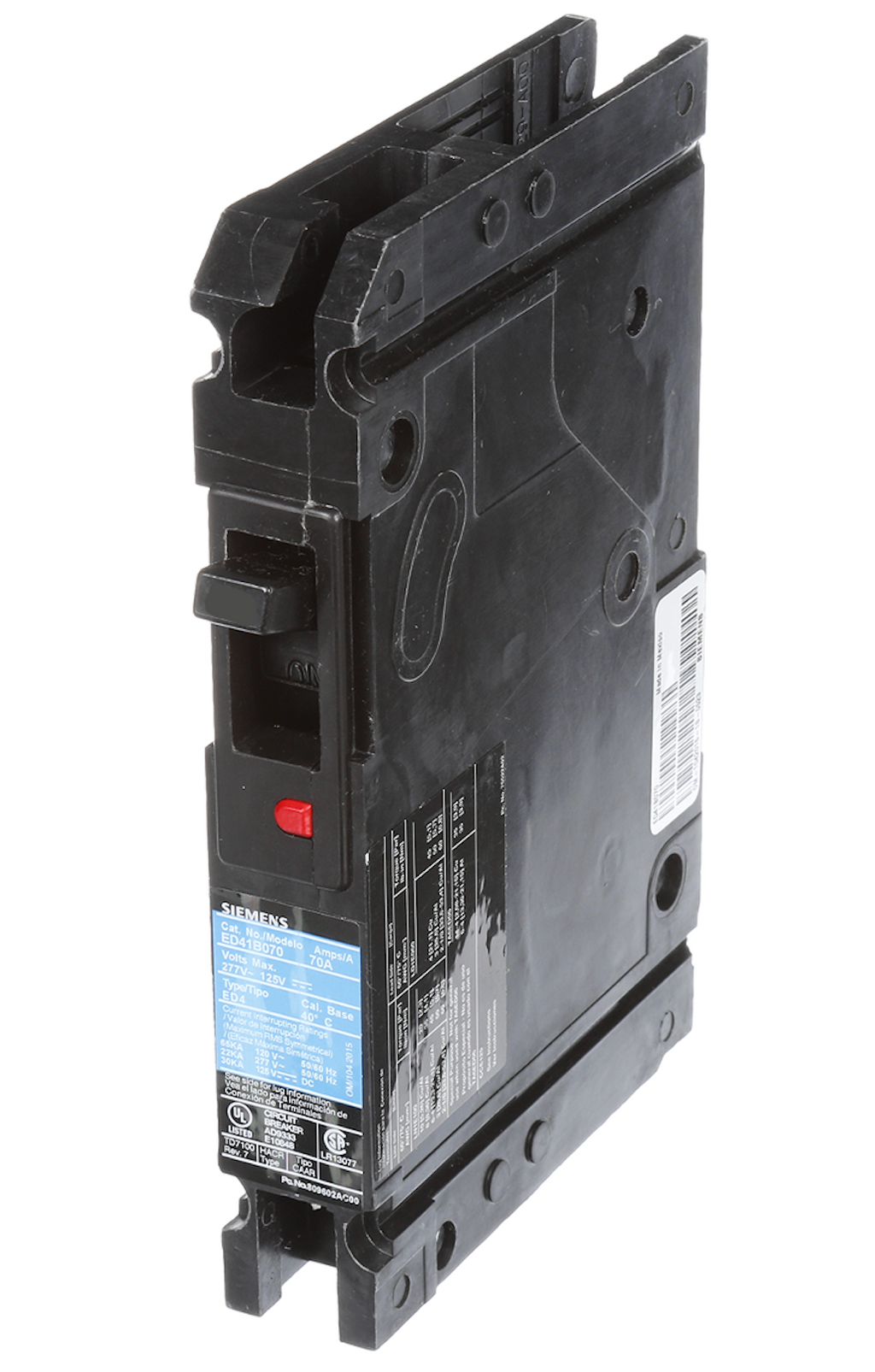

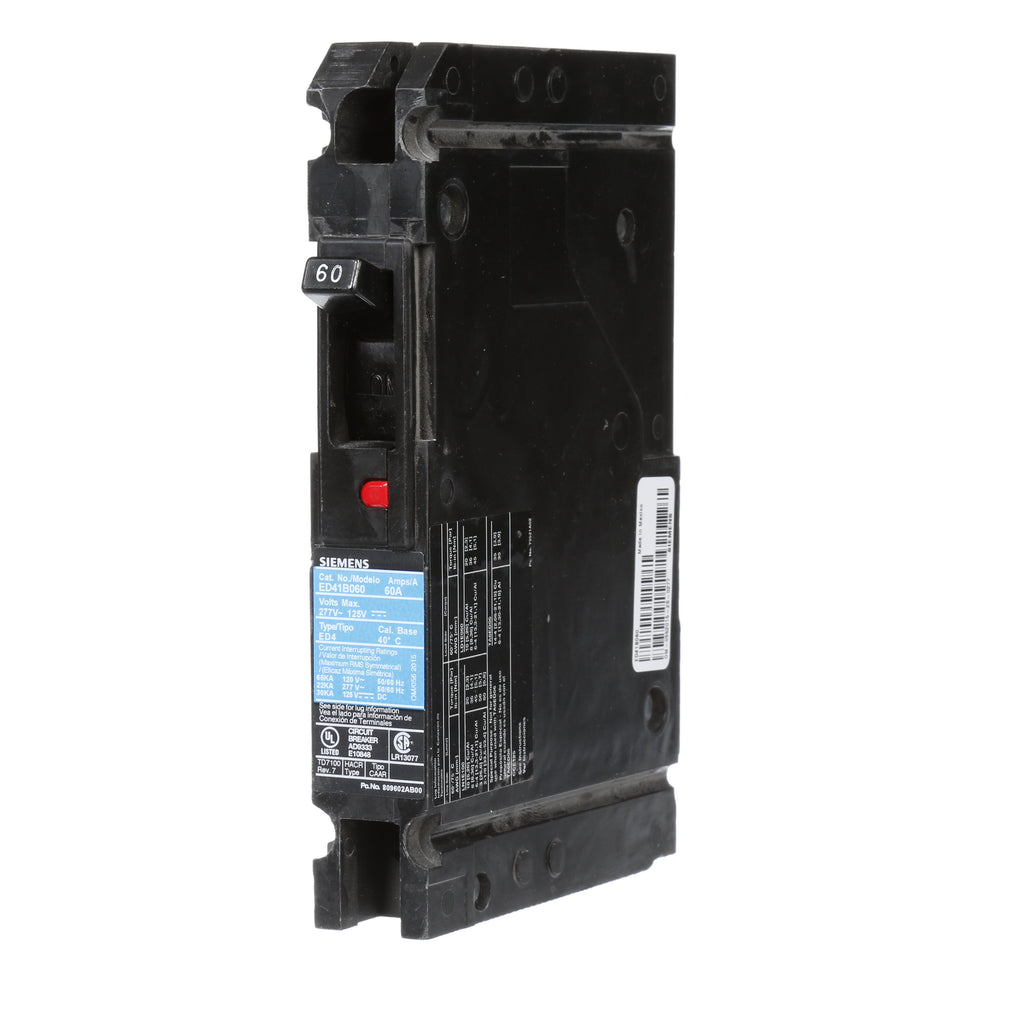

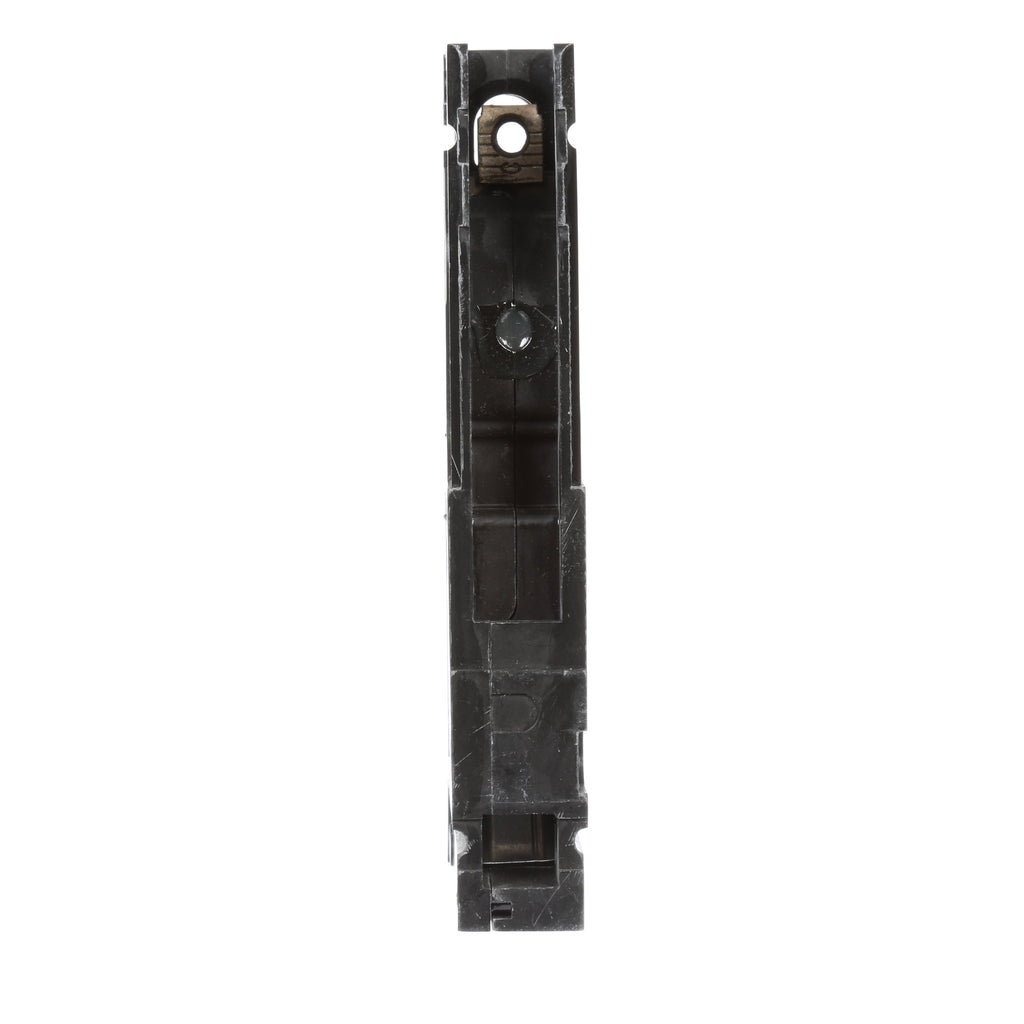

ED41B060 - Siemens 60 Amp 1 Pole 120/277V AC Bolt-On Molded Case Circuit Breaker, ED Frame, 65kAIC @120V, Thermal Magnetic Trip Unit

ED41B060

ED41B060 - Siemens 1-pole, 60A thermal magnetic circuit breaker with bolt-on mounting for reliable overcurrent protection.

This Siemens Sentron ED frame circuit breaker is rated for 120/277V AC and 125V DC operation at 40 degrees C, featuring thermal magnetic trip unit with long-time and instantaneous protection. It provides interrupting ratings of 65kA at 120V AC and 22kA at 277V AC, suitable for panelboard applications.

Key Specifications

• Amperage: 60A
• Voltage: 120/277V AC, 125V DC
• Poles: 1
• Mounting Type: Bolt-On
• Frame/Series: ED
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65kA@120V AC, 22kA@277V AC
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED41B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120 AC
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 65kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 6 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209169
• GTIN : 00783643209169
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.922
• Weight : 1.151
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC Certified, UL Listed
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 10 to AWG 4, Cu/AL
