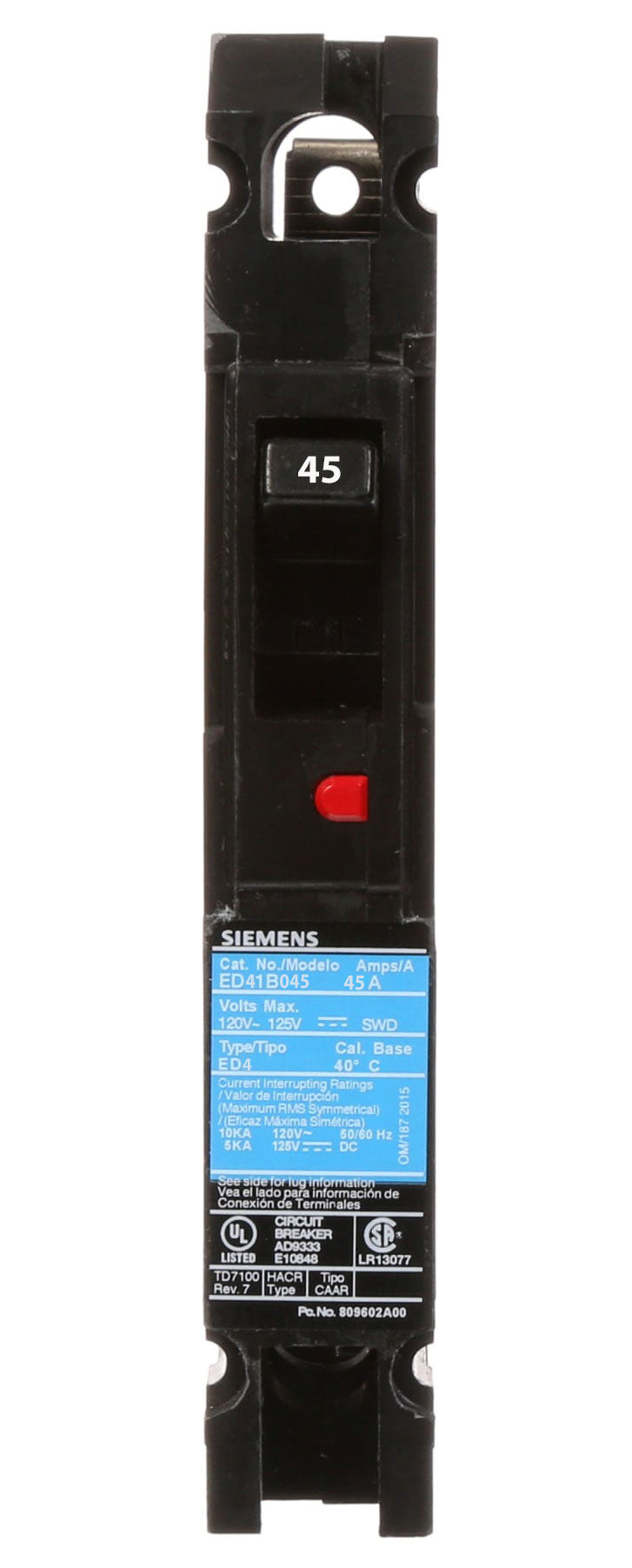

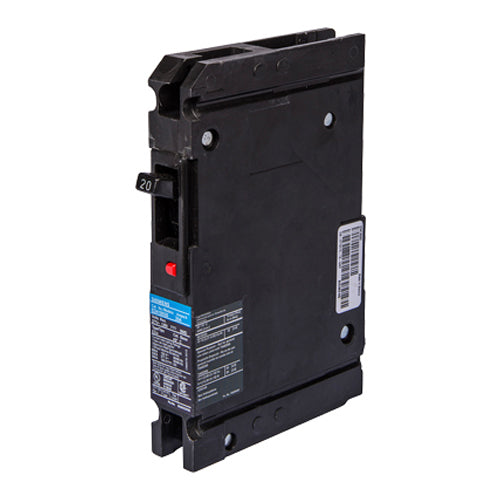

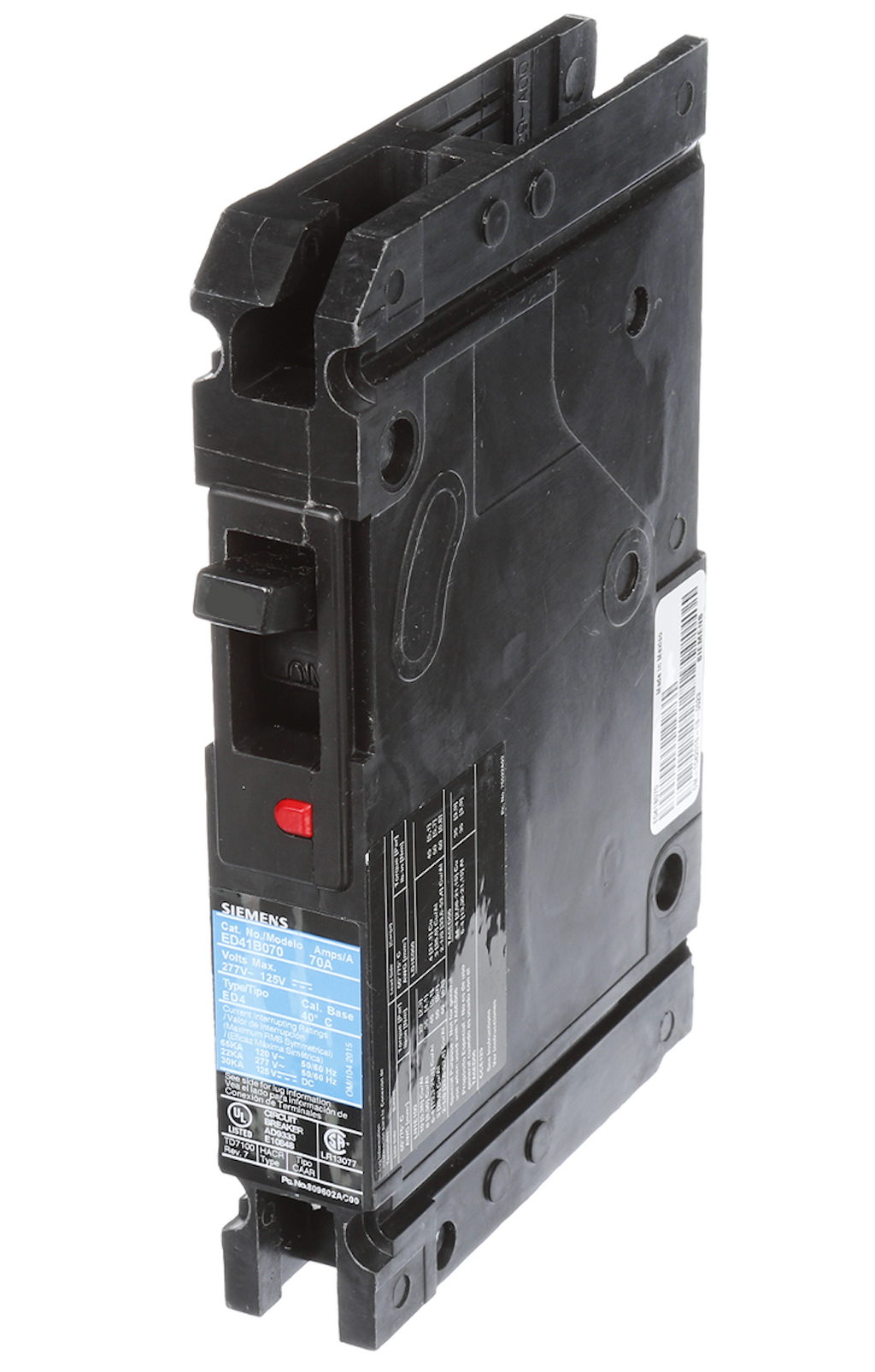

ED41B045 - Siemens 45A 1-Pole 120/277V AC Molded Case Circuit Breaker ED4 Series Bolt-On

ED41B045

ED41B045 is a Siemens 45 Amp, 1 Pole Molded Case Circuit Breaker designed for bolt-on mounting in electrical distribution systems.This Siemens ED4 Series circuit breaker features a 120/277V AC voltage rating, 65kA interrupting capacity at 120V, and is HACR rated and UL listed for safety and reliability. It supports single-phase applications with a bolt-on mounting type and has a compact frame type ED design.

• Amperage: 45A
• Voltage Rating: 120/277V AC
• Number of Poles: 1
• Interrupt Rating: 65kA at 120V
• Series/Frame: ED4 Series, Frame Type ED
• Mounting Type: Bolt-On
• Phase: Single Phase
• Standards: HACR Rated, UL Listed
• Dimensions: Height 6.34 inches
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED41B045
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120 AC
• Amperage : 45
• Phase : 1
• Poles : 1
• AIC rating : 65kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 2 AWG (Al), 3 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209145
• GTIN : 00783643209145
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.918
• Weight : 1.281
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
