ED41B035 - Siemens 35A 1-Pole 120/277V ED Frame Bolt-On Circuit Breaker

ED41B035

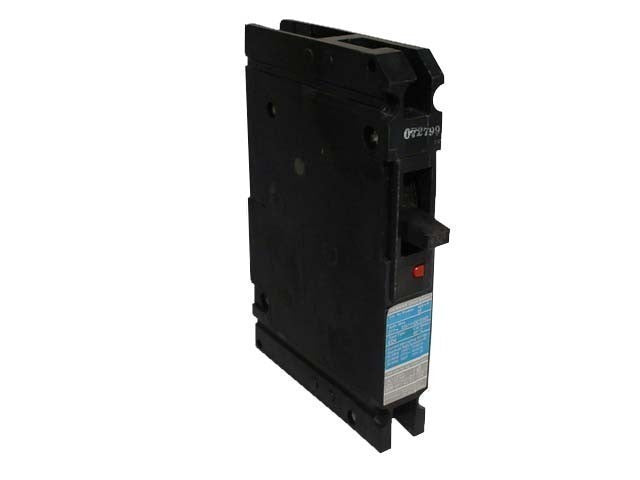

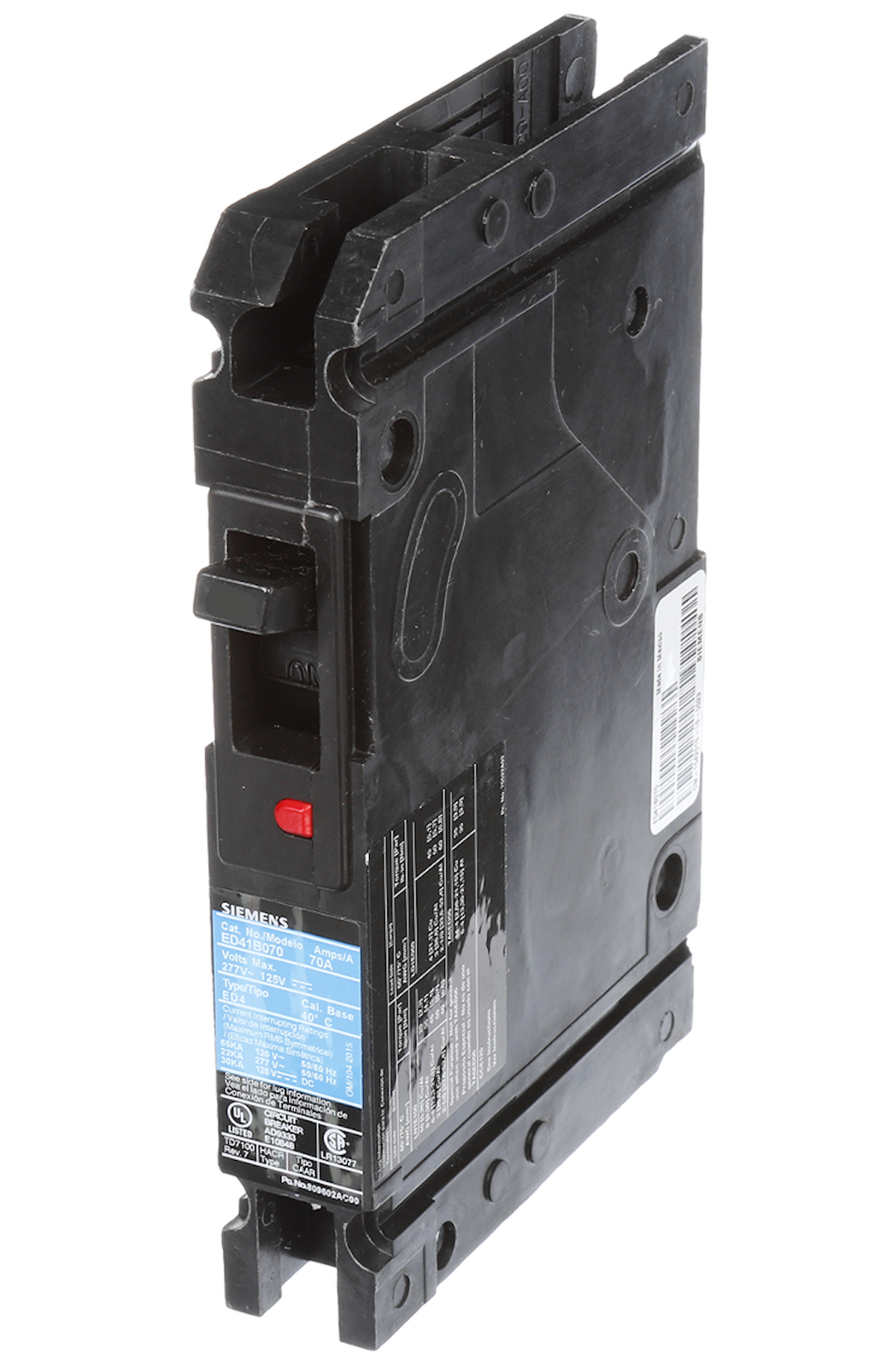

ED41B035 is a Siemens 35 Amp, 1 Pole, 120/277 Volt ED Frame bolt-on circuit breaker designed for reliable circuit protection.This molded case circuit breaker features a thermal magnetic trip unit and a bolt-on mounting type. It supports a 65kA interrupt rating at 120V AC, suitable for single-phase applications. The breaker uses load side lug terminal connections and complies with industry certifications for safety and performance.

• Amperage: 35A
• Voltage: 120/277V AC
• Poles: 1
• Frame Type: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 120V AC
• Trip Unit: Thermal Magnetic
• Terminal Connection: Load Side Lug
• Phase: Single
• Manufacturer: Siemens

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED41B035
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120 AC
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 65kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 2 AWG (Al), 3 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209121
• GTIN : 00783643209121
• Country of Origin : Mexico
• Dimensions : 0.787 x 4.724 x 5.914
• Weight : 1.281
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : UL Listed
• Wire Size : AWG 10 to AWG 4, Cu/AL
