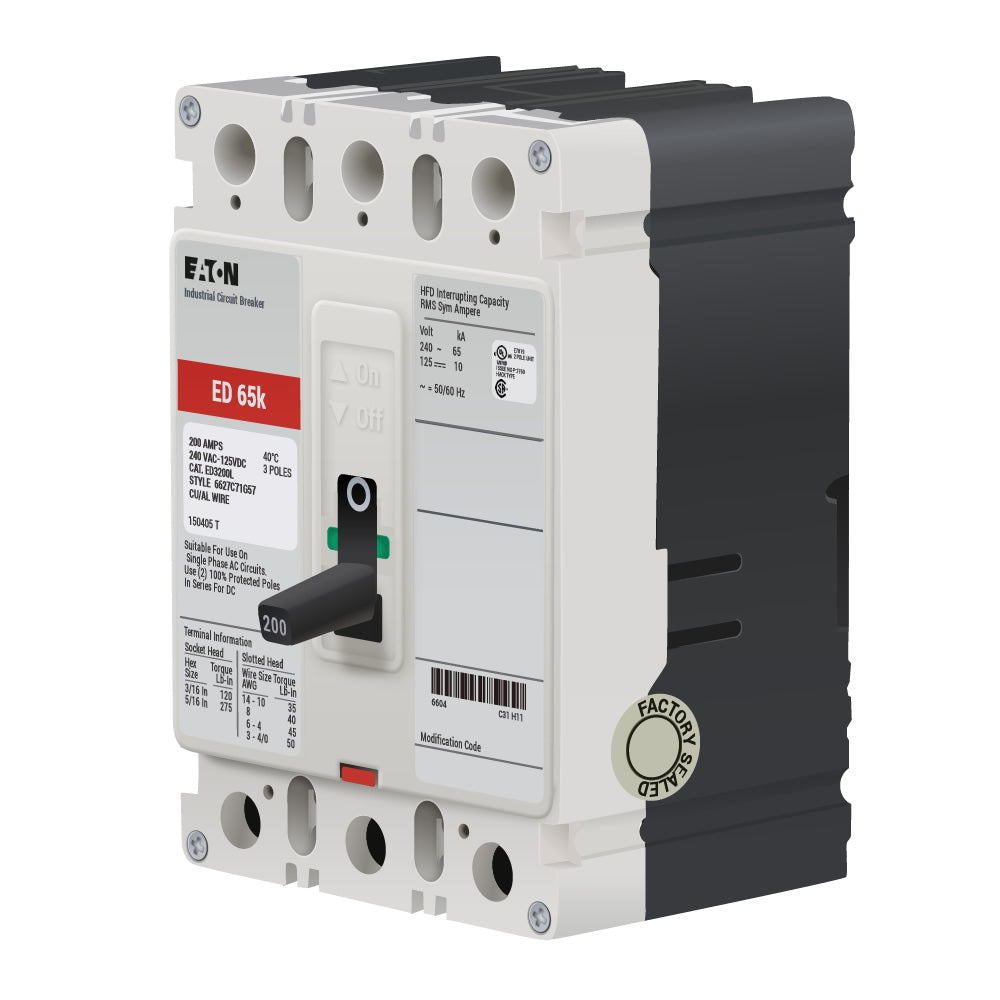

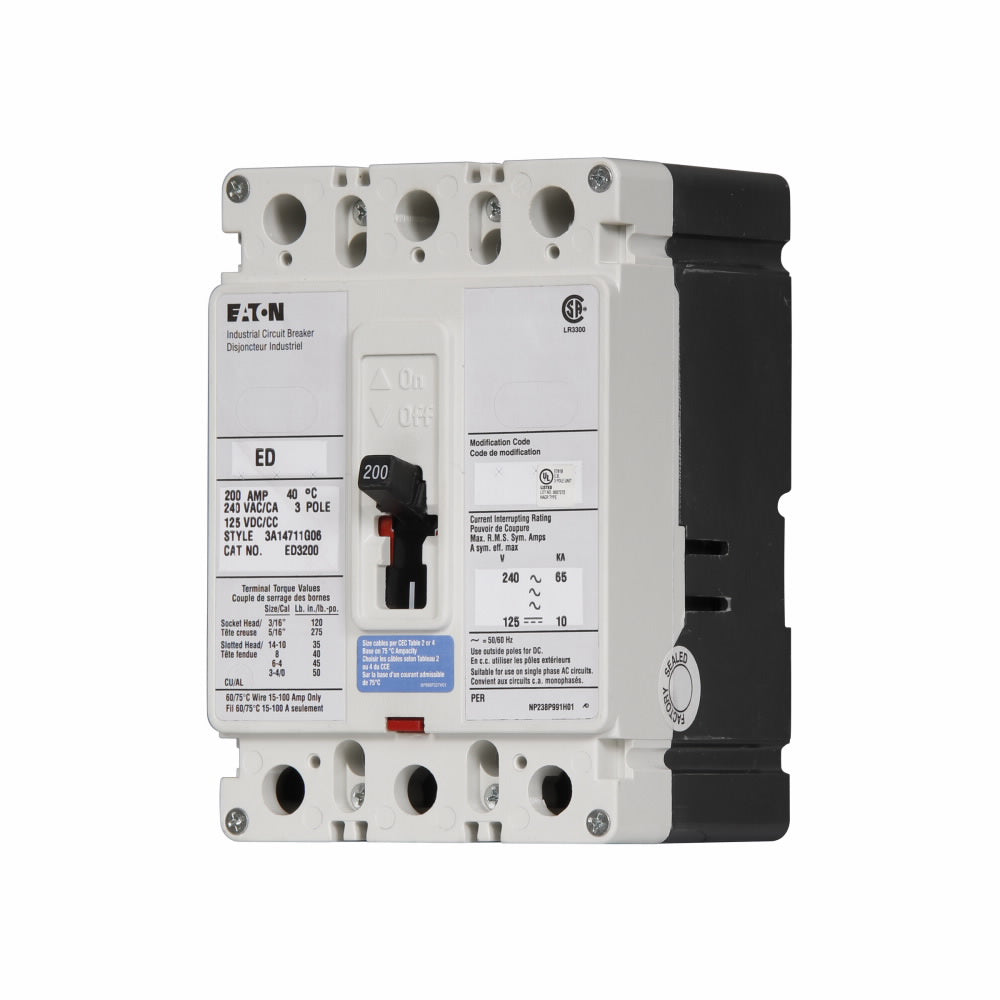

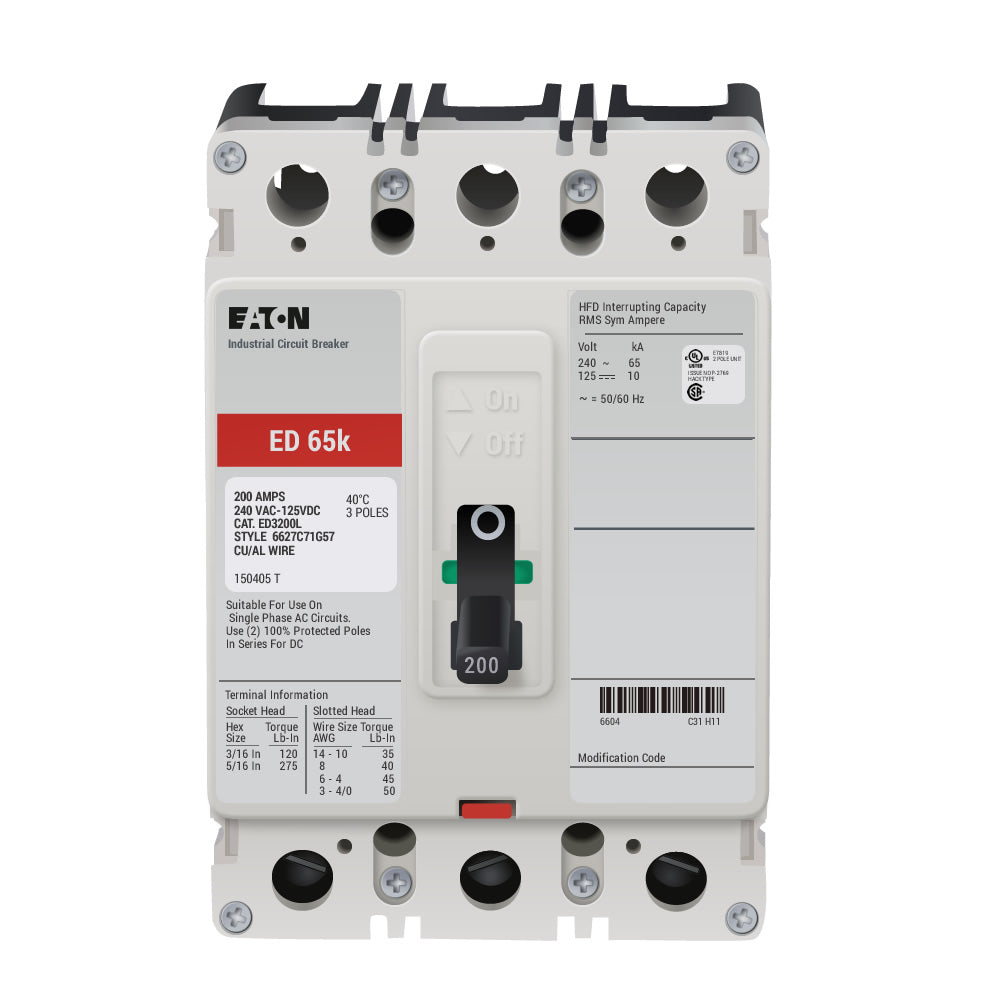

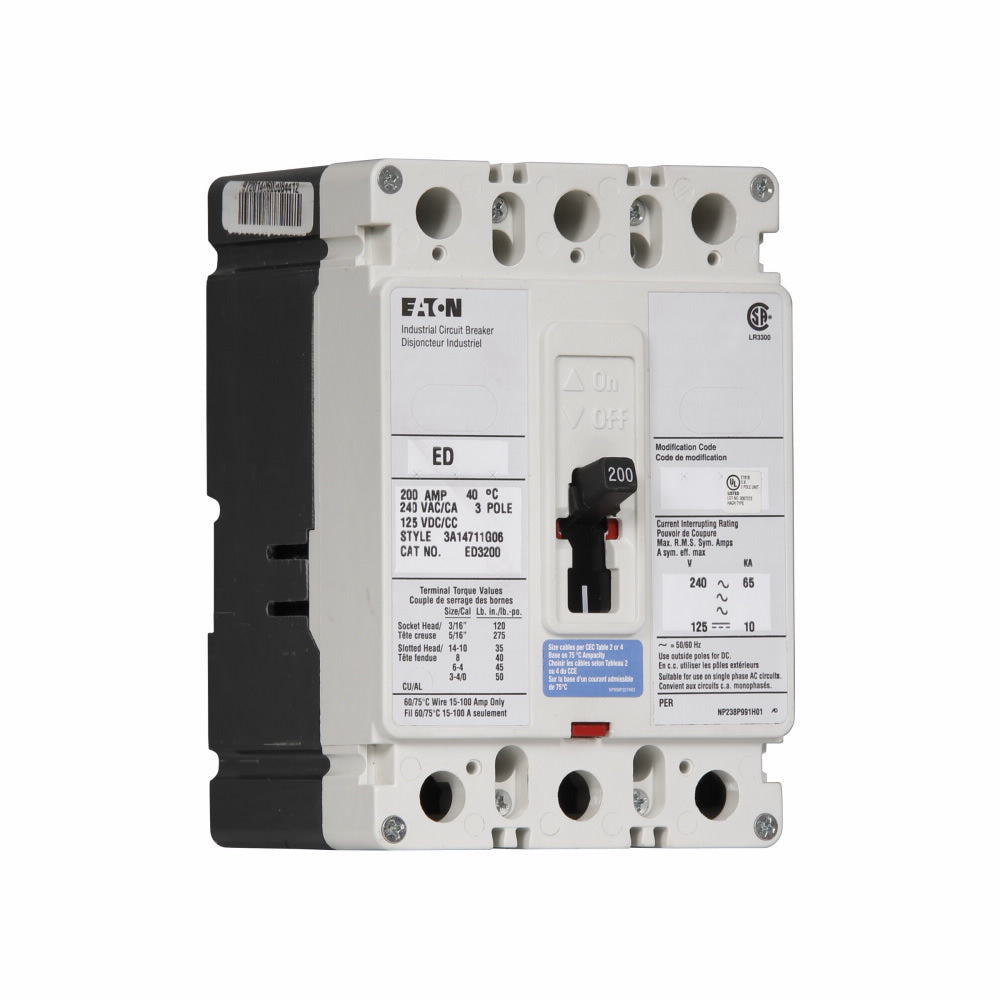

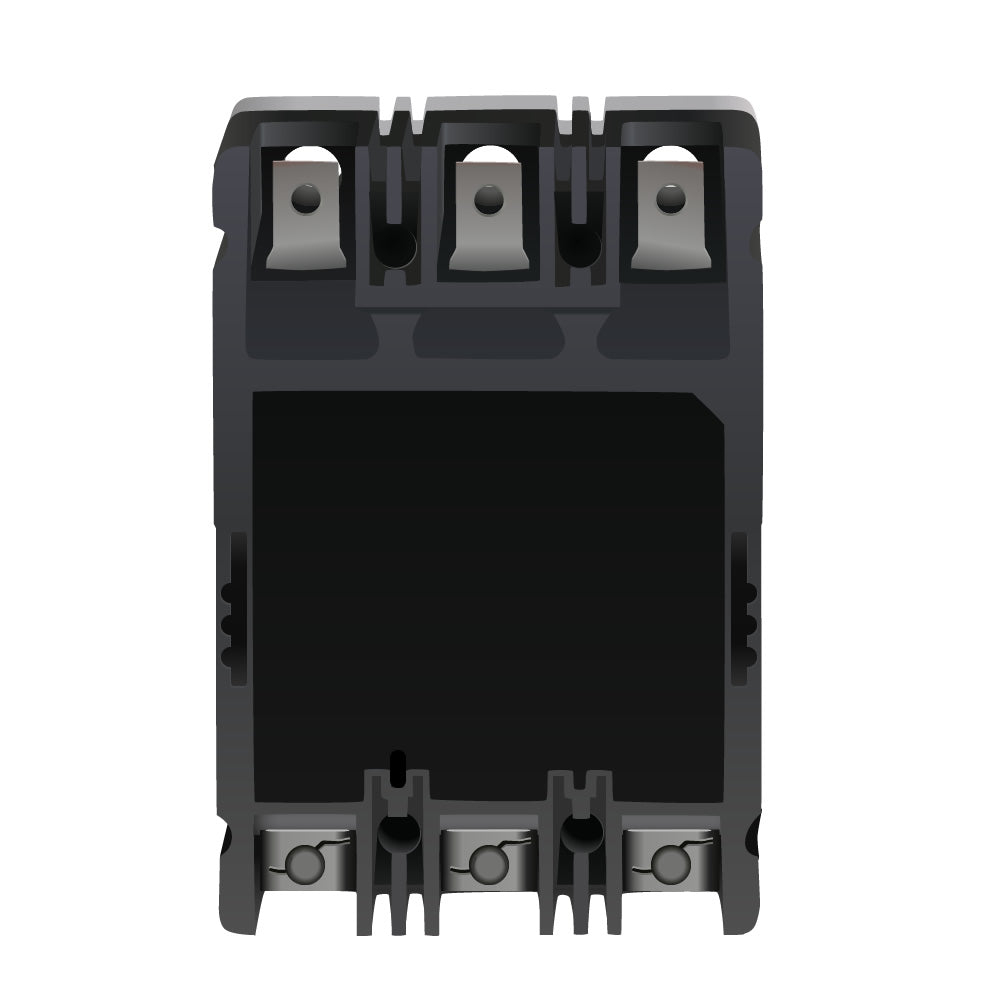

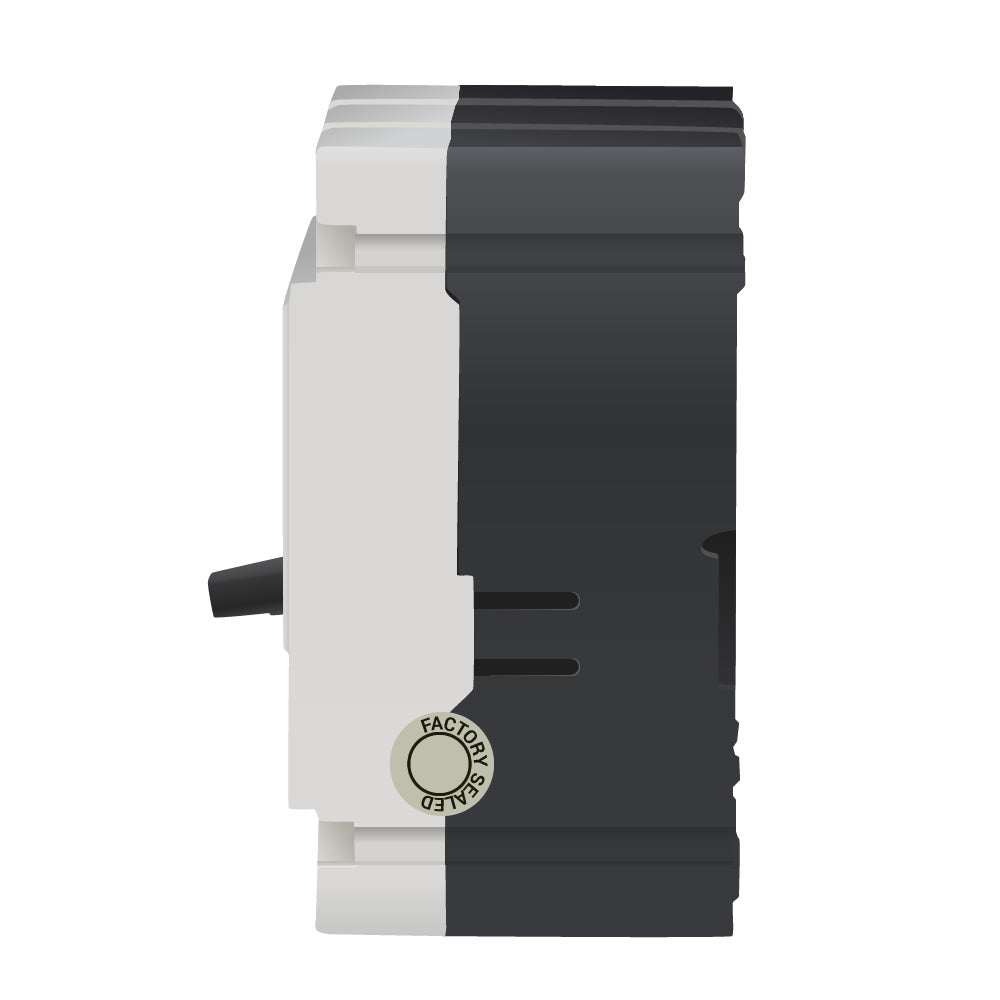

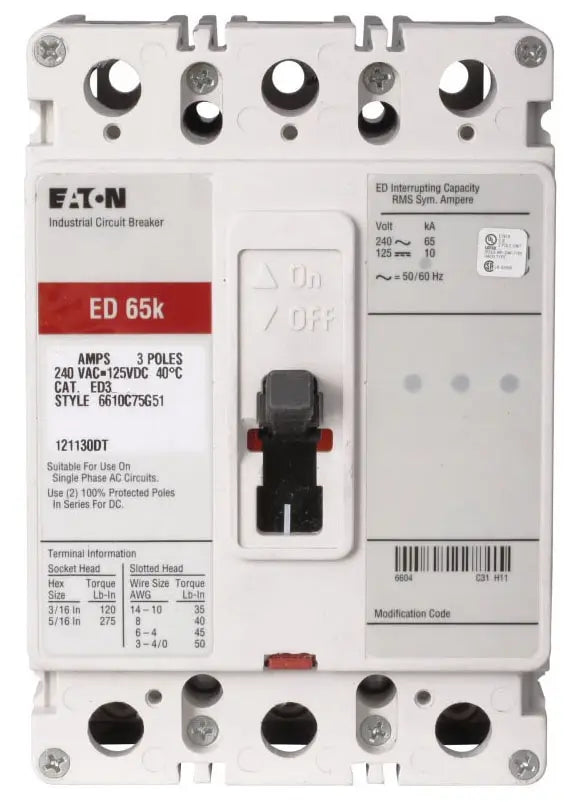

ED3200L - Eaton Cutler-Hammer 200A 3-Pole Molded Case Circuit Breaker, 240VAC, 125VDC, F-Frame, Thermal Magnetic Trip, 65kAIC, Series C, Complete

ED3200L

ED3200L is a complete Eaton Cutler-Hammer molded case circuit breaker designed for reliable power distribution and protection.

This three-pole, 200-ampere breaker features a thermal magnetic trip unit, F-frame construction, and is rated for 240VAC and 125VDC systems. It offers a high interrupting capacity of 65kA at 240VAC and is suitable for 50/60Hz applications. The ED3200L is a standard, feed-thru type breaker with magnetic mounting, making it ideal for a range of commercial and industrial uses.

Key Specifications
• Part Number: ED3200L
• Manufacturer: Eaton
• Amperage: 200A
• Voltage: 240VAC, 125VDC
• Poles: 3
• Mounting Type: Magnetic
• Interrupt Rating: 65kA at 240VAC, 10kA at 125VDC
• Series/Frame: Series C, F-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, IEC
• Frequency: 50/60Hz
• Type: Molded Case Circuit Breaker (MCCB)
• Application: Feed-thru, complete breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED3200L
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ED
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679454428
• GTIN : 00786679454428
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
