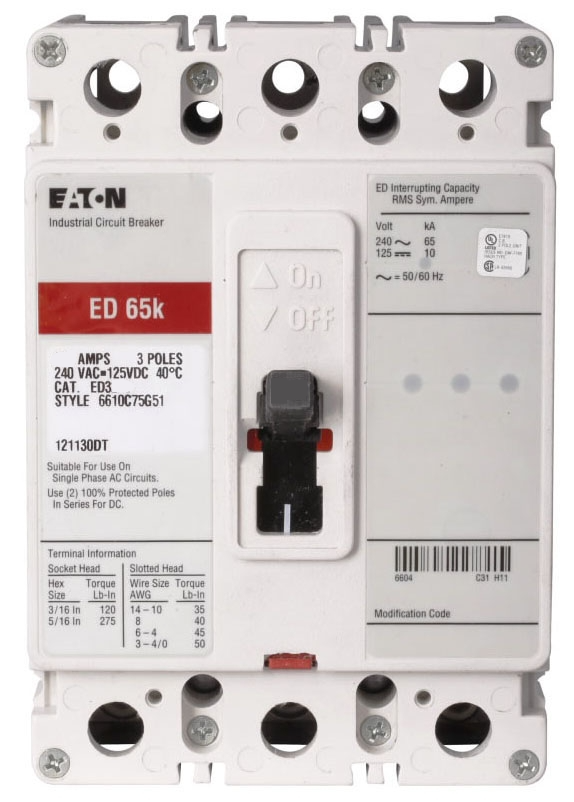

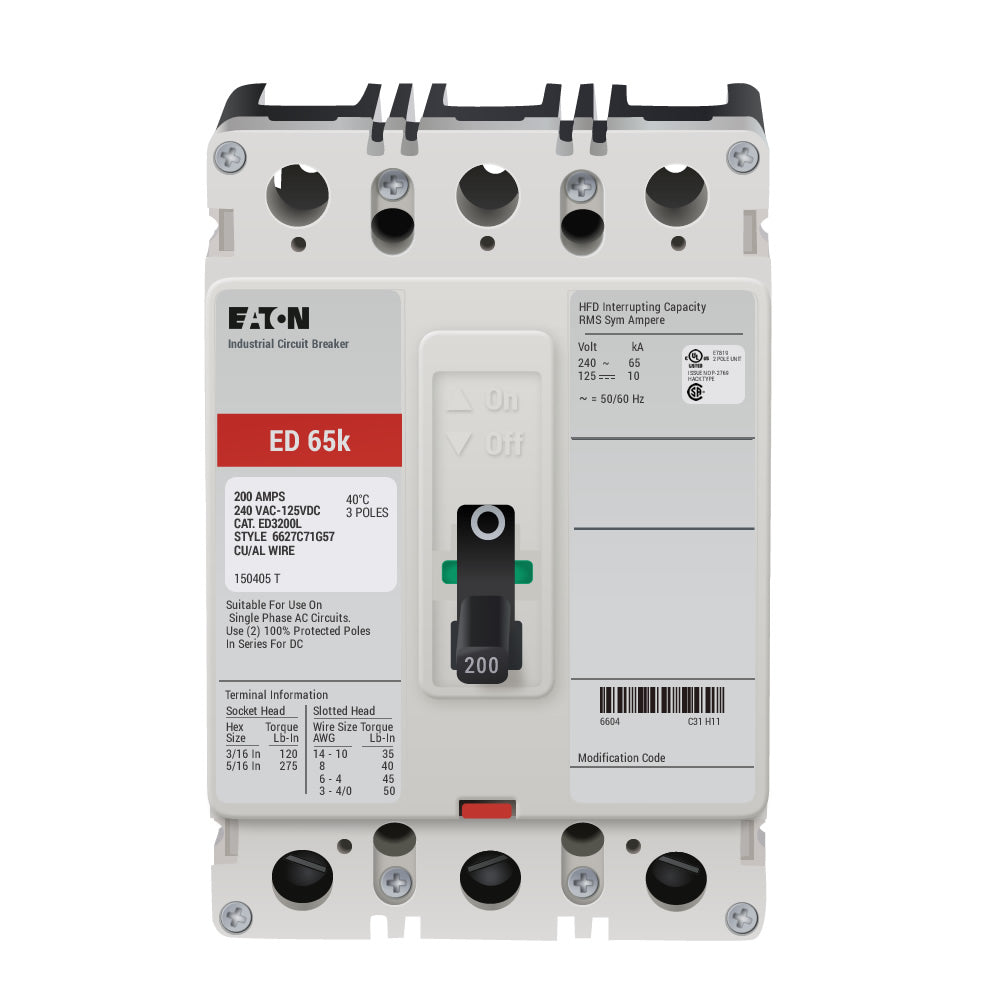

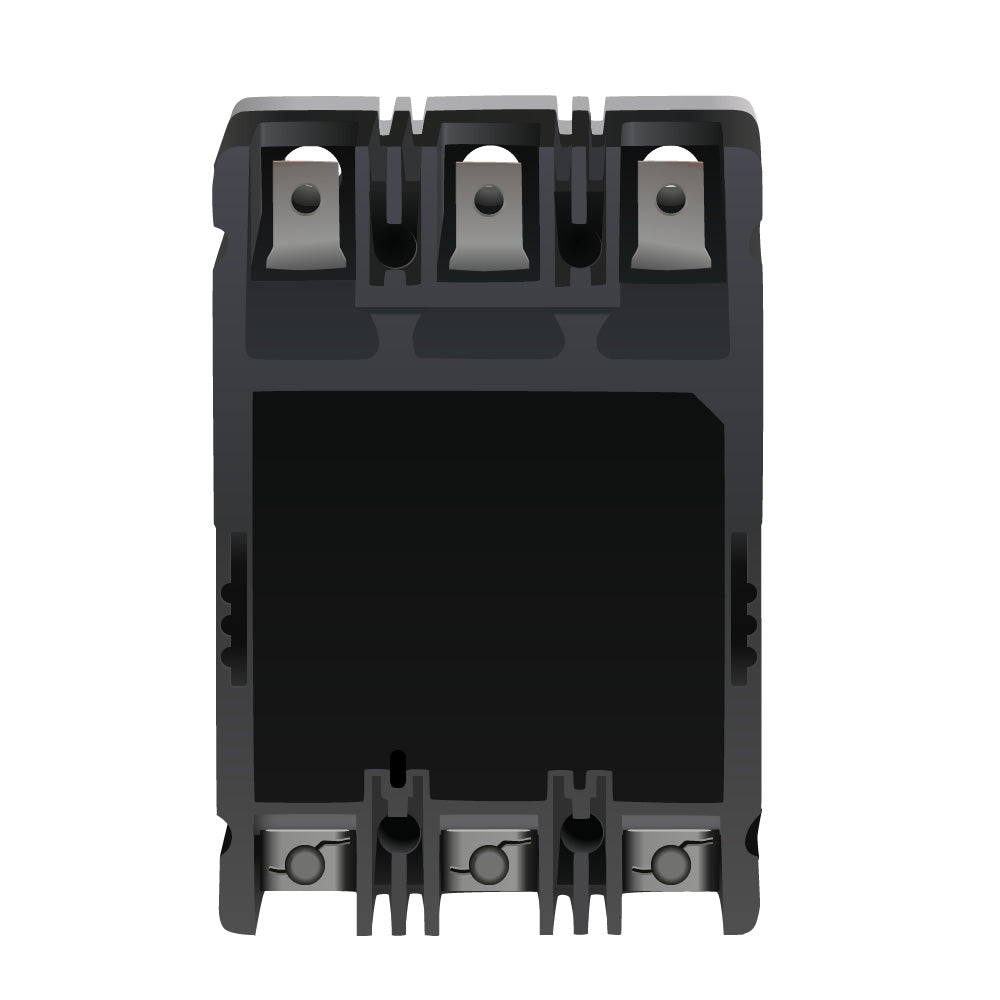

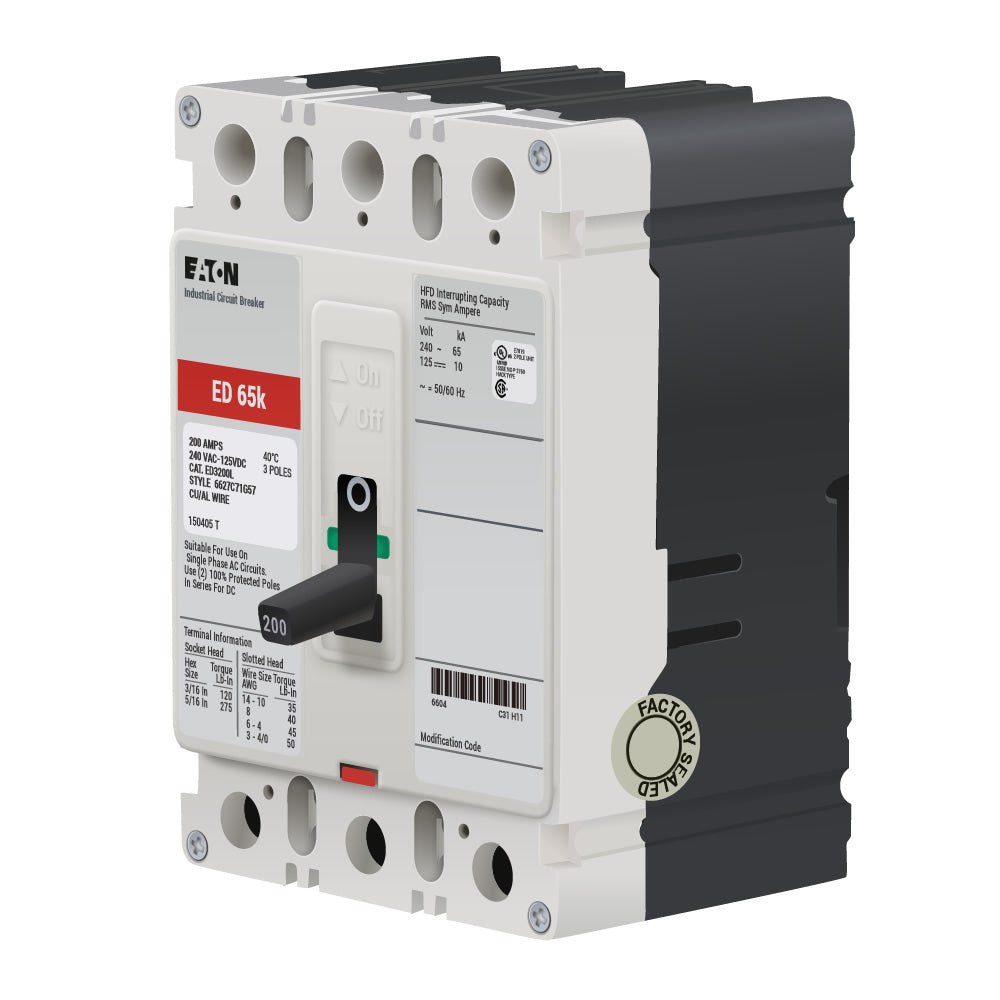

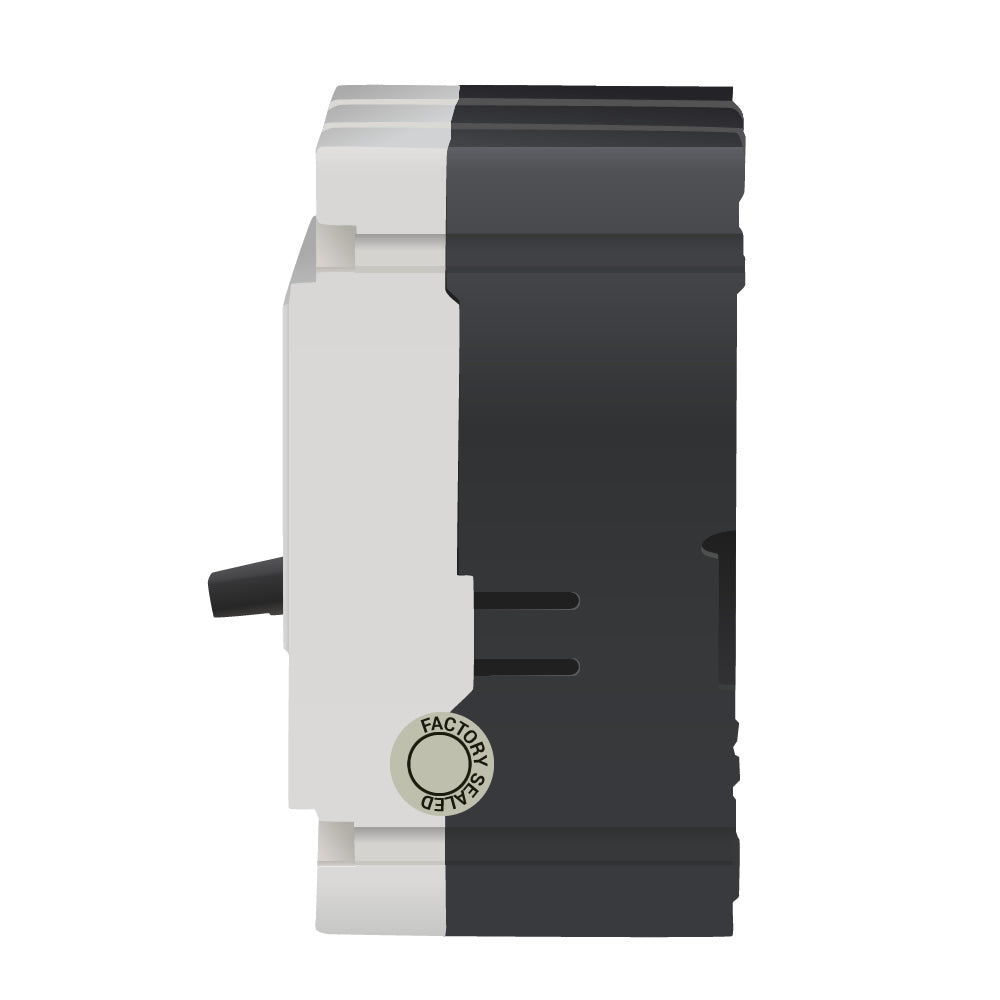

ED3200 - Cutler Hammer 200A 240V 3-Pole ED Frame Molded Case Circuit Breaker 65kA Interrupt Rating

ED3200

ED3200 is a Cutler Hammer 200 Amp, 3-pole, 240 Volt molded case circuit breaker designed for panel mounting and industrial use.This ED frame breaker features a thermal magnetic trip unit with fixed long-time and instantaneous trip functions, providing reliable circuit protection. It has a 65 kiloampere interrupting rating at 240 VAC and is UL and CSA certified. The breaker supports 3-phase applications and includes load side lug terminals for convenient wiring.

• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 200A
• Voltage: 240 VAC / 125 VDC
• Poles: 3
• Frame Type: ED (F-frame)
• Mounting Type: Panel mount
• Interrupt Rating: 65kA at 240 VAC, 10kA at 125 VDC
• Trip Unit: Thermal magnetic, fixed, non-interchangeable
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 6" H x 4.13" W x 3.38" D
• Suitable for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED3200
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ED
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679455142
• GTIN : 00786679455142
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
