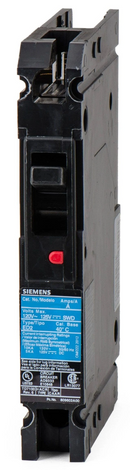

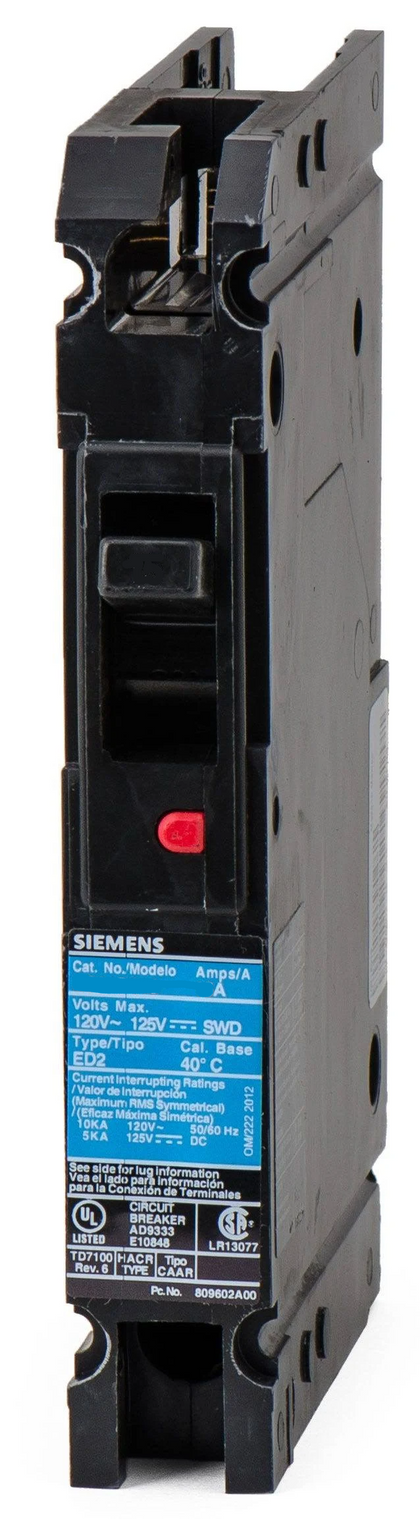

ED21B100 - Siemens 100A 120V 1 Pole ED Frame Molded Case Circuit Breaker Thermal Magnetic Trip

ED21B100

ED21B100 is a Siemens molded case circuit breaker designed for low voltage applications with a 100 ampere rating and 120 volt AC operation.This Siemens ED21B100 circuit breaker features a single pole configuration with a thermal magnetic trip unit, suitable for bolt-on mounting. It has a 10 kA interrupting rating at 120 volts AC, ED frame type, and is HACR rated and UL listed for safety and reliability. The breaker is part of the Sentron Series and is designed for panelboard use with a compact size and robust construction.

• Amperage: 100 A
• Voltage: 120 V AC / 125 V DC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120 V AC
• Frame Type: ED
• Trip Unit: Thermal Magnetic
• Standards: HACR Rated, UL Listed
• Series: Sentron
• Phase: Single Phase
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED21B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643208827
• GTIN : 00783643208827
• Country of Origin : Mexico
• Weight : 1.1 lb
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : UL Listed
• Wire Size : AWG 6 to AWG 1/0, Cu/AL
