ED21B035 - Siemens 35A 120V 1-Pole Molded Case Circuit Breaker Sentron Series

ED21B035

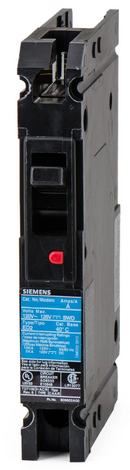

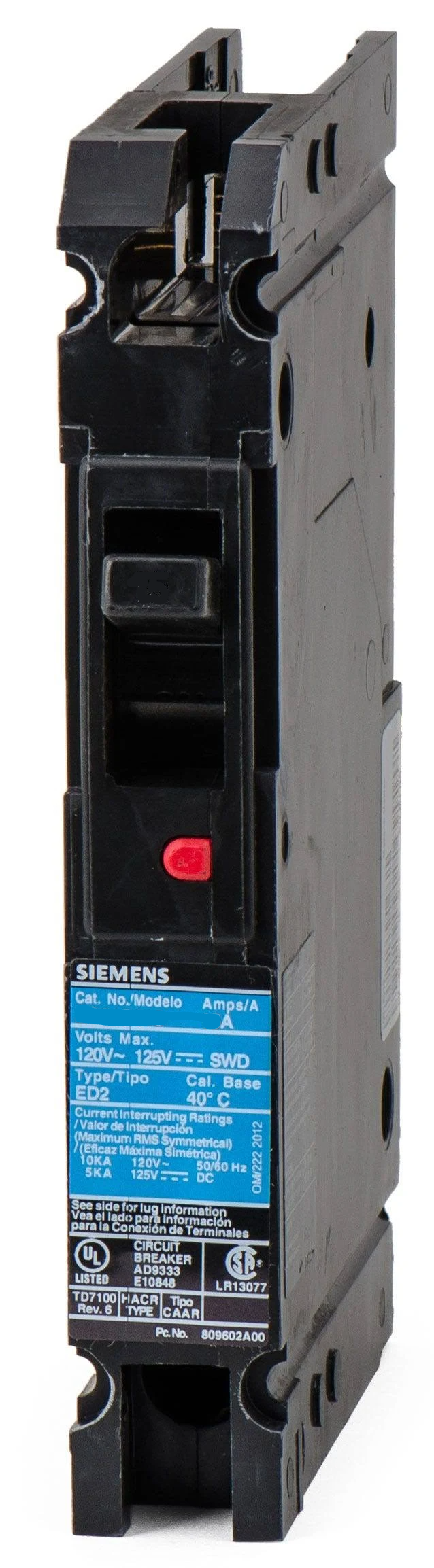

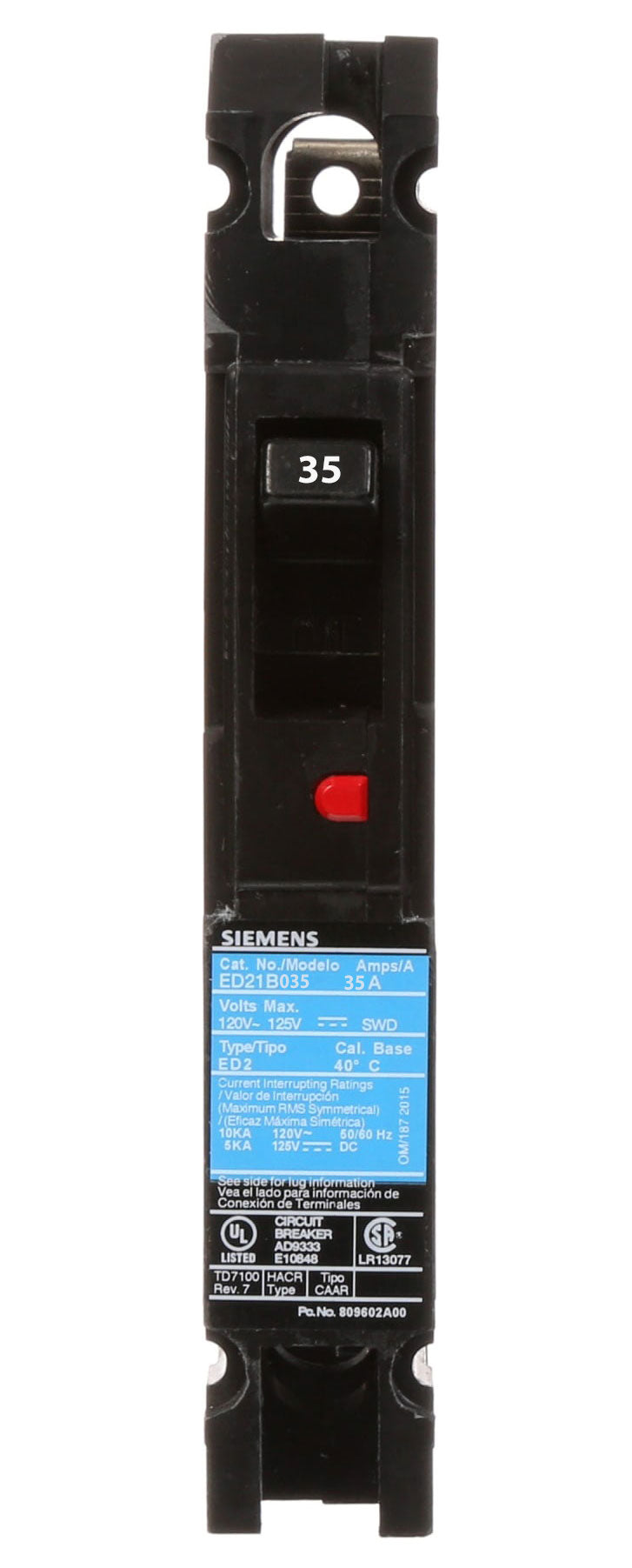

ED21B035 is a Siemens molded case circuit breaker designed for reliable protection in power distribution systems.This Siemens ED21B035 circuit breaker is part of the Sentron Series with a Type ED frame. It features a 1-pole configuration rated for 35 amps and 120 volts AC. The breaker offers a 10kA interrupting capacity at 120V and uses thermal magnetic trip technology with LI - Long-Time and Instantaneous trip functions. It mounts via a bolt-on connection and includes load side lug terminals for secure wiring.

Key Specifications
• Manufacturer: Siemens
• Series: Sentron
• Type: ED
• Amperage: 35A
• Voltage: 120V AC
• Poles: 1
• Interrupt Rating: 10kA @ 120V
• Trip Unit: Thermal Magnetic with LI functions
• Mounting Type: Bolt-On
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ED21B035
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 120
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any



Product Data

• UPC : 783643208742
• GTIN : 00783643208742
• Country of Origin : Mexico
• Weight : 1.1
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
