ECC04C1H4A - Eaton 30A 277V 4-Pole NEMA 1 Mechanically Held Lighting Contactor

ECC04C1H4A

ECC04C1H4A is a 4-pole, 30 amp, 277 volt mechanically held lighting contactor from Eaton designed for reliable motor control applications.

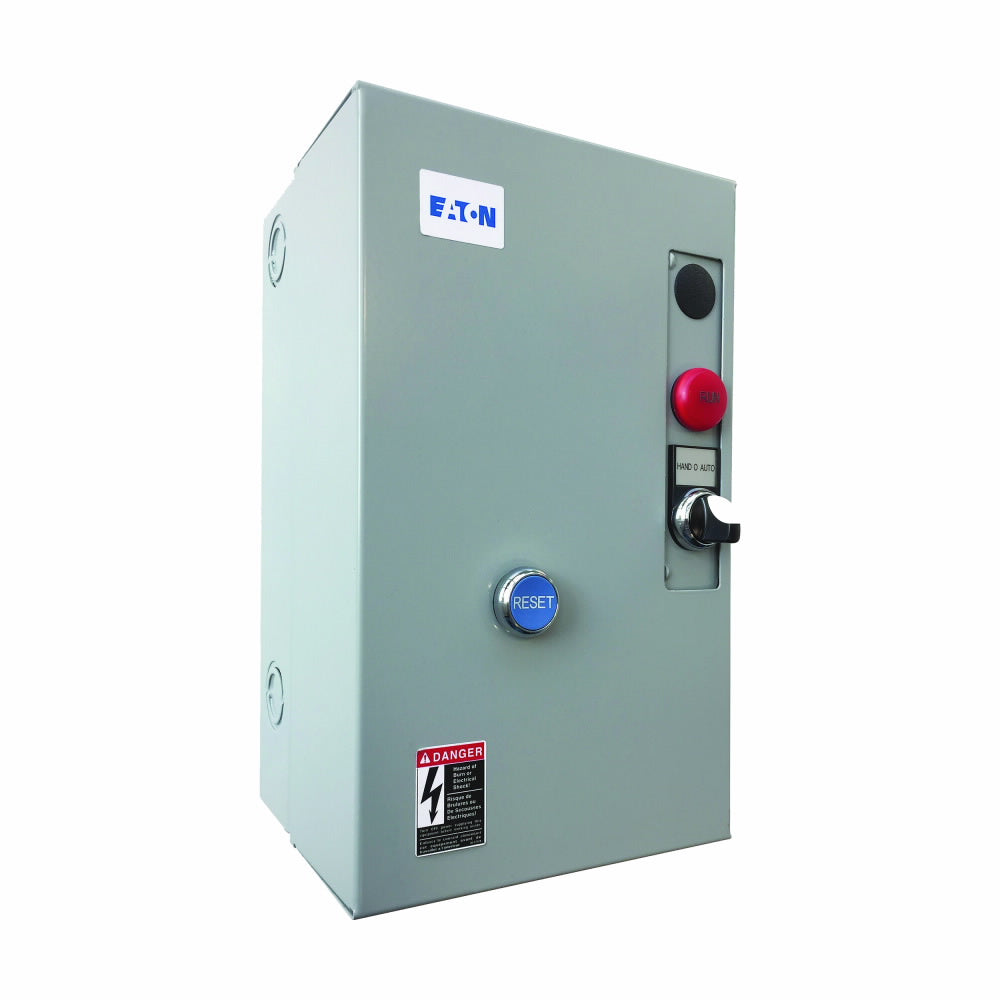

This Eaton ECC04C1H4A contactor features a non-combination, magnetically latched design with 2-wire control standard. It is enclosed in a NEMA 1 painted steel enclosure suitable for indoor use. The coil voltage rating is 277 VAC at 60 Hz, and it carries UL, CUL, ABS, and OSHPD approvals. This contactor is part of Eaton's C30CN series and is engineered for efficient switching of lighting and motor loads with a low input VA coil.

• Amperage: 30 A
• Voltage: 277 V AC coil voltage
• Number of Poles: 4
• Enclosure Type: NEMA 1
• Mounting: Enclosed contactor
• Type: Mechanically held, magnetically latched
• Control: 2-wire standard
• Series: C30CN
• Approvals: UL, CUL, ABS, OSHPD
• Enclosure Material: Painted steel
• Frequency: 60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Magnetically Latched includes a 277 VAC coil.

Specifications

• Part Number: ECC04C1H4A
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Contactor
• Section : Lighting Contactor
• Family : C30CN
• Type : ECC
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 277
• Enclosure : 1
• Compatible Frames : JDB,JD,HJD,JDC
• Frequency : 60 Hz

Product Data

• UPC : 782116156283
• GTIN : 00782116156283
• Country of Origin : United States
• Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : cUL Listed,UL Listed
