ECB24030G3 - Square D 30A 2 Pole 480Y/277VAC PowerLink G3 Molded Case Circuit Breaker Bolt-On Mount

ECB24030G3

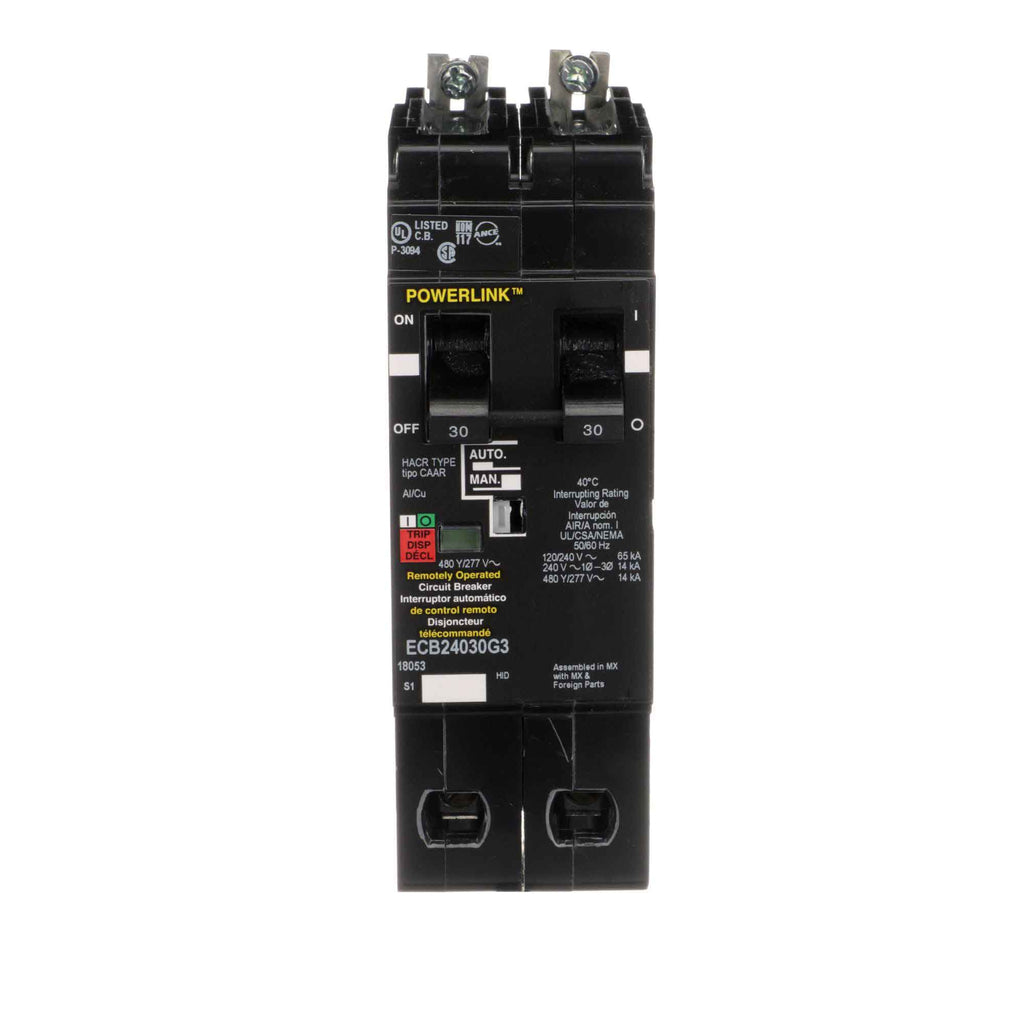

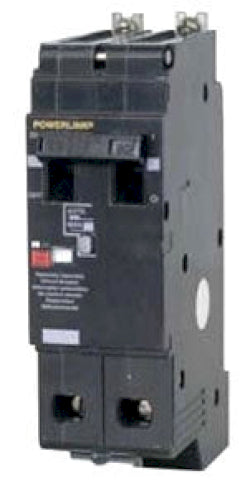

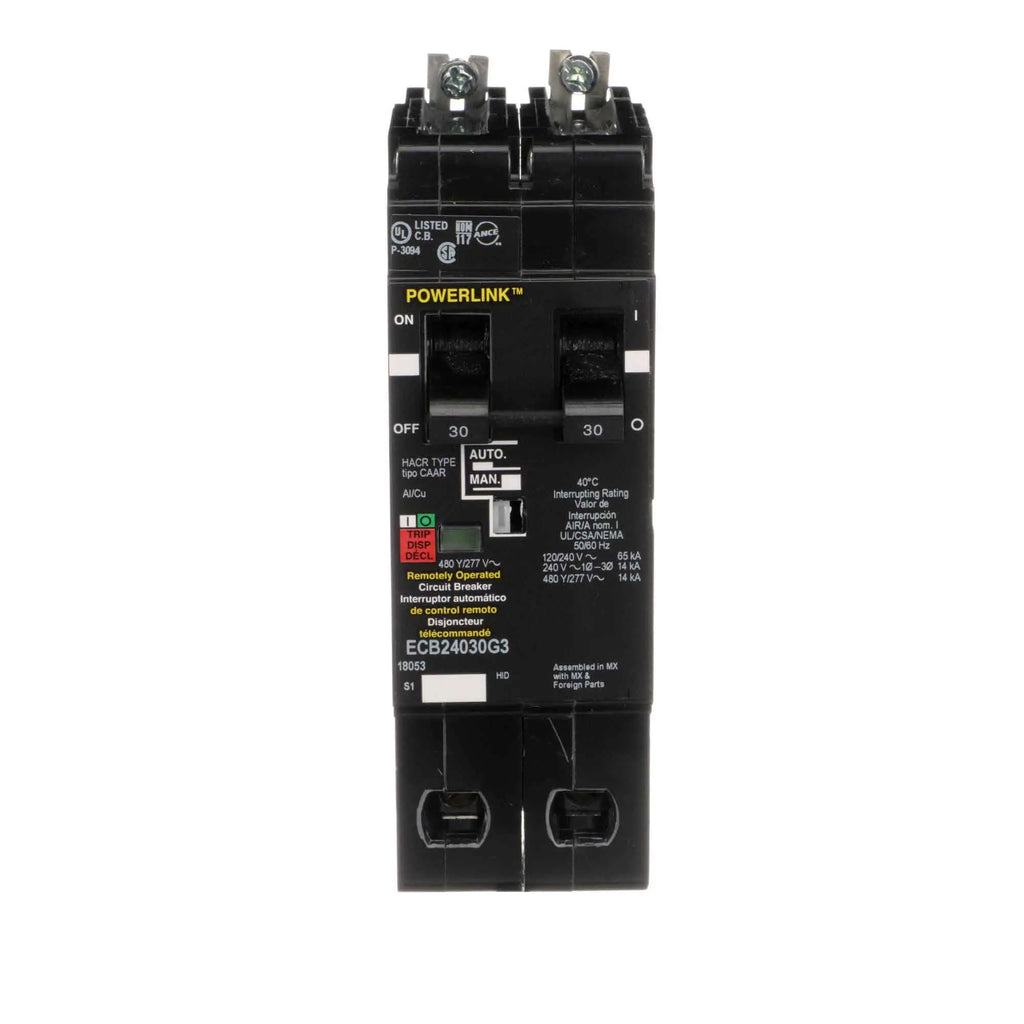

ECB24030G3 is a Square D PowerLink G3 molded case circuit breaker rated for 30 amps and 480Y/277VAC with 2 poles and bolt-on mounting.This circuit breaker features a thermal-magnetic trip unit with fixed thermal and magnetic settings, designed for manual and remote operation of lighting circuits. It has a 14kA interrupt rating and is HACR rated for reliable circuit protection. The breaker supports wire sizes from 12 to 8 AWG aluminum and 10 to 8 AWG copper. It is UL certified and part of the PowerLink family, suitable for lighting control systems.

• Amperage: 30A
• Voltage: 480Y/277VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA
• Series/Frame: PowerLink G3, Frame E
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Certifications: UL Listed, HACR Rated
• Wire Size: 12-8 AWG Aluminum, 10-8 AWG Copper
• Operation: Manual and Remote

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECB24030G3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerlink
• Type : ECB-G3
• Voltage : 480
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Bolted Connection
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : ECB-G3
• Protection : Thermal Magnetic

Product Data

• UPC : 785901437536
• GTIN : 00785901437536
• Country of Origin : Mexico
• Dimensions : Width 14.25 in (362 mm) Height 39.37 in (1000 mm)
• Weight : 2.617
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 12 AWG 8 aluminium, AWG 10 AWG 8 copper
