ECB24015G3 - Square D 15 Amp 480Y/277V 2-Pole Molded Case Circuit Breaker, Bolt-On, 14kA Interrupt Rating

ECB24015G3

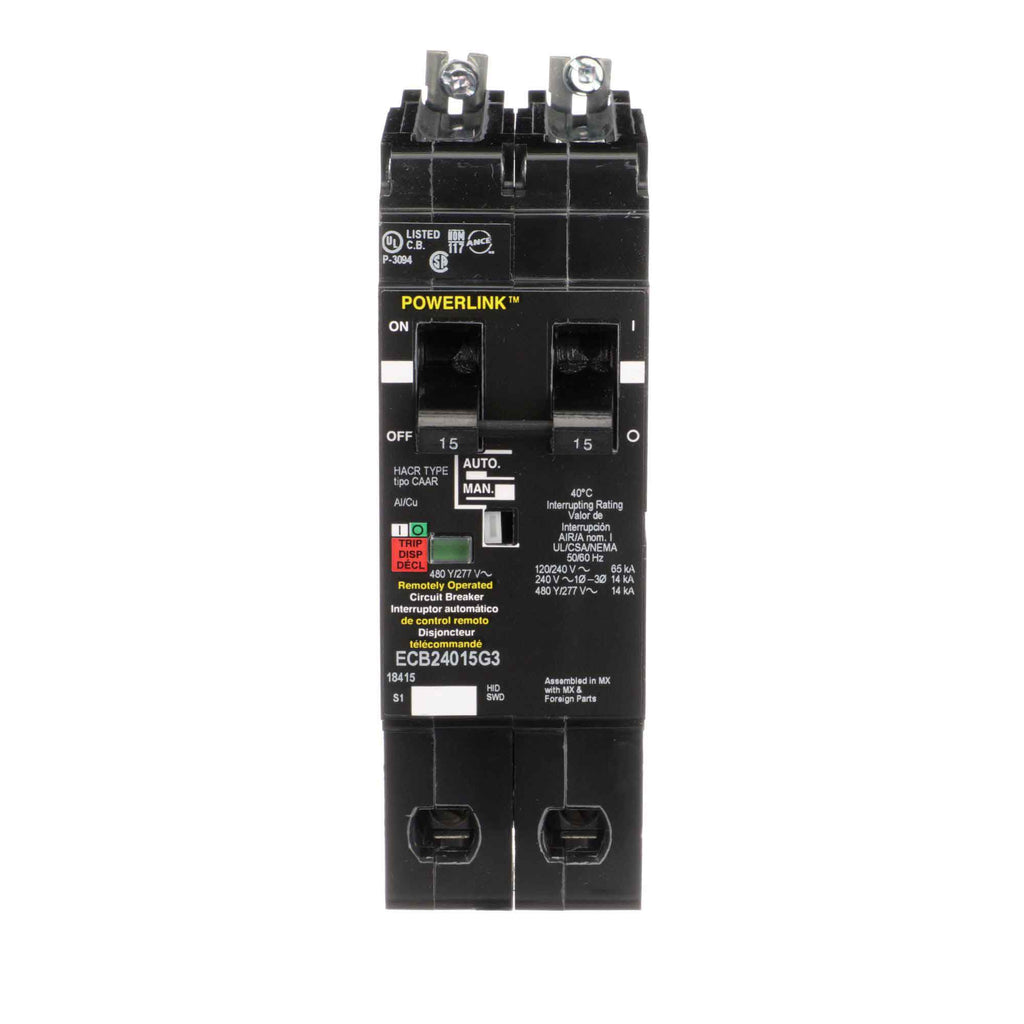

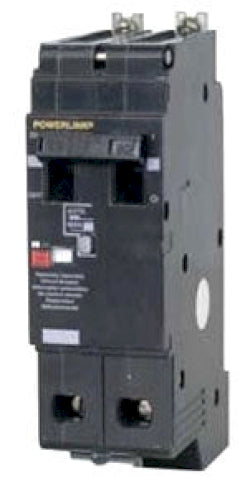

ECB24015G3 is a Square D 2-pole molded case circuit breaker designed for 15 amp, 480Y/277 volt applications with bolt-on mounting.This Powerlink ECB-G3 series breaker features thermal magnetic protection with long-time and instantaneous trip functions. It supports 1-phase electrical systems and has a 14kA interrupting rating at 480Y/277 VAC. The breaker is HACR rated and UL and CSA approved, suitable for switching duty, HVAC, and lighting control systems. It accepts wire gauges from AWG 12 to 8 aluminum and AWG 10 to 8 copper.

Key Specifications
• Amperage: 15 A
• Voltage: 480Y/277 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA at 480Y/277 VAC, 65 kA at 120/240 VAC
• Series/Frame: ECB-G3 Powerlink
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Certifications: UL, CSA, HACR Rated
• Phase: 1
• Wire Gauge: AWG 12-8 Aluminum, AWG 10-8 Copper
• Ambient Temperature Rating: 40°C (104°F)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ECB24015G3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerlink
• Type : ECB-G3
• Voltage : 480
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Bolted Connection
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : ECB-G3
• Protection : Thermal Magnetic



Product Data

• UPC : 785901299561
• GTIN : 00785901299561
• Country of Origin : Mexico
• Dimensions : Width 14.25 in (362 mm) Height 39.37 in (1000 mm)
• Weight : 2.681
• Standards : CSA, UL Listed
• Certification : CSA, UL Listed
• Wire Size : AWG 12, AWG 8 Aluminium, AWG 10, AWG 8 Copper
