Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Motor Control Part And Accessory
- Series
- E50 Series
- Frame
- E50DR
- Rated current
- 10
- Voltage
- 600V
- Country of origin
- Mexico
- Section
- Limit Switch
- UPC
- 782113290560
- GTIN
- 00782113290560
- Dimensions
- 1.05 in x 2.46 in x 1.54 in (Length/Depth x Height x Width)
- Weight
- 0.3 lb
- Certification
- CSA, RoHS, UL Listed
Product description & additional details
E50DR1

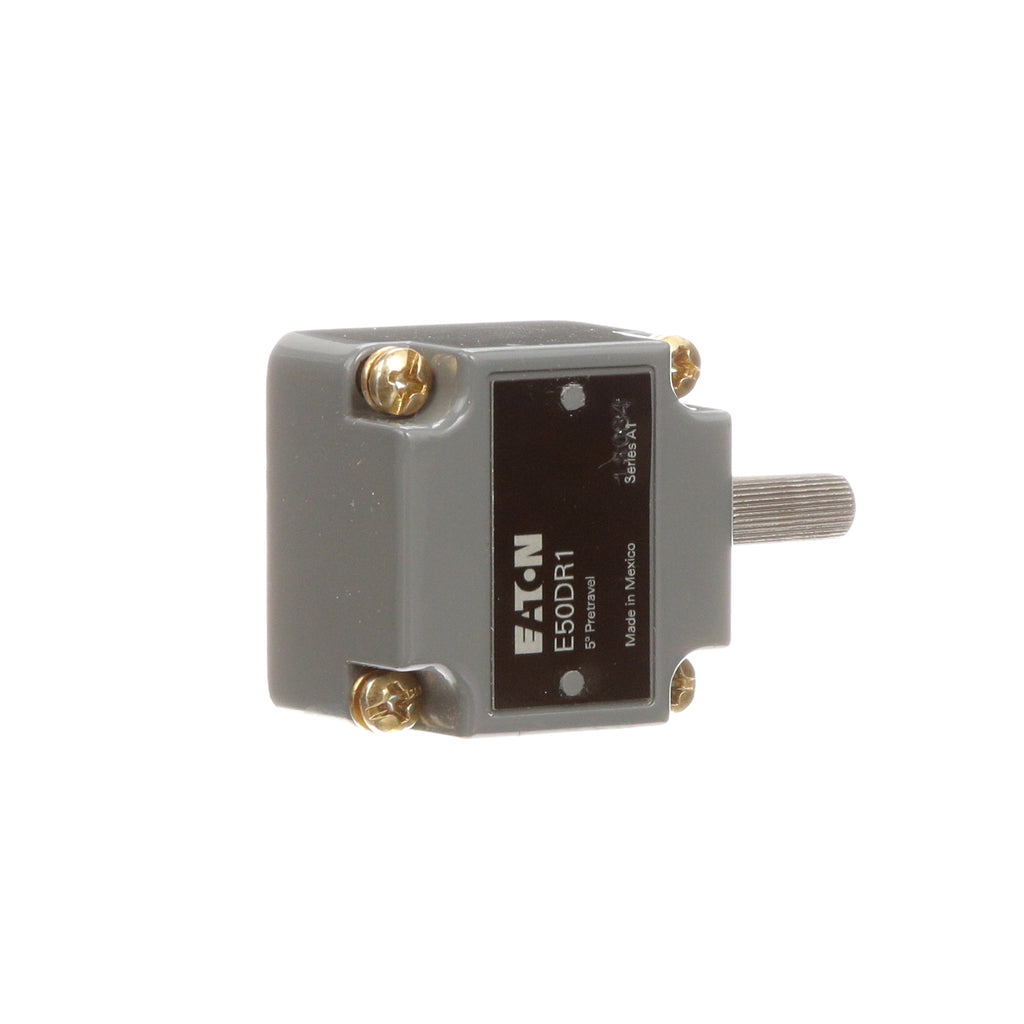

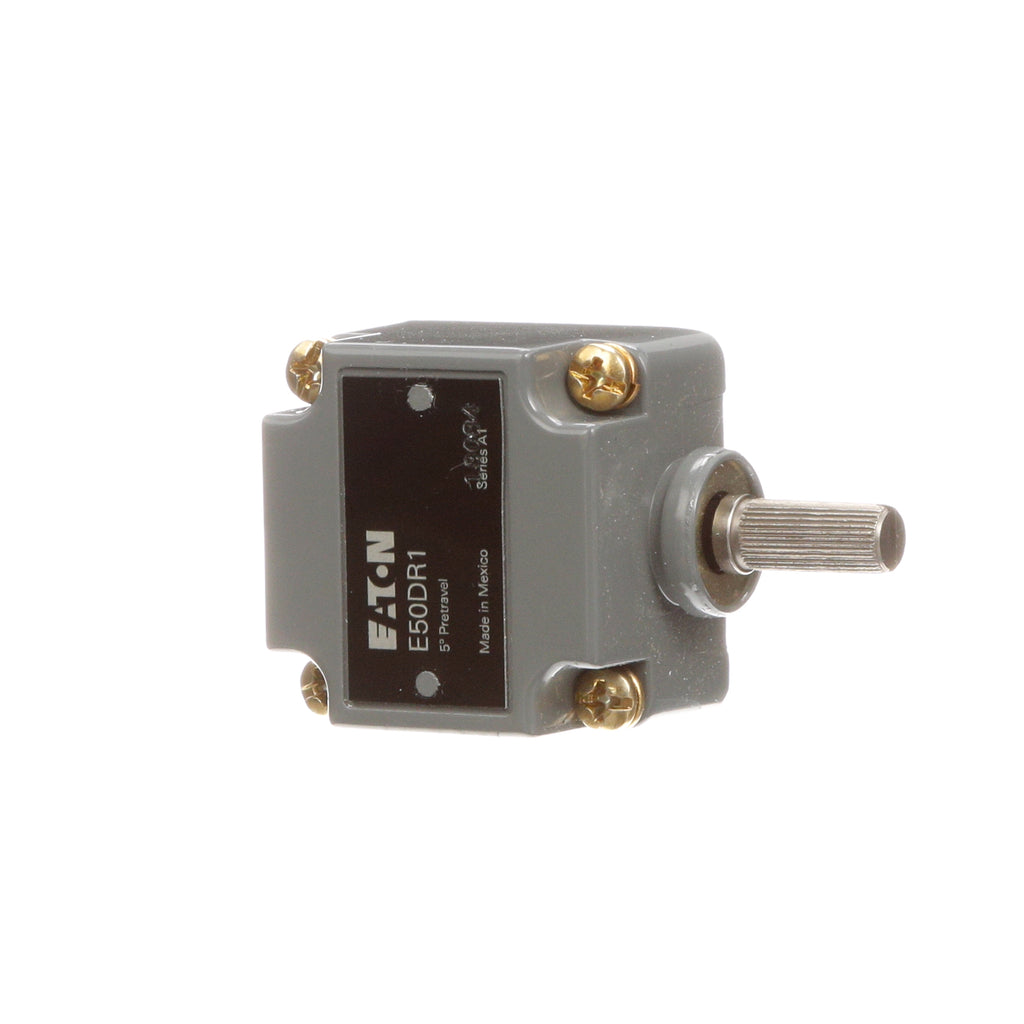

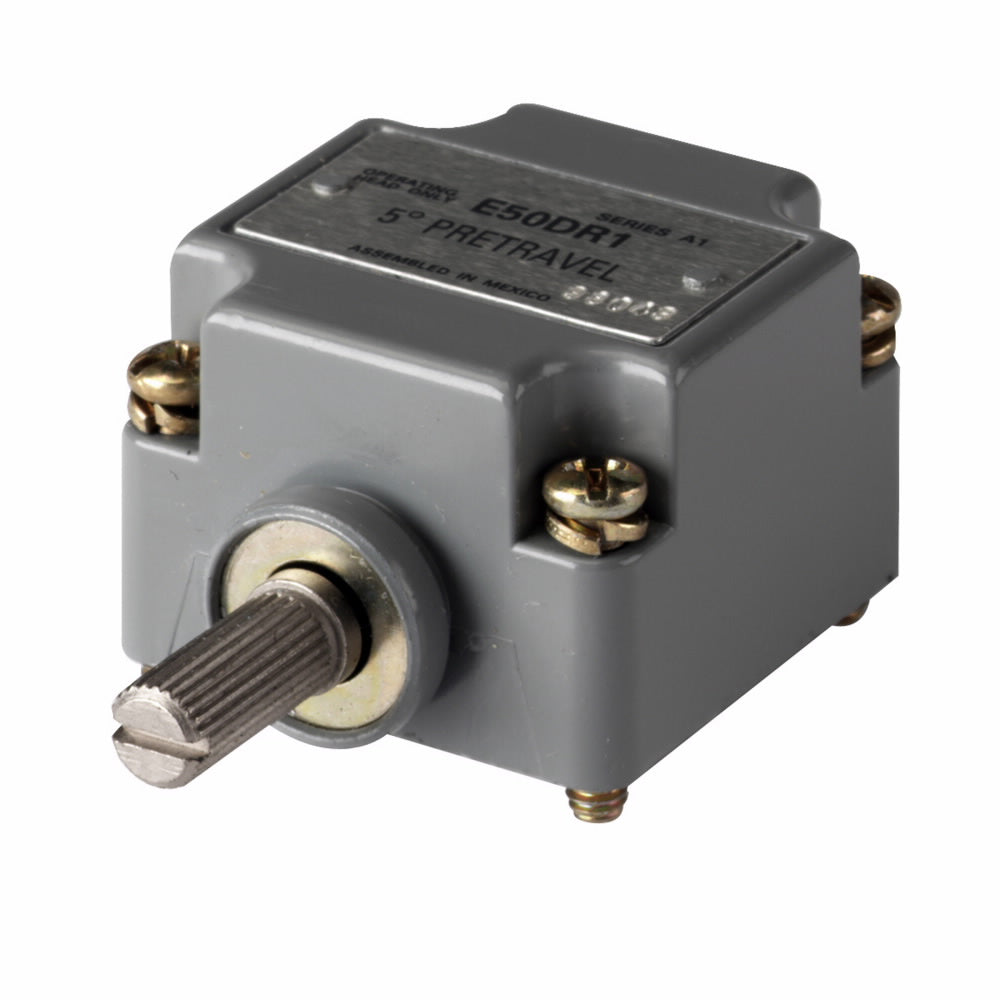

E50DR1 is a Cutler Hammer E50 Series side rotary limit switch head designed for heavy-duty motor control applications.E50DR1 features a spring return side rotary lever actuator with clockwise/counterclockwise convertible operation, suitable for use with E50/E50 6P/10316 series limit switches. It is constructed with die-cast zinc housing and rated for 10 amps and 600 volts, supporting multiple NEMA ratings including 1, 2, 4, 4X, 6P, 12, and 13 for versatile environmental protection. The switch operates reliably within a temperature range of 10 to 200 degrees Fahrenheit and meets CSA, RoHS, and UL certifications for safety and compliance.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: E50DR1
- Series: E50
- Amperage: 10A
- Voltage: 600V
- Actuator Type: Side Rotary Lever, Spring Return
- NEMA Ratings: 1, 2, 4, 4X, 6P, 12, 13
- Material: Die-cast Zinc
- Operating Temperature: 10 to 200 °F
- Certifications: CSA, RoHS, UL
- Compatible with E50/E50 6P/10316 Series Limit Switches
Specifications
- Part Number: E50DR1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Limit Switch
- Family : E50 Series
- Type : E50DR
- Voltage : 600
- Amperage : 10
Product Data
- UPC : 782113290560
- GTIN : 00782113290560
- Country of Origin : Mexico
- Dimensions : 1.05 in x 2.46 in x 1.54 in (Length/Depth x Height x Width)
- Weight : 0.3 lb
- Certification : CSA, RoHS, UL Listed
