Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
DK3400K

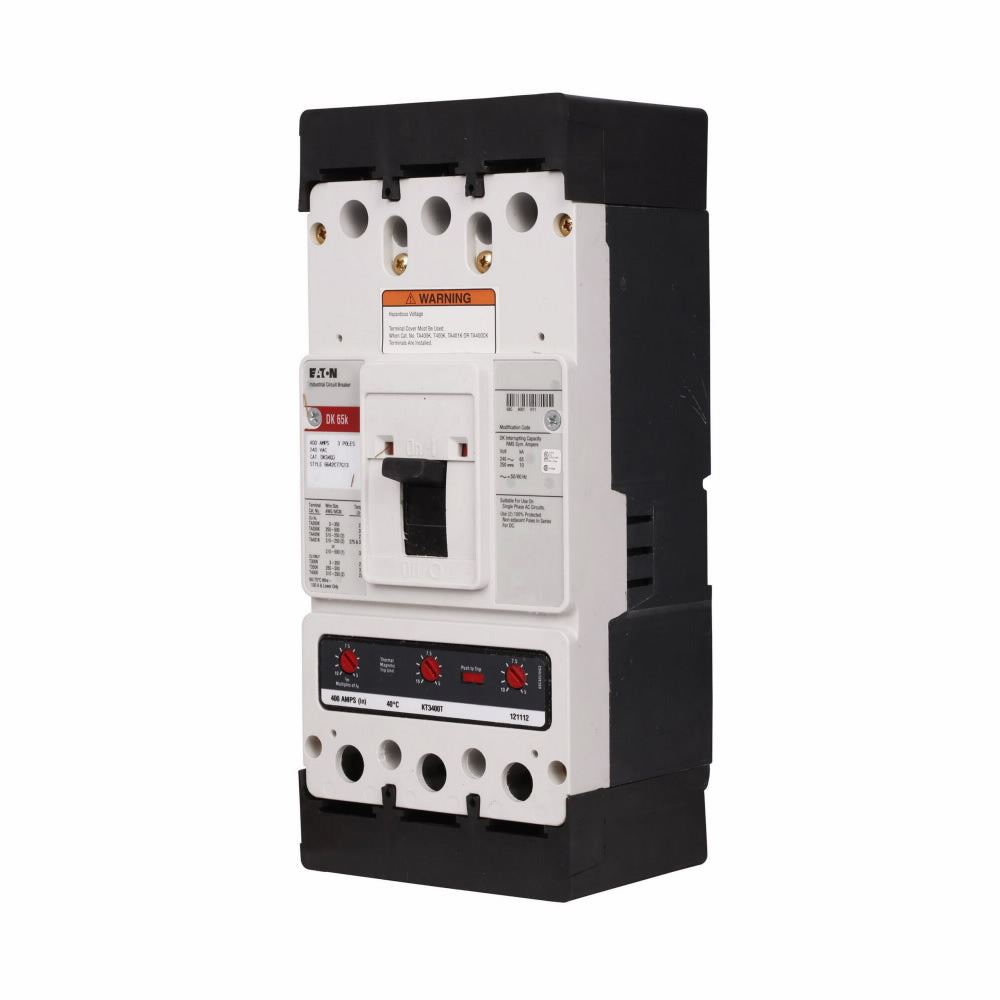

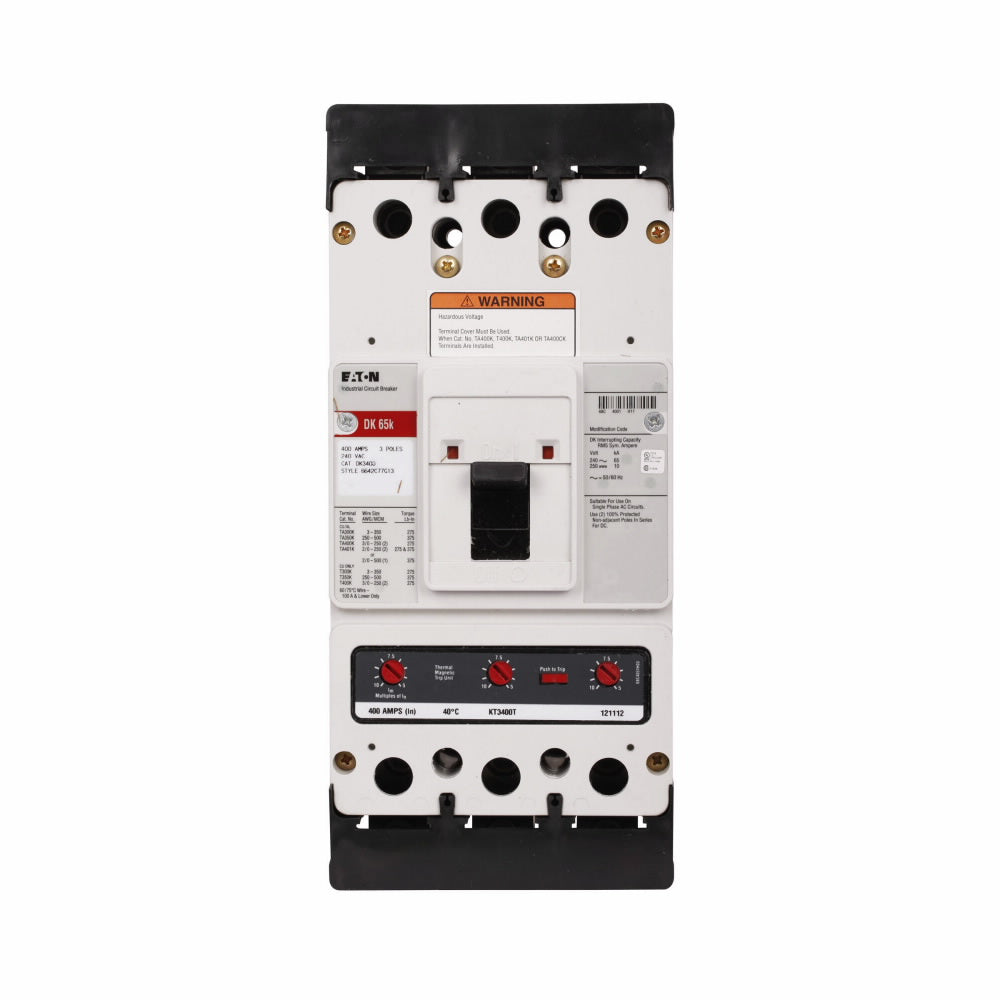

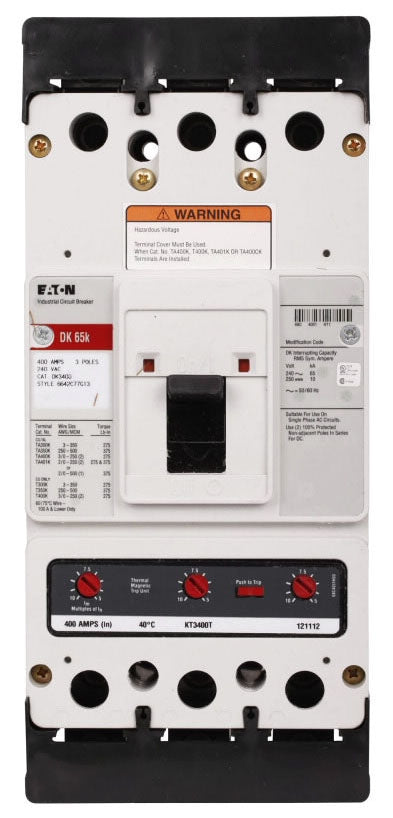

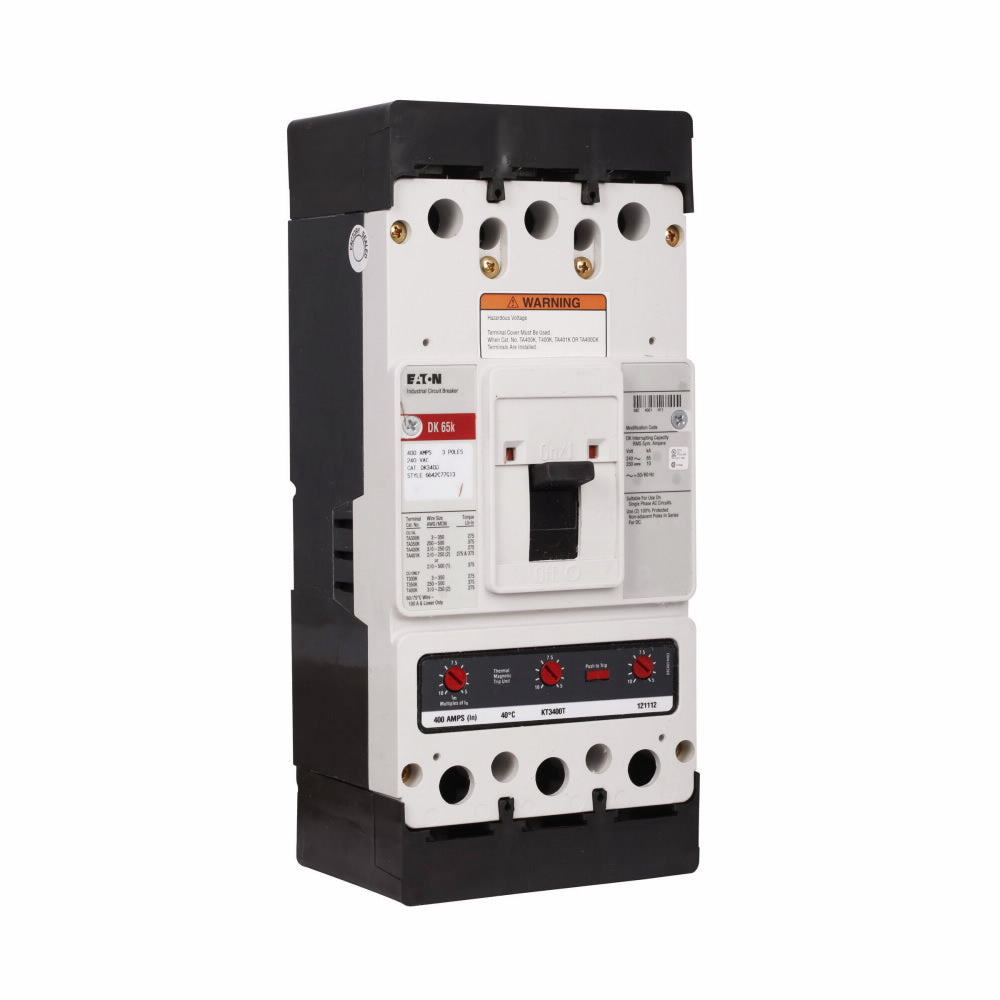

DK3400K is an Eaton Series C molded case circuit breaker designed for industrial and commercial power distribution applications. This three-pole thermal magnetic breaker provides reliable overcurrent protection with fixed thermal and fixed magnetic trip units for consistent performance across 50/60 Hz systems. Key Specifications
- Amperage Rating: 400 A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Frame: K Frame
- Trip Type: Thermal Magnetic (Fixed)
- Interrupt Rating: 65 kA at 240 VAC, 10 kA at 250 VDC
- Frequency: 50/60 Hz
- Mounting: Panel
- Termination: Lugs
- Series: C
Specifications
- Part Number: DK3400K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : DK
- Voltage : 240
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent Protection
- Frame Size : K Frame
- Protection : Non-Automatic
Product Data
- UPC : 786679342725
- GTIN : 00786679342725
- Country of Origin : Dominican Republic
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.5
- Certification : UL Listed
