DH361NDKW - Cutler Hammer 30A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 12/3R

DH361NDKW

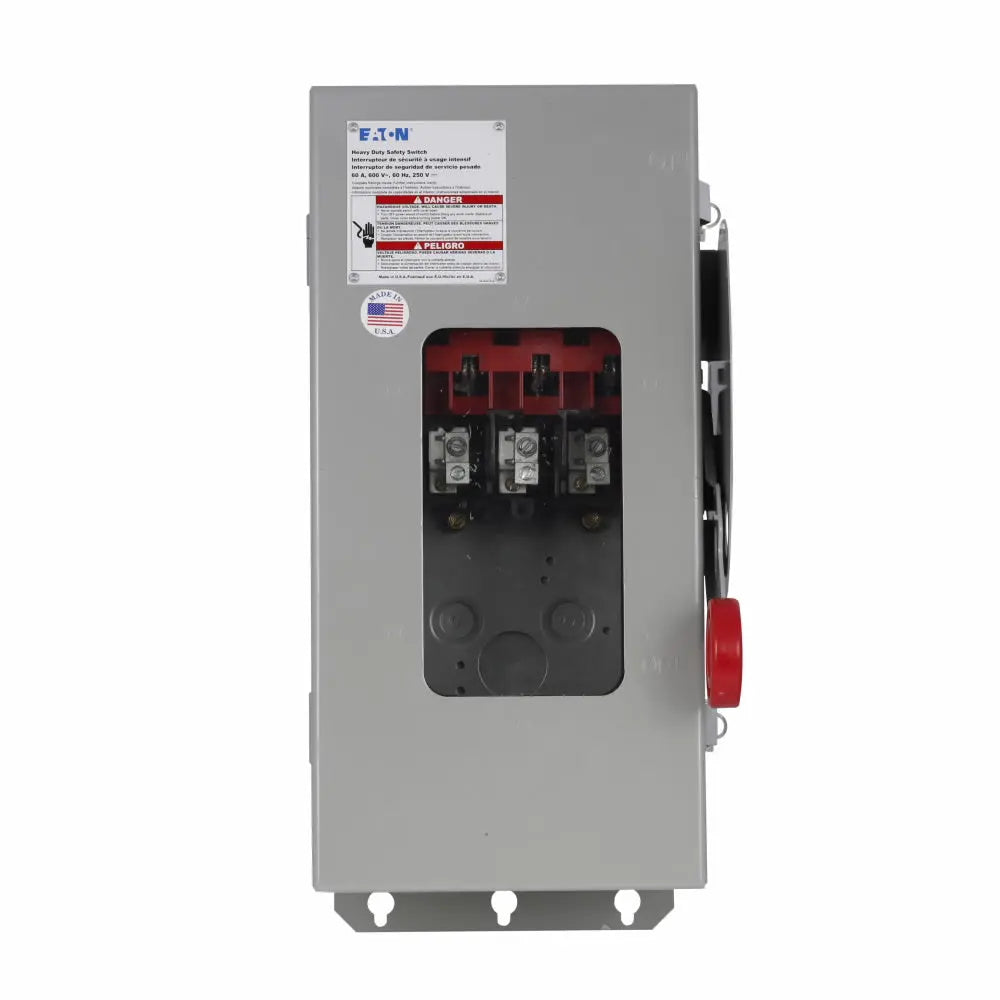

DH361NDKW is a Cutler Hammer heavy duty fusible safety switch rated for 30 amps, 600 volts, and 3 poles with NEMA 12/3R enclosure.

This switch features enhanced visible blades, a painted galvanized steel enclosure, and Class H fuse clips with fusible neutral. It supports up to 20 hp at 600 V and includes an upper viewing window for easy fuse inspection. The device is UL listed and designed for heavy duty industrial applications with a 4-wire configuration and compatibility with #14-2 AWG copper/aluminum wiring.

Key Specifications
• Amperage Rating: 30A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Enclosure Type: NEMA 12/3R Painted Galvanized Steel
• Fuse Class: Class H
• Fuse Configuration: Fusible with Neutral
• Max Horsepower: 7.5, 10, 15, 20 hp (1/3 PH @480/600 V)
• Wire Size: #14-2 AWG Cu/Al
• Enhanced Visible Blades with Upper Viewing Window
• UL Listed Certification
• Product Dimensions: 23" L x 12.5" W x 10.5" H
• Weight: 22 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH361NDKW
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SGPA

Product Data

• UPC : 782114022597
• GTIN : 00782113120201
• Country of Origin : United States
• Dimensions : 23 in x 10.5 in x 12.5 in (Length/Depth x Height x Width)
• Weight : 22
• Certification : UL Listed
