Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH361FDK

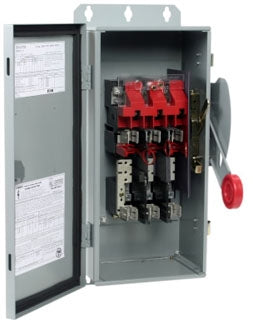

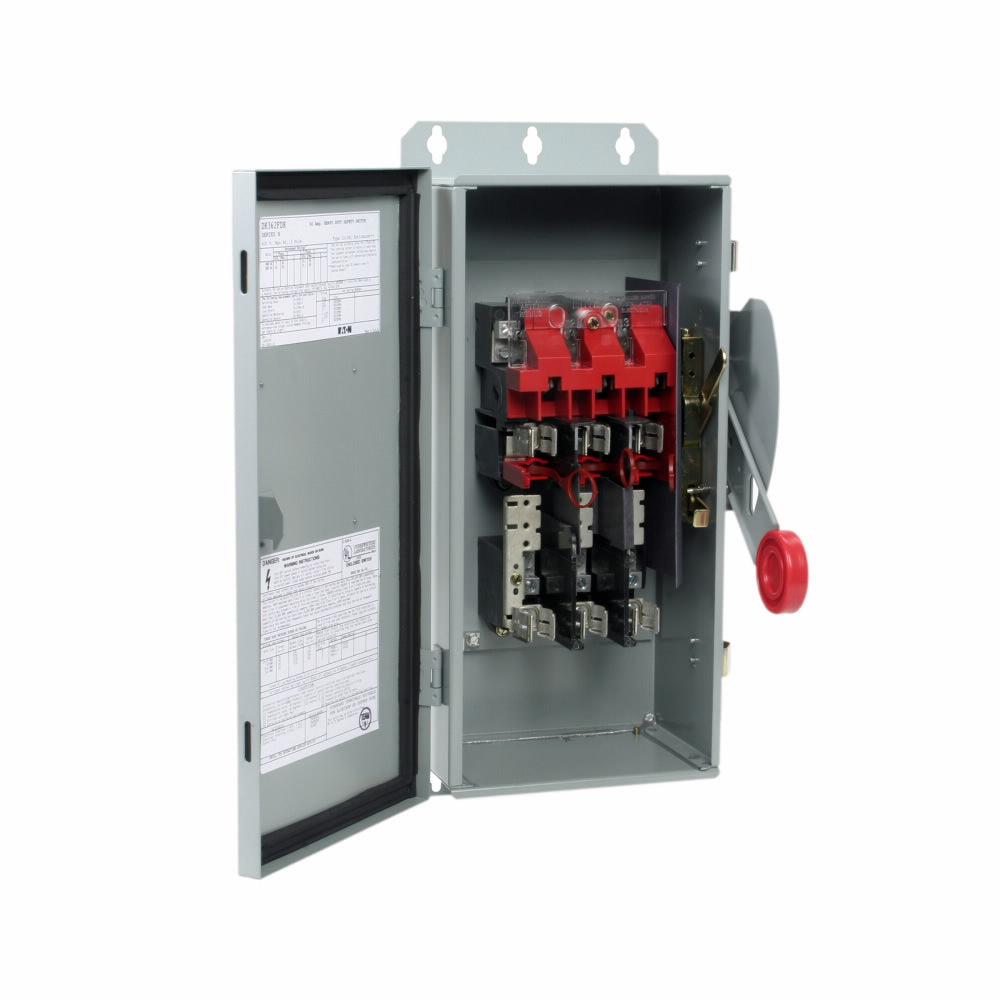

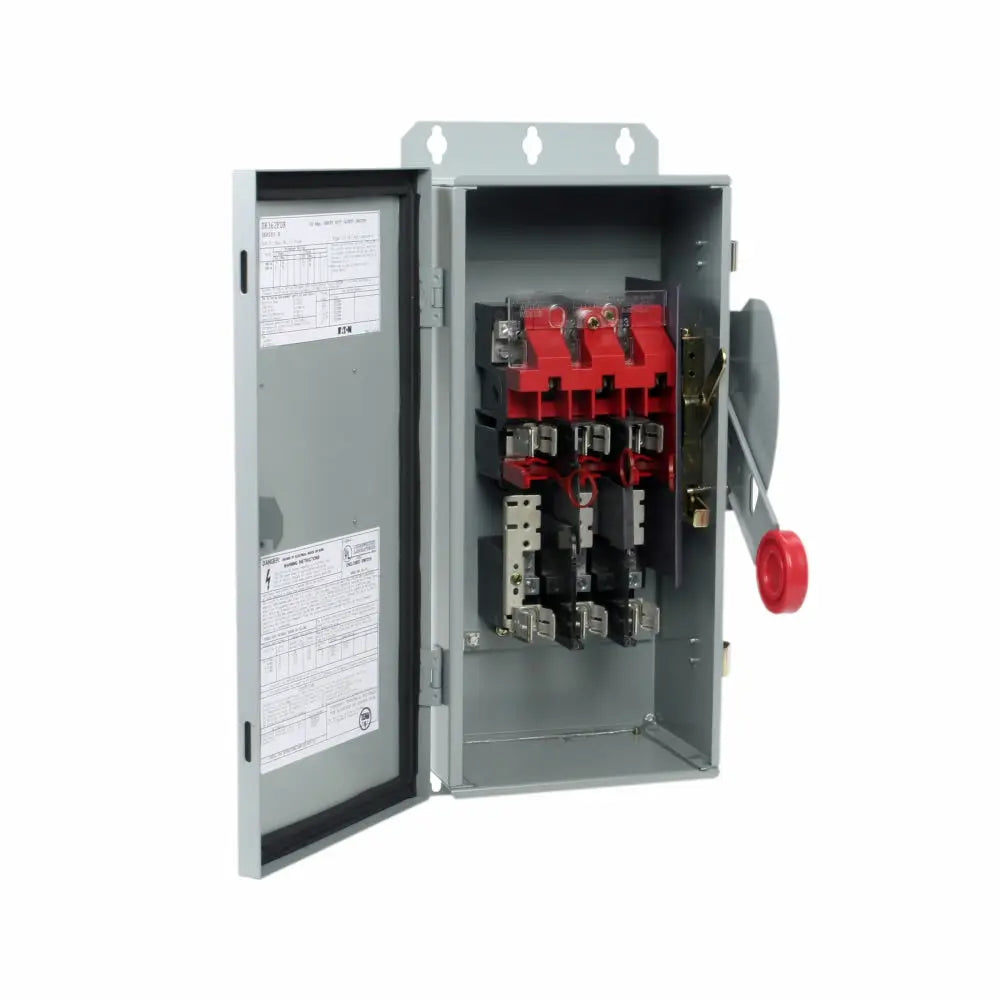

DH361FDK is a Cutler Hammer heavy duty fusible safety switch rated for 30 amps and 600 volts with a 3-pole configuration and NEMA 12/3R enclosure.DH361FDK features a painted galvanized steel enclosure suitable for industrial applications, Class H fuse clips without neutral, and enhanced visible blades. It supports up to 20 hp motor ratings at 480/600 volts and has a high interrupt rating of 200kA at 600V. This switch is UL Listed and designed for reliable service entrance or disconnect use.
- Amperage: 30A
- Voltage: 600V
- Poles: 3
- Enclosure: NEMA 12/3R painted galvanized steel
- Fuse Class: Class H fusible without neutral
- Interrupt Rating: 200kA at 600V
- Motor HP Rating: 7.5 to 20 HP (1/3 PH at 480/600V)
- Wire Size: #14-2 AWG Cu/Al
- UL Listed
- Weight: 22 lb
- Dimensions (HxWxD): 20 x 8.5 x 9.5 inches
- Enhanced visible blades for safety
Specifications
- Part Number: DH361FDK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : SGLA
Product Data
- UPC : 782113205595
- GTIN : 00782113205595
- Country of Origin : United States
- Dimensions : 20 in x 8.5 in x 9.5 in (Length/Depth x Height x Width)
- Weight : 22
- Certification : UL Listed
