DH361FRK - Cutler Hammer 30A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

DH361FRK

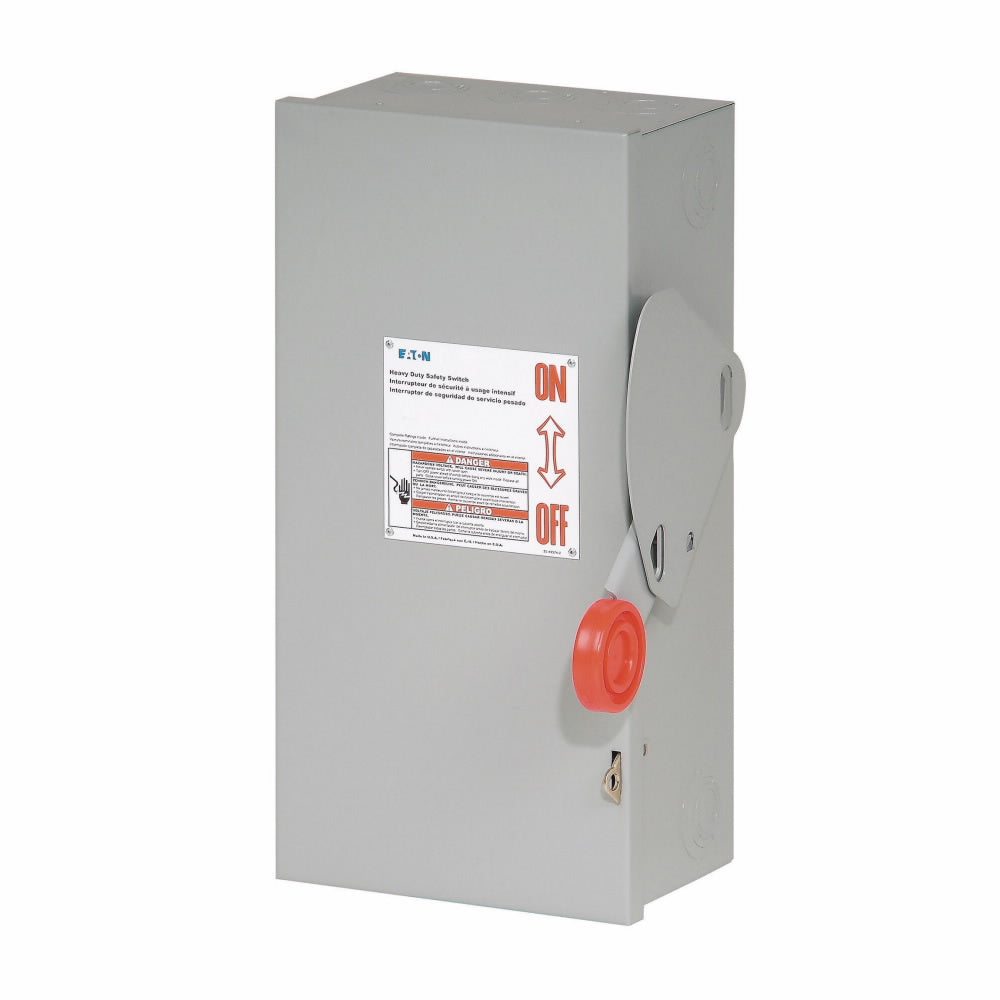

DH361FRK is a Cutler Hammer heavy duty fusible safety switch rated for 30 amps and 600 volts with a 3-pole configuration and NEMA 3R enclosure.This switch features an enhanced visible blade single-throw design, painted galvanized steel enclosure, Class H fuse provision without neutral, and is suitable for heavy commercial, industrial, and service entrance applications. It supports #14-2 AWG copper/aluminum wiring and has a maximum horsepower rating of 7.5, 10/15, and 20 hp at 1/3 phase 480/600 volts. The unit is UL listed and designed for reliable safety disconnect operation.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC
• Poles: 3
• Enclosure: NEMA 3R painted galvanized steel
• Fuse Class: Class H, fusible without neutral
• Wire Size: #14-2 AWG Cu/Al
• Max Horsepower: 7.5, 10/15, 20 hp (1/3PH @480, 600V)
• Type: Heavy Duty Fusible Safety Switch
• Certifications: UL Listed
• Mounting: Surface mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH361FRK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600 AC/250 DC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X
• Compatible Frames : SGLA

Product Data

• UPC : 782113205496
• GTIN : 00782113205496
• Country of Origin : United States
• Dimensions : 16.5 in x 8.5 in x 9.5 in (Length/Depth x Height x Width)
• Weight : 12 lb
• Certification : NEMA KS-1, UL Listed, UL98
