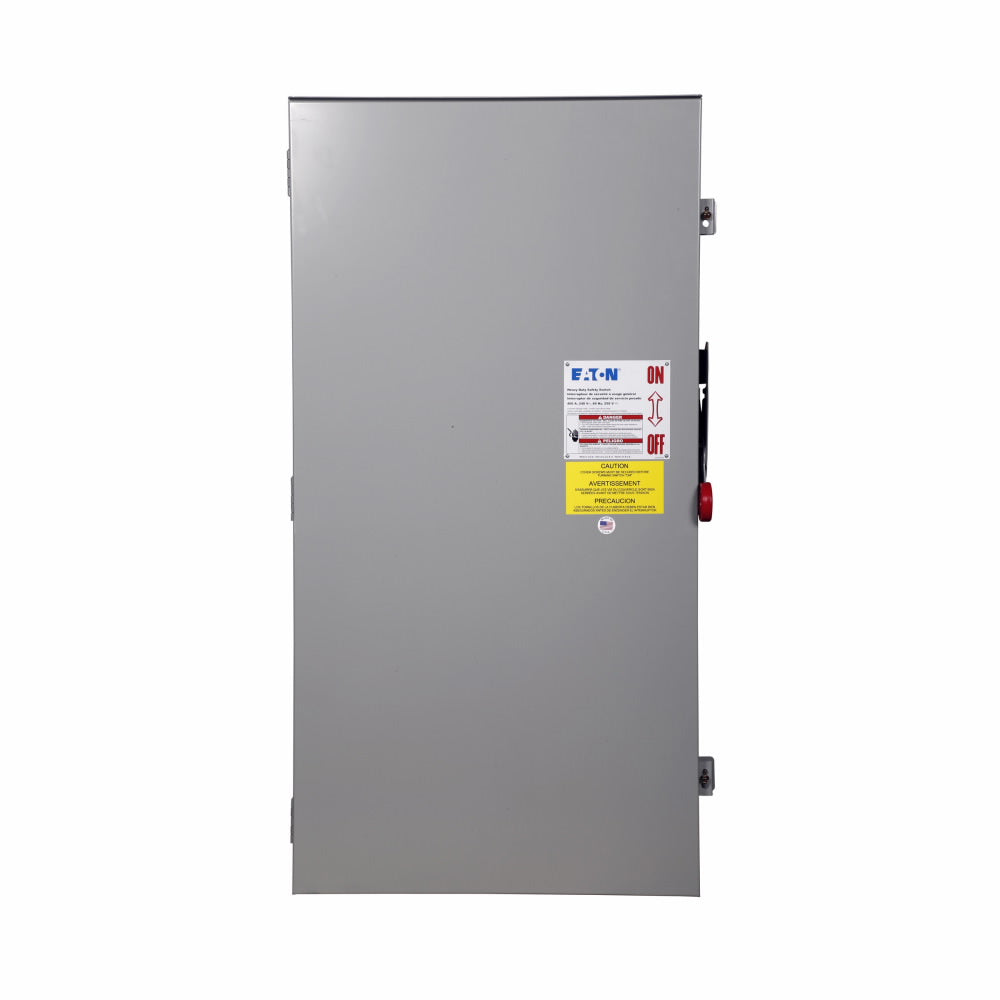

DH325FRK - Cutler Hammer 400A 240V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R

DH325FRK

DH325FRK is a heavy duty fusible safety switch designed for reliable circuit protection in commercial and industrial applications. This Eaton Cutler Hammer K Series switch features a 400A amperage rating, 240V voltage rating, and three-pole configuration for robust performance. The NEMA 3R enclosure is constructed from painted galvanized steel for durability in harsh environments. Suitable for service entrance use with a neutral kit installed, this switch provides visible blade operation and is rated for Class H fuses. The switch is UL Listed and supports a maximum horsepower of 50 (3PH @Std, TD/250 Vdc).Key Specifications:

• Part Number: DH325FRK
• Manufacturer: Cutler Hammer (Eaton)
• Series: K Series
• Amperage Rating: 400A
• Voltage Rating: 240V
• Number of Poles: 3
• Enclosure Type: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Fuse Class: Class H
• Fuse Configuration: Fusible without neutral
• HP Rating: 50 hp (3PH @Std, TD/250 Vdc)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH325FRK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 240
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : THLC

Product Data

• UPC : 782113207056
• GTIN : 00783164253740
• Country of Origin : United States
• Dimensions : 7.27 in x 44.74 in x 23.08 in (Length/Depth x Height x Width)
• Weight : 120
• Certification : UL Listed
