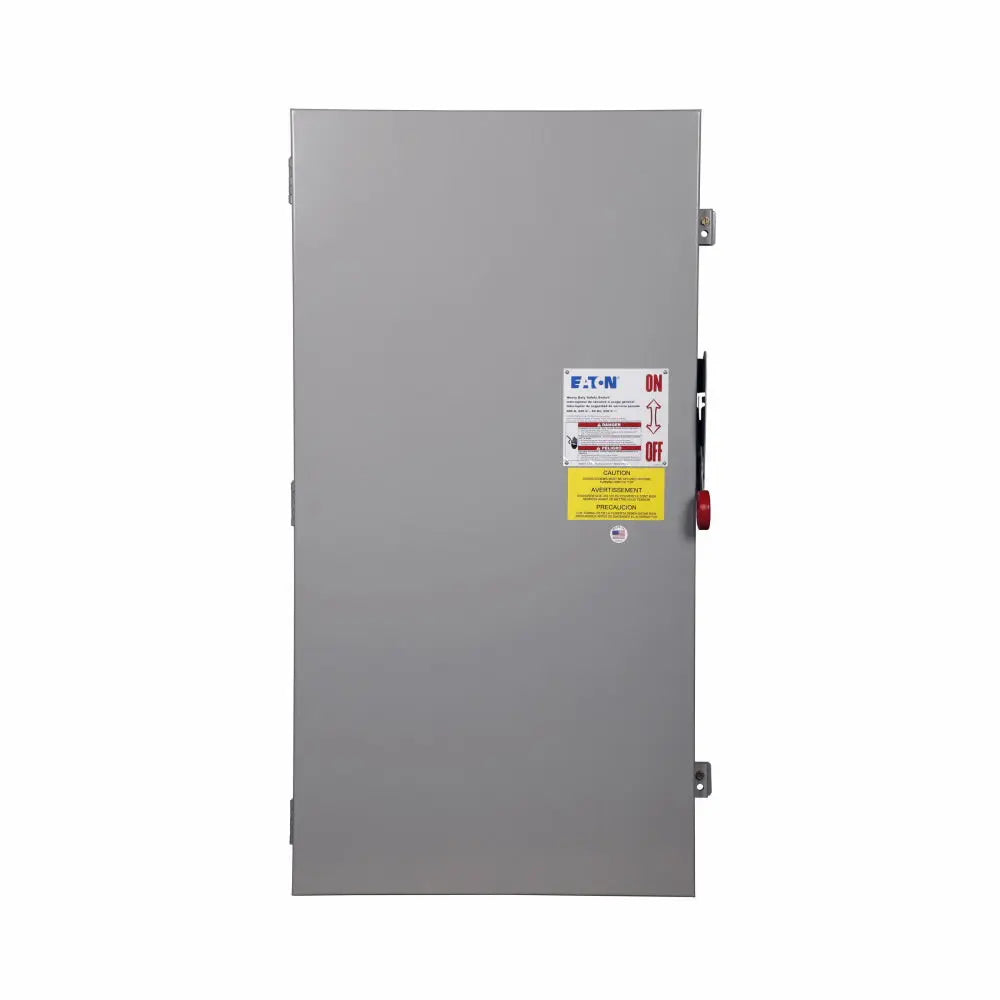

DH325FGK - Cutler Hammer 400A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 1

DH325FGK

DH325FGK is a Cutler Hammer heavy duty fusible safety switch rated for 400 amps and 240 volts with a 3-pole configuration and NEMA 1 enclosure.

This Eaton Enhanced visible blade single-throw safety switch features a painted steel enclosure, Class H fuse provision, and is designed for demanding commercial and industrial applications. It supports a maximum horsepower rating of 50 hp (125/50 hp 3-phase standard) and is UL and CUL listed for safety and reliability. The switch is fusible without neutral and suitable for service entrance use with a neutral kit installed. It offers a short circuit rating of 100 kA and is built for durability and ease of maintenance.

Key Specifications
• Amperage: 400 A
• Voltage: 240 V
• Poles: 3
• Mounting Type: NEMA 1 Painted Steel Enclosure
• Interrupt Rating: 100 kA
• Fuse Class: Class H
• Switch Type: Heavy Duty Fusible
• Max Horsepower: 50 hp (125/50 hp 3PH Std)
• Number of Wires: 3
• Certifications: UL Listed, CUL Listed
• Weight: Approx. 113-122 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH325FGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 240
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : THLC

Product Data

• UPC : 782113207049
• GTIN : 00782113207049
• Country of Origin : United States
• Dimensions : 7.27 in x 44.74 in x 23.08 in (Length/Depth x Height x Width)
• Weight : 120
• Certification : UL Listed
