Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DG224NRK

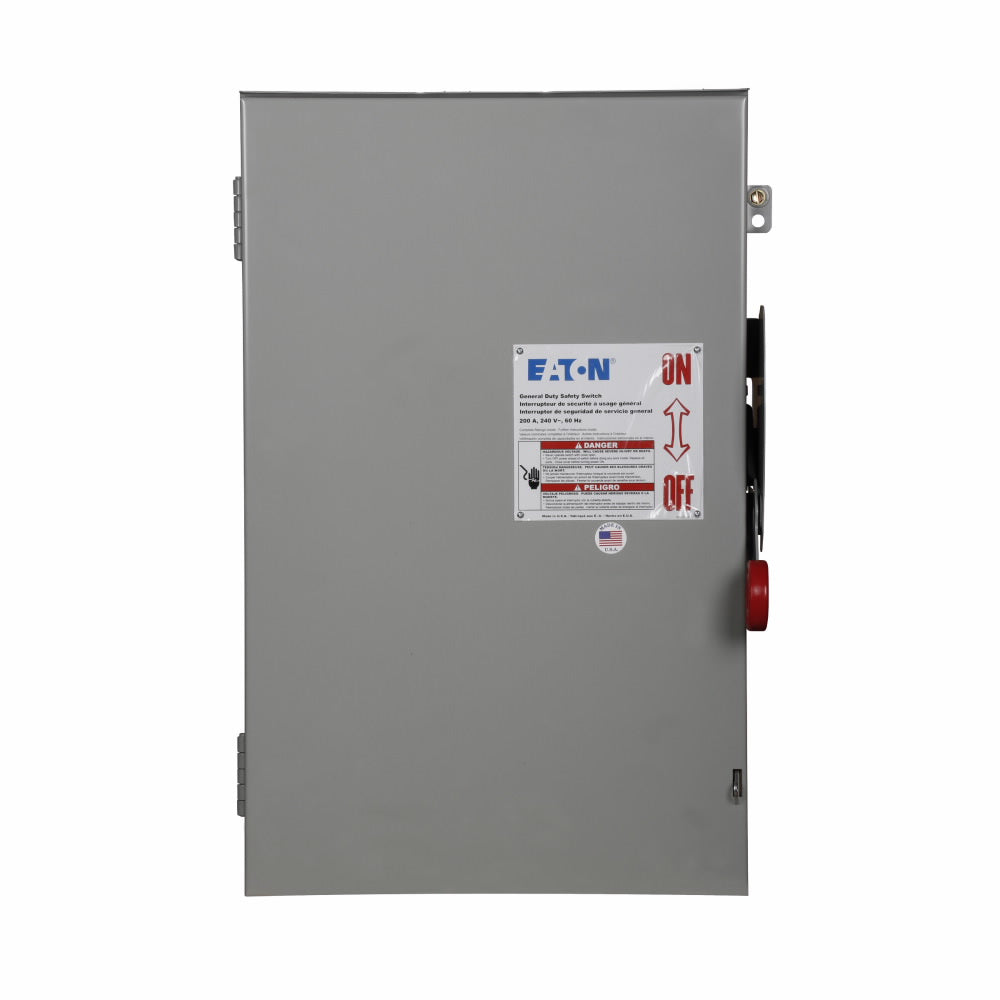

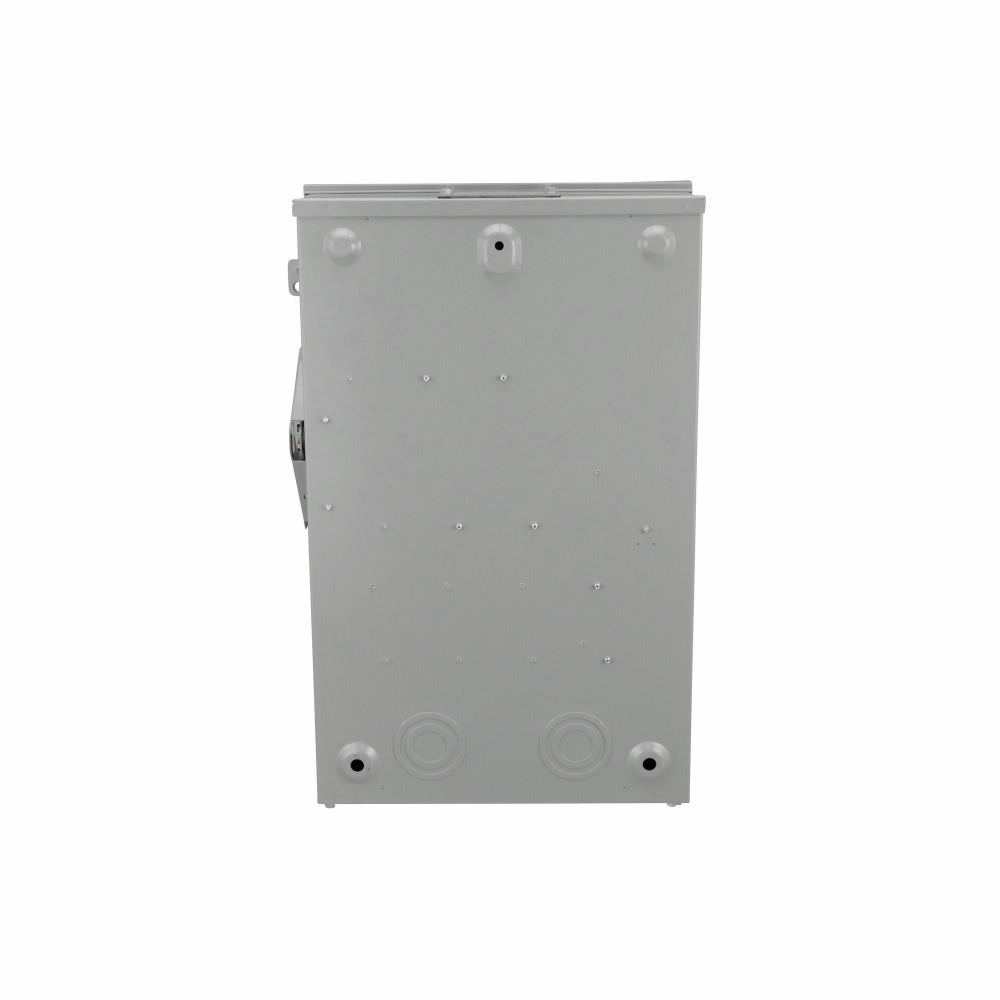

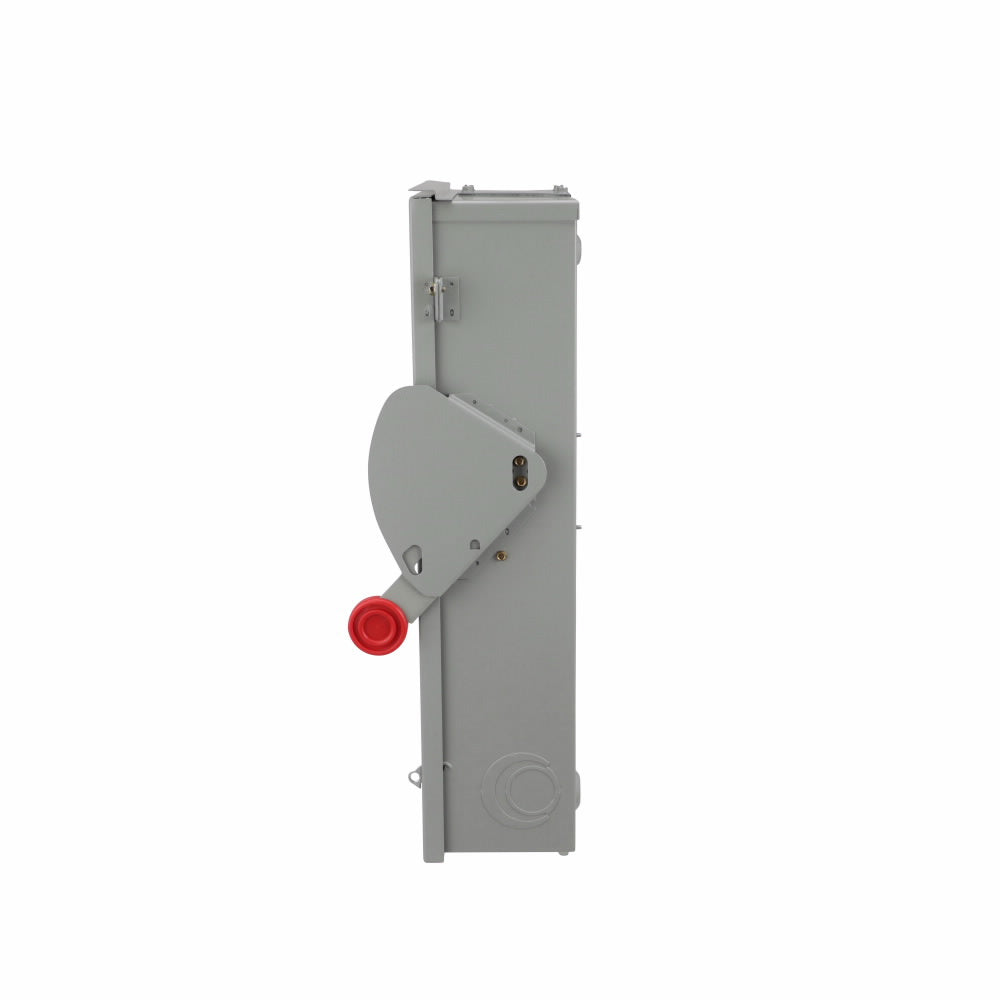

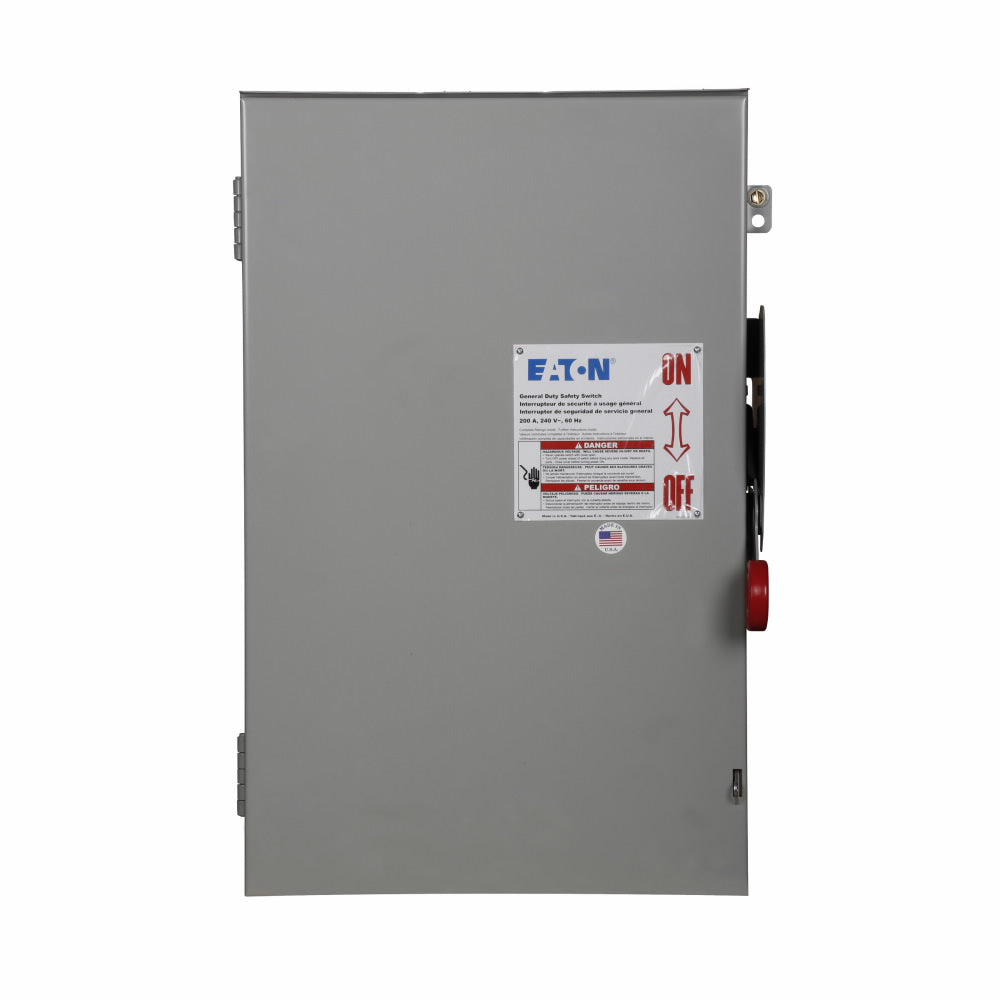

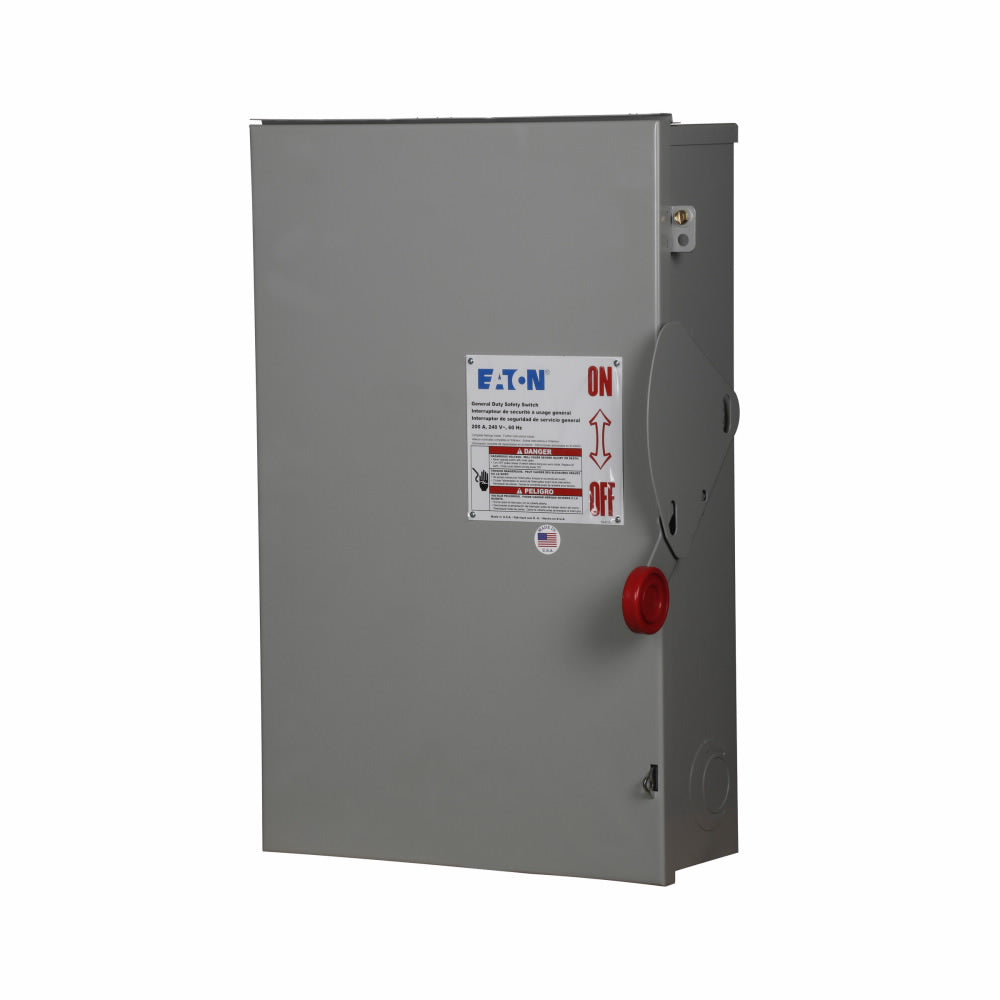

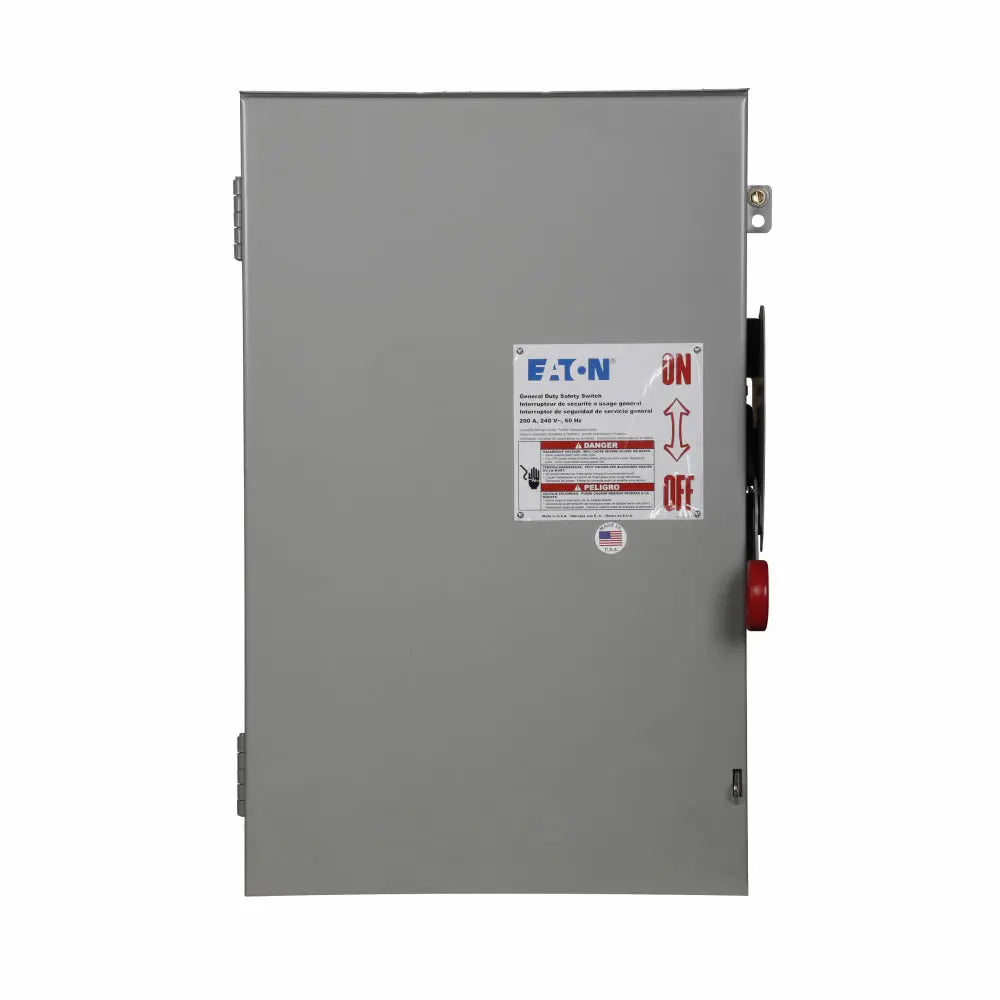

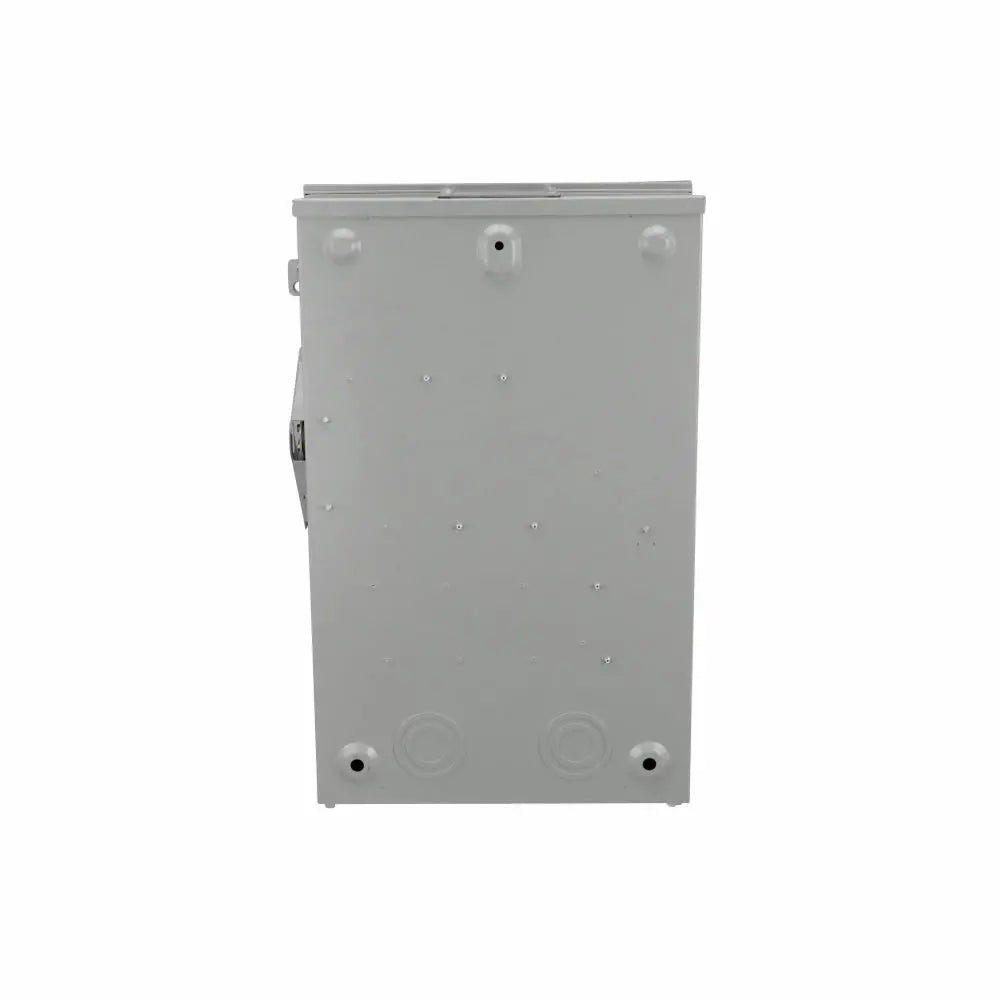

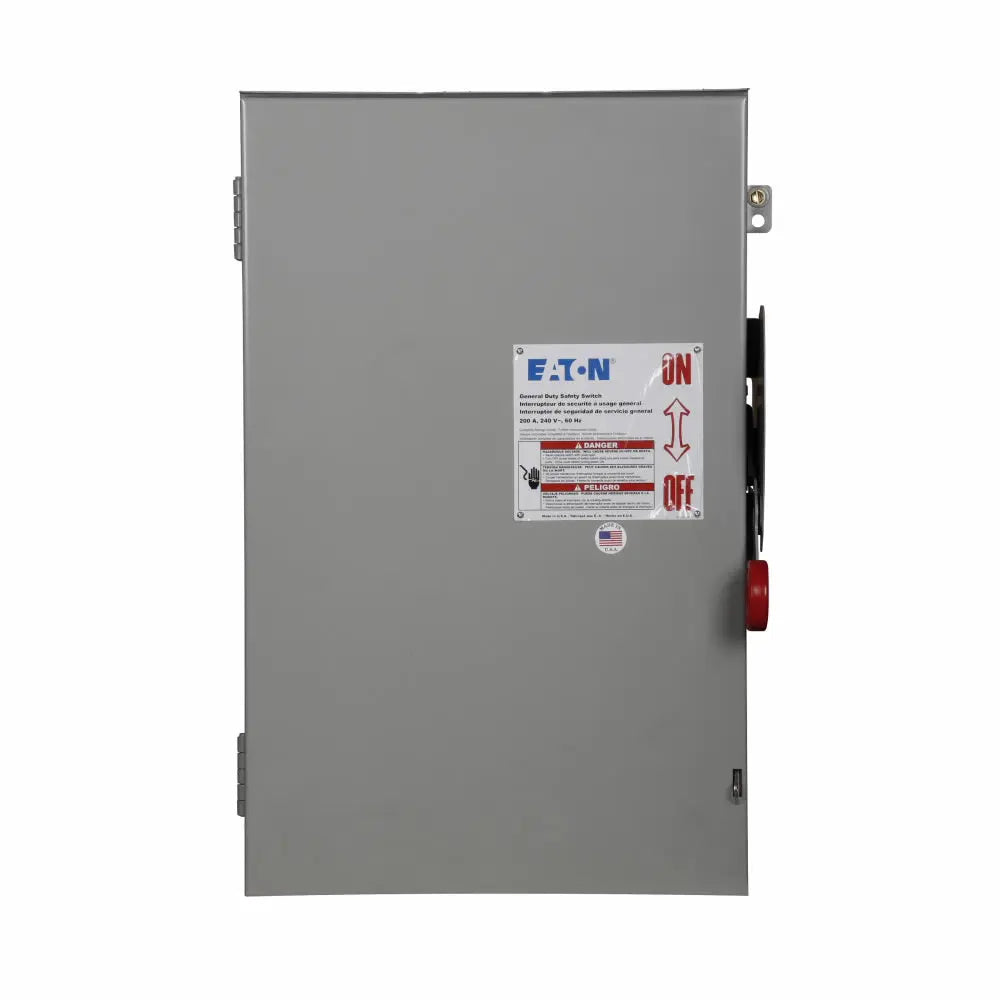

DG224NRK is a Cutler Hammer general duty cartridge fuse safety switch designed for 200 amp, 240 volt applications with a 2-pole configuration.DG224NRK features a painted galvanized steel NEMA 3R enclosure, fusible with neutral, and uses Class H fuses. It supports 3-wire connections and complies with UL 98 and NEC 230.62(C) standards, making it suitable for commercial, light duty motor circuits, residential, and service entrance applications.
- Key Specifications
- Amperage Rating: 200A
- Voltage Rating: 240V AC
- Number of Poles: 2
- Number of Wires: 3
- Fuse Type: Class H cartridge fuses
- Enclosure: NEMA 3R painted galvanized steel
- Interrupt Rating: 100kA RMS at 240V
- Switch Style: Fusible with neutral
- Certifications: UL Listed, NEC compliant
- Dimensions (HxWxD): 25.5" x 16" x 11.25"
- Weight: 55 lbs
- Part Number: DG224NRK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : SGPA
- UPC : 782113213507
- GTIN : 00782113213507
- Country of Origin : United States
- Dimensions : 11.25 in x 25.5 in x 16 in (Length/Depth x Height x Width)
- Weight : 55
- Certification : UL Listed
