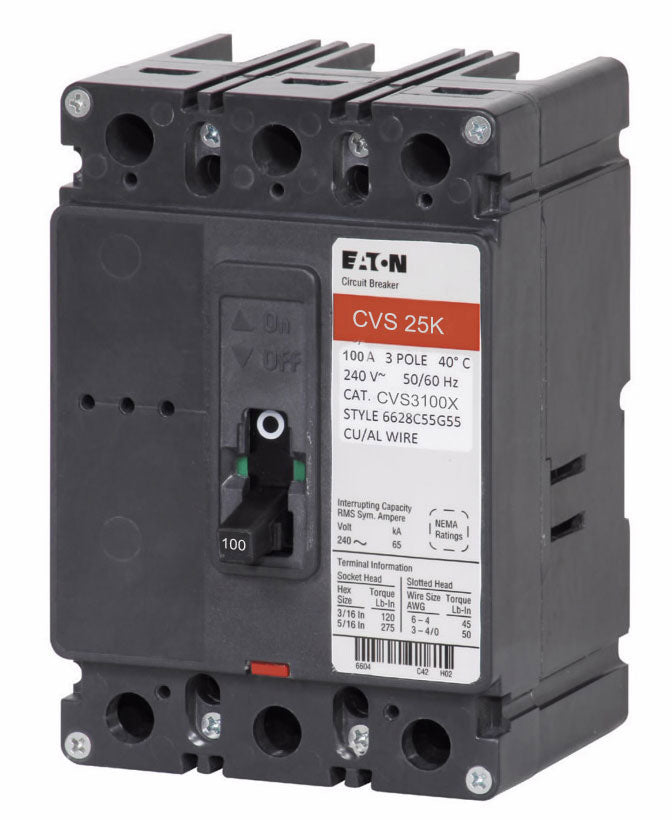

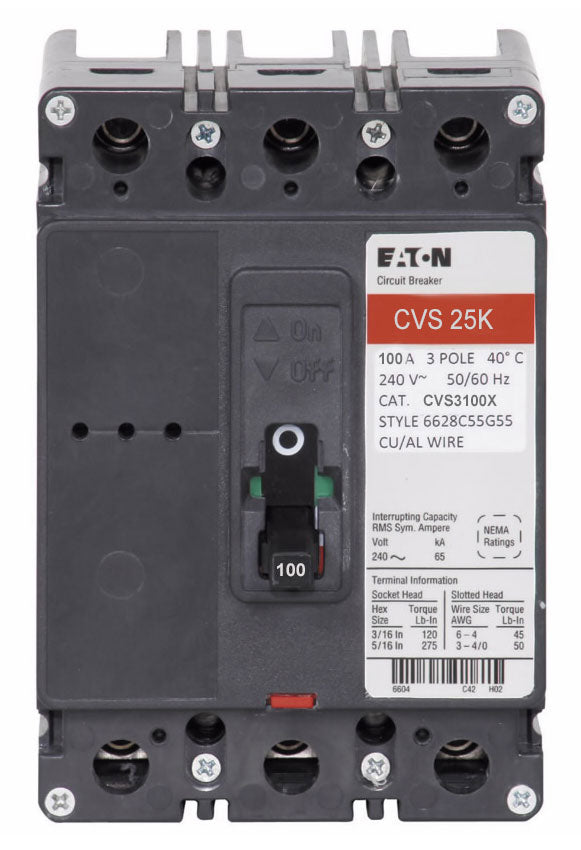

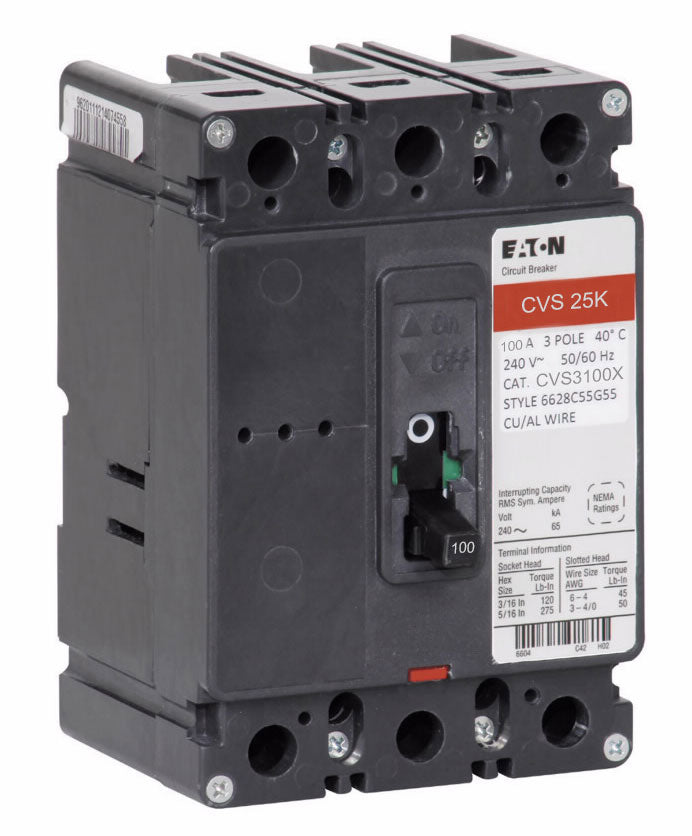

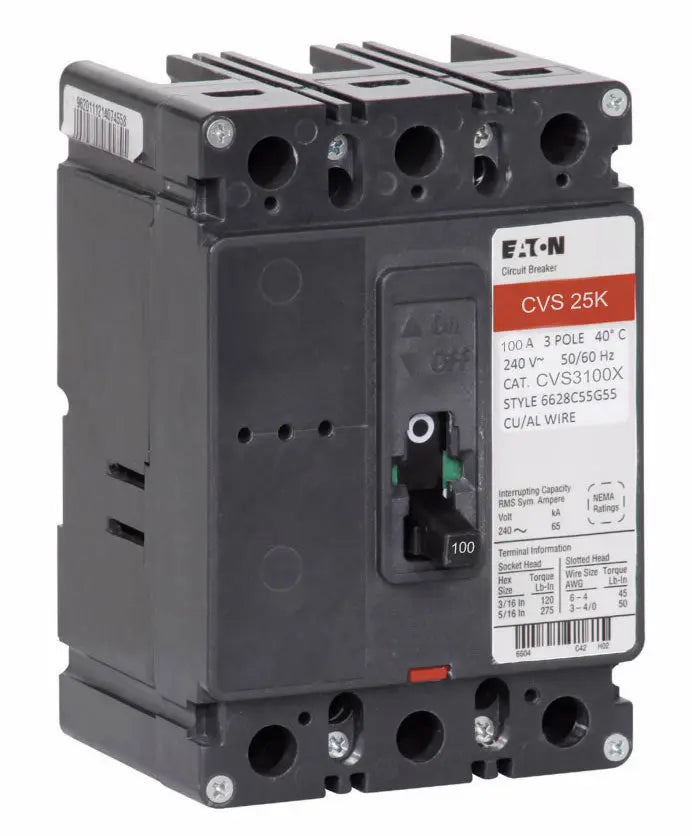

CVS3100X - Cutler Hammer 100A 240V 3 Pole Molded Case Circuit Breaker Type CV 42kAIC Bolt-On

CVS3100X

CVS3100X is a Cutler Hammer molded case circuit breaker rated for 100 amps, 240 volts, and three poles with a 42 kA interrupt rating.This Type CV breaker features a bolt-on mounting design, thermal magnetic trip unit with long time and instantaneous trip functions, and is suitable for use as a main breaker. It supports #6 to 4/0 AWG copper or aluminum wire and meets UL 489 and CSA C22.2 No. 5 certifications.

Key Specifications
• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 3
• Interrupt Rating: 42 kAIC
• Mounting Type: Bolt-On
• Wire Size: #6 - 4/0 AWG Cu/Al
• Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
• Frame/Series: CV
• Certifications: UL 489, CSA C22.2 No. 5
• Suitable as Main Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CVS3100X
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CVS Series
• Type : CVS
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685704227
• GTIN : 00786685704227
• Country of Origin : Dominican Republic
• Dimensions : 7.5 in x 5 in x 5 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL 489,CSA Std. C22.2 No. 5
• Wire Size : #6-4/0 AWG Cu/Al
