Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

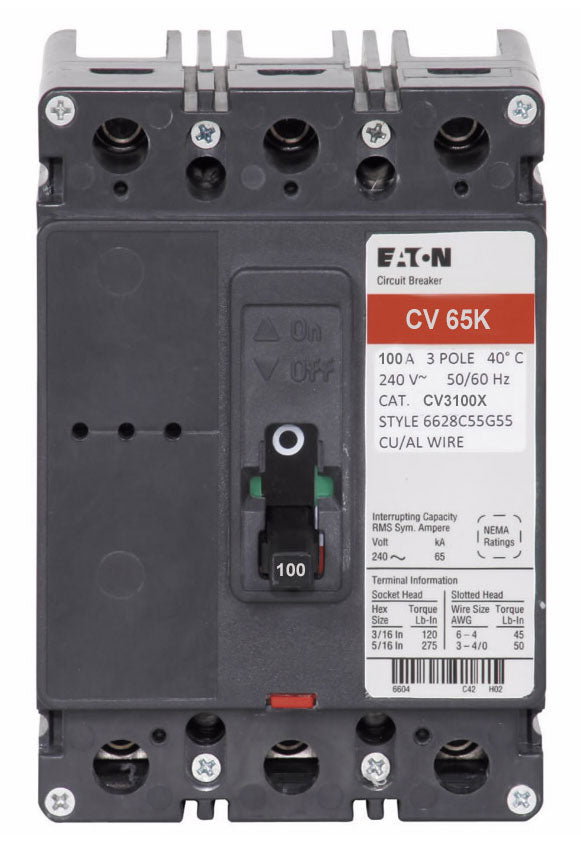

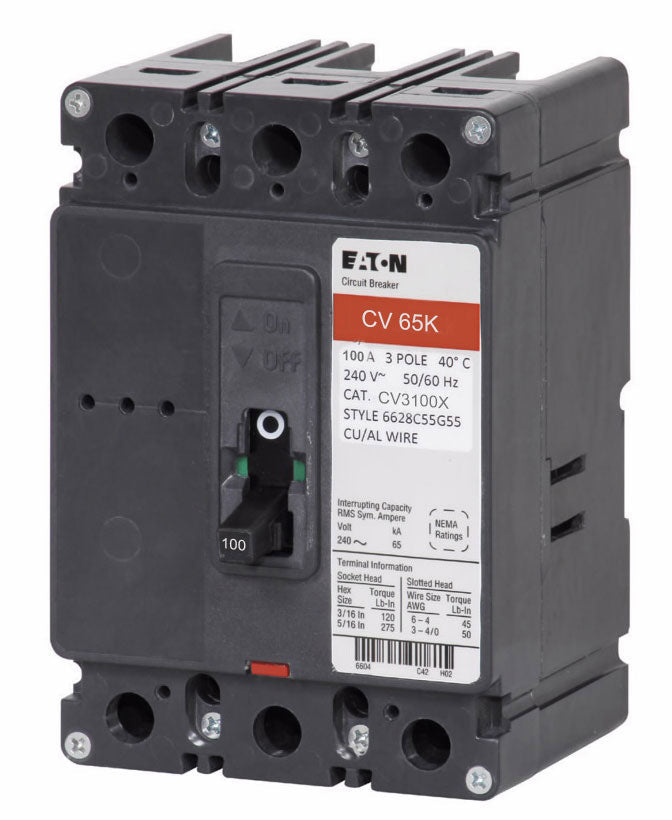

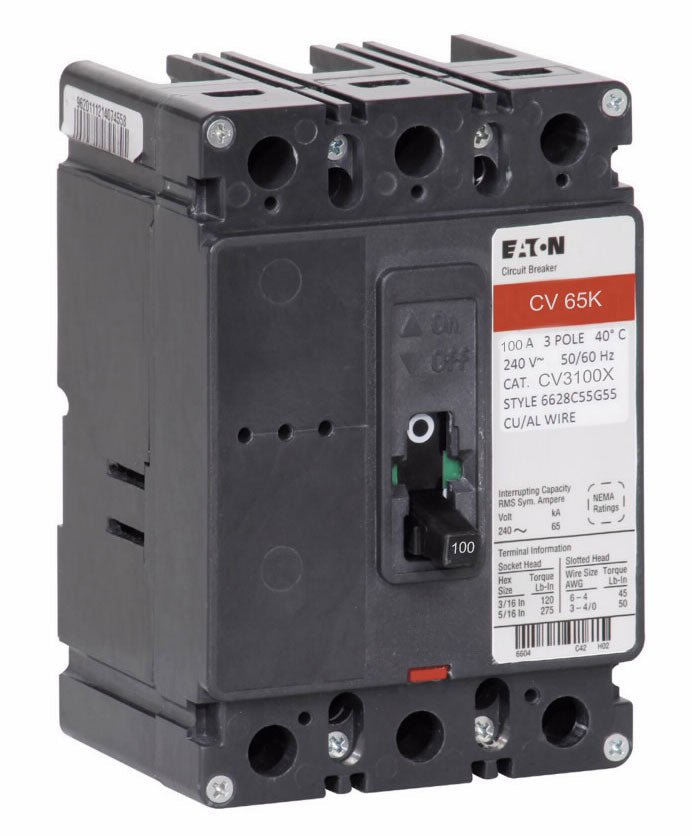

CV3100X
CV3100X is a 3 pole, 100 amp, 240V molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Cutler Hammer breaker features a bolt-on mounting style and a high interrupting rating for demanding environments. The CV3100X is part of the CV series and utilizes a thermal-magnetic trip unit for long-time and instantaneous protection. It is suitable for use with copper or aluminum conductors up to #4/0 AWG and is rated for 65kAIC at 240V. The breaker is UL listed and meets industry standards for safety and performance.
- Part Number: CV3100X
- Manufacturer: Cutler Hammer
- Amperage: 100A
- Voltage: 240V
- Poles: 3 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 65kAIC @ 240V
- Series/Frame: CV
- Wire Size: #6 - 4/0 AWG (Al/Cu)
- Terminal Type: #4/0 kcmil maximum
- Standards: UL Listed
- Application: Commercial, Industrial
Specifications
- Part Number: CV3100X
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CV Series
- Type : CV
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786685704661
- GTIN : 00786685704661
- Country of Origin : Dominican Republic
- Dimensions : 7.5 in x 5 in x 5 in (Length/Depth x Height x Width)
- Weight : 4.4
- Certification : CSA Std. C22.2 No. 5,UL 489
- Wire Size : 6 to 4/0 AWG
