Product Info
- Manufacturer:General Electric
- Sub-Category:Motor Starter
Description
CR306D103

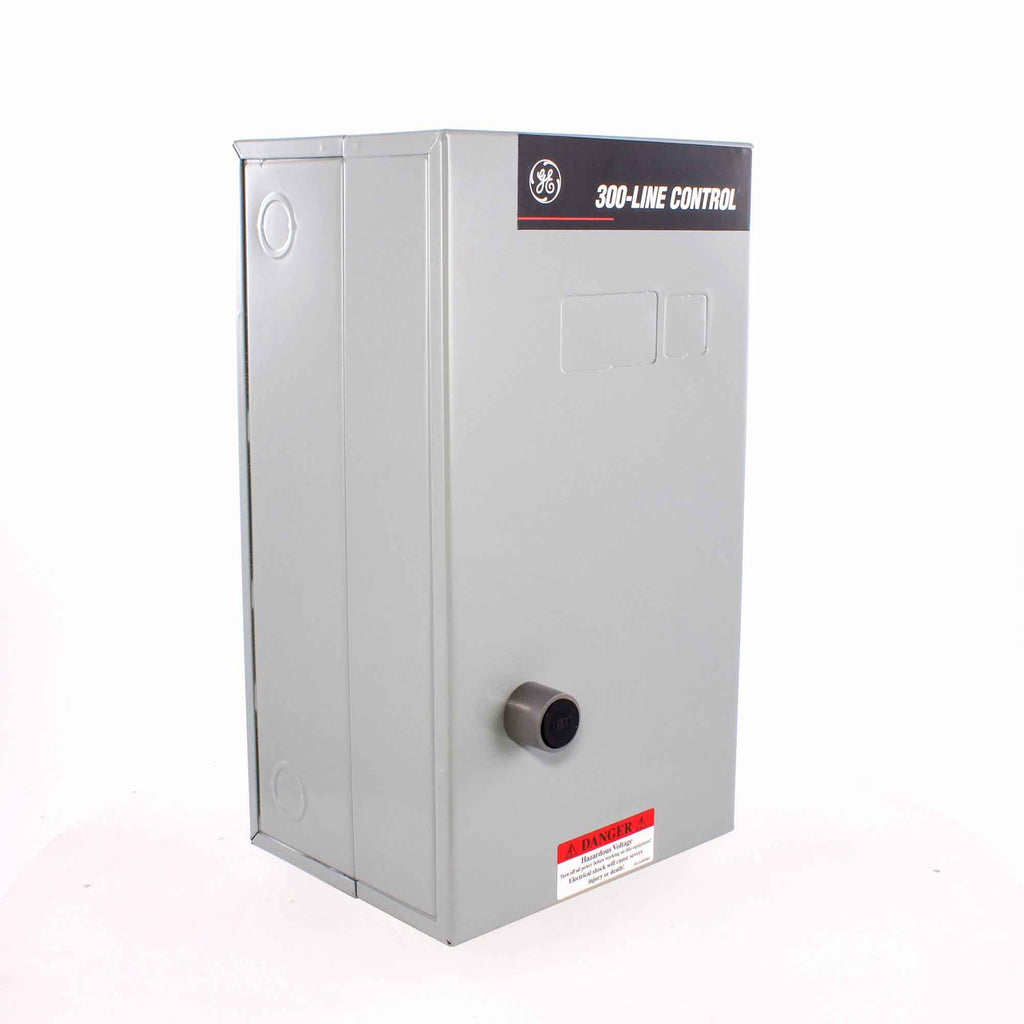

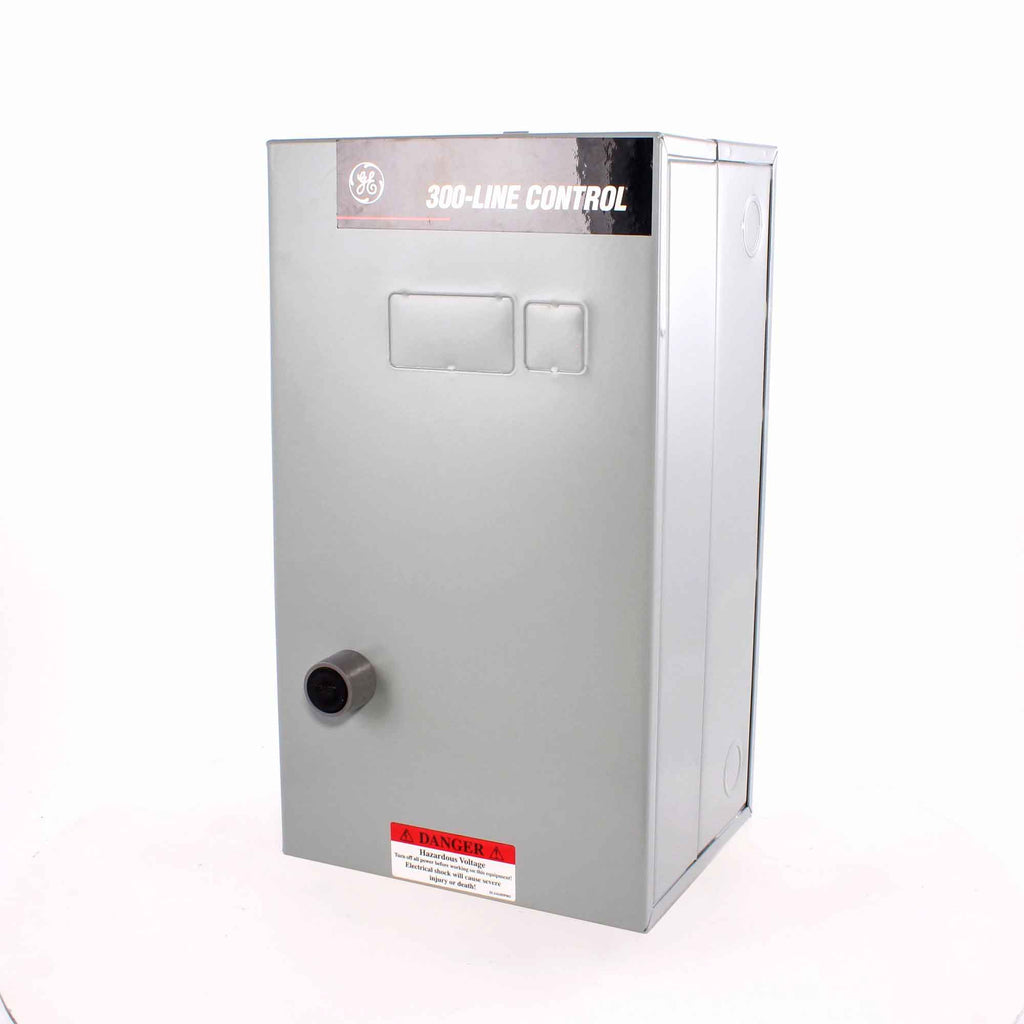

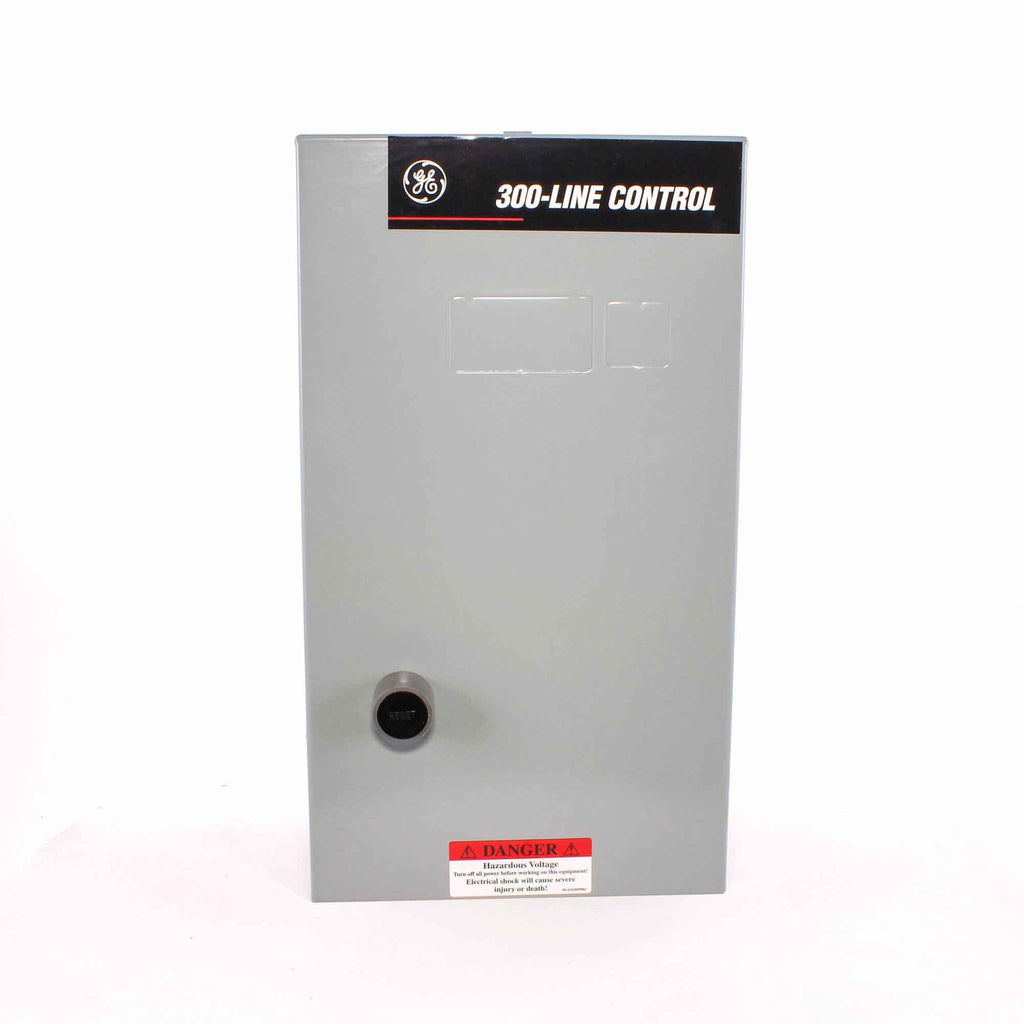

CR306D103 is a General Electric 45 amp, 600 volt, 3 pole motor starter designed for CR306 motor control systems.This full voltage, magnetic, non-reversing starter features a NEMA Size 2 frame with a NEMA 1 enclosure, suitable for three-phase motor applications up to 45 amps and 600 VAC. It includes a 3-leg overload relay for phase protection and is UL Listed and CSA Certified for safety and reliability.
- Manufacturer: General Electric
- Amperage: 45 A
- Voltage: 600 VAC
- Poles: 3
- Phase: 3
- Frame/Series: CR306, Size 2
- Enclosure Type: NEMA 1
- Type: Full Voltage Magnetic Starter
- Non-Reversing
- UL Listed and CSA Certified
- Overload Protection: 3-leg overload relay
Specifications
- Part Number: CR306D103
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : 300-Line
- Type : CR306
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 230
- Nema Rating : 2
- Nema Starter Size : 2
- Enclosure : 1
Product Data
- UPC : 783166359525
- GTIN : 40783166359523
- Country of Origin : United States
- Dimensions : 7.38 in x 13.25 in
- Weight : 18
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, UL Listed
