Product Info
- Manufacturer:General Electric
- Sub-Category:Motor Starter
Description

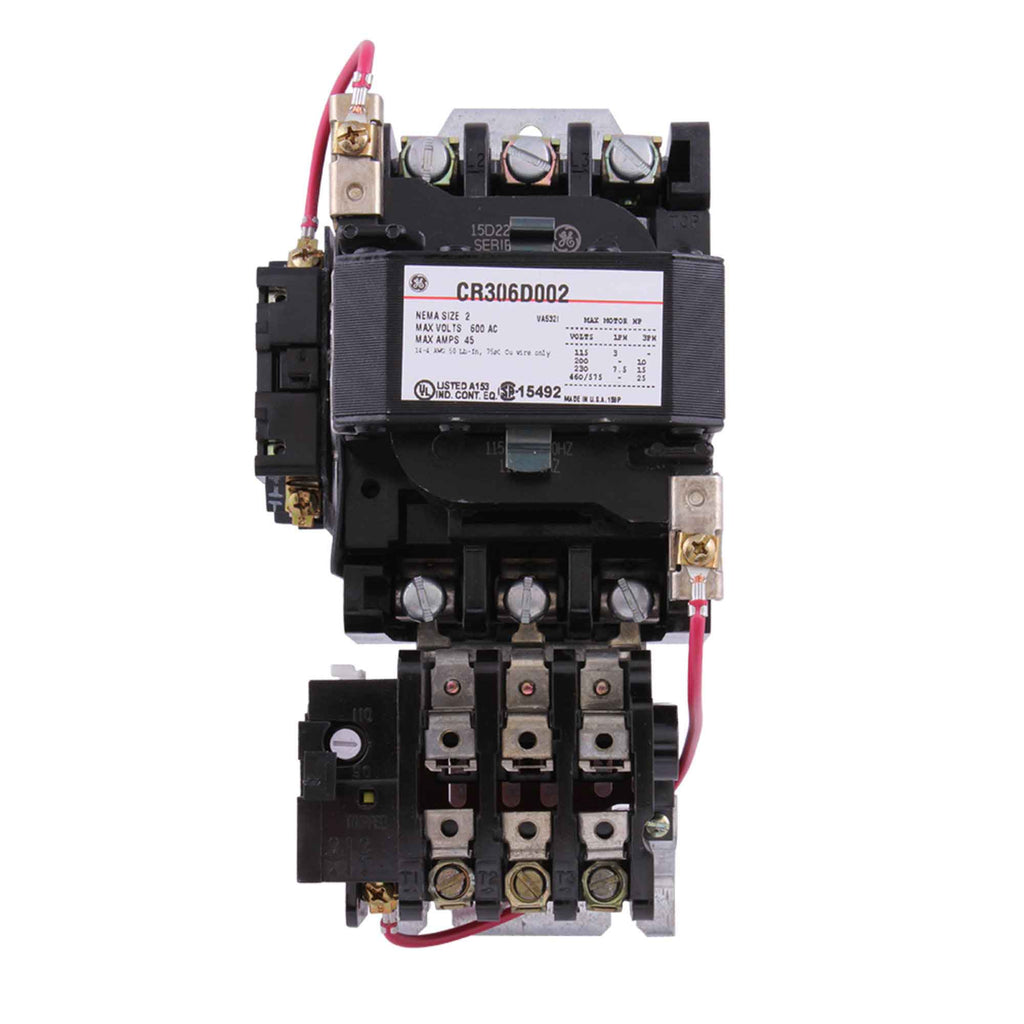

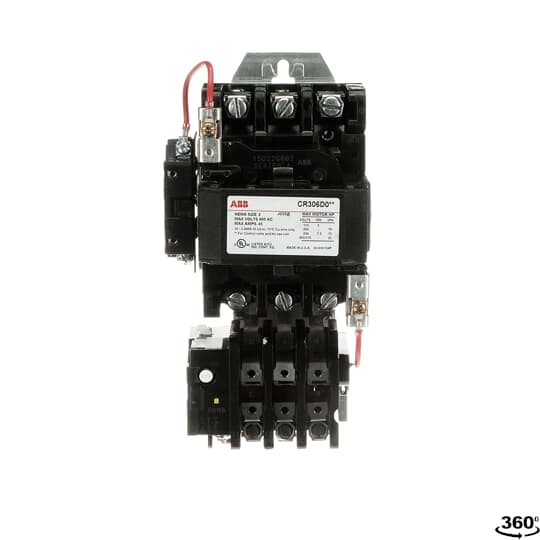

CR306D002
CR306D002 is a General Electric 3-pole magnetic motor starter with a 45 amp rating and a 115-120 volt AC coil designed for full voltage motor control.This NEMA 2 frame starter features a 3-leg thermal overload relay for phase protection, supports up to 25 HP at 460V three-phase, and is suitable for surface mounting. It is an open style, non-reversing starter compatible with motors requiring up to 45 amps continuous current and 600 volts maximum. The starter includes screw-type terminations and meets industry NEMA standards.
- Amperage: 45 A continuous
- Voltage: 115-120 VAC coil, 600 V max operational
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: NEMA 2 frame
- Series/Frame: CR306, Size 2
- Trip Unit: Thermal overload relay, 3-leg
- Enclosure: Open
- Max HP: 15 HP @ 230V 3-phase, 25 HP @ 460V 3-phase
- Coil Type: Magnetic
- Termination: Screw
Specifications
- Part Number: CR306D002
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : 300-Line
- Type : CR306
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 115
- Nema Rating : 2
- Nema Starter Size : 2
Product Data
- UPC : 783166358689
- GTIN : 40783166358687
- Country of Origin : United States
- Dimensions : 5.44 in x 9.12 in
- Weight : 12
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL 508
