2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CMD63B600

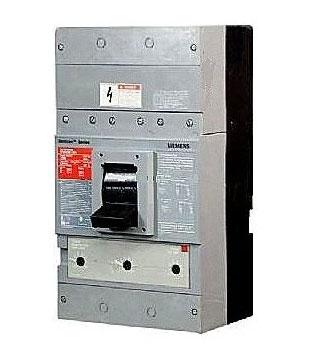

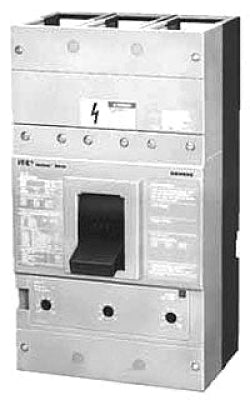

CMD63B600 is a Siemens 3 pole molded case circuit breaker rated for 600 amps and 600 volts AC, designed for reliable power distribution protection.CMD63B600 features a CMD frame with thermal magnetic trip unit and current limiting breaking capacity. It meets UL 489 and IEC 60947-2 standards, with an interrupt rating of 100kA at 480V and 65kA at 600V. This bolt-on breaker is suitable for industrial and commercial applications requiring robust circuit protection.
- Manufacturer: Siemens
- Amperage: 600A
- Voltage: 600V AC
- Poles: 3
- Frame Type: CMD (MD Frame)
- Interrupt Rating: 100kA at 480V, 65kA at 600V
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Standards: UL 489, IEC 60947-2
- Current Limiting Breaking Capacity
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CMD63B600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CMD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : MD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643215047
- GTIN : 00783643215047
- Country of Origin : Mexico
- Weight : 54
- Wire Size : AWG 1/0 to 500KCM, Cu/Al
