2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CMD63A800

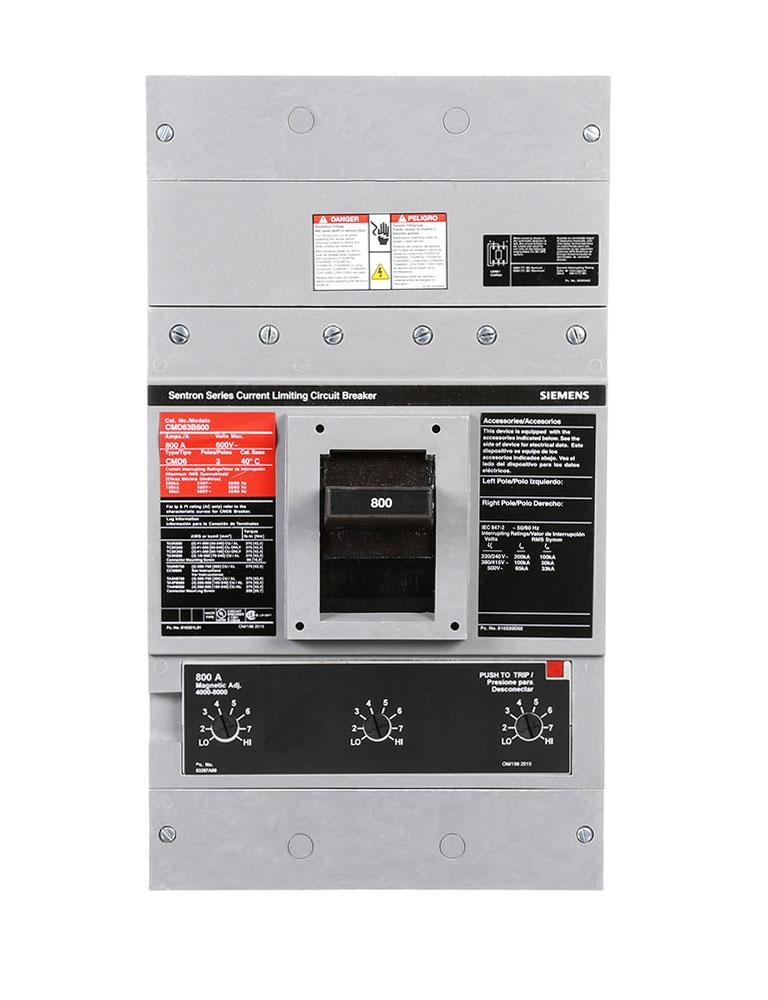

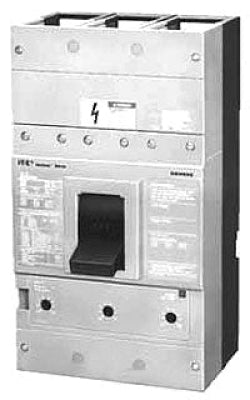

CMD63A800 is a Siemens 800 amp, 600 volt, 3 pole molded case circuit breaker designed for industrial and motor starting applications.This Siemens Sentron Series CMD63A800 circuit breaker features a thermal-magnetic trip unit with adjustable magnetic trip settings from 4000 to 8000 amps. It has a 100kA interrupting rating at 480V AC and is bolt-on mounted. The breaker is rated for 3 phase power and provides reliable protection for motor circuits and other heavy-duty electrical loads.
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Frame Type: CMD (Sentron Series)
- Trip Unit: Thermal-Magnetic, adjustable magnetic trip 4000-8000A
- Interrupt Rating: 100kA at 480V AC
- Mounting Type: Bolt-On
- Phase: 3 Phase
- Application: Motor Starting and Industrial Use
- Dimensions: Approx. 16 x 9 x 10 inches
- Certifications: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CMD63A800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CMD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Frame Size : MD Frame
- Protection : Magnetic Only
Product Data
- UPC : 783643215306
- GTIN : 00783643215306
- Country of Origin : Mexico
- Weight : 54
- Wire Size : AWG 1/0 to 500KCM, Cu/Al
