Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CMD63B500

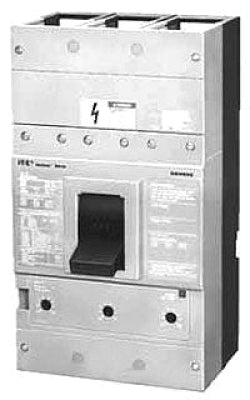

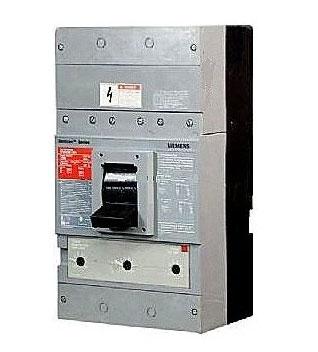

CMD63B500 is a Siemens 3 pole molded case circuit breaker rated for 500 amps and 600 volts with a bolt-on mounting type.This Siemens CMD63B500 circuit breaker features a 3-pole design with a 600V voltage rating and 500A amperage capacity. It has a bolt-on frame style and a 100kA interrupting rating at 480V, providing reliable protection for electrical circuits. The breaker includes a thermal magnetic trip unit and is part of the Siemens MD frame series. It is designed for industrial and commercial applications requiring high interrupt capacity and durability.
- Key Specifications
- Amperage: 500A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 480V
- Frame/Series: MD Frame
- Trip Unit: Thermal Magnetic
- Style: Molded Case Circuit Breaker
- Certifications: UL Listed, CSA Certified (typical for Siemens breakers)
- Part Number: CMD63B500
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CMD
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : MD Frame
- Protection : Thermal Magnetic
- UPC : 783643001572
- GTIN : 00783643001572
- Weight : 56
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
