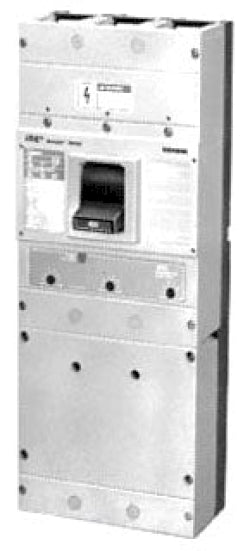

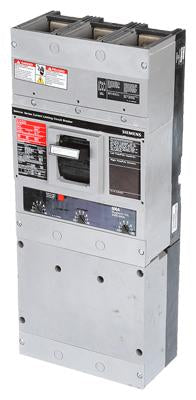

CLD63B500 - Siemens 500A 600V 3 Pole Bolt-On Molded Case Circuit Breaker LD Frame

CLD63B500

CLD63B500 is a Siemens 3 pole, 500 amp, 600 volt bolt-on molded case circuit breaker designed for reliable current limiting protection.CLD63B500 features a fuseless current limiting design within the LD frame series, providing high interrupting capacity and thermal magnetic trip protection. It is rated for 150kA interrupt at 480V and 100kA at 600V, suitable for industrial and commercial power distribution applications. The breaker is non-interchangeable and designed for standard 40 degree Celsius environments.

• Amperage: 500 A
• Voltage: 600 V AC / 500 V DC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 150kA at 480V, 100kA at 600V
• Series/Frame: LD Frame (Type CLD6)
• Trip Unit: Non-interchangeable thermal magnetic
• Fuseless current limiting
• Standard 40°C ambient rating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: CLD63B500
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CLD
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 150kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : LD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643214279
• GTIN : 00783643214279
• Country of Origin : Mexico
• Weight : 33.001
• Wire Size : 3/0AWG - 500KCM (CU) / 4/0AWG - 500KCM (AL)
