Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CLD63B600

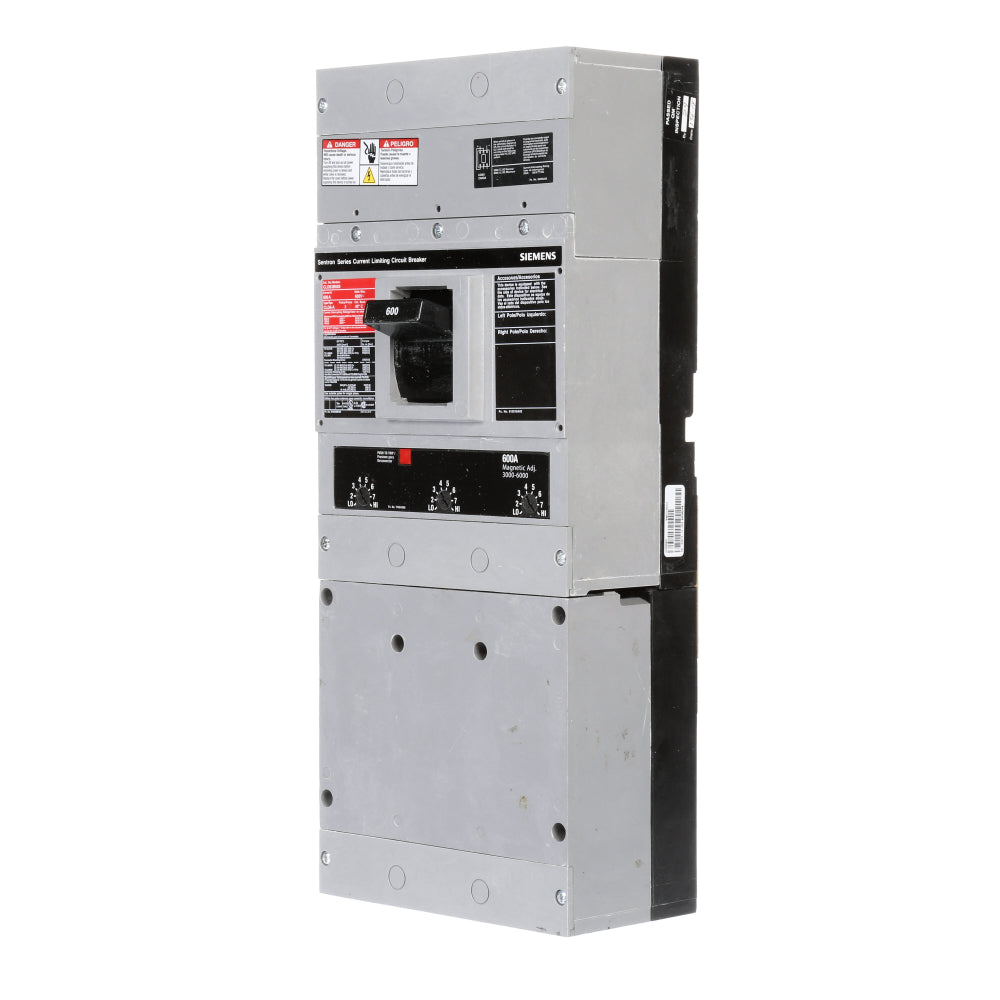

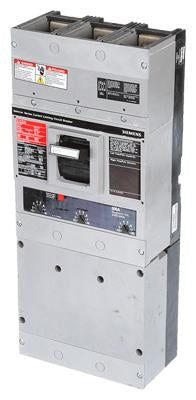

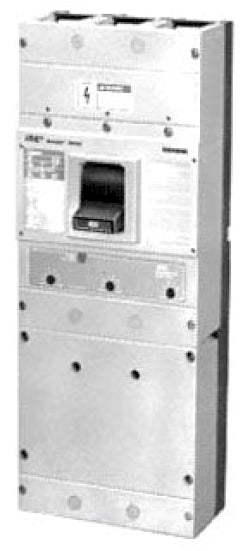

CLD63B600 is a Siemens Sentron Series molded case circuit breaker rated for 600 amps and 600 volts with a 3-pole configuration and thermal magnetic trip.
This Type CLD6 current limiting fuseless low voltage breaker features a 100 kA interrupt rating at 600 VAC/500 VDC, LD frame, and operates at 50/60 Hz frequency. It has a trip range of 3000 to 6000 amps, is designed for standard 40°C temperature rating, and includes a non-interchangeable thermal magnetic trip unit. The breaker is bolt-on mounted and HACR rated for reliable industrial and commercial applications.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 VAC / 500 VDC
- Number of Poles: 3
- Interrupt Rating: 100 kA at 600 V
- Frame: LD
- Trip Type: Thermal Magnetic
- Trip Range: 3000 to 6000 A
- Frequency: 50/60 Hz
- Mounting Type: Bolt-On
- Temperature Rating: 40°C
- Series: Sentron CLD6
- Certifications: HACR Rated
- Part Number: CLD63B600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CLD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 150kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
- UPC : 783643214286
- GTIN : 00783643214286
- Country of Origin : Mexico
- Weight : 33.001
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
