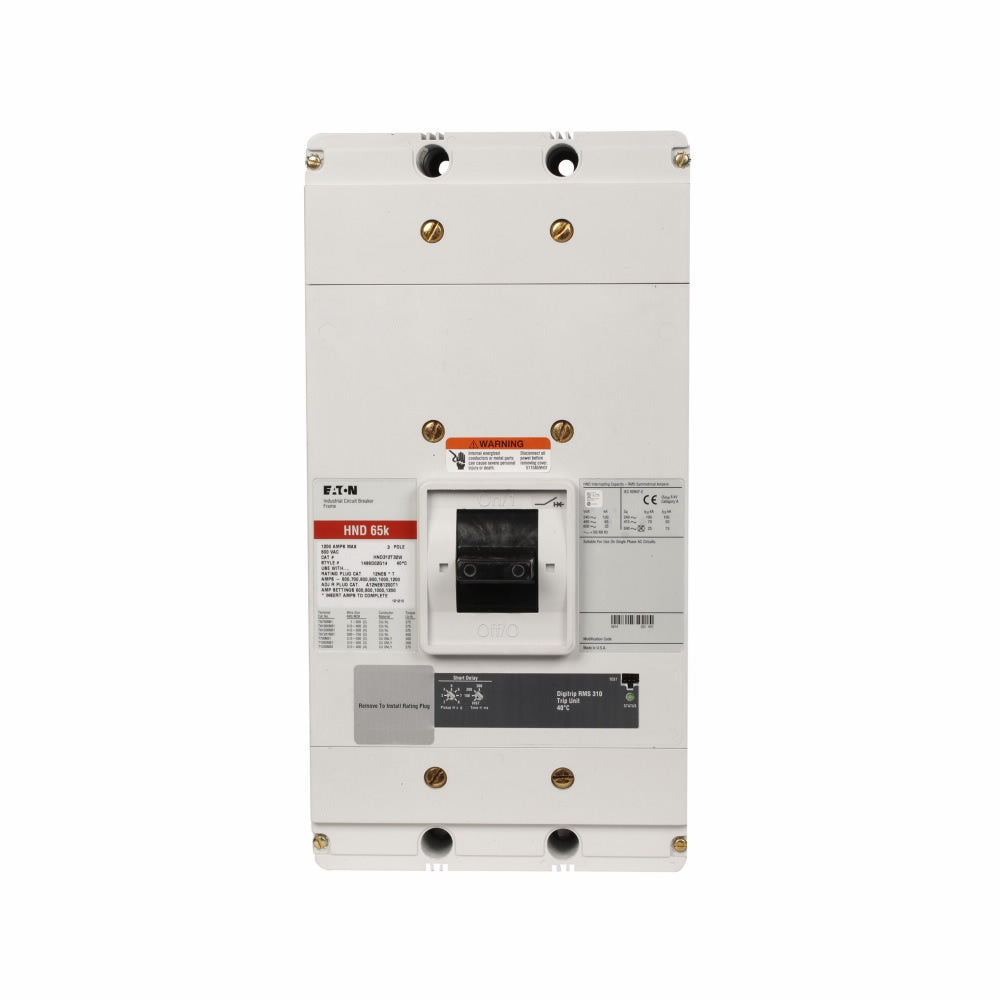

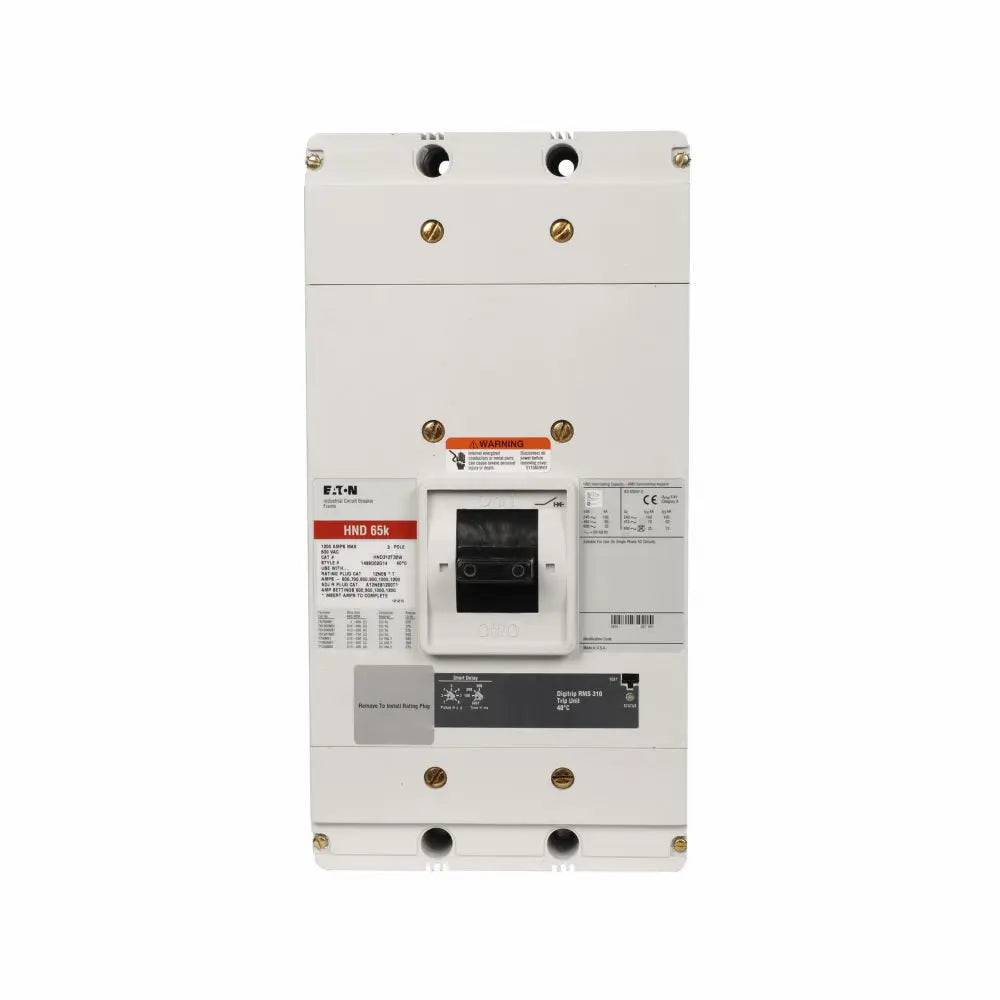

CHND3800T76W - Eaton 800A 600V 3-Pole Series C Molded Case Circuit Breaker

CHND3800T76W

CHND3800T76W is a 3-pole, 800 amp, 600 volt Series C molded case circuit breaker from Eaton designed for reliable power distribution protection.This circuit breaker features a robust Series C frame with an OPTIM 750 LSIG trip unit, providing precise and dependable trip performance. It is rated for 800 amps and 600 volts AC, suitable for industrial and commercial applications requiring high interrupt capacity and durability. The breaker is designed for panel or enclosure mounting and offers a 50 kA interrupt rating at 480 VAC, ensuring safe interruption of fault currents.

Key Specifications
• Amperage: 800 A
• Voltage Rating: 600 VAC
• Poles: 3
• Series/Frame: Series C
• Trip Unit: OPTIM 750 LSIG
• Interrupt Rating: 50 kA at 480 VAC
• Mounting Type: Molded Case
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHND3800T76W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CHND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : N Frame
• Protection : Solid State



Product Data

• UPC : 786679050293
• GTIN : 00786679050293
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 45
• Certification : HACR Rated
